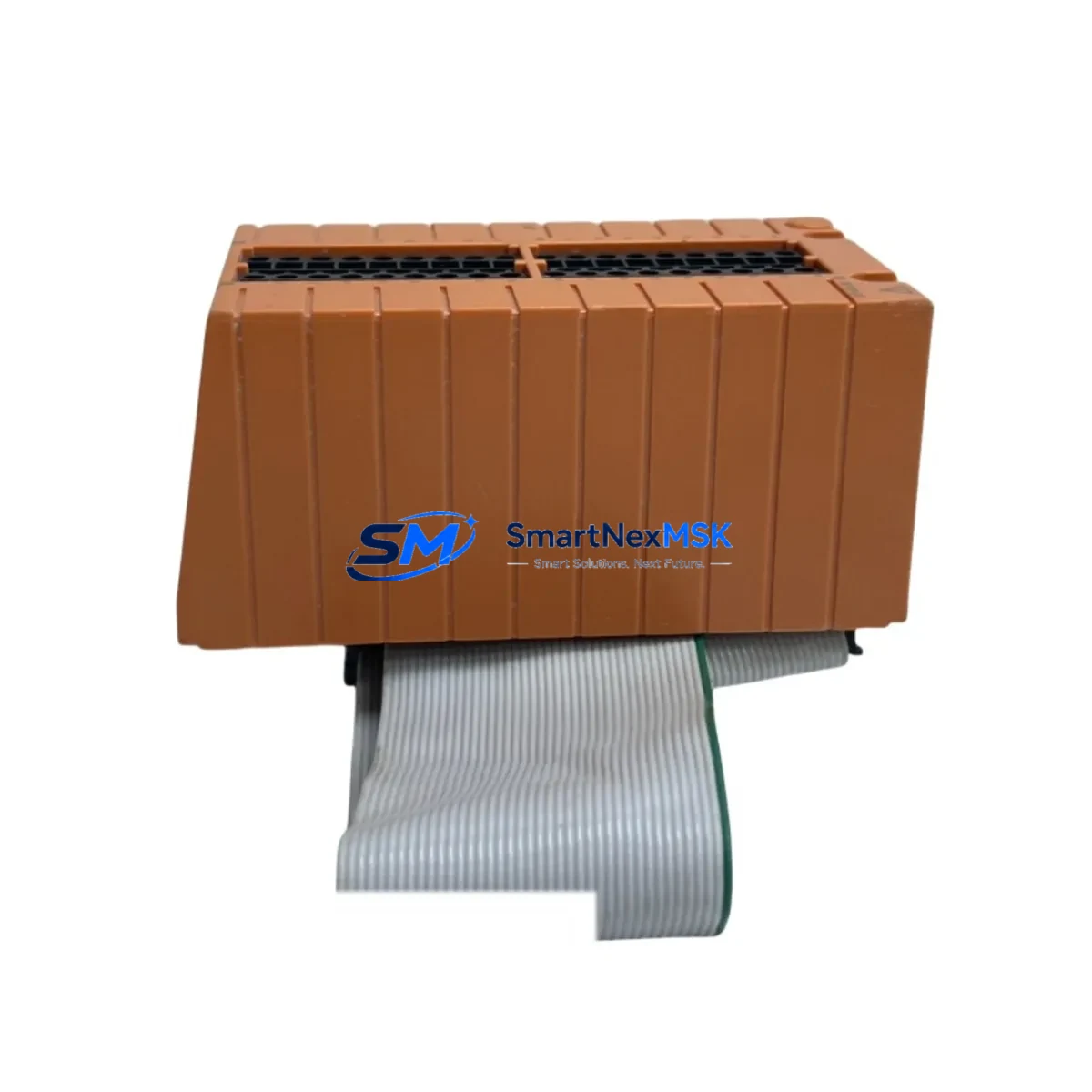

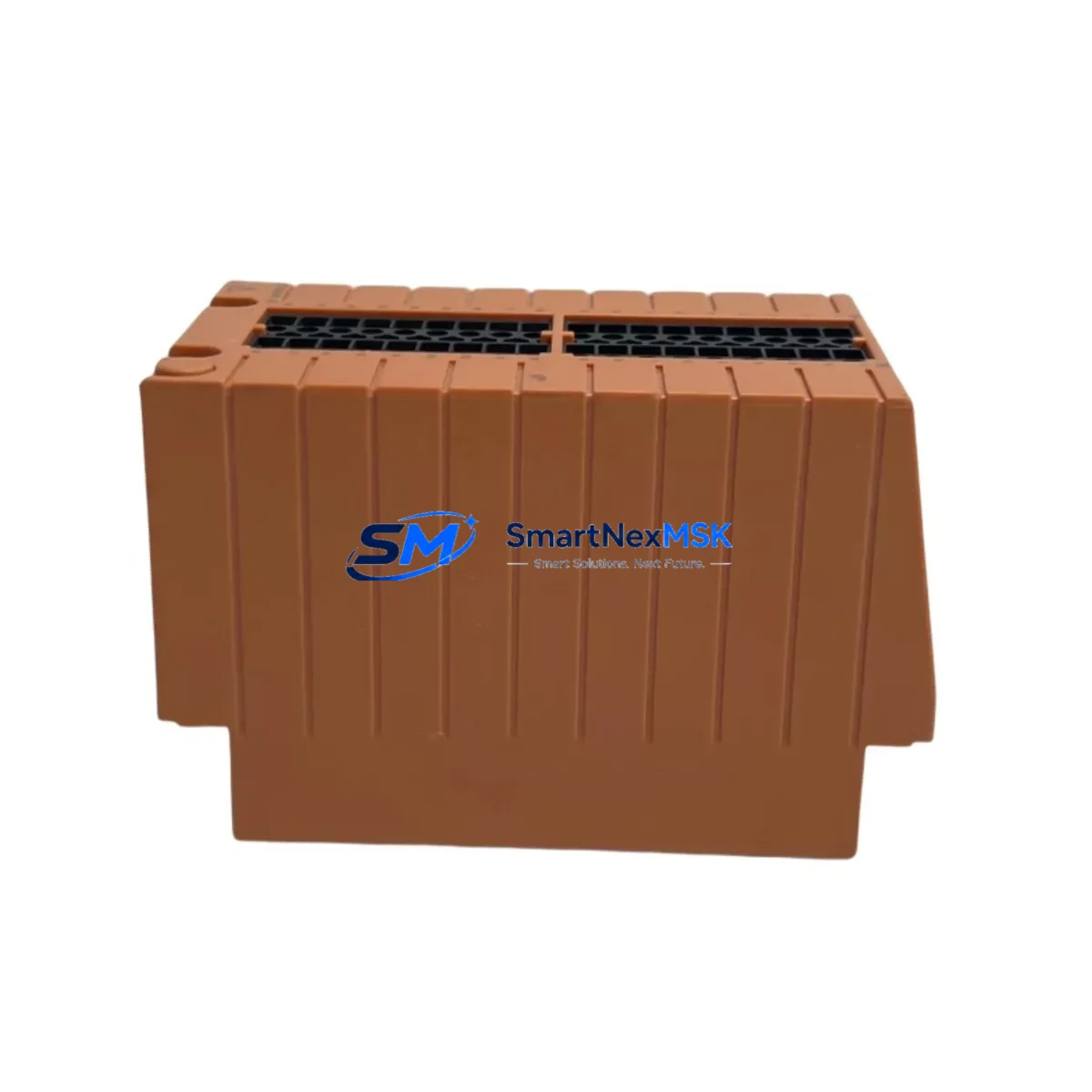

Yokogawa STA4D-00-S2 Retrofit-Ready Terminal Block for CENTUM VP/CS 3000

Yokogawa STA4D-00-S2 Retrofit-Ready Terminal Block for CENTUM VP/CS 3000: Compatible Modernization for Legacy DCS Systems

The Yokogawa STA4D-00-S2 is a field-proven DCS terminal block designed for seamless integration into CENTUM VP and CS 3000 distributed control system architectures. As legacy automation infrastructure ages and original spare parts become increasingly difficult to source, the STA4D-00-S2 serves as a critical retrofit component enabling engineers to extend the operational life of existing control systems without committing to a full platform migration. Whether you are replacing a failed unit on a running production line, upgrading a control cabinet during a planned shutdown, or building a spare-parts inventory for long-term system continuity, the STA4D-00-S2 delivers the dimensional accuracy, terminal compatibility, and signal integrity required for industrial-grade DCS environments.

Sourced directly from verified supply channels and subjected to pre-shipment functional testing, each unit is dispatched with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Global logistics support ensures fast delivery to process plants, engineering contractors, and system integrators worldwide.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the STA4D-00-S2 into an existing CENTUM VP or CS 3000 system requires a structured pre-retrofit assessment. Engineers should begin by auditing the current node unit configuration, identifying the exact rack slot position and verifying that the replacement terminal block matches the original I/O channel count and signal type assignments. In CS 3000 installations, the node unit typically houses multiple I/O modules such as the AAI141-S00 analog input module or the ADV151-P00 digital input module, each paired with a dedicated terminal block. Confirming that the STA4D-00-S2 aligns with the paired I/O module’s connector pinout is essential before proceeding.

Power supply integrity is a prerequisite for any terminal block replacement. The node unit’s power supply module — commonly an ESB105 or equivalent — must be verified to deliver stable 24 VDC field power within tolerance before the new terminal block is seated. Voltage fluctuations during the swap can corrupt I/O readings and trigger spurious alarms in the CENTUM VP HMI environment, including Exaopc OPC server-connected SCADA displays.

Field wiring should be documented and labeled prior to removal of the original terminal block. The STA4D-00-S2 retains the standard Yokogawa screw-terminal layout, allowing technicians to reconnect field cables in the same sequence without rewiring the marshalling cabinet. Where the original installation used a junction terminal board such as the TB820V or a similar marshalling panel, the field cable routing remains unchanged, significantly reducing retrofit labor time.

For systems undergoing a broader migration from CS 3000 to CENTUM VP R6, the STA4D-00-S2 is compatible with both platforms, making it a viable interim component during phased upgrades. During such migrations, the FCS (Field Control Station) configuration — including the SCP (Sequence Control Program) and FCS function block definitions — must be re-validated in the CENTUM VP Engineering Environment. Communication links between the FCS and the HIS (Human Interface Station) over Vnet/IP should be tested under simulated load before returning the system to live production.

Where I/O expansion is part of the retrofit scope, additional node units and their associated terminal blocks, including variants such as the STA4D-00-S1 or STA8D-00-S2 for higher channel density applications, may be required. Rack and backplane capacity should be assessed against the expanded I/O count, and the ESB-series bus interface unit should be confirmed as compatible with the additional node load.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing terminal blocks in a live DCS environment. The STA4D-00-S2 supports a structured cold-swap procedure: the affected node unit is taken offline, the terminal block is replaced, field wiring is reconnected and verified, and the node is brought back online with I/O status confirmed in the CENTUM VP operator station before resuming automatic control.

Where process continuity is critical, a parallel commissioning approach is recommended. A pre-configured replacement node unit — complete with the STA4D-00-S2 and its paired I/O module — can be staged offline, fully wired, and address-configured before the cutover window. This reduces the live swap to a single backplane connection and a software I/O enable command, typically achievable within a 15–30 minute maintenance window.

Original SCP logic and FCS function block configurations should be backed up to the CENTUM VP Engineering Environment repository prior to any hardware change. If the replacement involves a node unit address reassignment, the corresponding I/O tag references in the HMI graphic pages and alarm summary displays must be updated to prevent tag mismatch errors. Retaining the original module address wherever possible eliminates the need for HMI reconfiguration and preserves alarm history continuity.

Post-replacement, a structured loop check covering all field instruments connected through the STA4D-00-S2 — including transmitters, solenoid valves, and discrete sensors — confirms signal integrity before the process unit is returned to automatic mode. All commissioning records, including pre- and post-swap I/O readings, should be archived for compliance and future maintenance reference.

Retrofit Support FAQ

Q1: Is the STA4D-00-S2 a direct drop-in replacement for the original CS 3000 terminal block?
Yes. The STA4D-00-S2 is dimensionally and electrically compatible with the original CS 3000 node unit terminal block positions. Field wiring can be reconnected in the same sequence without modification to the marshalling cabinet or field cable routing. Confirm the paired I/O module type before installation to ensure signal type alignment.

Q2: What commissioning steps are required after installing the STA4D-00-S2?
After seating the terminal block and reconnecting field wiring, power up the node unit and verify I/O channel status in the CENTUM VP Engineering Environment. Perform a loop check on all connected field instruments, confirm alarm setpoints are active in the HIS, and validate communication link status on the Vnet/IP segment before returning the loop to automatic control.

Q3: Can the STA4D-00-S2 be used in a CENTUM VP R6 system migrated from CS 3000?
Yes. The STA4D-00-S2 is compatible with both CENTUM CS 3000 and CENTUM VP platforms, including R6 releases. During migration, re-validate FCS function block definitions and confirm I/O tag mapping in the CENTUM VP Engineering Environment. No hardware modification to the terminal block is required for platform migration.

Q4: What does the 12-month warranty cover, and what is the shipping lead time?
The 12-month warranty covers manufacturing defects and functional failures under rated operating conditions from the shipment date. Units are dispatched from verified stock following pre-shipment functional testing. Standard lead time is 3–7 business days for international destinations; expedited shipping is available on request. Contact sales@smartnexmsk.com or +86 18259474341 for availability confirmation and urgent order processing.
