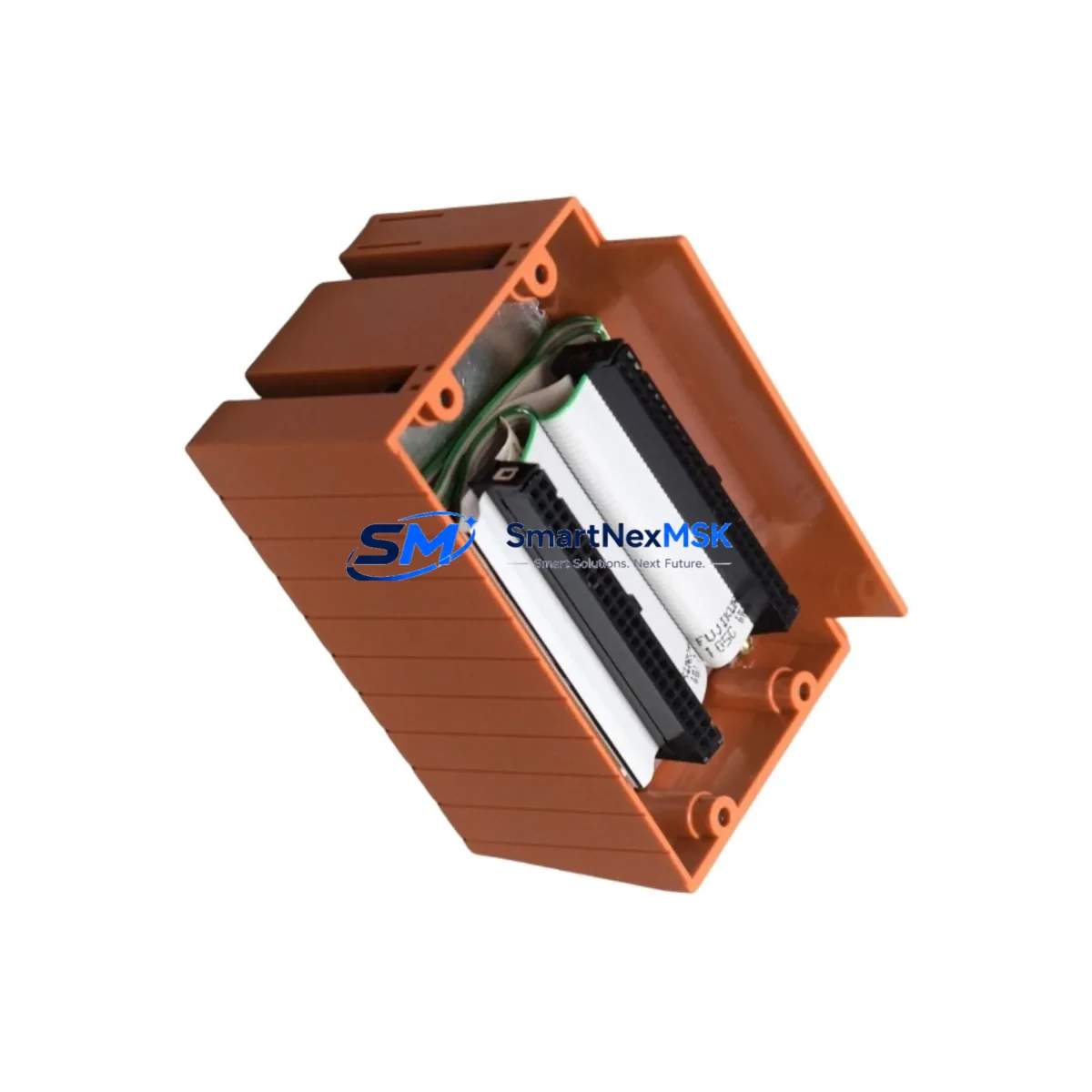

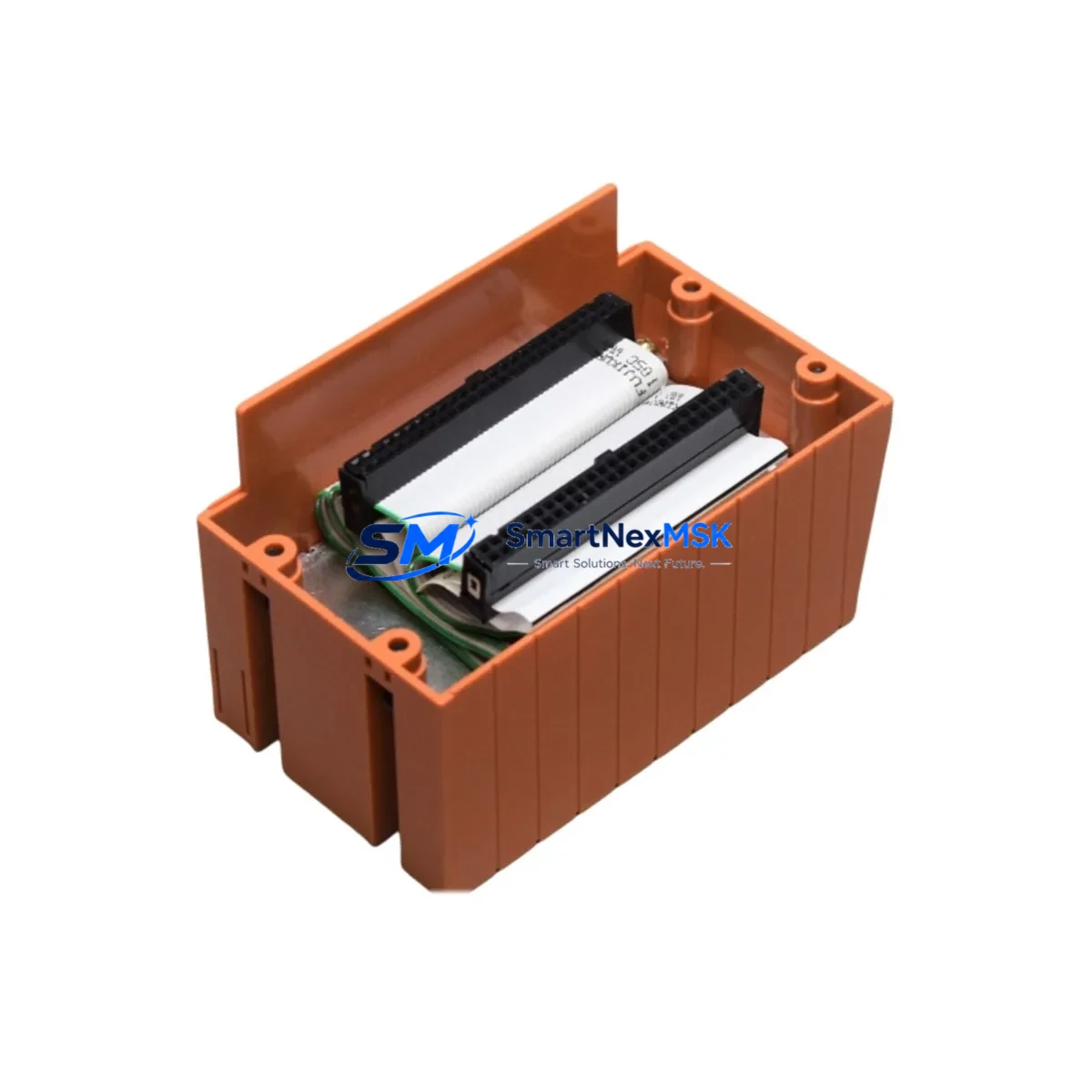

Yokogawa STB4D-00 S1 Safety-Enhanced Terminal Block

Yokogawa STB4D-00 S1 Safety-Enhanced Terminal Block for Harsh Industrial Sites

The Yokogawa STB4D-00 S1 is a ruggedized, spring-clamp terminal block engineered for mission-critical I/O marshalling within the Yokogawa STARDOM FCN/FCJ distributed control architecture. Designed to operate reliably in high-load, high-interference industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical complexes, and continuous process manufacturing lines — this terminal block delivers the signal integrity and mechanical stability that safety-critical control loops demand.

In modern industrial control cabinets, the terminal block is the first and last line of defense between field instrumentation and the controller. A compromised connection at the marshalling layer can cascade into signal drift, spurious trips, interlock failures, or unplanned shutdowns. The STB4D-00 S1 eliminates these risks through its vibration-resistant spring-clamp mechanism, which maintains consistent contact force across wide temperature cycles and eliminates the retorquing maintenance burden associated with screw-type terminals. This is especially critical in rotating-equipment environments — compressor stations, pump skids, and turbine control panels — where mechanical vibration is constant and connection loosening is a leading cause of field failures.

Safety Reliability Table

Control Cabinet Protection Strategy

The STB4D-00 S1 is most effective when deployed as part of a coordinated, layered protection strategy within the STARDOM control cabinet. In a typical FCN-500 marshalling enclosure, the terminal block interfaces directly with the Yokogawa FCN-500 CPU module and its associated FCN I/O modules — including analog input cards such as the AMM12D and digital output cards such as the ADM12D — forming the physical signal bridge between field transmitters and the controller backplane.

To protect against power-side disturbances, the STB4D-00 S1 is typically installed alongside Yokogawa STARDOM power supply modules (e.g., PW481 or PW482 redundant PSUs) that provide stable 24 VDC rail voltage. Upstream surge protection devices — such as DIN-rail-mounted Phoenix Contact TRABTECH or Weidmüller VPU surge arresters — are commonly integrated at the cabinet entry point to clamp transient overvoltages before they reach the marshalling layer where the STB4D-00 S1 operates.

For communication integrity, the STARDOM architecture relies on Ethernet-based FOUNDATION Fieldbus HSE or Modbus TCP links between the FCN controller and the supervisory SCADA layer. Shielded cable assemblies and managed industrial Ethernet switches (e.g., Hirschmann MACH or Moxa EDS series) are recommended in the same cabinet to prevent communication anomalies that could mask field signal issues at the terminal level. In safety instrumented systems (SIS), the STB4D-00 S1 is often paired with Yokogawa ProSafe-RS safety I/O modules to ensure that the marshalling layer meets IEC 61511 requirements for SIL-rated loops.

Grounding discipline is equally critical: the terminal block rail should be bonded to the cabinet PE bus, and functional earth (FE) terminal blocks — such as the Yokogawa STB-FE series — should be interspersed at regular intervals to provide a low-impedance path for shield drain wires from field cables. This practice significantly reduces common-mode noise on analog 4–20 mA loops, preventing signal drift in flow, pressure, and temperature measurement circuits.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: In hydrocarbon processing facilities, the STB4D-00 S1 is deployed in emergency shutdown (ESD) marshalling panels where signal reliability is non-negotiable. Spring-clamp termination ensures that vibration from nearby rotating equipment — pumps, compressors, and agitators — does not loosen field wiring connections, preventing spurious ESD activations or, more critically, missed shutdown signals during a process upset.

Power Generation & Substation Control: In coal-fired, gas turbine, and hydroelectric generation facilities, the terminal block supports the marshalling of protection relay signals, generator excitation feedback, and turbine governor I/O. The STB4D-00 S1’s rated voltage of 250 V and robust insulation properties make it suitable for mixed-voltage marshalling panels where both low-level instrumentation signals and higher-voltage status inputs coexist.

Mining & Mineral Processing: Underground and surface mining operations subject control cabinets to extreme dust ingress, humidity swings, and mechanical shock. The STB4D-00 S1’s spring-clamp design maintains connection integrity under these conditions, supporting conveyor belt interlocks, crusher motor protection circuits, and ventilation safety systems where a wiring failure could endanger personnel.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on continuous, uninterrupted SCADA monitoring of flow, pH, chlorine dosing, and pump status. The STB4D-00 S1 provides the reliable signal marshalling backbone for these loops, ensuring that alarm and control signals reach the STARDOM FCN controller without degradation even in high-humidity pump rooms.

Metallurgy & Steel Production: Electric arc furnaces, rolling mills, and continuous casting lines generate intense electromagnetic interference. The STB4D-00 S1’s compatibility with shielded cable termination and its robust spring-clamp contact system make it a preferred choice for marshalling temperature, position, and drive feedback signals in these high-EMI environments.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the STB4D-00 S1?
The 12-month warranty covers all manufacturing defects, contact failure, insulation breakdown, and functional non-conformance under normal operating conditions. Units that fail within the warranty period are replaced or refunded. Each unit undergoes pre-shipment continuity and insulation resistance testing before dispatch.

Q2: How is the STB4D-00 S1 tested before shipment?
Every STB4D-00 S1 unit is subject to outgoing quality inspection including visual inspection, dimensional verification, spring-clamp actuation cycle testing, and electrical continuity checks. Units sourced from authorized Yokogawa distribution channels are accompanied by traceability documentation upon request.

Q3: Is the STB4D-00 S1 compatible with third-party I/O marshalling systems beyond STARDOM?
The STB4D-00 S1 is optimized for Yokogawa STARDOM FCN/FCJ I/O marshalling. While the spring-clamp terminal block form factor is physically compatible with standard DIN-rail mounting, full functional compatibility — including connector keying and module alignment — is validated specifically for the STARDOM platform. For cross-platform applications, consult the Yokogawa hardware compatibility matrix or contact our technical team.

Q4: Can long-term supply continuity be guaranteed for ongoing plant maintenance?
Yes. We maintain dedicated safety stock of the STB4D-00 S1 to support planned maintenance shutdowns, spare parts programs, and emergency replacement requirements. For large-volume or scheduled procurement, framework agreements with reserved inventory allocation are available. Contact our team to discuss your plant’s annual consumption and establish a supply continuity plan.
