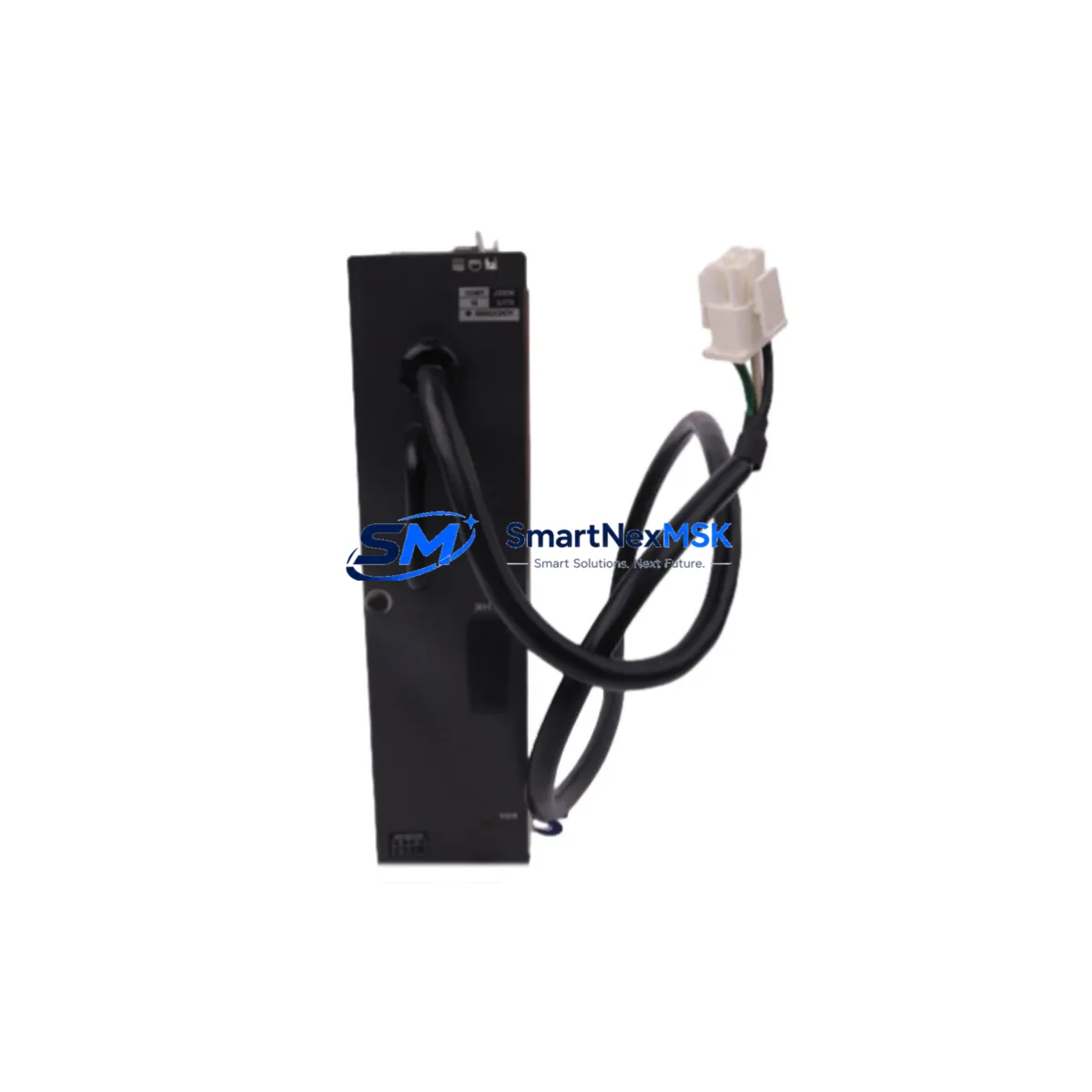

YOKOGAWA YCB146 Retrofit-Ready T-Connector for CENTUM VP

YOKOGAWA YCB146 Retrofit-Ready Field Bus T-Connector for CENTUM VP & CS 3000 Control Systems

The YOKOGAWA YCB146 is a Field Bus T-Connector engineered for seamless integration into CENTUM VP and CS 3000 distributed control system architectures. As legacy CENTUM CS 3000 installations approach end-of-life and plant operators accelerate migration to CENTUM VP platforms, the YCB146 serves as a critical retrofit component — enabling engineers to preserve existing field bus wiring infrastructure while upgrading control hardware without full panel replacement.

For facilities managing aging DCS cabinets, the YCB146 provides a direct, wiring-compatible replacement path. Its T-connector topology supports the IEC 61158-2 physical layer standard used across YOKOGAWA’s FOUNDATION Fieldbus H1 segments, making it compatible with both legacy CS 3000 field bus segments and current CENTUM VP FCS (Field Control Station) configurations. Engineers undertaking control cabinet upgrades, I/O expansion projects, or communication link restoration will find the YCB146 indispensable for maintaining segment integrity without rewiring field junction boxes.

When planning a retrofit involving the YCB146, engineers must verify several critical parameters before installation. Power supply capacity on the field bus segment — typically provided by a dedicated FF Power Conditioner such as the YOKOGAWA YS170 or equivalent — must be confirmed to support the additional T-connection load. Terminal wiring at the junction box should be inspected for polarity compliance and shield continuity. Backplane interface compatibility at the FCS I/O module level, particularly when migrating from CS 3000 ALF111 or AIP588 cards to CENTUM VP equivalents, must be validated against the segment’s device count and current draw budget.

Module addressing and device tag assignments stored in CENTUM VP’s Plant Resource Manager (PRM) should be audited prior to connector replacement to prevent address conflicts during hot-swap procedures. Program logic compatibility — especially function blocks referencing field device parameters via the FOUNDATION Fieldbus communication stack — must be verified in the FCS engineering environment before commissioning. HMI screen bindings in CENTUM VP’s HIS (Human Interface Station) that reference field device tags on the affected segment should be tested in simulation mode to confirm display continuity after the retrofit.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful YCB146 retrofit begins well before the physical connector is installed. In a typical CENTUM CS 3000 to CENTUM VP migration, the field bus segment topology must be documented — including all connected FOUNDATION Fieldbus devices such as YOKOGAWA EJX series pressure transmitters, YTA series temperature transmitters, and ADMAG AXF magnetic flowmeters. Each device’s current draw and address must be logged to ensure the replacement segment, anchored by the YCB146 T-connector, remains within the 32 mA per-device and 16-device-per-segment limits.

The FCS I/O module configuration is equally critical. When replacing CS 3000 ALF111 FOUNDATION Fieldbus communication modules with CENTUM VP AFV10 or AFV30 equivalents, engineers must re-import device descriptions (DD files) into the new FCS engineering environment. The YCB146 connector itself does not require firmware or configuration — it is a passive hardware component — but the segment it supports must be fully re-commissioned in CENTUM VP’s FCS Builder tool.

For control cabinets housing both legacy and upgraded modules during phased migration, the YCB146 enables segment bridging without disrupting adjacent I/O channels. This is particularly valuable when upgrading only a subset of field bus segments while keeping other CS 3000 FCS nodes operational. The connector’s compact form factor fits standard DIN rail arrangements alongside YOKOGAWA’s ESB Bus coupler modules, ACF11 communication interface cards, and standard 24 VDC power distribution terminals — minimizing cabinet re-layout work.

Communication link integrity should be verified using a FOUNDATION Fieldbus segment checker or YOKOGAWA’s PRM diagnostic tools before and after connector replacement. Terminator placement — one at each physical end of the H1 segment — must be confirmed, as improper termination is a leading cause of signal degradation after retrofit work. Programming cables such as the YOKOGAWA KS1 or standard USB-to-RS232 adapters used for FCS maintenance access should be on hand during commissioning to support real-time diagnostics.

Downtime Control During System Migration

Minimizing production downtime during a YCB146 connector replacement requires a structured cutover plan. For live segments, the preferred approach is a pre-staged swap: the replacement connector is pre-wired and tested on a bench segment before the scheduled maintenance window. During the cutover, the field bus segment is taken offline in a controlled sequence — first isolating the segment in CENTUM VP’s FCS, then physically replacing the connector, and finally re-enabling the segment and verifying device communication in PRM before releasing control to the HIS operator stations.

Original program logic stored in the FCS should be backed up to the CENTUM VP engineering workstation before any hardware change. Function block parameters, PID tuning values, and interlock logic should be exported and archived. If the retrofit involves simultaneous replacement of an ALF111 or AIP588 I/O card alongside the YCB146 connector, the cutover sequence must account for the FCS download time required to re-establish device communication after module replacement.

For facilities with redundant FCS configurations, the YCB146 replacement can often be performed on the standby FCS node first, validated, and then switched to active — reducing live exposure to near zero. This approach is strongly recommended for continuous process applications where field bus segment interruption would trigger safety interlocks or process upsets. All retrofit work should be documented with before-and-after segment diagnostic reports to support post-commissioning review and 12-month warranty validation.

Retrofit Support FAQ

Q: Is the YCB146 a direct replacement for the discontinued YOKOGAWA CS 3000 field bus connector?
A: Yes. The YCB146 is dimensionally and electrically compatible with the field bus T-connector used in CS 3000 installations. It supports the same IEC 61158-2 H1 physical layer and screw-terminal wiring interface, making it a drop-in replacement without panel modification or rewiring.

Q: What commissioning steps are required after installing the YCB146 in a CENTUM VP system?
A: After physical installation, re-register all field devices on the segment in CENTUM VP’s Plant Resource Manager (PRM). Verify device tags, function block assignments, and HIS screen bindings. Run a segment diagnostic to confirm signal levels and terminator placement before returning the segment to automatic control.

Q: Can the YCB146 be used during a phased migration where CS 3000 and CENTUM VP nodes coexist?
A: Yes. The YCB146 is compatible with both CS 3000 and CENTUM VP FOUNDATION Fieldbus H1 segments. During phased migrations, it can be installed on segments still managed by CS 3000 FCS nodes and remain in service after those segments are migrated to CENTUM VP without replacement.

Q: What does the 12-month warranty cover, and how are units tested before shipment?
A: All YCB146 units are functionally tested prior to shipment, including continuity verification and connector integrity checks. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test documentation upon request. Contact [email protected] for warranty claims or pre-shipment test reports.
