ABB DCS Lifecycle: Spare Parts Before the Retrofit

Older DCS installations rarely fail because one component suddenly becomes “old.” The practical risk builds quietly: analogue I/O drift, aging servers, unsupported operating systems, missing configuration records, and a spare list that no longer matches the cabinet. ABB’s August 18, 2026 article, Managing the impact of outdated control systems, describes this pattern in process automation and points toward progressive modernization rather than waiting for a complete system failure.

For maintenance and procurement teams, the useful response is not to order every part in the catalog. It is to create a lifecycle record that distinguishes a recoverable failure from a replacement project, then connect that record to the exact hardware already installed.

Start with the control-system boundary

Before reviewing ABB DCS spares, define what is inside the recovery boundary. A control system is more than a CPU or I/O module. It includes controllers, communication interfaces, I/O carriers, terminal units, power components, engineering workstations, operator stations, servers, network equipment, software versions, and the configuration used to run the process.

For each critical cabinet or node, record the installed part number, revision, cabinet and slot, connected signal types, communication role, firmware or software notes, redundancy state, and process consequence. Add photographs of the nameplate and installation context. This evidence helps separate an AC 800M controller issue from a carrier, power, communication, or configuration problem that may present as the same plant symptom.

ABB’s lifecycle-management material describes support phases that move from active products through mature and obsolete stages, with spare-parts and retrofit decisions changing as a product leaves active production.

Do not confuse a spare with a recovery plan

A spare is only one part of recovery. The team also needs a compatibility basis, condition evidence, configuration backup, installation procedure, and a post-replacement test. If any of these are missing, the part may be physically present without being operationally ready.

For example, the live ABB CI820V1 3BSE025255R1 AC 800M spare is a specific sourcing record, not a blanket substitute for every communication or I/O position in an ABB system.

The same principle applies to a CPU. An ABB PM864AK01 3BSE018161R1 AC 800M CPU may be relevant to a particular installed position, but the correct decision still depends on project data, firmware, redundancy, communication dependencies, and the approved recovery sequence. A model match is necessary; it is not the whole compatibility decision.

Prioritize evidence that disappears first

When a system is running, capture evidence before the next outage makes it difficult. Photograph the complete module, label, connectors, terminal or carrier arrangement, cabinet position, and neighboring components. Store the images under the plant asset or cabinet identifier, not only under the part number.

Preserve the current controller and I/O configuration through the site’s approved change-control process. Record the last known-good backup location, the engineering software version, the owner of the project file, and the person authorized to restore it. If a replacement requires a download, addressing step, validation check, or controlled restart, write that sequence down while the system is healthy.

Condition evidence should be equally specific. “Tested” can mean visual inspection, power-up, communication check, bench test, or a limited functional check. The record should say what was checked, what was not checked, when it was checked, and whether the test environment represented the installed process. Warranty coverage does not remove the need for site compatibility review.

Separate aging hardware from aging infrastructure

ABB’s article highlights a point that is easy to miss in a hardware-only inventory: the weakest part of a mature DCS may be the infrastructure around the controller. Servers, operating systems, engineering workstations, network components, storage media, and replacement knowledge can become unavailable before the core control module fails.

Audit these layers separately. For each workstation or server, record hardware age, operating-system support status, application version, backup method, disk-image availability, and dependency on legacy drivers or interfaces. For networks, record topology, managed-switch models, spare ports, fiber or copper interfaces, and the recovery method if a communication path is lost.

This does not mean replacing a functioning system immediately. It means preventing the common mistake of buying a controller spare while leaving the engineering environment unable to load, diagnose, or validate it.

Choose between stock, repair, and retrofit

A lifecycle decision should produce one of three actions for each asset: keep a validated spare, establish a repair or exchange route, or begin a planned retrofit or modernization study. Use consequence and recovery difficulty to make the choice.

Keep a validated spare when the installed population is stable, the failure consequence is high, the exact model can be verified, and the recovery sequence is understood. Prefer a repair or exchange route when the item is expensive, repairable, or difficult to stock in quantity, but the service path and turnaround assumptions are documented. Begin a retrofit study when the part is already obsolete, the supporting infrastructure is unsupported, the installed configuration is poorly understood, or the cost of one failure would exceed the cost of planned engineering.

ABB’s lifecycle-policy information also emphasizes that spare-parts availability depends on the DCS family and lifecycle phase. That is why a generic statement such as “ABB parts are still available” is not enough for a purchase decision. The system family, exact part, lifecycle status, and required service must be checked together.

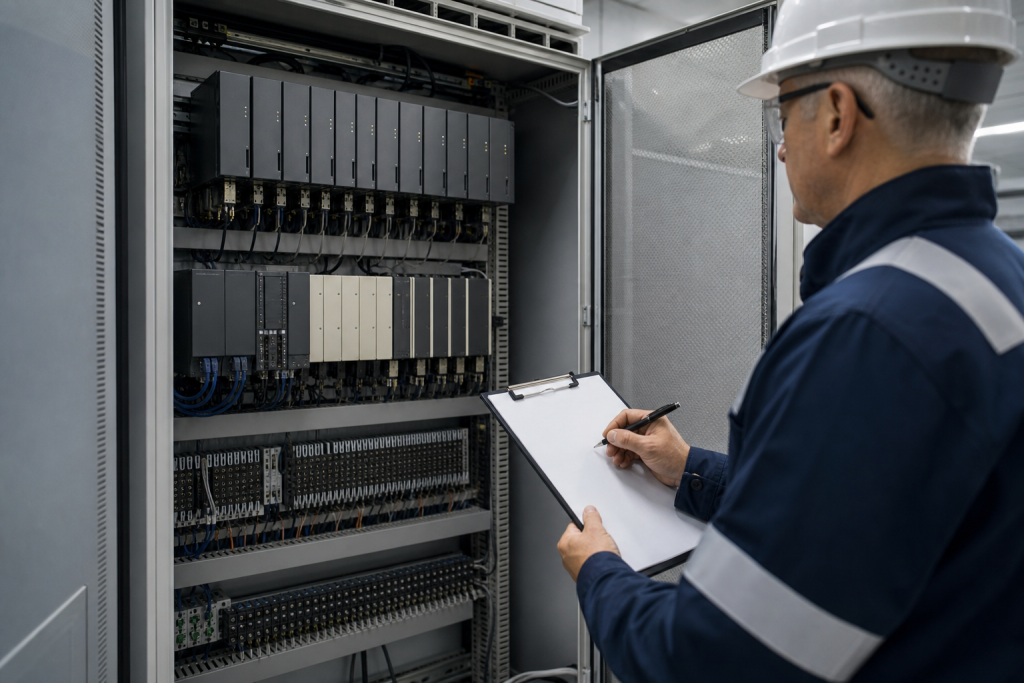

Build a cabinet-level review

Use a cabinet-level worksheet with five sections:

• Installed identity: part number, revision, location, function, and photographs.
• Failure consequence: process role, redundancy, manual fallback, and safe-state implications.
• Recovery evidence: project backup, firmware or software dependencies, procedure, and test criteria.
• Supply decision: spare, repair, exchange, retrofit, or manual review.
• Review trigger: system change, failed replacement, long storage, lifecycle notice, or infrastructure change.

Frequently asked questions

Does an ABB spare-parts page prove that a component is suitable?

No. It identifies a sourcing option. Suitability still depends on the installed part number, revision, function, configuration, condition evidence, and site-approved replacement basis.

Should an AC 800M spare list include servers and networks?

Yes, at least for critical recovery paths. A controller spare may not help if the engineering workstation, operating system, network interface, or project backup cannot support recommissioning.

What is the most useful photograph for a procurement request?

Send the full component, close-up of the part-number label, connectors or terminals, cabinet position, and neighboring hardware. These views connect model identity to the installed context.

When should an obsolete ABB system move from stocking to retrofit planning?

Start the retrofit study when support is declining, infrastructure dependencies are unsupported, recovery evidence is weak, or a single failure could create a disproportionate outage.

Is refurbished hardware automatically a lower-risk choice?

No. It may be practical, but the inspection scope, traceability, packaging, warranty, test limits, and installed-system compatibility should be documented separately.
