Danfoss FC 302 Spares: Save Parameters Before Replacement

A Danfoss VLT AutomationDrive FC 302 replacement can look straightforward until the first start command exposes what was never documented. The drive powers up, but the motor data is incomplete, the fieldbus node is wrong, the application limits are missing, or a safety function does not behave as expected. In a production line, that is not a simple part swap. It is a configuration recovery task with a spare part at the center.

The practical rule is simple: preserve the working drive’s configuration before the outage, identify what has actually failed, and verify the replacement against the machine’s approved baseline. A complete FC 302 drive, a control card, and a power board are different procurement decisions. They should not be treated as interchangeable because the product family name looks similar.

Start with the installed drive, not the catalog title

Before requesting a Danfoss FC 302 spare, record the complete nameplate and installation context. Capture the exact type code, voltage class, power rating, enclosure or frame, option modules, control card revision, fieldbus interface, and any external safety equipment. Also record the motor nameplate, encoder or feedback arrangement, braking hardware, line reactor or filter, and the signals exchanged with the PLC or DCS.

This information controls the replacement decision. A drive with the same family label may still differ in current rating, overload duty, enclosure, options, firmware behavior, or network interface. The most useful RFQ includes the failed unit’s photographs, the full type code, the application, the motor data, and the required delivery location. It is much more reliable than asking for “an FC 302” from a partial label.

Separate the three spare-part decisions

1. Complete drive replacement

A complete drive is usually the cleanest path when the fault involves the power stage, DC link, cooling system, multiple boards, or an uncertain failure mode. It can also be the right choice when the plant needs a bench-tested standby unit rather than a component-level repair. Even then, the replacement must be checked for rating, frame, options, control interface, and application compatibility before installation.

For a like-for-like recovery, a Danfoss FC 302 spare drive is a more relevant sourcing path than a generic VFD category. The product page is a procurement reference, not proof that every site configuration is interchangeable. Confirm the exact nameplate and option set before committing the order.

2. Control-card replacement

A control-card failure can leave the power section intact, but the card carries the logic, communications, inputs, outputs, and application behavior that the machine depends on. A replacement card therefore needs a compatibility review against the drive frame, firmware expectations, installed options, and site network. A control card is not a complete drive and should not be quoted as one.

Where the failure evidence points to the control section, the Danfoss VLT retrofit control card can be evaluated as a separate spare path. Keep the failed card available for identification and record its labels before removal. Do not assume that a card with a matching family name will reproduce the site’s parameter set without a controlled restore and commissioning check.

3. Power-board replacement

A power board is a narrower repair decision. It may address a diagnosed inverter or power-stage problem, but it does not replace the control logic, stored application settings, communication options, or safety configuration. Component-level replacement also brings a higher verification burden: the repair scope, test evidence, insulation condition, fault history, and qualified technician review all matter.

When the diagnostic evidence supports a power-stage repair, a Danfoss inverter power board spare may be relevant. That link should be treated as a product-specific sourcing option only. It is not a general interchangeability statement for every FC 302 frame or rating.

Preserve parameters before the outage

Danfoss documentation describes the FC 301/302 parameter environment as more than a basic speed reference. The drive includes application, motor, I/O, communication, status, and maintenance functions. The programming guide documents preventive maintenance items in parameter group 23-1*, a maintenance status word in parameter 16-96, and a maintenance log in group 18-0*. These records are useful during planned maintenance, but they are not a substitute for a complete configuration backup.

Be especially careful with initialization. Danfoss support guidance distinguishes recommended initialization from manual initialization and notes that initialization affects settings and history data. Never use a default reset as a casual troubleshooting step on a production spare. If a reset is required by the approved recovery procedure, confirm that the backup exists and that the responsible controls engineer has defined the restore and test sequence.

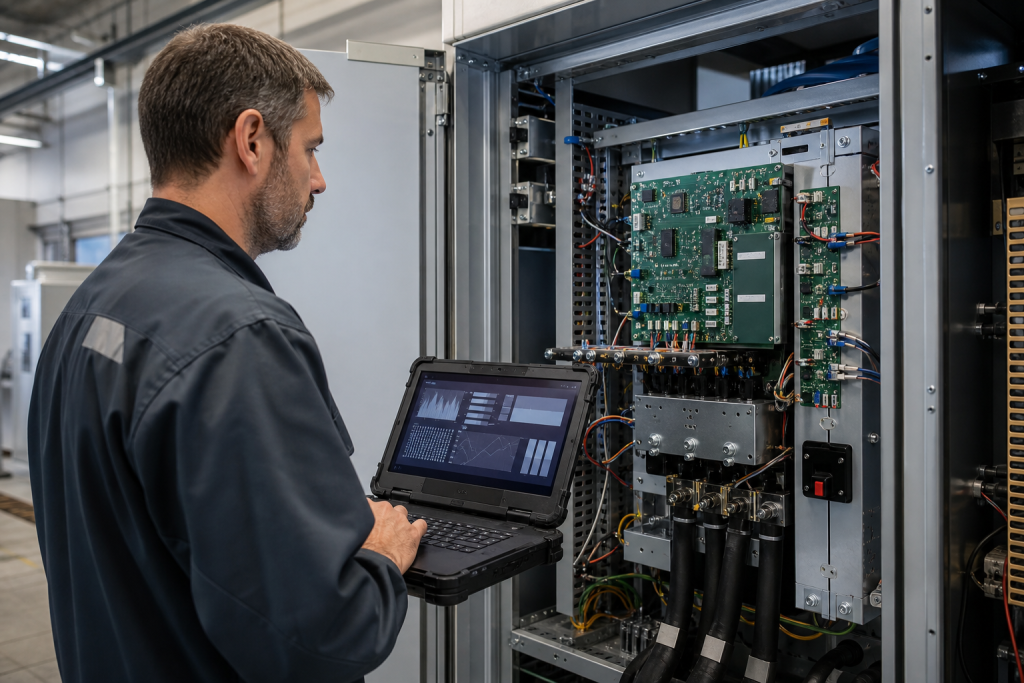

Use the spare during a controlled recovery test

A stored file is valuable only if it can be restored. During a planned window, test the recovery sequence with the actual spare or an approved representative. Verify parameter import behavior, motor identification, direction, local and remote commands, analog scaling, digital interlocks, network addressing, fault reset, STO or other safety functions, and the sequence response seen by the supervisory controller.

What to include in a Danfoss FC 302 spare RFQ

Send the full type code and clear photographs of the nameplate, control card, option modules, terminals, and cabinet labels. Add the motor data, application duty, fault symptoms, quantity, target country, delivery requirement, and whether the request is for a complete drive, control card, power board, or diagnostic review. If the installed unit is obsolete or damaged beyond identification, say so directly and provide the cabinet context.

Frequently asked questions

Can any FC 302 replace another FC 302?

No. The family name is only a starting point. Voltage, power, frame, options, control interface, firmware context, motor data, and application settings must be checked before a like-for-like claim is made.

Is a control card the same as a complete FC 302 drive?

No. A control card does not replace the power section, enclosure, terminals, or all installed options of a complete drive. It is a component-level repair path that requires its own compatibility and restore checks.

Is a parameter export enough to commission the replacement?

Not by itself. The export must be matched to the correct hardware and supplemented by motor, network, I/O, safety, and functional test records. The final commissioning sequence should follow the plant’s approved controls and safety procedures.

Should I reset a replacement drive before loading the backup?

Only when the approved recovery procedure requires it. Initialization can affect settings and history. Confirm the backup, understand the reset method, and complete the restore and test sequence under qualified supervision.

What is the best first message to send for a quote?

Send the complete nameplate/type code, clear photos, quantity, destination, urgency, fault description, and whether you need a complete drive or a board-level spare. This gives the supplier enough context to check the actual requirement instead of guessing from a family name.
