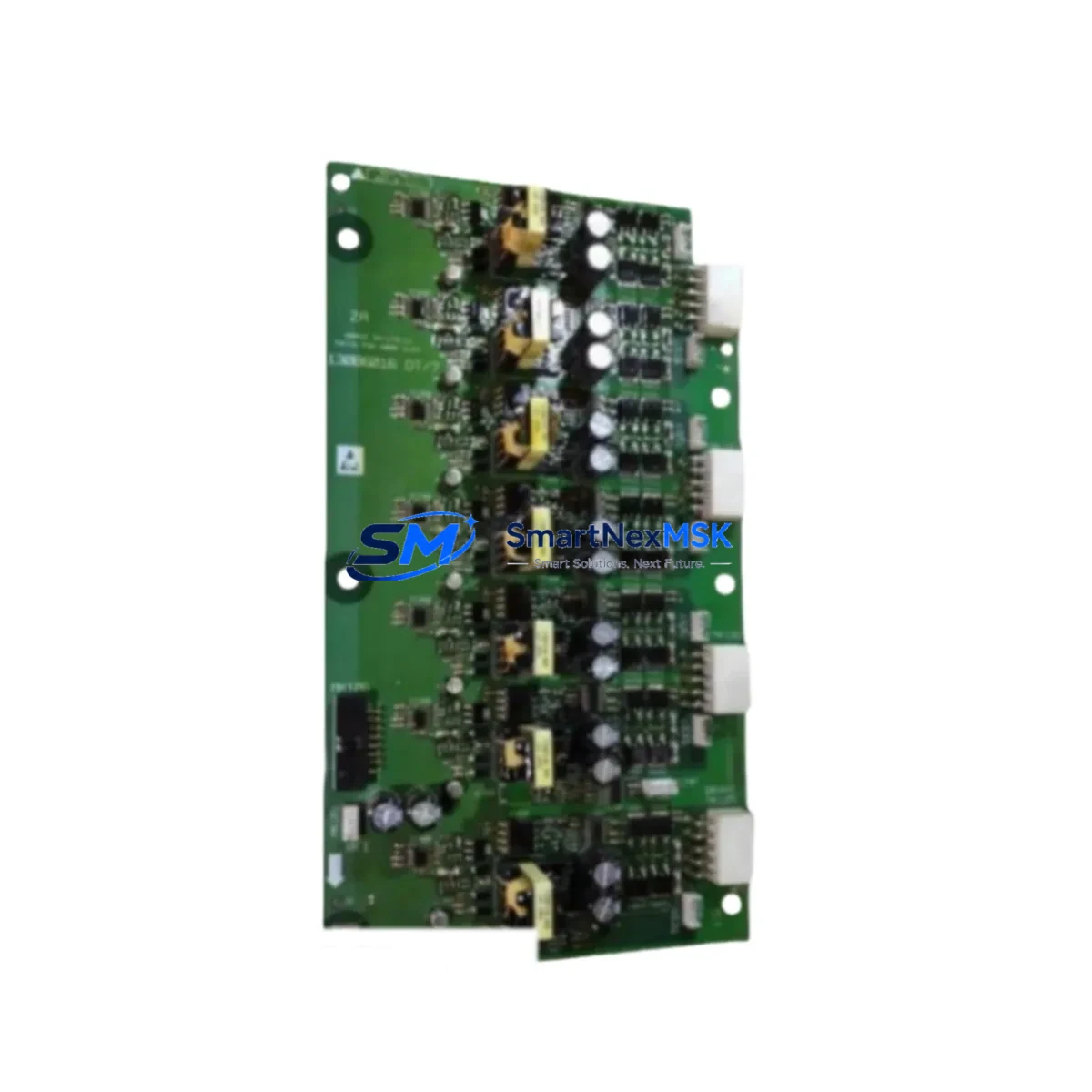

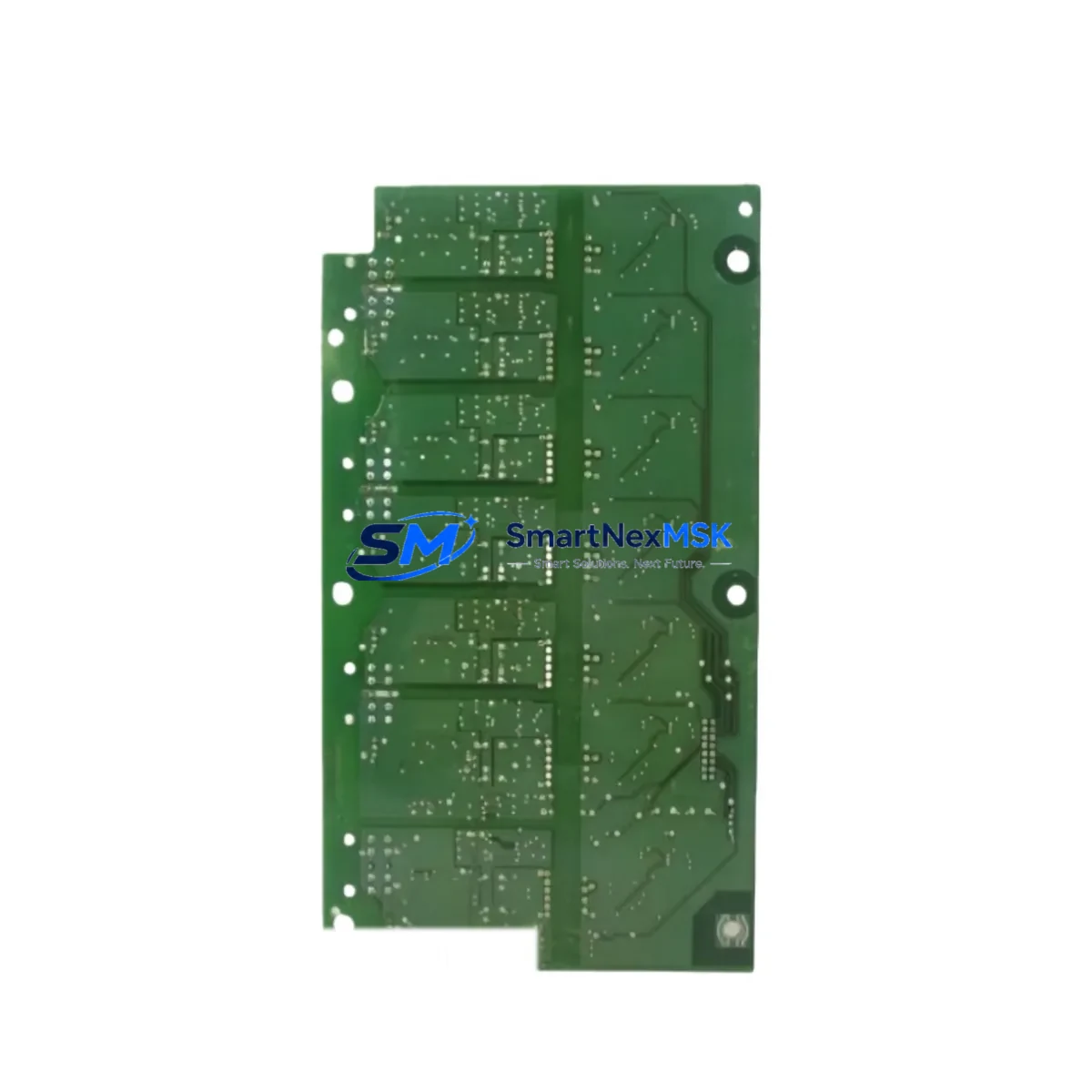

Danfoss 130B6016-DT7 Retrofit-Ready Control Card for VLT Drive Systems
The Danfoss 130B6016-DT7 is a retrofit-ready drive control card engineered for seamless integration into existing VLT series frequency converter installations. Whether you are replacing a failed card in a legacy VLT 2800, VLT 5000, or VLT AutomationDrive FC 302 platform, or upgrading a control cabinet that has been running on discontinued hardware, this module delivers the compatibility, reliability, and drop-in wiring convenience that industrial maintenance teams demand. With a 12-month warranty and pre-shipment functional testing, the 130B6016-DT7 is a trusted solution for minimizing unplanned downtime across manufacturing, water treatment, HVAC, and process automation environments.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| Compatible Series | Danfoss VLT 2800, VLT 5000, VLT 6000, FC 302 AutomationDrive |
| Replaces | 130B6016, 130B6016-DT7 (OEM equivalent) |
| Mounting / Installation | DIN rail and panel-mount compatible; standard VLT backplane slot |
| Communication Compatibility | Profibus DP, DeviceNet, CANopen, Modbus RTU (option card dependent) |
| Terminal Wiring | Direct pin-for-pin replacement; no rewiring required for standard configurations |
| Retrofit Recommendation | Verify firmware version on host drive before installation; update if below recommended baseline |
| Commissioning Notes | Restore parameter set via LCP keypad or MCT 10 software after card swap |
| Warranty | 12 Months from date of shipment; covers manufacturing defects and functional failure |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the 130B6016-DT7 begins well before the card arrives on site. Engineers should audit the existing VLT drive cabinet to confirm available power supply capacity — the 24 VDC control supply rail must be verified against the total load of all installed option cards, including any Profibus DP communication modules or DeviceNet adapters already in the rack. If the system uses a Danfoss MCA 101 or MCA 104 fieldbus option card, confirm that the card remains seated and undisturbed during the control card swap to avoid re-addressing the network node.
Terminal block wiring should be documented with photographs before removal. The 130B6016-DT7 uses the same 50-pin control terminal layout as its predecessor, but technicians should cross-reference the existing wiring diagram against the VLT AutomationDrive FC 302 Programming Guide to confirm analog input scaling, digital input logic levels, and relay output assignments. If the legacy installation used a Danfoss LCP 102 or LCP 11 local control panel, the panel will reconnect automatically after the card is seated and powered.
For systems integrated with a Siemens S7-300 or S7-1200 PLC via Profibus, the GSD file and hardware configuration in STEP 7 or TIA Portal should be backed up before the retrofit. After the 130B6016-DT7 is installed, re-establish the Profibus connection and verify that the drive responds correctly to speed reference and enable commands from the PLC. In installations where the drive communicates with a Rockwell ControlLogix or CompactLogix controller via DeviceNet, the EDS file registration and I/O mapping should be validated in RSLogix 5000 or Studio 5000 before returning the line to production.
If the control system includes a Danfoss VLT I/O option module such as the MCB 101 or MCB 109 for extended digital and analog I/O, confirm that the module address and parameter assignments are preserved in the drive’s parameter set. For HMI integration — whether using a Weintek, Proface, or Siemens TP700 panel — verify that the Modbus register map or Profibus data object list remains consistent with the new card’s firmware. Any changes to PCD data structure should be reflected in the HMI project before the panel is reconnected.
Backplane and rack integrity should also be inspected during the retrofit window. Examine the VLT drive’s internal bus connector for corrosion or bent pins, and confirm that the option card slots adjacent to the 130B6016-DT7 are free of debris. If the drive chassis shows signs of thermal stress or capacitor aging, this retrofit window is an appropriate time to schedule a broader drive refurbishment, potentially including replacement of the DC bus capacitor bank or the IGBT gate driver board.
Downtime Control During System Migration
Minimizing production interruption during a VLT control card replacement requires a structured pre-outage preparation protocol. Before the scheduled maintenance window, download the complete parameter set from the existing drive using the Danfoss MCT 10 Setup Software or the LCP keypad upload function. Store the parameter file on a laptop and a USB backup simultaneously. This ensures that if the new 130B6016-DT7 requires a full parameter restore, the process takes minutes rather than hours.
During the outage, follow a strict lock-out/tag-out procedure and discharge the DC bus capacitors fully before touching any internal components. Swap the control card, reseat all option modules, and reconnect terminal wiring in reverse order of removal. Power up the drive in local control mode first, verify that the LCP displays no fault codes, and confirm that the motor responds correctly to a manual speed reference before transferring control back to the PLC or DCS.
For critical continuous-process applications — such as pump stations, compressor drives, or conveyor systems — consider staging a pre-tested spare drive with the 130B6016-DT7 already installed and parameterized. This hot-swap approach reduces the active outage window to the time required for mechanical disconnection and reconnection, keeping the production line dark for the shortest possible interval. All units shipped by SMARTNEXMSK are functionally tested prior to dispatch, reducing the risk of commissioning delays caused by infant failure.
Retrofit Support FAQ
Q: Is the 130B6016-DT7 a direct drop-in replacement for the original Danfoss control card in my VLT 5000 series drive?
A: Yes. The 130B6016-DT7 is designed as a pin-compatible replacement for the standard VLT 5000 and VLT 6000 control card positions. Terminal wiring, option card slots, and backplane connectors are compatible without modification in the vast majority of standard configurations. Confirm your drive’s hardware revision before installation if the unit has been previously modified.
Q: What commissioning steps are required after installing the 130B6016-DT7?
A: After seating the card and powering the drive, restore the parameter set from your MCT 10 backup or LCP upload file. Run a motor auto-tune sequence if the motor data has been reset. Verify all digital input and output assignments, confirm communication link status with the upstream PLC or DCS, and perform a no-load test run before returning the drive to full production speed.
Q: Does the 130B6016-DT7 support Profibus DP and Modbus RTU simultaneously?
A: The control card itself supports the RS-485 Modbus RTU port natively. Profibus DP requires the installation of a Danfoss MCA 101 Profibus option card in the drive’s option slot. Both protocols can coexist in the same drive if the option card is installed and the parameter set is configured correctly for dual-network operation.
Q: What does the 12-month warranty cover, and what is the return process?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage events, or environmental contamination. To initiate a warranty claim, contact sales@smartnexmsk.com with your order number, a description of the fault, and photographs of the installed unit. Replacement or repair will be arranged within 5 business days of claim approval.
