Modicon M340 Spares: Check Lifecycle Before Buying

Many Modicon M340 spare requests begin with a part number and end with a much larger engineering question. A processor may be discontinued in one market, a power supply may be available under a related reference, or a replacement CPU may require a different firmware and software context. Buying the closest-looking module can restore a rack physically while leaving the control system unverified.

The safer approach is to treat M340 procurement as a lifecycle and compatibility review. Confirm the installed reference, determine whether the requirement is a CPU, power supply, I/O, communication or rack component, check the current lifecycle message, and preserve the application evidence before the outage. A spare is useful only when it can be identified, configured and tested against the real installation.

Read lifecycle status correctly

Schneider Electric uses lifecycle wording that needs to be read carefully. On its product pages, “End of Commercialization” means the last date Schneider Electric will accept an offer for that reference. The same notice can state that after-sales services such as repair and spare parts continue until the product reaches its end of life. That is not a guarantee of unlimited availability, but it is also not the same as an immediate stop to every support path.

For an M340 installation, record the date and wording shown for the exact reference, not only the family name. Keep a copy of the manufacturer notice with the asset record and set a review date. A lifecycle note should trigger a procurement decision: buy a verified spare, identify the recommended replacement, qualify a migration path, or document why the existing architecture will remain in service for a defined period.

The Schneider Electric brand catalog can help locate related published parts, but the final decision must be based on the installed model and rack context.

Start with the complete M340 identity

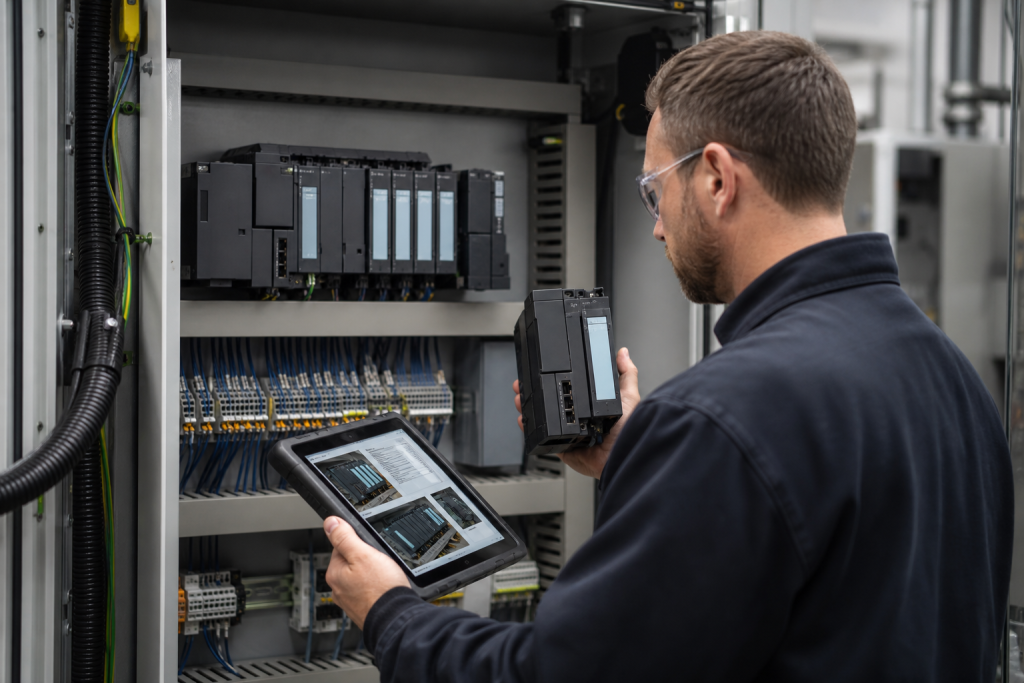

Before requesting a Modicon M340 spare, photograph the processor label, rack, power supply, backplane, communication modules and adjacent I/O. Record the exact reference, hardware revision where visible, terminal arrangement, memory card or storage device, and whether the rack is standard or installed in a temperature or environmental variant.

This evidence prevents a common procurement error: treating a processor, power supply and I/O module as interchangeable because they share the M340 family name. They are different functions with different installation constraints. A complete nameplate and cabinet record is more valuable than a short request for “M340 CPU spare.”

Separate the main spare decisions

Processor replacement

A processor replacement affects the application, memory, communications, scan behavior, firmware and project restore. Schneider Electric’s published M340 material identifies specific processor references and their capabilities; it also publishes replacement information for selected discontinued references. Use those references as a starting point, then verify the project, software, firmware and connected modules before calling a replacement like-for-like.

When the installed requirement matches, a Schneider M340 CPU spare can be evaluated as the processor path. The product page is a sourcing reference, not a blanket compatibility statement for every M340 rack.

Power-supply replacement

A power-supply failure may appear simple, but the supply determines the rack’s electrical operating conditions. Confirm input voltage, output rating, rack loading, environmental requirements, and whether the cabinet uses a standard or special arrangement. Also review the downstream effect of a power interruption on the controller, I/O and communication modules.

For a supply-specific request, the Schneider Electric BMXCPS3500 M340 spare is a concrete product reference. It should still be checked against the installed rack, voltage and load rather than selected from the family name alone.

I/O and communication modules

Replacing an I/O or communication module requires channel, signal, wiring and protocol checks. A module that fits the backplane can still be wrong for the field wiring or the controller project. Record channel assignments, input and output types, connector details and the corresponding addresses in the application.

For an output-module requirement, the Schneider BMXDDO1602 output module provides a specific sourcing example. Confirm the actual channel type, voltage, wiring and application mapping before the replacement is approved.

Firmware and software are part of the spare

A spare processor is not ready merely because its LEDs behave normally. Capture the installed firmware or software context, the project file, the controller configuration, communication settings, I/O mapping, time settings and any documented commissioning changes. Keep the backup with the asset identity so an engineer can tell which file belongs to which controller.

Schneider Electric continues to publish M340 firmware information. Its SV03.70 page, dated March 3, 2026, lists supported M340 CPU references and related integrity-verification material. That does not mean every installation should be updated during an outage. It means firmware must be treated as a controlled compatibility item, with the plant’s change process deciding whether a version change is acceptable.

Before a planned shutdown, test the restore process on the intended spare or an approved representative. Verify controller startup, project transfer, memory behavior, network communications, I/O states, interlocks, alarm handling and the sequence response seen by the supervisory system. Record the result, the firmware context and any deviations from the production baseline.

What to include in the M340 spare RFQ

Send the full reference, clear nameplate photographs, rack position, quantity, destination, fault symptoms and urgency. Add the project software version, firmware where known, power-supply details, I/O and communication modules, memory or storage information, and whether the request is for a new spare, a tested replacement or a lifecycle review.

Frequently asked questions

Does End of Commercialization mean M340 support has stopped?

No. Schneider Electric defines it as the last date it will accept an offer for that reference. The product notice may still state that repair and spare-parts services continue until end of life. Confirm the exact reference and current notice before making a stocking or migration decision.

Can one M340 CPU replace another M340 CPU?

Not automatically. Check the exact reference, project software, firmware, memory, communications, rack design, I/O and application requirements. A family match is a starting point, not evidence of a complete like-for-like replacement.

Is the M340 power supply interchangeable with a processor module?

No. A power supply and a processor perform different functions and have different electrical and installation requirements. Confirm the failed function and the rack’s voltage and load before selecting a spare.

Should firmware be updated when installing a spare CPU?

Only under the site’s approved change and validation process. First identify the production firmware and project context, then decide whether restoring the existing baseline or changing versions is technically and operationally acceptable.

What photographs help identify an M340 spare?

Provide clear images of the processor label, power supply, rack and backplane, adjacent modules, communication connectors, cabinet labels and wiring. Include the full reference and any visible revision or memory information.

Reference documents

• Schneider Electric Modicon M340 Controllers Setup Guide, dated 2026-02-01
• Schneider Electric M340 lifecycle and replacement information for BMXP3420102CL
• Schneider Electric Modicon M340 CPU firmware SV03.70, dated 2026-03-03
