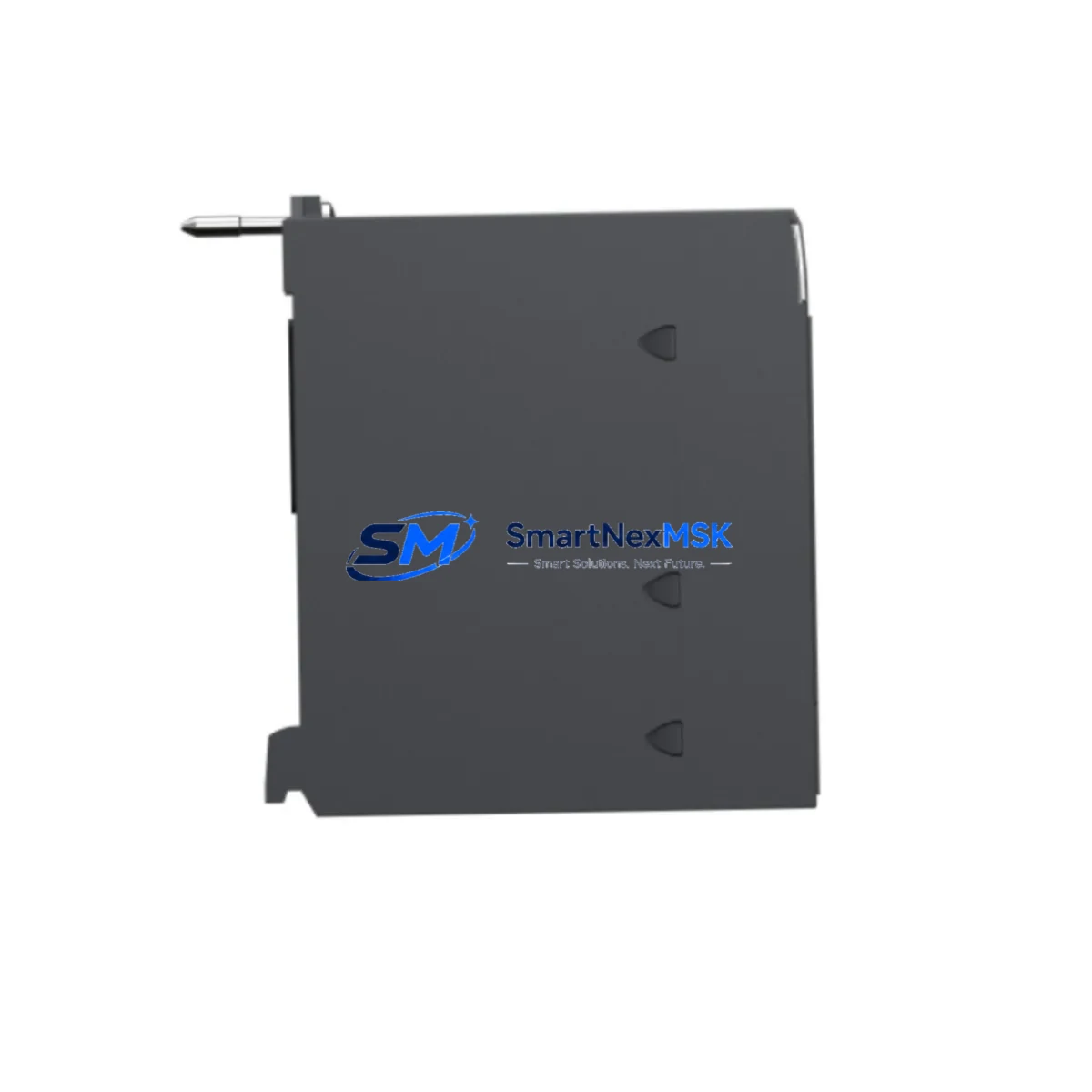

Schneider Electric BMXDDO1602 Safety-Enhanced Output Module

Schneider Electric BMXDDO1602 Safety-Enhanced Output Module for Harsh Industrial Sites

The Schneider Electric BMXDDO1602 is a 16-channel 24VDC NPN transistor discrete output module engineered for the Modicon M340 PLC platform. Designed to operate reliably in high-load, high-interference, and continuous-production environments, the BMXDDO1602 delivers consistent digital output control across demanding industrial applications — from petrochemical processing lines to heavy metallurgical control cabinets. Its robust design addresses the core safety challenges of modern industrial automation: control loop interruption, signal drift, power fluctuation, module misoperation, surge impact, communication anomalies, and unplanned field shutdowns.

With a rated output current of 0.5A per channel and a total module load capacity suited for dense I/O configurations, the BMXDDO1602 maintains stable switching performance even under sustained thermal stress and electromagnetic interference. The module’s NPN transistor outputs provide fast, reliable actuation of field devices including solenoid valves, relay coils, indicator lamps, and motor starter contactors — all critical components in safety interlock and emergency shutdown (ESD) circuits.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the BMXDDO1602 functions as the final command executor in the digital output chain — translating PLC logic decisions into precise field-level switching actions. Its reliability directly impacts the integrity of the entire control loop. To build a robust and safe cabinet architecture around the BMXDDO1602, system integrators typically deploy it alongside complementary Modicon M340 components.

The BMXP342020 CPU module serves as the central processing unit, executing ladder logic and function block programs that drive the BMXDDO1602’s output channels. For digital input acquisition — monitoring field sensors, limit switches, and safety door contacts — the BMXDDI1602 16-channel 24VDC discrete input module pairs directly with the BMXDDO1602 in the same rack, enabling fast I/O scan cycles critical for safety interlock response times.

Power integrity is foundational to output module safety. The BMXCPS2000 24VDC power supply module provides stable, regulated backplane power to the M340 rack, protecting all installed modules — including the BMXDDO1602 — from voltage sags, surges, and transient spikes common in heavy industrial environments. For applications requiring redundant power architectures, a secondary BMXCPS2000 in a parallel configuration eliminates single-point power failure risk.

Communication reliability is equally critical. The BMXNOE0100 Ethernet communication module enables real-time Modbus TCP/IP supervisory connectivity, allowing SCADA systems and DCS platforms to monitor BMXDDO1602 output states and detect channel faults without interrupting field operations. In installations where legacy serial protocols are required, the BMXNOM0200 serial communication module supports Modbus RTU and ASCII communication across RS-232/RS-485 networks.

For analog process control loops operating alongside discrete output circuits, the BMXAMO0410 4-channel analog output module handles 4–20mA and 0–10V signals to variable-speed drives and control valves, while the BMXAMI0810 8-channel analog input module monitors process variables such as temperature, pressure, and flow — providing the feedback signals that the CPU uses to determine BMXDDO1602 output switching decisions. Surge protection devices installed on field wiring terminals further shield the BMXDDO1602’s output channels from inductive load kickback and lightning-induced transients, preserving long-term channel integrity in outdoor or exposed installations.

Critical Industrial Safety Applications

The BMXDDO1602 is deployed across a wide range of critical industrial sectors where control reliability and safety are non-negotiable.

Petrochemical and Refining: In hydrocarbon processing plants, the BMXDDO1602 controls solenoid-operated shutdown valves and flare system actuators within emergency shutdown (ESD) circuits. Its optical isolation and per-channel short-circuit protection prevent a single field fault from cascading into a full control system failure — a critical requirement in ATEX-classified hazardous zones adjacent to the control room.

Electric Power Generation and Transmission: Substation automation and power plant auxiliary control systems rely on the BMXDDO1602 to switch circuit breaker trip coils, alarm annunciators, and protection relay outputs. The module’s fast response time and deterministic switching behavior support the millisecond-level timing requirements of power system protection schemes.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and wide temperature swings. The BMXDDO1602’s IEC 60068-compliant mechanical robustness and sealed module housing maintain reliable output switching for conveyor belt starters, pump motor contactors, and ventilation fan controls in these harsh conditions.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the BMXDDO1602 to control dosing pump actuators, valve positioners, and UV disinfection system enables. Continuous 24/7 operation demands the module’s proven mean time between failures (MTBF) and the assurance of a 12-month warranty with in-stock spare availability.

Metallurgy and Steel Production: Rolling mill and furnace control systems in steel plants generate intense electromagnetic interference from high-current drives and induction heating equipment. The BMXDDO1602’s EMI-hardened design and IEC 61131-2 compliance ensure stable output switching even in the presence of strong radiated and conducted interference fields.

Port and Material Handling Automation: Container crane PLC systems and automated conveyor networks in port logistics rely on the BMXDDO1602 for precise control of hoist brakes, travel limit switches, and anti-collision interlock outputs — where a missed output command can result in equipment damage or personnel injury.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the BMXDDO1602?
Every BMXDDO1602 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority support to minimize your production downtime.

Q2: What pre-shipment testing is performed on each module?
All BMXDDO1602 modules undergo functional output channel verification, isolation resistance testing, and backplane communication checks prior to shipment. Each unit is inspected against original Schneider Electric specifications to confirm full operational integrity before dispatch.

Q3: Is the BMXDDO1602 compatible with all Modicon M340 rack configurations?
Yes. The BMXDDO1602 is compatible with all standard Modicon M340 BMX rack sizes (4-slot, 6-slot, 8-slot, and 12-slot configurations) and is fully supported by EcoStruxure Control Expert (formerly Unity Pro) programming software. It can be installed in any I/O slot position within the rack.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains dedicated stock of the BMXDDO1602 and key Modicon M340 series components to support ongoing maintenance, emergency replacement, and planned spare parts programs. We provide stable, long-term sourcing support for industrial facilities operating on extended maintenance cycles, with fast international shipping available for urgent field replacement requirements.
