Agilent G3431-60531 Spare for G3431 Series Automation

Agilent G3431-60531 Spare for G3431 Series Automation: Precision EPC Replacement for Uninterrupted GC Operations

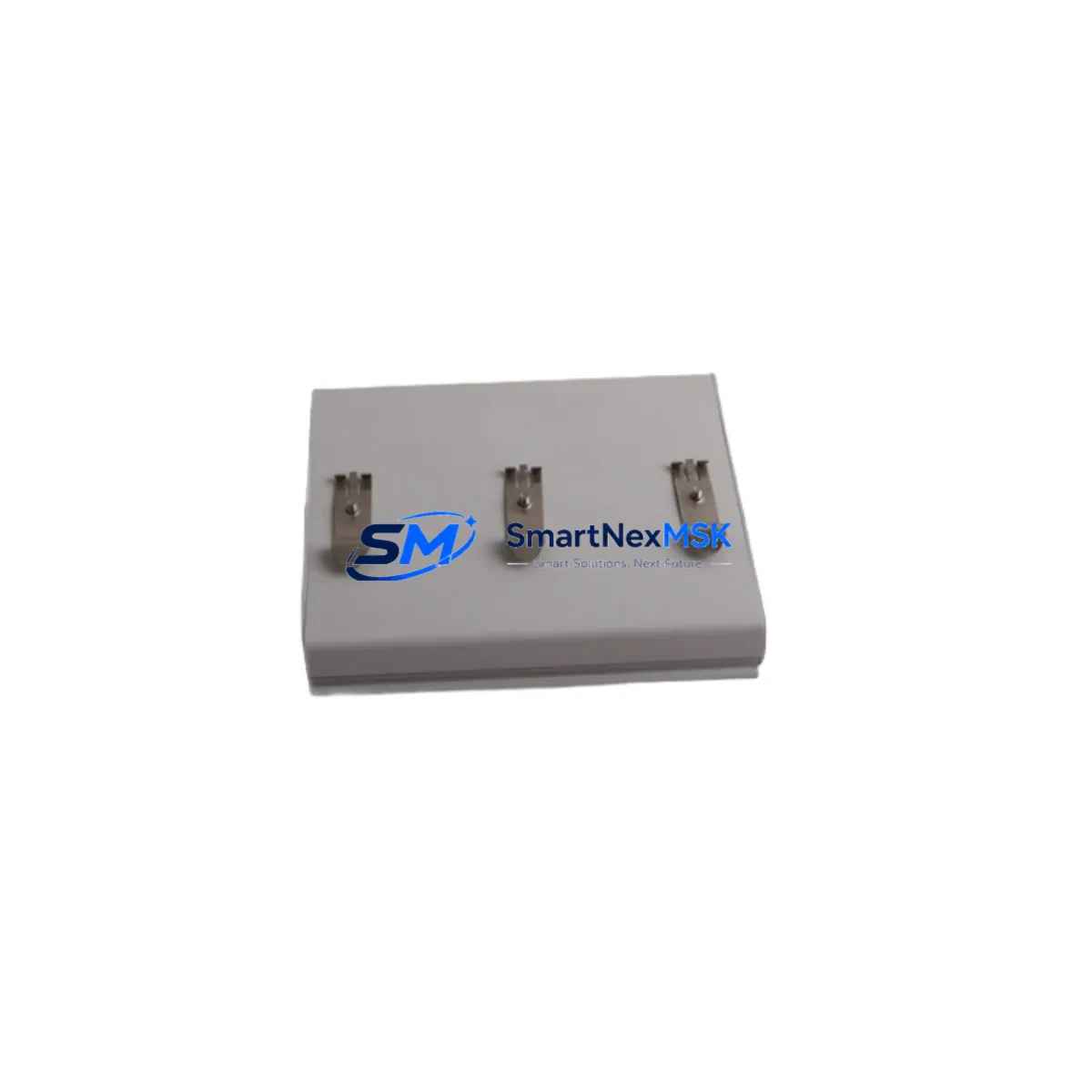

The Agilent G3431-60531 is an original Electronic Pressure Control (EPC) module engineered for the Agilent 6890 and 7890 Gas Chromatograph platforms. As a maintenance-ready spare, it is a critical component for laboratories and industrial process facilities that depend on precise carrier gas pressure regulation to maintain analytical accuracy and system uptime. Unplanned EPC failure is one of the leading causes of GC downtime in continuous-operation environments — having a verified, tested G3431-60531 in your spare parts inventory is a direct investment in operational continuity.

For maintenance engineers managing aging GC systems, the G3431-60531 provides a direct, plug-compatible replacement that eliminates the need for system reconfiguration or firmware updates. Its original Agilent design ensures full compatibility with the G3431 series pneumatics architecture, preserving method integrity and column performance without recalibration overhead. Each unit shipped from SMARTNEXMSK undergoes functional verification and is backed by a 12-month warranty.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a G3431-60531 EPC module is flagged for replacement during a scheduled GC inspection or after an unplanned fault, experienced maintenance engineers know that the EPC is rarely the only component that warrants attention. A systematic inspection of the surrounding pneumatics and electronics subsystems is essential to prevent repeat failures and ensure the GC returns to full analytical performance.

Begin by verifying the carrier gas supply line and inlet pressure regulator — a fluctuating upstream supply is a common root cause of premature EPC wear. Inspect the column inlet liner and septum (such as the Agilent 5183-4757 or equivalent) for contamination that may have caused backpressure anomalies leading to EPC stress. The split/splitless inlet solenoid valve (G1544-60600 series) should be actuated and checked for response time and leak integrity, as a sluggish solenoid can mask EPC faults during diagnostics.

On the electrical side, inspect the GC main power supply board for stable DC rail voltages — EPC modules are sensitive to voltage ripple, and a degraded PSU can cause intermittent pressure control errors that are misdiagnosed as EPC failure. Check the detector signal board and associated analog I/O connections for corrosion or loose ribbon cable seating, particularly in high-humidity environments. The GC keyboard/display module (G1323B or equivalent) should be tested to confirm that EPC setpoint commands are being transmitted correctly to the pneumatics controller.

For systems with multiple inlets, inspect the auxiliary EPC module (G3431-60530 or adjacent channel module) in parallel — dual-channel GC configurations often experience correlated EPC degradation due to shared power rails. The column oven temperature controller board should also be verified, as thermal runaway events can induce pressure transients that accelerate EPC diaphragm fatigue. Finally, review the GC communication interface module (LAN/RS-232 card) to ensure that remote method control and data logging remain intact after the EPC swap, particularly in networked laboratory environments using Agilent OpenLAB or ChemStation software.

Maintaining a minimum spare parts kit that includes the G3431-60531, a backup inlet solenoid valve, a replacement septum pack, and a spare PSU fuse set (such as the 2110-0003 series) will reduce mean time to repair (MTTR) for GC downtime events from hours to under 30 minutes in most field scenarios.

Site Replacement Workflow

Step 1 — Isolation: Power down the GC and isolate the carrier gas supply at the cylinder regulator. Allow the oven to cool to ambient temperature before opening the pneumatics compartment.

Step 2 — Documentation: Record the current EPC setpoints, inlet mode, and column head pressure from the GC method file before disconnecting any components. This ensures rapid method restoration after the swap.

Step 3 — Module Removal: Disconnect the EPC module’s pneumatic fittings and electrical connector. Note the orientation and torque of all fittings — over-tightening during reinstallation is a common cause of fitting failure in G3431 series pneumatics blocks.

Step 4 — Installation of G3431-60531: Seat the replacement module, reconnect pneumatic fittings to finger-tight plus 1/4 turn, and reconnect the electrical harness. Verify connector locking tabs are fully engaged.

Step 5 — Leak Check: Restore carrier gas supply and perform a full pneumatics leak check using an electronic leak detector. Do not proceed to oven heat-up until the system is confirmed leak-free.

Step 6 — Functional Verification: Power on the GC, load the original method, and confirm that the EPC achieves setpoint pressure within the normal stabilization window (typically under 2 minutes for G3431 series). Run a blank injection to verify baseline stability before resuming sample analysis.

This workflow is compatible with both direct G3431-60531 replacements and cross-upgrades from older 6890-series EPC modules, making it suitable for system life-extension programs targeting instruments with 10+ years of service.

Spare Parts Support FAQ

Q1: Is the G3431-60531 a direct drop-in replacement for the original Agilent EPC module in my 6890 or 7890 GC?
Yes. The G3431-60531 is an original Agilent OEM spare designed for direct module-swap replacement in both the 6890 and 7890 GC platforms. No firmware updates, pneumatics reconfiguration, or method re-validation is required for a like-for-like replacement. Compatibility should be confirmed against your instrument’s serial number and configuration record before installation.

Q2: What pre-shipment testing is performed on each G3431-60531 unit?
Every G3431-60531 unit supplied by SMARTNEXMSK undergoes functional verification prior to shipment, including electrical continuity checks and pressure control response testing where applicable. Units are packaged in anti-static, shock-protected packaging to prevent transit damage. A 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: How should I manage G3431-60531 inventory for a multi-GC laboratory or plant?
For facilities operating 3 or more Agilent 6890/7890 GC units, we recommend maintaining a minimum of one G3431-60531 EPC module per 4–6 instruments as a rotating spare. EPC modules in continuous-operation environments (24/7 process GC) should be inspected every 12 months and replaced proactively at the first sign of pressure drift exceeding ±0.5 psi from setpoint. Centralized spare parts management with documented swap history reduces unplanned downtime and supports ISO 17025 maintenance records.

Q4: Can SMARTNEXMSK support long-term or repeat supply of the G3431-60531 for ongoing maintenance contracts?
Yes. SMARTNEXMSK maintains stock of the G3431-60531 and related G3431 series components to support long-term maintenance contracts, annual blanket orders, and emergency procurement. For facilities with scheduled annual shutdowns or planned maintenance windows, we offer advance reservation and priority allocation. Contact our technical sales team to discuss volume pricing, lead time commitments, and multi-SKU spare parts kitting for your GC maintenance program.
