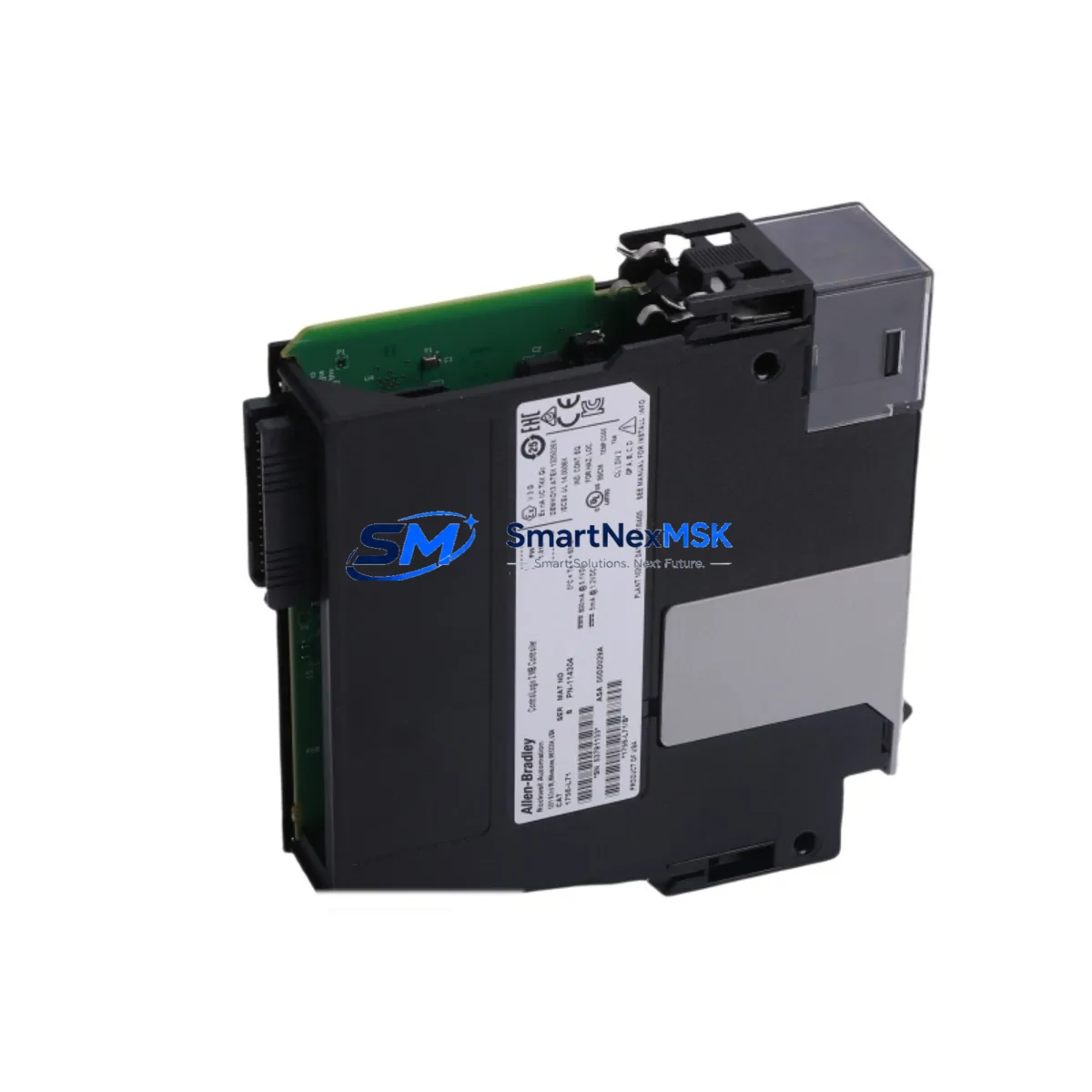

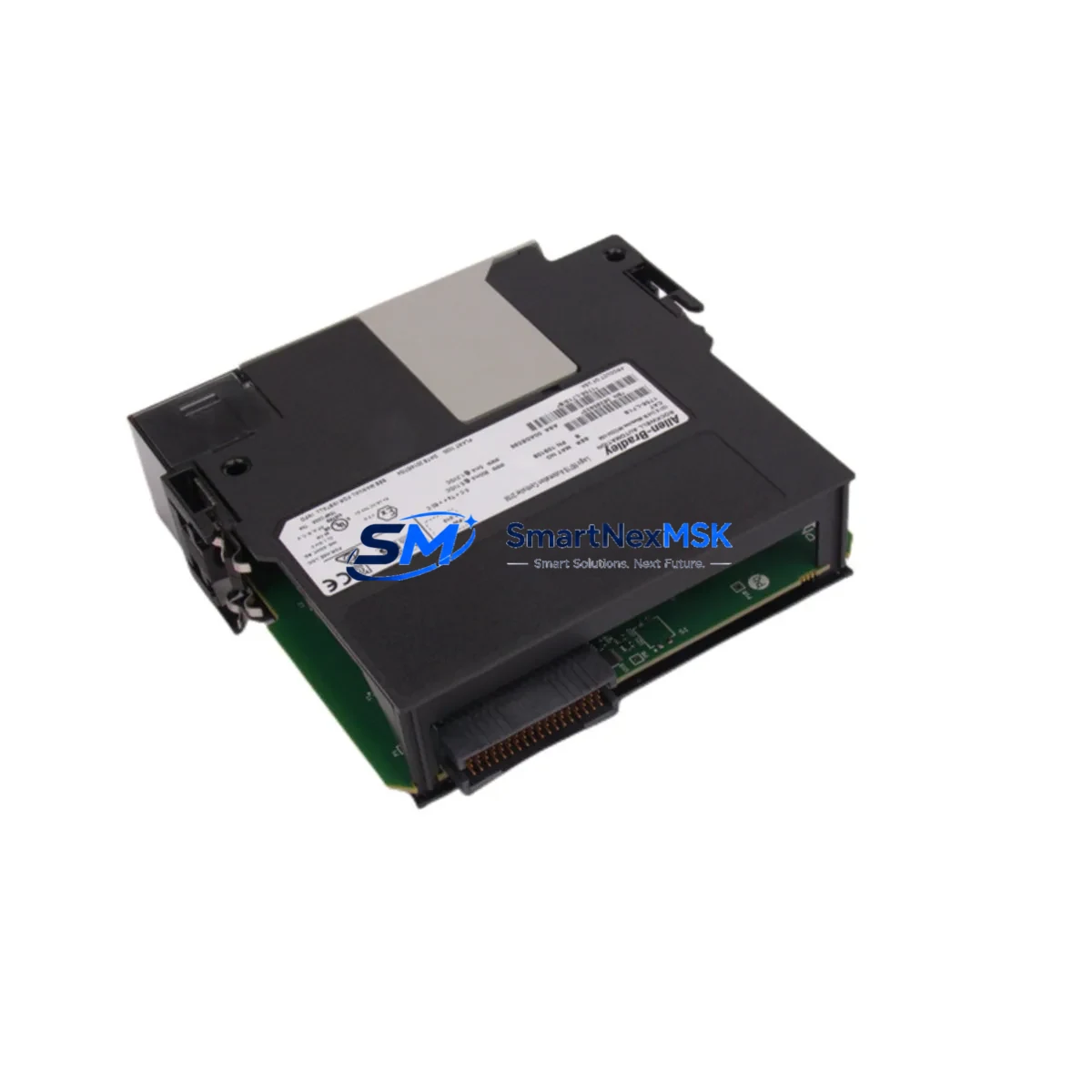

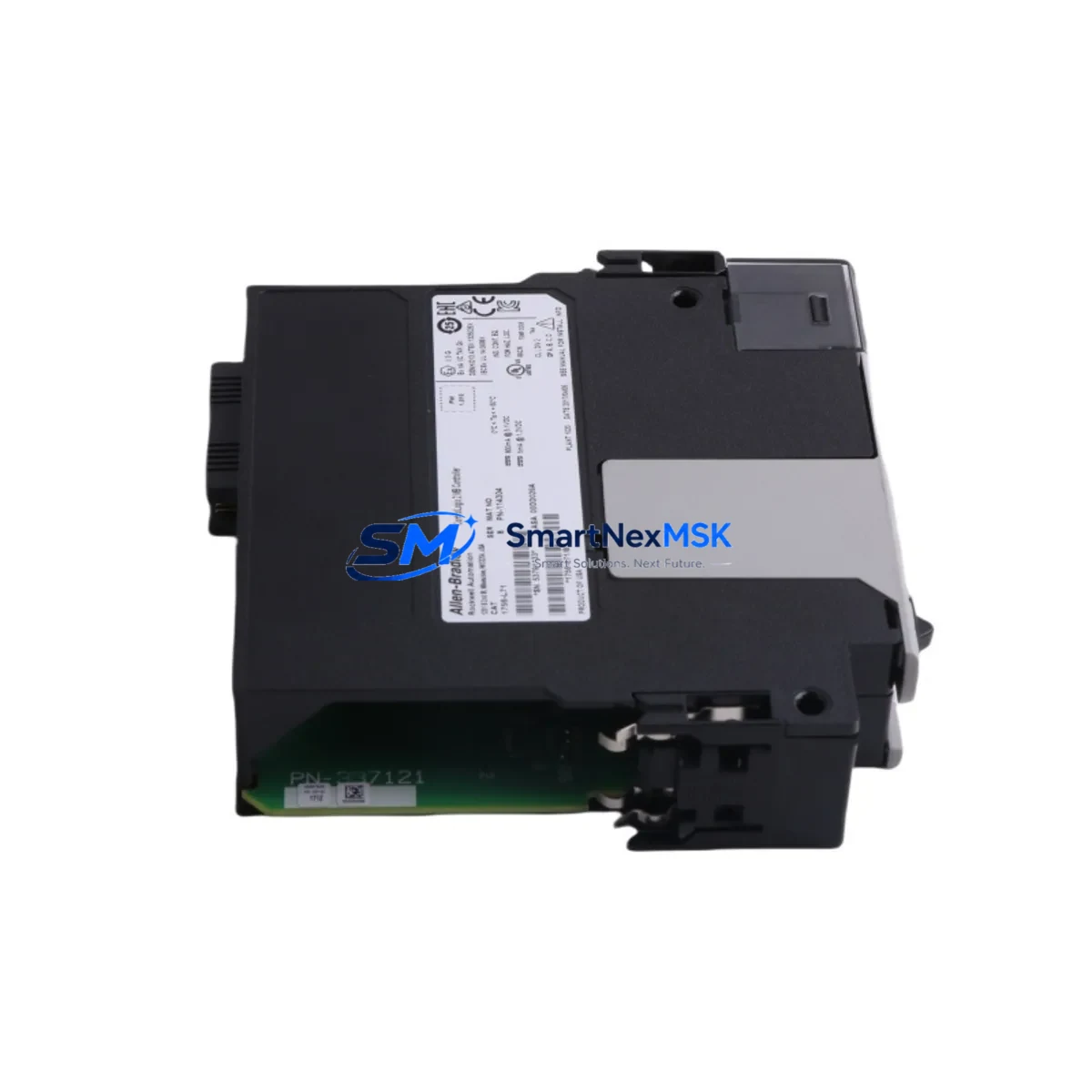

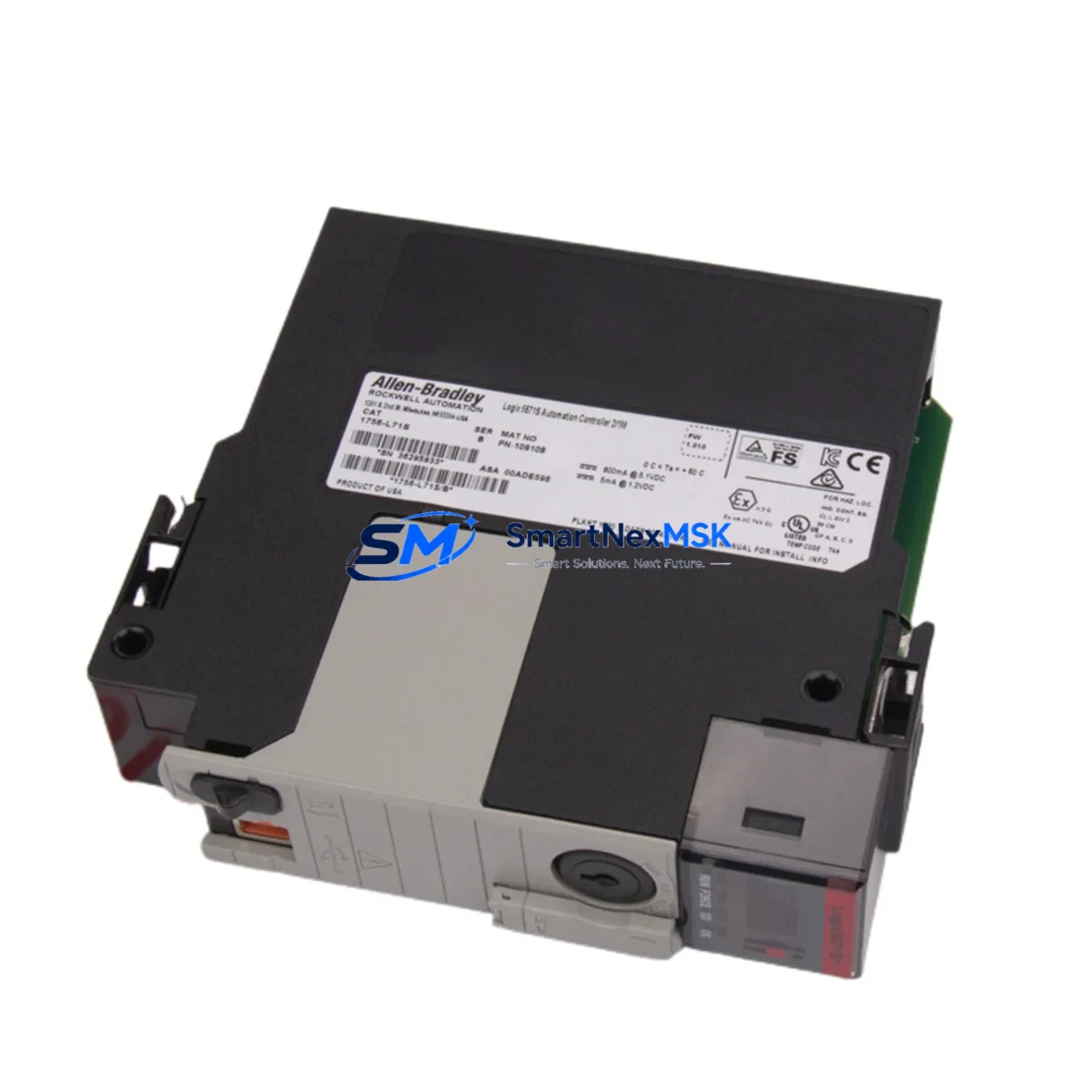

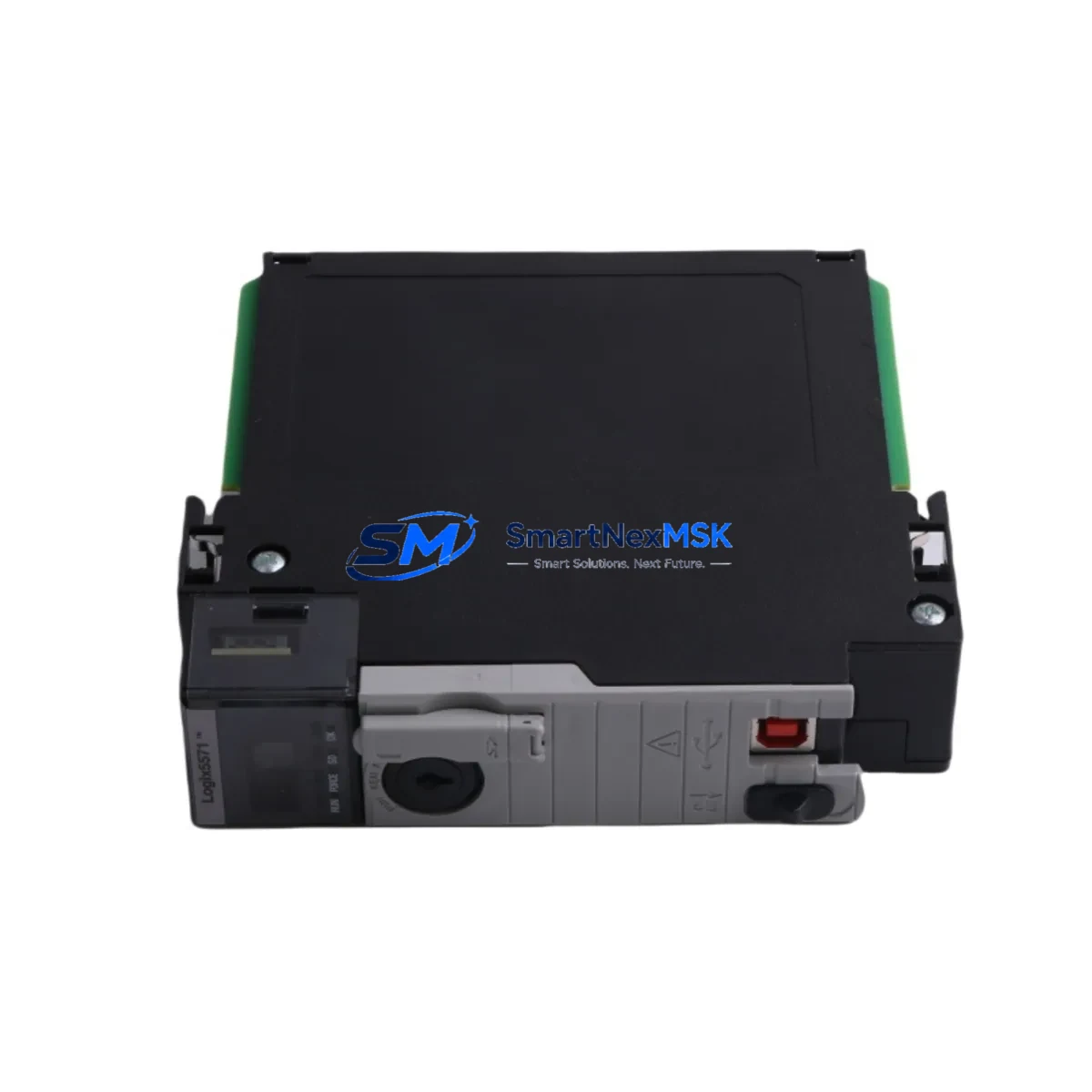

Allen-Bradley 1756-L71 Safety-Enhanced PLC Controller

Allen-Bradley 1756-L71 Safety-Enhanced PLC Controller for Harsh Industrial Sites

The Allen-Bradley 1756-L71 is a high-performance ControlLogix programmable logic controller engineered for mission-critical industrial automation environments where control integrity, signal stability, and continuous uptime are non-negotiable. Designed to anchor safety-critical control architectures in petrochemical plants, power generation facilities, mining operations, water treatment systems, metallurgical processing lines, port logistics, and continuous manufacturing sites, the 1756-L71 delivers the processing power and fault-tolerance demanded by modern industrial safety strategies.

In high-load, high-interference production environments, control interruptions carry severe operational and safety consequences. The 1756-L71 addresses this directly through its robust CPU architecture, deterministic scan-cycle execution, and deep integration with the ControlLogix backplane ecosystem. When paired with 1756-IB16 digital input modules and 1756-OB16E digital output modules, the controller forms a tightly coupled I/O subsystem capable of sustaining reliable signal acquisition and actuation even under heavy electromagnetic interference from variable frequency drives, high-current switchgear, and arc-flash-prone environments.

Signal drift and module mis-operation are persistent risks in continuous process control. The 1756-L71 mitigates these risks through its integrated diagnostics engine, which continuously monitors I/O module health, backplane communication integrity, and task execution timing. Complementary analog modules such as the 1756-IF16 16-channel analog input module provide high-resolution process variable acquisition with built-in open-wire and over-range detection, ensuring that field transmitters — pressure, temperature, flow, and level — deliver accurate data to the control loop without silent failure modes.

Power supply stability is foundational to control cabinet safety. The 1756-L71 operates within the ControlLogix chassis powered by redundant-capable 1756-PA75R power supply modules, which provide regulated 24 VDC backplane power with built-in diagnostics and hot-swap capability. For installations requiring uninterrupted control during utility power disturbances, the 1756-L71 integrates seamlessly with 1756-ESMNSE energy storage modules, bridging power interruptions and enabling graceful shutdown sequences that protect both process equipment and personnel.

Surge and transient protection is equally critical in field-connected control systems. The 1756-L71’s I/O architecture supports surge-rated terminal bases and field-side surge suppressors, reducing the risk of transient-induced module damage in outdoor substations, motor control centers, and long cable-run installations. When deployed alongside 1756-EN2T EtherNet/IP communication modules, the controller maintains deterministic network communication with SCADA systems, historian servers, and HMI panels — even in electrically noisy environments — through dual-port topology support and CIP Security-ready firmware.

For safety interlock and emergency shutdown (ESD) applications, the 1756-L71 can be configured within a GuardLogix safety architecture using 1756-L7SP safety partner modules, achieving SIL 2 / PLd safety integrity levels as defined by IEC 61511 and ISO 13849. This makes the 1756-L71 a viable backbone for burner management systems, high-integrity pressure protection systems (HIPPS), and turbine overspeed protection circuits where certified safety logic execution is mandatory.

Communication redundancy further enhances system resilience. The 1756-L71 supports ControlNet, DeviceNet, and EtherNet/IP through modular communication cards, enabling flexible network topologies. In redundant controller configurations using 1756-RM2 redundancy modules, the 1756-L71 achieves bumpless switchover in under 10 milliseconds, ensuring continuous process control during primary controller faults — a critical requirement for refinery charge pumps, boiler drum level control, and continuous caster operations.

Field replacement and spare parts availability are key considerations for long-term plant reliability. SMARTNEXMSK maintains verified stock of the 1756-L71 alongside compatible chassis options including the 1756-A7 7-slot chassis and 1756-A13 13-slot chassis, enabling rapid like-for-like replacement without extended lead times. All units undergo pre-shipment functional testing covering CPU boot integrity, backplane communication verification, and firmware version confirmation before dispatch.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust control cabinet built around the 1756-L71 integrates multiple protective layers to guard against the full spectrum of industrial hazards. At the power entry point, 1756-PA75R redundant power supply modules provide regulated backplane power with automatic failover, eliminating single-point power failure as a cause of controller shutdown. Upstream, DIN-rail mounted surge protective devices (SPDs) rated for IEC 61643-11 Category C2/D1 suppress line-borne transients before they reach sensitive electronics.

Within the backplane, 1756-IF16 analog input modules and 1756-OF8 analog output modules handle process variable acquisition and final control element commands with 16-bit resolution and built-in channel diagnostics. Digital safety signals — emergency stop circuits, safety gate interlocks, and pressure relief valve position feedback — are routed through 1756-IB16S safety input modules operating in dual-channel redundant mode, ensuring that any single-channel fault is detected and annunciated before it can propagate to a hazardous state.

Network communication is protected through 1756-EN2TR EtherNet/IP modules with dual-port ring topology support, providing Device Level Ring (DLR) redundancy that maintains SCADA connectivity even when a single network segment fails. For legacy field device integration, 1756-DNB DeviceNet bridge modules connect motor starters, variable speed drives, and smart field instruments to the ControlLogix backplane without introducing communication bottlenecks.

Controller-level redundancy is achieved through 1756-RM2 redundancy modules paired in a primary/secondary chassis configuration, delivering sub-10ms bumpless switchover that is imperceptible to the process. This architecture is the standard of care for continuous process units — ethylene crackers, ammonia synthesis loops, and paper machine drive sections — where any control interruption translates directly to production loss or safety incident.

Critical Industrial Safety Applications

The 1756-L71 is deployed across the most demanding industrial sectors where control system failure carries unacceptable safety and financial consequences:

Petrochemical & Refining: The 1756-L71 serves as the primary logic solver in high-integrity pressure protection systems (HIPPS), burner management systems (BMS), and compressor anti-surge control loops. Its deterministic scan cycle and SIL 2 capability (with GuardLogix partner) meet the functional safety requirements of IEC 61511 for process safety instrumented functions.

Power Generation: In coal-fired, gas turbine, and hydroelectric generating stations, the 1756-L71 manages turbine governor control, boiler drum level regulation, and generator protection relay coordination. Its redundant controller architecture ensures that a CPU fault does not result in an uncontrolled turbine trip or grid disturbance.

Mining & Mineral Processing: Underground and surface mining operations rely on the 1756-L71 for conveyor belt protection systems, ventilation fan control, and hoisting machine safety interlocks. The controller’s wide operating temperature range and vibration resistance make it suitable for harsh underground electrical rooms and surface-mounted control buildings exposed to extreme weather.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the 1756-L71 to manage pump station control, chemical dosing systems, and UV disinfection sequences. Its EtherNet/IP connectivity enables integration with SCADA systems for remote monitoring and alarm management across geographically distributed pump stations.

Metallurgy & Steel: In electric arc furnace (EAF) operations, continuous casting lines, and rolling mill drive systems, the 1756-L71 handles high-speed sequence control and coordinated drive management. Its immunity to electromagnetic interference from high-current arc furnace operations is a critical selection criterion in this application.

Port & Logistics Automation: Ship-to-shore cranes, automated stacking cranes, and conveyor systems in container terminals depend on the 1756-L71 for coordinated motion control and safety interlock management. The controller’s high I/O capacity and fast task execution support the complex, multi-axis motion sequences required in modern port automation.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 1756-L71?
The 12-month warranty covers manufacturing defects, component failures, and functional non-conformance under normal operating conditions. Units that fail to perform to published Allen-Bradley specifications within the warranty period will be repaired or replaced at no charge. The warranty period begins from the date of shipment. Damage resulting from incorrect installation, overvoltage events beyond rated limits, or unauthorized modification is excluded.

Q2: What pre-shipment testing is performed on each 1756-L71 unit?
Every 1756-L71 unit undergoes a structured pre-shipment inspection covering: visual inspection for physical damage and connector integrity; power-on boot test confirming CPU initialization and self-diagnostic pass; backplane communication verification using a test chassis; firmware version confirmation against the shipped documentation; and functional I/O scan test where applicable. A test report is available upon request for critical infrastructure procurement.

Q3: Is the 1756-L71 compatible with existing ControlLogix 5560 and 5580 series installations?
The 1756-L71 (ControlLogix 5570 series) is mechanically and electrically compatible with all standard 1756-Axx ControlLogix chassis and is programmed using Studio 5000 Logix Designer, the same environment used for 5560 and 5580 series controllers. Project migration from 5560-series controllers is supported with minor revision adjustments. Compatibility with 5580-series chassis and features (such as Compact I/O over EtherNet/IP at higher speeds) should be verified against the specific project requirements.

Q4: Can long-term supply and replacement support be guaranteed for the 1756-L71?
SMARTNEXMSK maintains ongoing stock of the 1756-L71 and its primary compatible components — chassis, power supplies, communication modules, and I/O modules — to support both new project builds and emergency replacement requirements. For critical infrastructure operators requiring guaranteed spare parts availability, we recommend establishing a framework supply agreement. Contact our technical sales team to discuss stocking arrangements, lead time commitments, and multi-unit pricing for strategic spare holdings.
