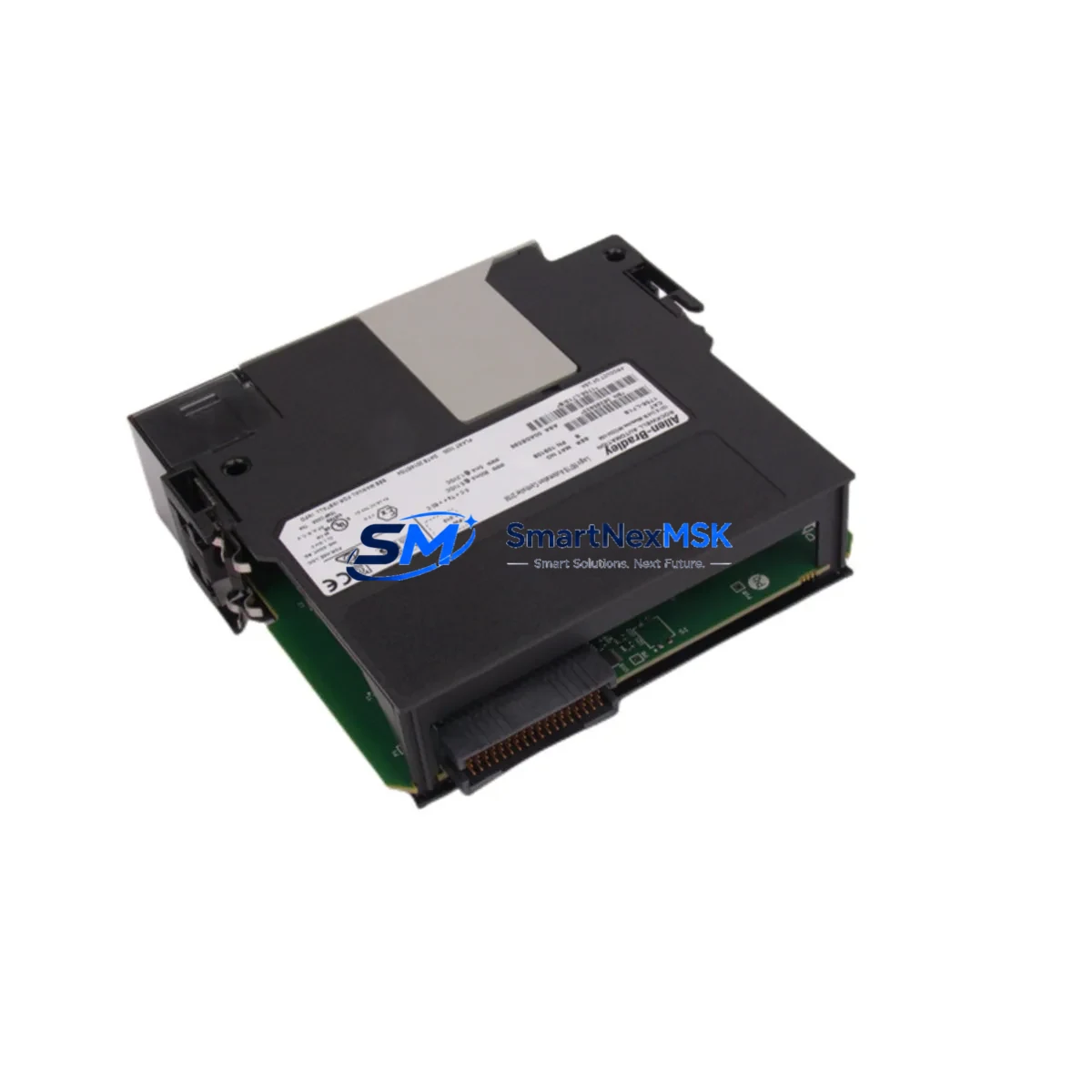

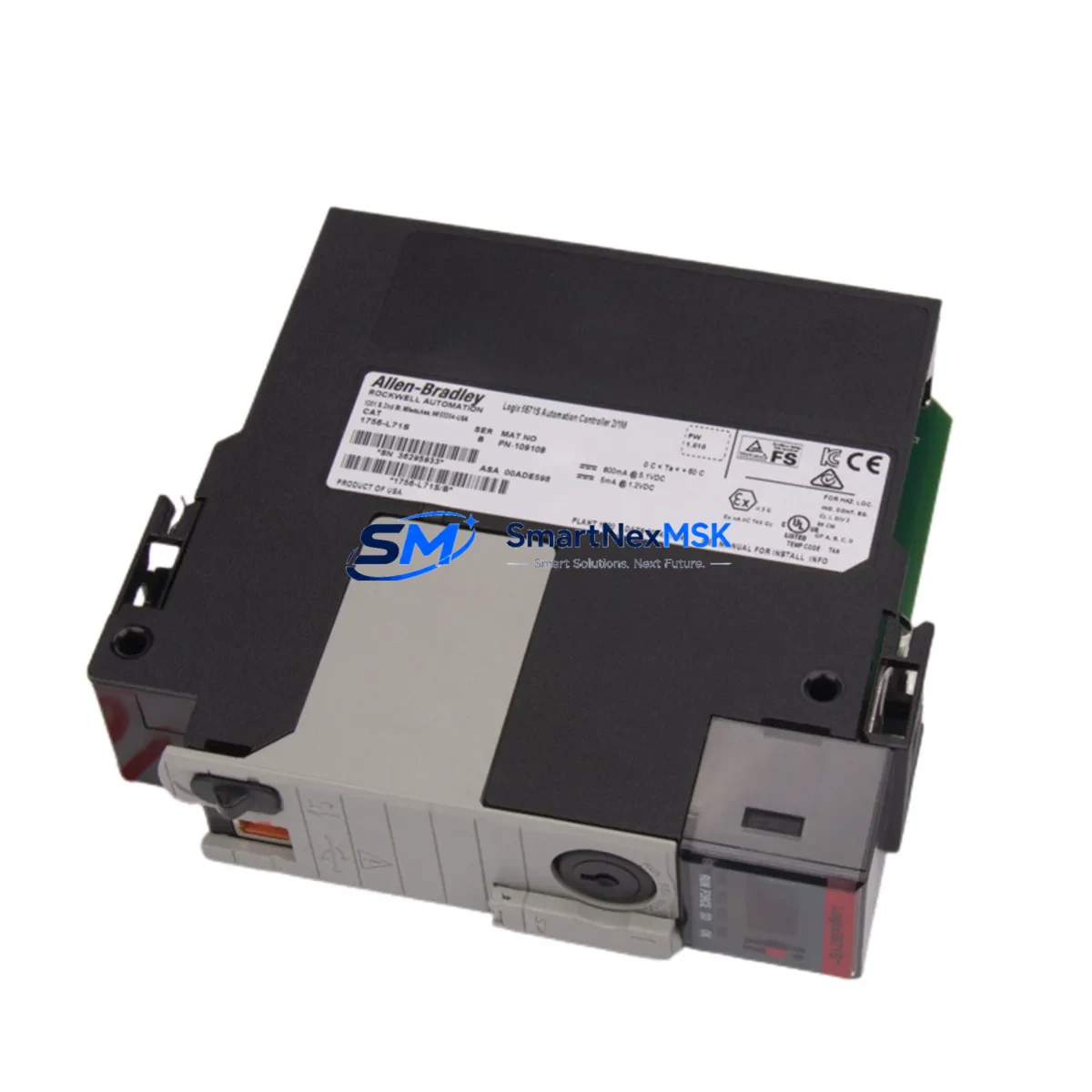

Allen-Bradley 1756-L71S Retrofit-Ready Safety Controller

Allen-Bradley 1756-L71S Retrofit-Ready Safety Controller for ControlLogix 5570S Control Systems

The Allen-Bradley 1756-L71S is a SIL 3-rated safety programmable logic controller (Safety PLC) designed for seamless integration into existing ControlLogix 5570S control architectures. As legacy 1756-L61S and 1756-L62S controllers reach end-of-life and spare parts become increasingly scarce, the 1756-L71S represents the most direct and validated upgrade path for safety-critical automation systems across oil & gas, chemical processing, power generation, and discrete manufacturing environments.

With 2 MB of user memory, dual-port EtherNet/IP connectivity, and full compatibility with the 1756 ControlLogix chassis family, this controller supports both standard and safety tasks within a single execution environment. Engineers migrating from older 1756-L60S or 1756-L63S platforms will find that existing ladder logic, function block diagrams, and safety task configurations can be preserved with minimal rework in Studio 5000 Logix Designer, significantly reducing engineering hours and validation cycles.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 1756-L71S retrofit begins well before the controller is physically swapped. Site engineers should first audit the existing 1756 chassis configuration — including the 1756-PA75 or 1756-PB75 power supply capacity, the number of occupied slots, and the I/O module mix. Common I/O modules in legacy ControlLogix safety panels include the 1756-IB16 digital input module, 1756-OB16E digital output module, and 1756-IF16 analog input module. Verifying that these modules remain compatible with the 1756-L71S safety task addressing scheme is a prerequisite for any migration plan.

Communication infrastructure must also be assessed. If the existing system uses a 1756-ENBT EtherNet/IP bridge module or a 1756-DNB DeviceNet bridge, engineers should confirm whether these will be retained or replaced with the integrated dual-port EtherNet/IP on the 1756-L71S. In many modernization projects, the 1756-ENBT is decommissioned in favor of direct EtherNet/IP connections, simplifying the network topology and reducing potential points of failure.

For systems that include a 1756-RM or 1756-RM2 redundancy module, the retrofit scope expands to include redundancy configuration validation. The 1756-L71S supports ControlLogix redundancy when paired with a compatible redundancy module and the appropriate Enhanced Redundancy System firmware bundle. Engineers should verify the redundancy module firmware version before proceeding.

HMI integration is another critical checkpoint. Existing PanelView Plus 7 or PanelView 5500 terminals connected via EtherNet/IP will typically continue to function without screen redesign, provided that tag names and data types in the controller program are preserved during migration. If the legacy system used a PanelView 1000e or older PanelView Plus 6 terminal communicating via DH+ through a 1756-DHRIO module, a communication protocol migration plan should be developed in parallel with the controller swap.

Terminal wiring on field-side I/O modules does not change during a controller-only swap. However, if the retrofit includes replacing aging 1756-IB16D or 1756-OB16IS safety I/O modules, engineers must re-verify terminal assignments, wire gauge compatibility, and safety loop integrity before re-energizing the panel. All wiring changes should be documented in the as-built drawings and cross-referenced against the safety requirements specification.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern in any ControlLogix safety controller replacement. The recommended approach is a staged migration: first, upload and archive the existing controller program using Studio 5000 Logix Designer or RSLogix 5000, then perform an offline comparison against the target program to identify any tag, rung, or safety task differences before the physical swap begins.

During the controller exchange window, the 1756 chassis remains powered where possible, with only the controller slot de-energized. This preserves the state of adjacent I/O modules and reduces the risk of field device faults during the transition. Once the 1756-L71S is seated and powered, the archived program is downloaded, the safety signature is re-generated, and a functional test is performed against the safety requirements specification before the system is returned to automatic mode.

For processes that cannot tolerate any interruption, a parallel-run strategy using a temporary 1756 chassis with the 1756-L71S pre-loaded and pre-tested allows the cutover to be completed in a single planned maintenance window — often under 30 minutes for experienced teams. All units supplied by SMARTNEXMSK are pre-tested and shipped with a 12-month warranty, reducing the risk of infant-mortality failures during commissioning.

Retrofit Support FAQ

Q1: Is the 1756-L71S a direct drop-in replacement for the 1756-L61S or 1756-L62S?
Yes, the 1756-L71S occupies the same chassis slot and uses the same 1756 ControlBus backplane interface. The existing program can be uploaded from the legacy controller and downloaded to the 1756-L71S after a firmware-level compatibility check. A safety signature re-validation is required before returning the system to automatic operation, as mandated by IEC 61508 and SIL 3 certification requirements.

Q2: What commissioning steps are required after installation?
After seating the controller and downloading the program, engineers must: (1) verify the firmware revision matches the project requirements; (2) confirm all I/O module connections are recognized on the backplane; (3) re-generate and lock the safety task signature; (4) perform a proof test of all safety loops; and (5) document the commissioning results in the safety validation report. SMARTNEXMSK can provide pre-shipment test reports upon request.

Q3: Will existing terminal wiring need to be changed?
No. A controller-only swap does not affect field wiring. Terminal assignments on I/O modules such as the 1756-IB16, 1756-OB16E, or 1756-IF16 remain unchanged. If the retrofit also involves replacing I/O modules, wiring changes must be planned separately and verified against the original loop drawings.

Q4: What warranty and quality assurance does SMARTNEXMSK provide?
All 1756-L71S units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing, including power-on verification, backplane communication check, and firmware version confirmation. A test report is available upon request. Units are shipped in anti-static packaging with full traceability documentation.
