Allen-Bradley 1756-L82E Maintenance-Ready Spare ControlLogix

Allen-Bradley 1756-L82E Maintenance-Ready Spare ControlLogix: Spare Replacement & Industrial Downtime Risk Control

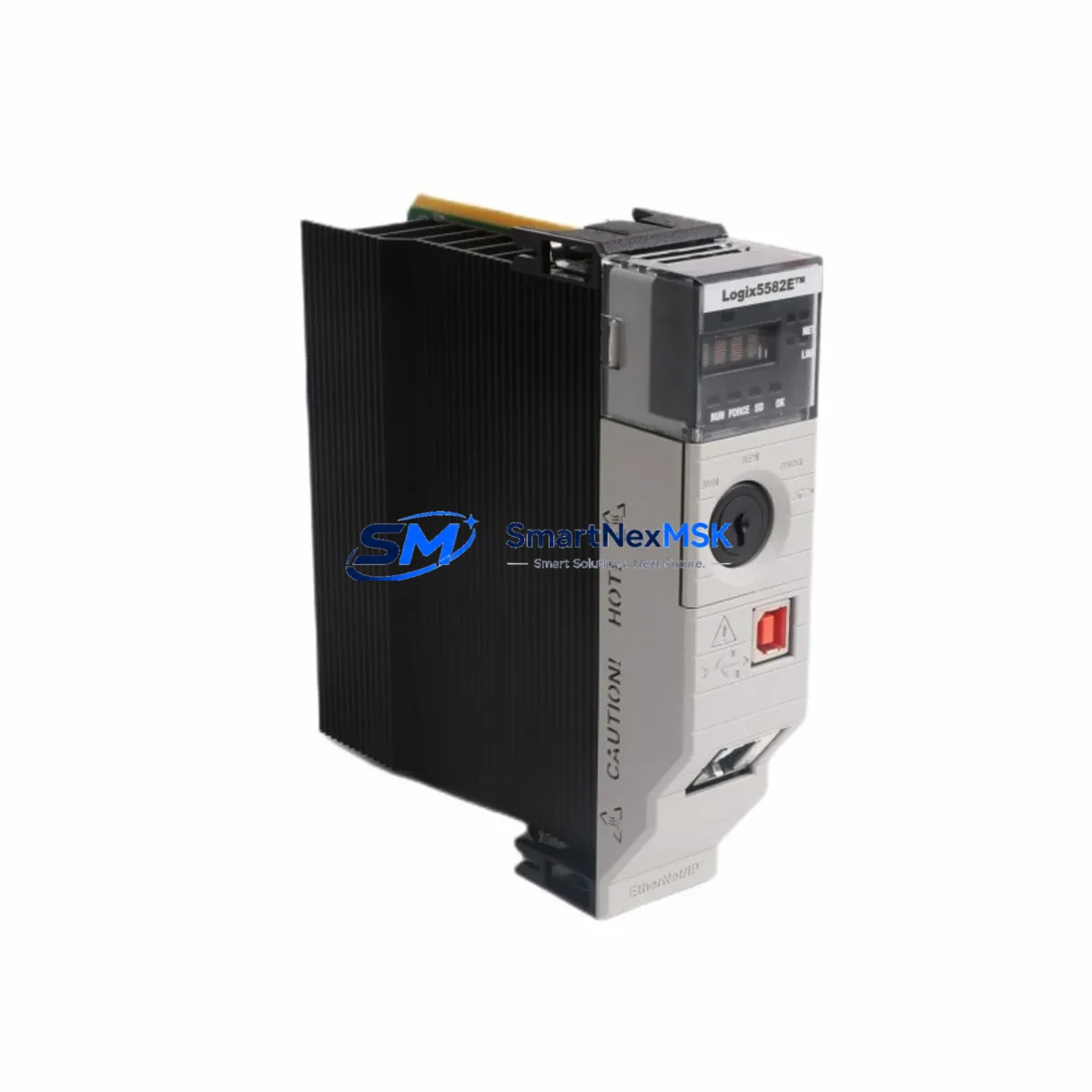

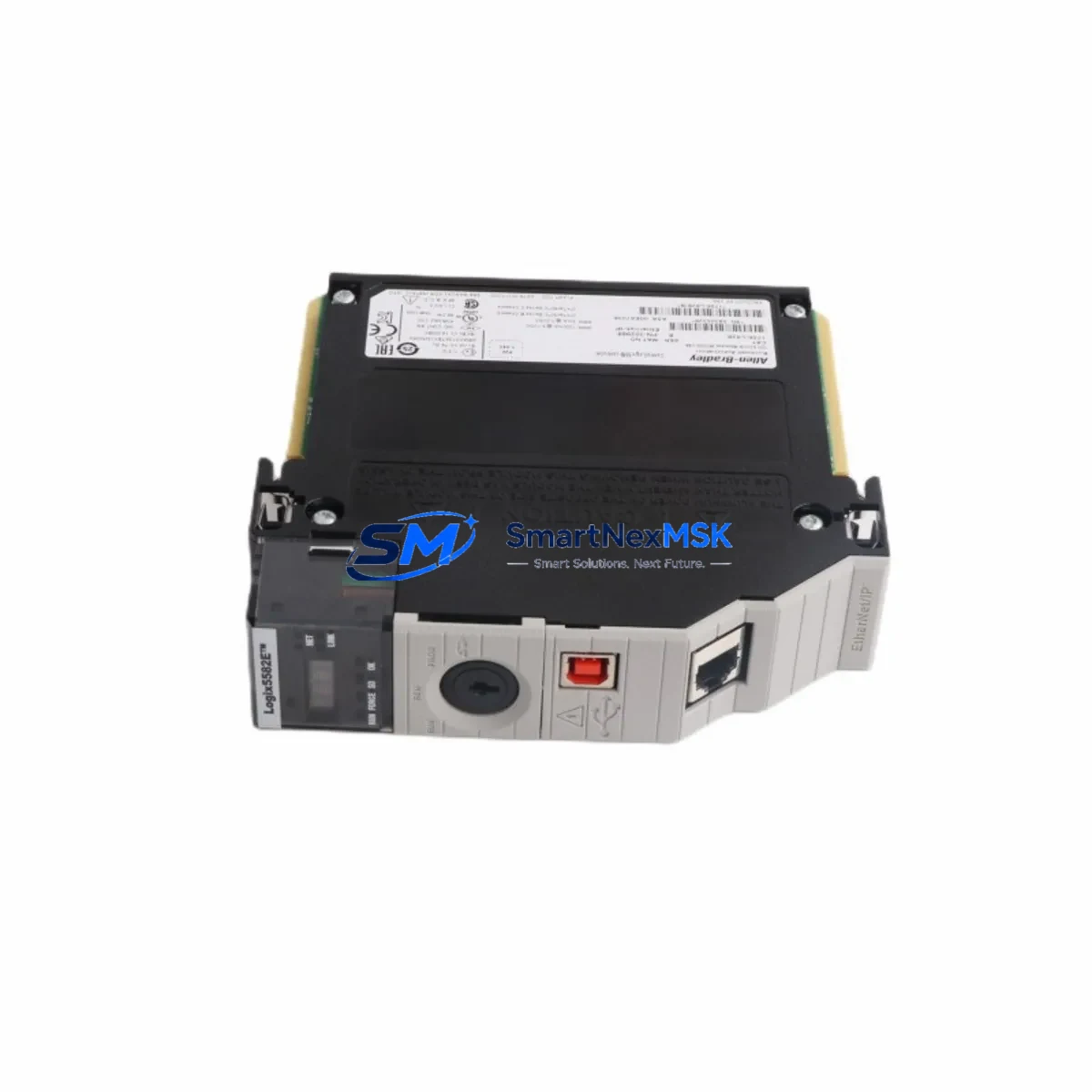

The Allen-Bradley 1756-L82E is a ControlLogix 5580 Series programmable logic controller featuring 5MB user memory and an integrated EtherNet/IP communication port. As a cornerstone of Rockwell Automation’s 1756 platform, this controller is widely deployed across discrete manufacturing, process control, and critical infrastructure applications. When a 1756-L82E fails or reaches end-of-service life, the impact on production continuity is immediate. Maintaining a verified original spare in your parts inventory is the most reliable strategy for minimizing unplanned downtime and protecting system integrity.

This listing provides a maintenance-ready, original Allen-Bradley 1756-L82E spare unit — tested prior to shipment, supplied with a 12-month warranty, and available for fast dispatch to support emergency replacement or planned maintenance cycles. Whether you are managing a scheduled shutdown, responding to a controller fault, or building a strategic spare parts buffer for aging ControlLogix infrastructure, this unit is sourced and verified to meet original specification.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing a 1756-L82E in a live ControlLogix system requires more than swapping the controller. A disciplined maintenance engineer will treat this event as an opportunity to inspect and verify the condition of all interdependent components within the same control cabinet and electrical loop.

Begin with the 1756 chassis backplane — inspect for corrosion, bent connector pins, or signs of thermal stress. The chassis is the mechanical and electrical backbone of the entire 1756 system; a degraded backplane can cause intermittent faults that are misattributed to the controller itself. Next, verify the 1756-PA72 or 1756-PB72 power supply module: check output voltage stability under load, inspect the DC bus capacitors for bulging, and confirm that the power supply fan (if present) is operating correctly. An aging power supply is one of the most common root causes of unexplained controller resets.

Review all 1756 I/O modules installed in the chassis — particularly any 1756-IB16 digital input, 1756-OB16E digital output, or 1756-IF8 analog input modules that interface directly with field sensors and actuators. Confirm that terminal block wiring is secure, that no channels show persistent fault indicators, and that module firmware is compatible with the replacement controller’s firmware revision. Analog signal integrity should be verified with a calibrated loop tester before returning the system to production.

For systems using EtherNet/IP for supervisory communication, inspect the 1756-EN2T or 1756-EN2TR EtherNet/IP communication module if a separate bridge module is used alongside the integrated port. Verify switch port configuration, IP addressing, and ring topology health if a Device Level Ring (DLR) is in use. Communication faults that appear after a controller swap are frequently caused by IP address conflicts or incorrect subnet configuration rather than hardware failure.

Do not overlook the 1756-BATT or 1756-BATM battery module — the replacement controller’s memory backup battery should be inspected and replaced if it is within 12 months of its rated service life. A failed battery will result in program loss on power cycle, which can cause significant additional downtime during recovery.

For systems with safety integration, verify the status of any 1756-L8xS GuardLogix safety controller or 1791DS-IB12 safety I/O module in the same chassis. Safety task integrity must be re-validated after any controller replacement in a safety-rated system. Additionally, inspect signal isolators and surge protection devices on analog and digital field wiring — these components absorb electrical transients that would otherwise damage I/O modules and controllers, and they are frequently overlooked during routine maintenance.

Finally, confirm that the PanelView Plus HMI (if present) is communicating correctly with the replacement controller after the program download. HMI tag database mismatches are a common post-replacement issue when the controller program has been updated since the HMI project was last synchronized.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Before removing the existing 1756-L82E, use Studio 5000 Logix Designer to upload and save the current controller program, including all tag values, motion configuration, and safety task data. Confirm the firmware revision of the existing controller and ensure the replacement unit is loaded with a compatible or identical firmware version before installation.

Step 2 — Safe isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the 1756 chassis power supply and confirm zero-energy state before removing the controller from the backplane slot. Do not remove or insert 1756 modules under power unless the module is rated for hot-swap operation.

Step 3 — Physical installation: Insert the replacement 1756-L82E into the correct chassis slot. Confirm the module latch is fully engaged. Restore power and observe the controller status indicators — the RUN/FAULT LED should cycle through its startup sequence without latching a fault condition.

Step 4 — Program download and verification: Download the saved program to the replacement controller using Studio 5000. Verify all I/O module connections are established, all communication paths are online, and all safety tasks (if applicable) have passed their required validation routines. Perform a controlled test cycle before returning the system to automatic production mode.

Step 5 — Post-replacement documentation: Record the replacement date, new controller serial number, firmware version, and any configuration changes in your site maintenance log. Update your spare parts inventory to reflect the consumed unit and initiate a replenishment order to restore your buffer stock.

Spare Parts Support FAQ

Q: Is this 1756-L82E an original Allen-Bradley unit or a third-party compatible?
A: This is an original Allen-Bradley 1756-L82E manufactured by Rockwell Automation. We do not supply third-party clones or rebranded equivalents. Each unit is inspected and function-tested prior to shipment to confirm it meets original factory specification.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the unit fails within the warranty period due to a covered defect, we will provide a replacement unit or full refund. The warranty does not cover damage caused by incorrect installation, overvoltage events, or unauthorized modification.

Q: How do I verify compatibility with my existing 1756 chassis and I/O configuration?
A: The 1756-L82E is compatible with all standard 1756 ControlLogix chassis (4, 7, 10, 13, and 17-slot). Compatibility with your specific I/O modules and communication modules depends on firmware revision alignment. We recommend confirming the firmware version of your existing system before ordering and contacting our technical team if you require assistance with compatibility verification.

Q: Can you supply multiple units for a long-term spare parts agreement?
A: Yes. We support long-term supply agreements for critical spare parts including the 1756-L82E and related ControlLogix components. Contact our sales team to discuss volume pricing, reserved stock arrangements, and scheduled delivery programs tailored to your planned maintenance calendar.
