Allen-Bradley 1763-L16BWA Safety-Enhanced Relay PLC

Allen-Bradley 1763-L16BWA Safety-Enhanced Relay PLC for Harsh Industrial Sites

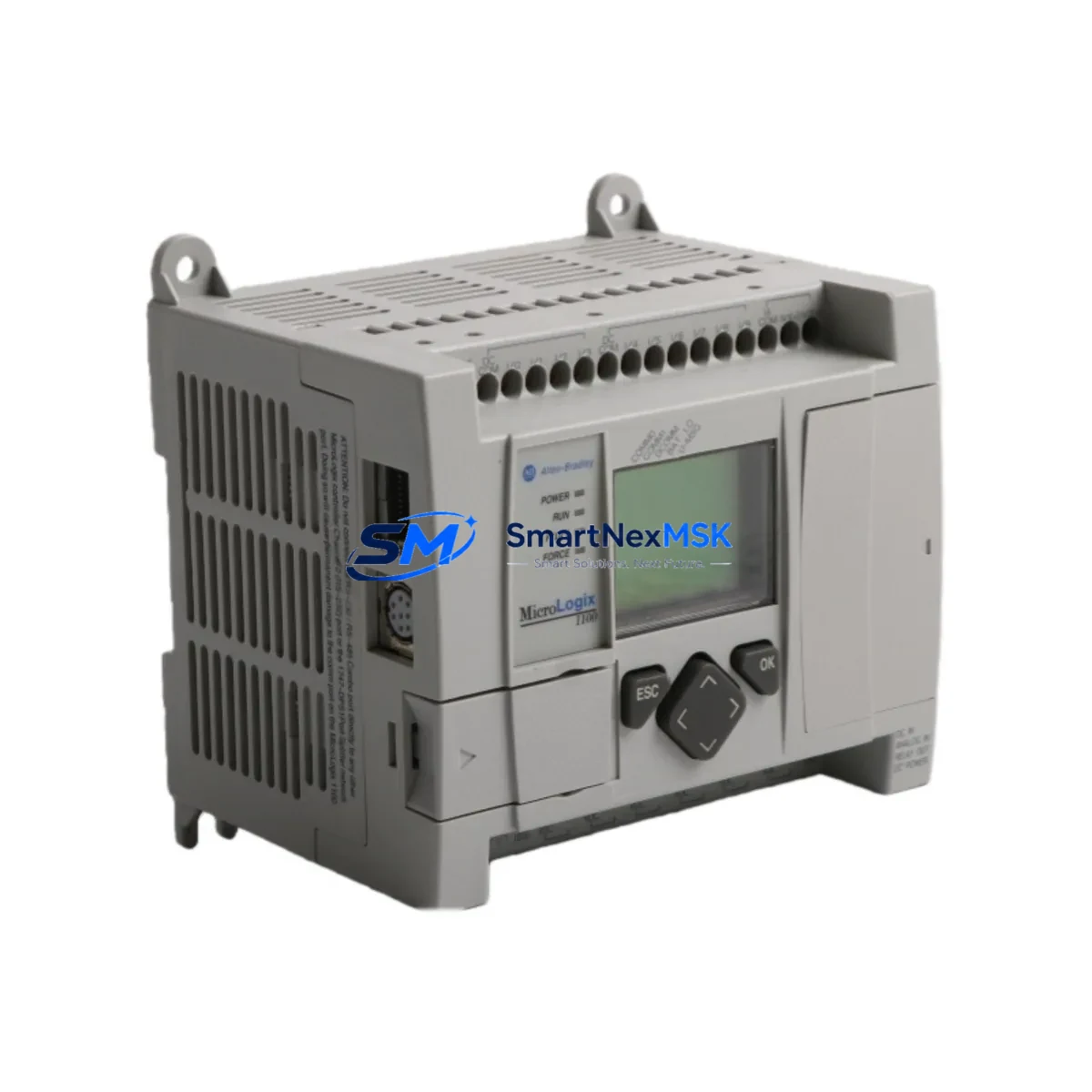

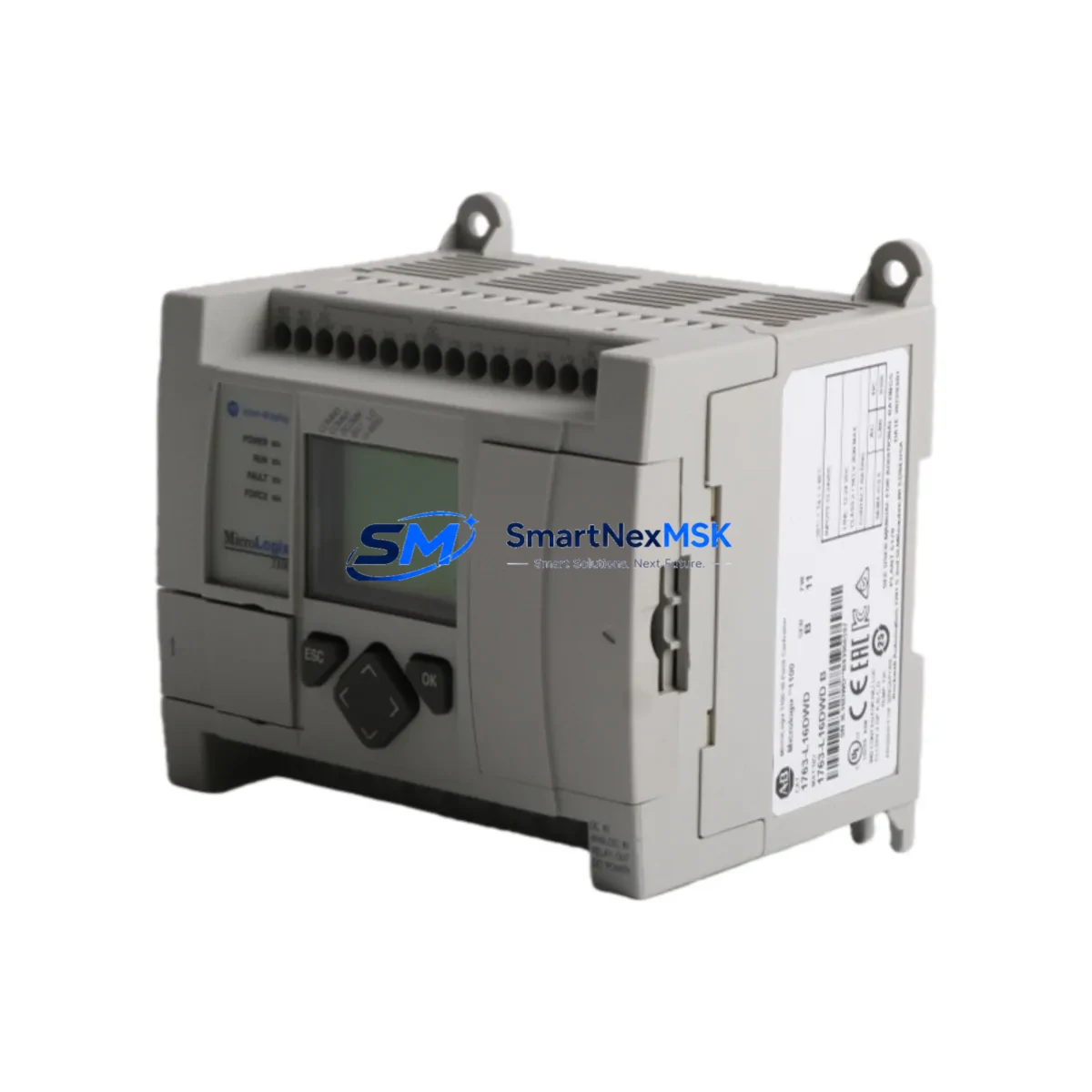

The Allen-Bradley 1763-L16BWA is a MicroLogix 1100 series programmable logic controller engineered for continuous, safety-critical operation in demanding industrial environments. With 10 digital inputs and 6 relay digital outputs driven by AC power, this module delivers robust control loop integrity where signal reliability and uptime are non-negotiable. Designed and manufactured by Rockwell Automation, the 1763-L16BWA is a proven choice for control engineers who require deterministic scan times, high noise immunity, and long-term field stability in applications ranging from chemical processing to heavy manufacturing.

In high-load production lines, the 1763-L16BWA’s relay output architecture provides galvanic isolation between the controller logic and field devices, significantly reducing the risk of control signal contamination from inductive load switching, motor starts, or solenoid valve actuation. This isolation is a fundamental safety feature in environments where voltage transients and inductive kickback can cause module misoperation or damage to adjacent I/O cards. When paired with a 1763-NC01 serial cable and RSLogix 500 / Studio 5000 Logix Designer programming environment, commissioning and diagnostic access are streamlined even in remote or hazardous locations.

For installations in heavy industrial control cabinets — including those found in petrochemical plants, power generation facilities, mining operations, and water treatment infrastructure — the 1763-L16BWA integrates seamlessly with the broader MicroLogix 1100 ecosystem. Engineers frequently deploy it alongside the 1762-IQ8 digital input expansion module and 1762-OW8 relay output expansion module to scale I/O capacity without introducing additional communication latency. Power supply stability is equally critical: the module is commonly supported by a 1606-XLP72E or equivalent 24 VDC SMPS power supply, which provides regulated, surge-protected DC rail voltage to field sensors and transmitters within the same cabinet.

In critical interlock and safety shutdown circuits, the 1763-L16BWA is frequently used in conjunction with safety relays such as the 440R-N23132 Guardmaster safety relay, which monitors E-stop chains, light curtains, and two-hand control devices. The PLC’s relay outputs can directly drive the safety relay’s reset and bypass logic, creating a layered protection architecture that meets the requirements of IEC 62061 and ISO 13849 functional safety standards. Communication integrity is maintained through the built-in Ethernet port, which supports EtherNet/IP protocol for integration with 1756-EN2T ControlLogix Ethernet bridge modules in larger distributed control architectures.

Surge and transient protection is a persistent concern in industrial sites with variable-frequency drives, large motor starters, and arc furnaces operating on shared electrical infrastructure. The 1763-L16BWA’s AC power input design incorporates internal filtering, and field engineers typically supplement this with 1492-SP1C060 supplementary protectors or DIN-rail mounted surge protection devices on the 24 VDC sensor supply lines. This combination guards against the voltage spikes and ground loops that are common root causes of PLC nuisance faults and unplanned shutdowns.

For facilities operating under continuous production mandates — such as pulp and paper mills, port terminal automation, or metallurgical processing — the 1763-L16BWA supports online program editing and data monitoring via its built-in LCD display and keypad, enabling maintenance technicians to perform diagnostics and minor parameter adjustments without halting the production cycle. Backup and restore operations are facilitated through the 1763-MM1 memory module, which stores the full application program and allows rapid controller replacement in the event of hardware failure, minimizing mean time to repair (MTTR) in critical process lines.

All units supplied by SMARTNEXMSK undergo pre-shipment functional verification, including power-on self-test, I/O channel continuity checks, and firmware version confirmation. Each 1763-L16BWA is covered by a 12-month warranty from the date of shipment, with dedicated technical support for compatibility verification, replacement sourcing, and application guidance. Inventory is maintained in stock to support urgent MRO procurement, scheduled maintenance windows, and capital project timelines.

Safety Reliability Table

Control Cabinet Protection Strategy

A reliable control cabinet built around the 1763-L16BWA begins with a well-engineered power distribution and protection architecture. The AC supply to the controller should be conditioned through a DIN-rail mounted surge protection device (SPD) rated for the local grid voltage, followed by a 1606-XLP72E 24 VDC power supply for sensor and transmitter rails. Supplementary circuit protection using 1492-SP1C060 branch circuit protectors on individual I/O loops prevents a single field fault from propagating to the controller backplane.

For applications requiring expanded I/O, the 1762-IQ8 8-point 24 VDC input module and 1762-OW8 8-point relay output module connect directly to the 1763-L16BWA via the MicroLogix expansion bus, maintaining a unified scan cycle without additional network overhead. Where analog process variables — such as pressure, temperature, or flow — must be monitored, the 1762-IF4 4-channel analog input module provides 12-bit resolution signal acquisition with configurable input ranges.

Safety interlock integrity is reinforced by integrating the relay outputs of the 1763-L16BWA with a 440R-N23132 Guardmaster dual-channel safety relay, which monitors the status of emergency stop buttons, gate switches, and safety mats. For communication redundancy in critical process areas, the controller’s EtherNet/IP port can be connected through an unmanaged industrial Ethernet switch with DIN-rail mounting and extended temperature rating, ensuring network availability even under thermal stress. Program backup and rapid swap-out are supported by the 1763-MM1 memory module, which should be kept as a stocked spare in every facility operating this controller in a critical loop.

Critical Industrial Safety Applications

The 1763-L16BWA is deployed across a wide spectrum of heavy industrial and process-critical environments where control system reliability directly impacts personnel safety and production continuity.

Petrochemical and Refinery Plants: In hazardous area control panels (Zone 2 / Division 2 rated enclosures), the 1763-L16BWA manages pump sequencing, valve actuation, and emergency shutdown (ESD) pre-logic. Its relay outputs provide the dry contact signals required by safety instrumented system (SIS) interfaces, and its Modbus RTU capability allows integration with legacy field instruments and SCADA systems without protocol conversion hardware.

Power Generation and Substation Automation: In auxiliary control panels for turbine auxiliaries, cooling water systems, and transformer protection circuits, the 1763-L16BWA’s high noise immunity and relay output isolation make it suitable for environments with strong electromagnetic interference from high-voltage switching equipment. The controller’s deterministic scan time ensures that protection relay trip signals are processed within the required response window.

Mining and Mineral Processing: Conveyor belt control, crusher sequencing, and ventilation fan interlocking in underground and surface mining operations demand controllers that can withstand vibration, dust ingress, and wide ambient temperature swings. The 1763-L16BWA, installed in sealed NEMA 4X or IP65 enclosures, provides the local control logic for these systems while communicating status data to the surface SCADA via EtherNet/IP.

Water and Wastewater Treatment: Pump station automation, chemical dosing control, and UV disinfection system sequencing rely on the 1763-L16BWA for reliable, low-maintenance operation in remote, unmanned installations. The built-in LCD display allows on-site operators to monitor I/O status and fault codes without a laptop, reducing service call frequency and response time.

Metallurgical and Steel Processing: In rolling mill auxiliary systems, furnace atmosphere control, and cooling bed sequencing, the 1763-L16BWA’s relay outputs handle the high-current switching demands of solenoid valves and motor contactors, while its input filtering suppresses the electrical noise generated by thyristor drives and induction heating equipment.

Port and Terminal Automation: Crane control auxiliaries, conveyor routing logic, and access gate interlocking in port terminals require controllers with proven field reliability and straightforward spare parts availability. The 1763-L16BWA’s widespread installed base and long-term Rockwell Automation product support make it a low-risk choice for new installations and legacy system upgrades alike.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 1763-L16BWA?
All 1763-L16BWA units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects and functional failures under normal operating conditions. Warranty claims are supported by our technical team, who can assist with failure analysis, replacement sourcing, and expedited shipment to minimize downtime.

Q2: What pre-shipment testing is performed on each unit?
Every 1763-L16BWA undergoes a power-on self-test (POST), I/O channel continuity verification, firmware version confirmation, and visual inspection for physical damage prior to shipment. Units are packed in anti-static, shock-absorbing packaging to maintain integrity during international freight.

Q3: Is the 1763-L16BWA compatible with existing MicroLogix 1100 expansion modules and RSLogix 500 programs?
Yes. The 1763-L16BWA is fully compatible with all MicroLogix 1100 series expansion modules (1762-Ixx, 1762-Oxx, 1762-IFx, 1762-OFx series) and is programmed using RSLogix 500 or RSLogix Micro software. Existing ladder logic programs can be downloaded directly to a replacement unit without modification, provided the firmware version is matched or updated accordingly.

Q4: Can SMARTNEXMSK support long-term and repeat procurement for maintenance and capital projects?
Yes. SMARTNEXMSK maintains standing inventory of the 1763-L16BWA and related MicroLogix 1100 accessories to support MRO procurement, planned maintenance shutdowns, and multi-unit capital project requirements. Customers with ongoing procurement needs are encouraged to contact our sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
