Allen-Bradley 1766-L32BWAA Maintenance-Ready Spare MicroLogix 1400

Allen-Bradley 1766-L32BWAA Maintenance-Ready Spare MicroLogix 1400

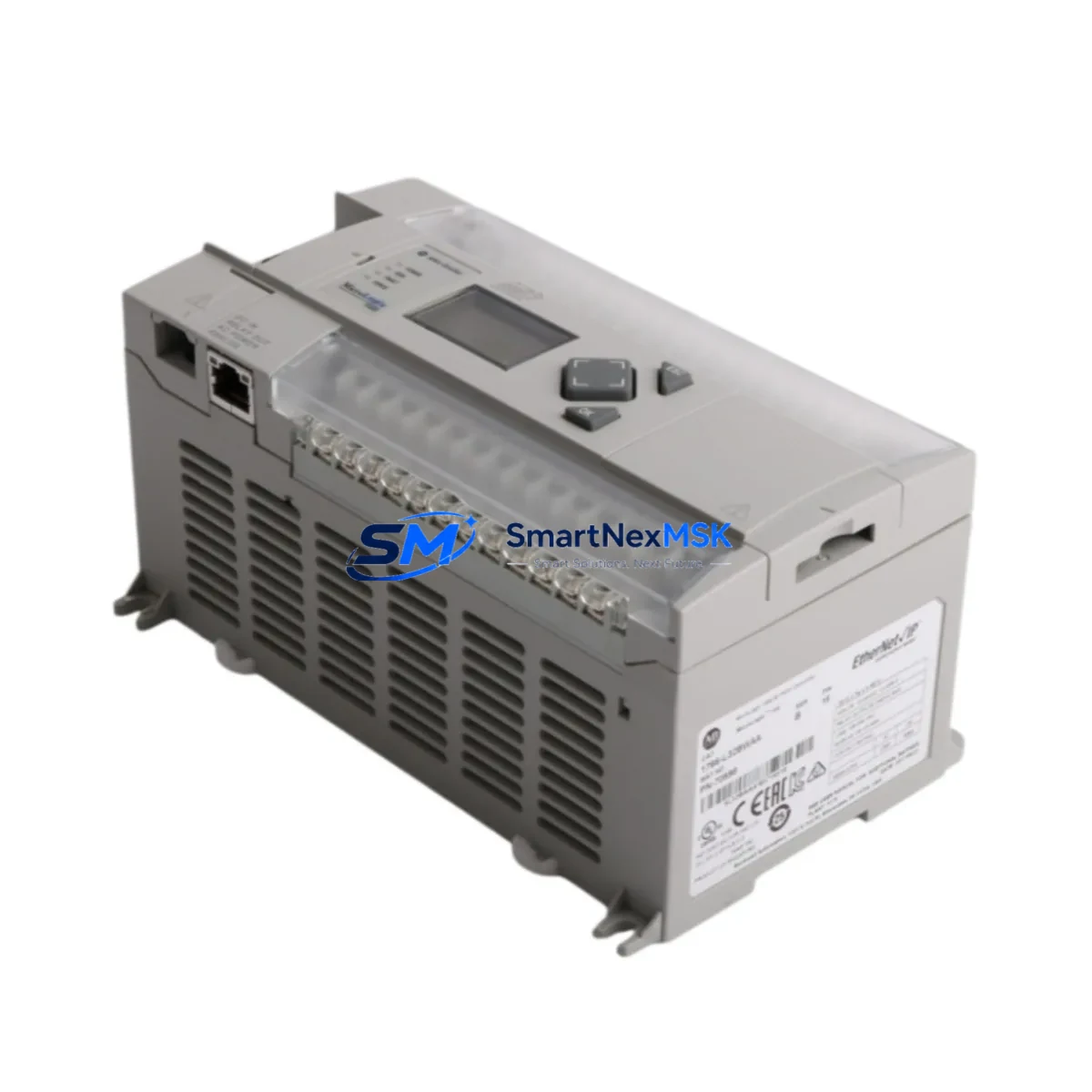

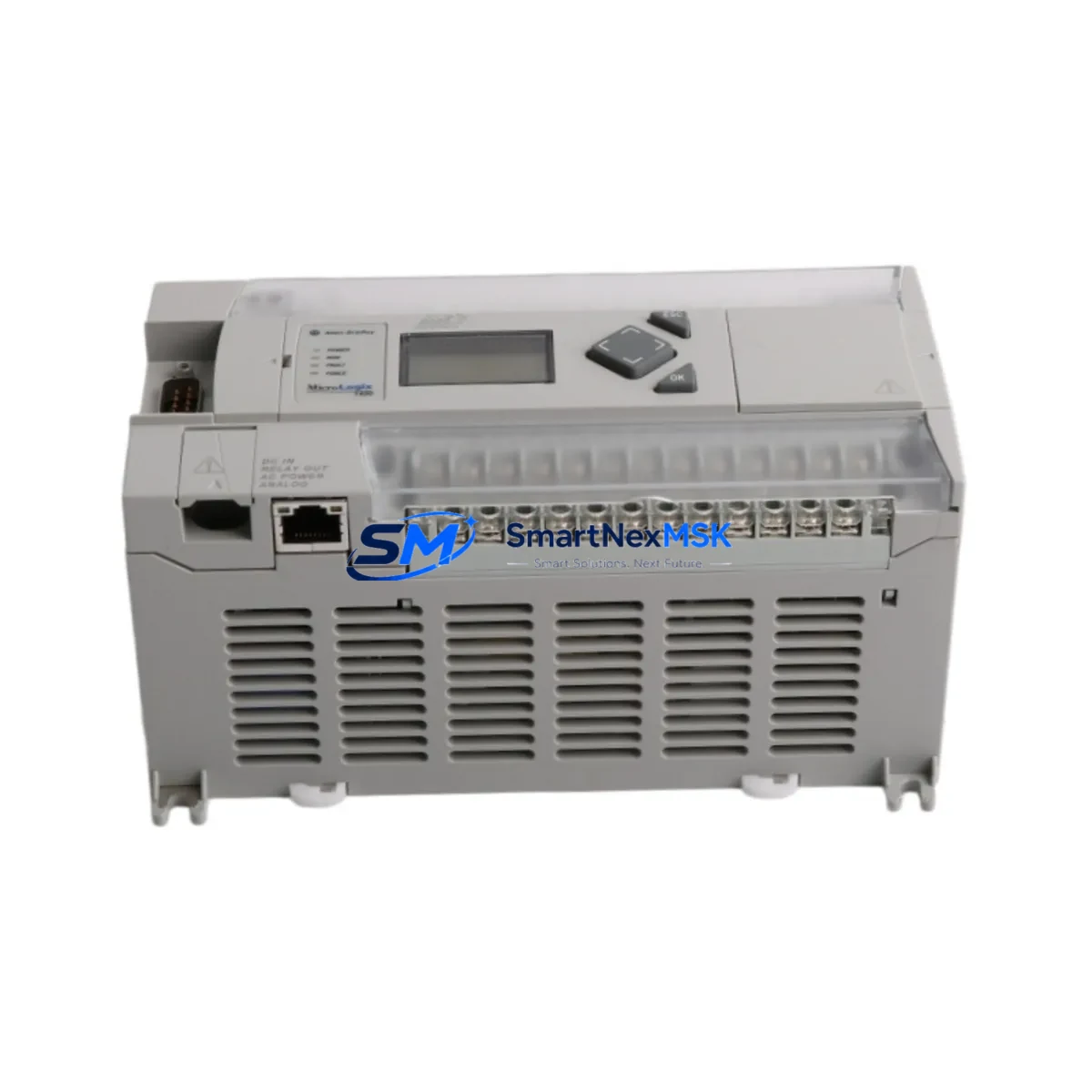

Unplanned downtime in industrial automation environments carries significant operational and financial risk. The Allen-Bradley 1766-L32BWAA is a 32-point MicroLogix 1400 programmable logic controller designed for demanding control applications across manufacturing, process, and infrastructure sectors. Maintaining a verified original spare of the 1766-L32BWAA in your on-site or warehouse inventory is a proven strategy for minimizing mean time to repair (MTTR) and sustaining continuous production cycles.

This unit ships as an original Allen-Bradley (Rockwell Automation) component, fully tested prior to dispatch, and is backed by a 12-month warranty covering manufacturing defects and functional performance. Whether you are managing a planned shutdown, responding to an emergency fault, or executing a lifecycle extension program for aging MicroLogix 1400 infrastructure, the 1766-L32BWAA provides a direct, drop-in replacement path with no firmware re-engineering required for compatible system configurations.

Maintenance engineers and procurement teams sourcing this controller should verify the firmware revision of the existing unit before replacement to ensure program compatibility. The 1766-L32BWAA supports ladder logic, function block, and structured text programming via RSLogix 500 / Studio 5000 Logix Designer, and communicates natively over EtherNet/IP and DF1 serial protocols — critical considerations when integrating into existing SCADA or DCS architectures.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 1766-L32BWAA in the field, a disciplined maintenance engineer will treat the controller swap as an opportunity to inspect the entire control cabinet ecosystem. The 1766-L32BWAA does not operate in isolation — its reliability depends on the health of surrounding components, and a failure in any adjacent module can cause the replacement controller to fault immediately or degrade prematurely.

Begin with the power supply module: verify that the 24V DC rail supplying the 1766-L32BWAA is within tolerance (typically ±10%). A failing or undersized power supply is a leading cause of PLC resets and I/O communication errors. If the cabinet uses a 1766-PA2 or equivalent power supply accessory, inspect for capacitor aging or output ripple.

Next, audit the I/O expansion modules connected via the 1766 local I/O bus. Common expansion units such as the 1766-IB16 (16-point DC input) and 1766-OB16 (16-point DC output) should be checked for blown fuses, damaged terminal blocks, and correct wiring polarity. Loose terminal connections on these modules are a frequent source of intermittent faults that are misdiagnosed as PLC failures.

Inspect all communication cabling: EtherNet/IP patch cables, RS-232 serial cables, and USB programming cables. Damaged shielding or improper grounding on communication lines can introduce noise that corrupts program execution or causes the controller to drop off the network. If the system uses a 1761-NET-ENI Ethernet interface or a 1747-KFC15 serial gateway, verify their firmware and configuration remain intact after the controller swap.

For systems with analog signal conditioning, check any signal isolators or 1766-IF4 analog input modules for drift or calibration errors. Thermocouple and 4–20 mA loop inputs are particularly sensitive to ground loops introduced during maintenance activities. Confirm that fuse blocks and terminal strips (such as Phoenix Contact or Weidmüller DIN rail terminals) are properly torqued and free of corrosion.

If the installation includes an HMI panel — such as a PanelView 800 or PanelView Component — verify that the communication parameters (IP address, DF1 node address) are correctly configured to match the replacement 1766-L32BWAA. HMI tag databases linked to the old controller’s program may require re-download if the firmware revision has changed.

Finally, for sites running relay output circuits, inspect the output relay contacts on the 1766-L32BWAA itself and any downstream interposing relays or solid-state relays (SSR) in the load circuit. Relay contact wear is cumulative and often overlooked during PLC-focused maintenance events.

Site Replacement Workflow

Step 1 — Pre-replacement backup: Using RSLogix 500, upload and save the existing program from the faulty 1766-L32BWAA (if the unit is still partially functional). Archive the .RSS project file with a timestamped filename. If the unit is completely unresponsive, retrieve the last known good backup from your version control system or engineering workstation.

Step 2 — Power isolation: De-energize the control cabinet following your site’s lockout/tagout (LOTO) procedure. Confirm zero energy state on all 24V DC and 120/240V AC circuits before disconnecting the controller.

Step 3 — Physical swap: Disconnect all I/O wiring, communication cables, and the power connector from the existing unit. Note the DIN rail position and any expansion module connections. Mount the replacement 1766-L32BWAA and reconnect all wiring in reverse order. Torque all terminal screws to specification.

Step 4 — Program download: Connect via USB or EtherNet/IP using RSLogix 500. Download the archived program to the replacement controller. Verify the firmware revision matches or is compatible with the program file. Update firmware if required using ControlFLASH.

Step 5 — Functional verification: Restore power and place the controller in RUN mode. Verify all I/O points are responding correctly using the RSLogix 500 online monitoring view. Test all critical output circuits before returning the system to production.

This workflow minimizes downtime, preserves system compatibility, and ensures the replacement 1766-L32BWAA is fully validated before resuming automated operations.

Spare Parts Support FAQ

Q1: Is the 1766-L32BWAA a direct drop-in replacement for my existing MicroLogix 1400 unit?
Yes, the 1766-L32BWAA is a direct form-fit-function replacement within the MicroLogix 1400 family. However, we recommend verifying the firmware revision of your existing unit and matching or updating the replacement accordingly. Program files created in RSLogix 500 are fully compatible across MicroLogix 1400 revisions with minor version checks.

Q2: How do you verify the unit before shipment?
Every 1766-L32BWAA undergoes a full functional test prior to dispatch, including power-on verification, I/O point testing, and communication port validation. Units are shipped with original packaging where available, and each order includes a test report upon request.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with a replacement unit dispatched after fault verification.

Q4: Can you support long-term or recurring spare parts requirements for MicroLogix 1400 systems?
Yes. We maintain stock of the 1766-L32BWAA and related MicroLogix 1400 components to support both emergency single-unit orders and planned bulk procurement for maintenance inventory programs. Contact our team to discuss volume pricing, lead times, and consignment stock arrangements for critical infrastructure sites.
