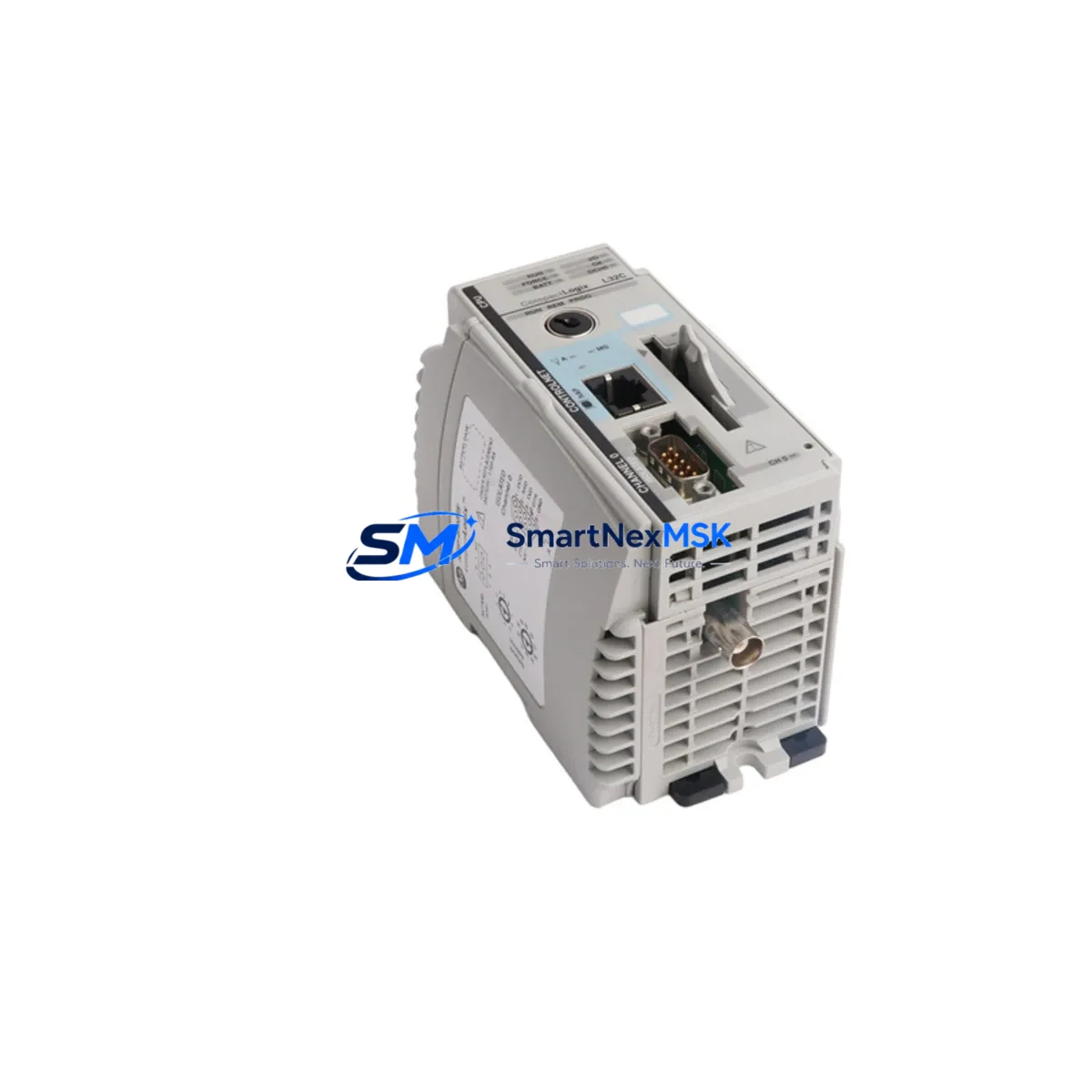

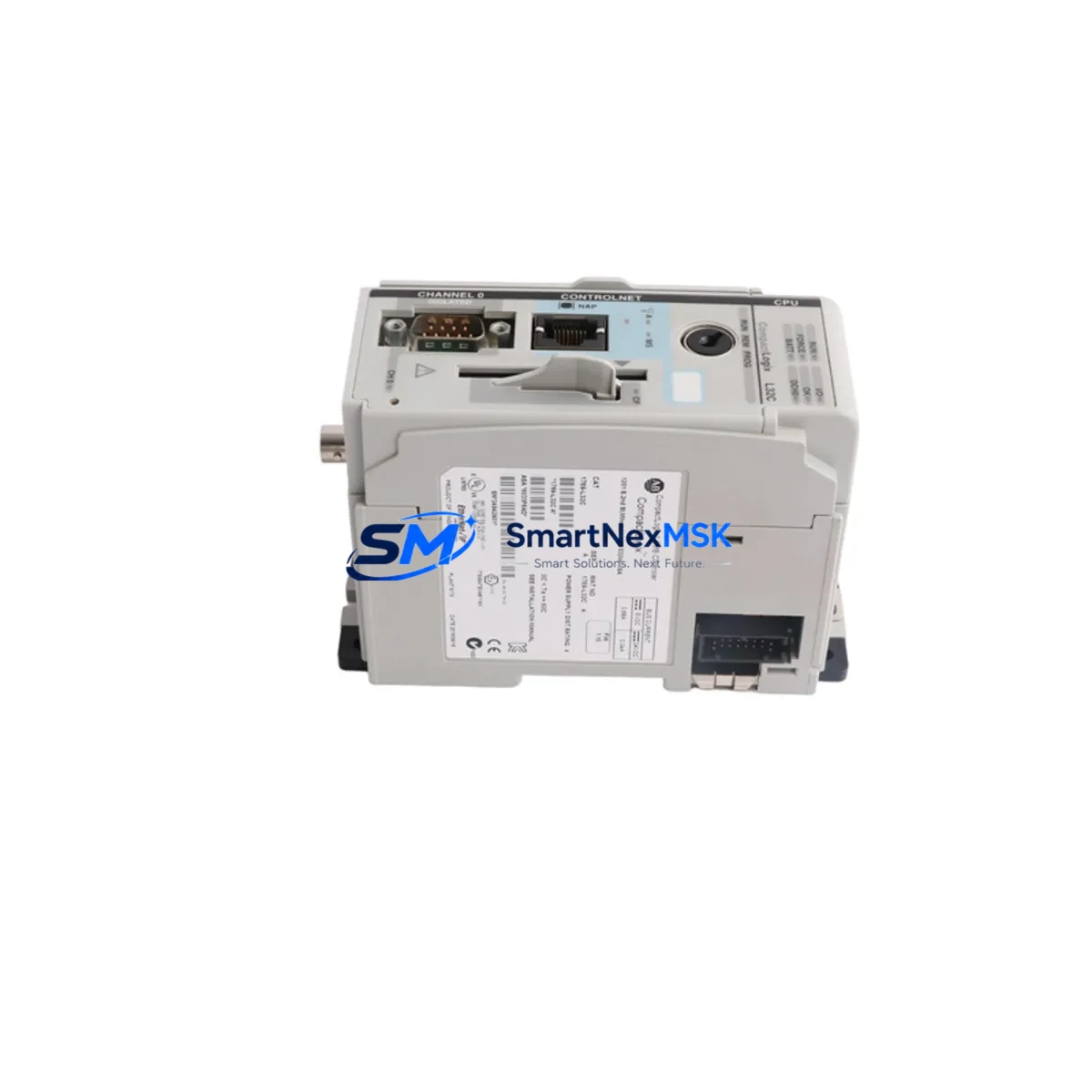

Allen-Bradley 1769-L32C Maintenance-Ready Spare for CompactLogix Automation
The Allen-Bradley 1769-L32C is a CompactLogix 5300 series programmable logic controller featuring an integrated ControlNet communication port, designed for distributed I/O and peer-to-peer messaging in demanding industrial environments. As a maintenance-ready original spare, the 1769-L32C is a critical component for facilities running Rockwell Automation CompactLogix architectures where unplanned downtime carries significant operational and financial risk. Whether you are managing a planned shutdown, responding to an emergency fault, or building out your site spare parts inventory, having a verified original 1769-L32C on hand is the single most effective measure to restore control system operation within hours rather than days.
This unit supports up to 32 axes of motion coordination and integrates seamlessly with the broader 1769 Compact I/O ecosystem. It is compatible with Studio 5000 Logix Designer and legacy RSLogix 5000 programming environments, making it suitable for both modern system upgrades and long-term support of existing installations. Each unit is tested prior to dispatch and ships with a 12-month warranty, providing procurement engineers with the confidence needed for critical spare stock decisions.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | 1769-L32C |
| Brand | Allen-Bradley (Rockwell Automation) |
| Series | CompactLogix 5300 |
| Communication Port | ControlNet (integrated) |
| I/O Capacity | Up to 16 local 1769 Compact I/O modules |
| Memory | 1 MB user memory |
| Power Supply Compatibility | 1769-PA2 / 1769-PB2 / 1769-PA4 / 1769-PB4 |
| Programming Software | Studio 5000 Logix Designer / RSLogix 5000 |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Mounting | DIN rail or panel mount via 1769 bus |
| Condition | Original, new or refurbished-to-spec |
| Compatibility | Series C; backward compatible with Series A/B configurations |
| Pre-shipment Testing | Yes — functional test performed before dispatch |
| Warranty | 12 Months |
| Lead Time | In-stock units ship within 1–3 business days |
Maintenance Planning for Continuous Operation
When replacing or inspecting a 1769-L32C in the field, a disciplined maintenance engineer will treat the controller swap as an opportunity to audit the entire control cabinet. The 1769-L32C draws its backplane power from the 1769-PA2 or 1769-PB2 power supply module — both should be checked for output voltage stability and capacitor aging before the new controller is commissioned. Loose or corroded terminal connections on the 1769-TB3 or 1769-TB6 wiring bases are a common source of intermittent faults that can be misdiagnosed as controller failure.
On the I/O side, digital input modules such as the 1769-IQ16 and analog output modules like the 1769-OF4 should be inspected for blown fuses, damaged field wiring, and correct channel configuration. If the system uses ControlNet for distributed I/O, the ControlNet tap and coaxial trunk cable integrity should be verified — a degraded network can cause the 1769-L32C to log communication faults even when the controller itself is healthy. The 1769-SDN DeviceNet scanner module, if present, should also be checked for node address conflicts after a controller replacement.
For facilities running HMI panels such as the PanelView Plus 6 or PanelView 800, confirm that the ControlNet node address and network update time (NUT) settings in the replacement controller match the original program exactly. Signal isolators and surge protection devices on analog loops — particularly on 4–20 mA process signals — should be tested for drift, as these components degrade silently and can introduce measurement errors that appear as process instability after a controller change. Fuse holders on the 24 VDC field power rail and the 120 VAC control circuit should be inspected and replaced if showing signs of heat discoloration.
Maintaining a site spare kit that includes the 1769-L32C alongside a 1769-PA2 power supply, at least one 1769-IQ16 digital input module, one 1769-OB16 digital output module, and a spare ControlNet media tap ensures that the most common single-point failures in a CompactLogix cabinet can be resolved within a single maintenance shift without waiting for emergency procurement.
Site Replacement Workflow
Replacing a failed or end-of-life 1769-L32C follows a structured sequence to minimize downtime and avoid configuration errors. Begin by exporting the current controller program from RSLogix 5000 or Studio 5000 if the original controller is still partially responsive — even a corrupted program export provides a reference for I/O tag mapping. If the controller is completely unresponsive, retrieve the last known-good program backup from your site documentation system or DCS historian.
Before removing the failed unit, photograph the ControlNet cable routing, I/O module positions, and any jumper or DIP switch settings on adjacent modules. Power down the cabinet using the main disconnect and verify zero energy with a calibrated voltage tester. Remove the 1769-L32C by releasing the bus lever and sliding the unit off the 1769 backplane. Install the replacement unit, ensuring the bus connector seats fully before securing the end cap.
After power-up, download the verified program to the new controller and perform a controlled I/O force test on critical output channels before returning the system to automatic mode. Update your site asset register with the new unit serial number and reset the preventive maintenance interval. This workflow, when followed consistently, reduces mean time to repair (MTTR) for CompactLogix controller faults to under four hours — a significant improvement over unstructured emergency responses that can extend outages to multiple shifts.
Spare Parts Support FAQ
Q: Is the 1769-L32C compatible with my existing CompactLogix Series A or Series B installation?
A: Yes. The 1769-L32C Series C is backward compatible with earlier series installations at the hardware level. You will need to verify that your RSLogix 5000 or Studio 5000 project file targets the correct firmware revision for the replacement unit. Firmware upgrades can be performed via ControlFlash after installation.
Q: What pre-shipment testing is performed on each unit?
A: Every 1769-L32C is powered on and subjected to a functional communication and I/O scan test before dispatch. Units that do not pass are not shipped. A test report is available upon request for quality-critical procurement processes.
Q: How should I manage 1769-L32C spare stock for a multi-site operation?
A: For operations with three or more CompactLogix installations, we recommend maintaining at least one 1769-L32C per site cluster, with a central warehouse buffer of two to three units. Given the 12-month warranty on supplied units, rotate stock annually to ensure warranty coverage is always active on your critical spares.
Q: What is the warranty coverage and what does it include?
A: All 1769-L32C units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions and includes free replacement or repair. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact. Contact our technical team at [email protected] for warranty claims.
