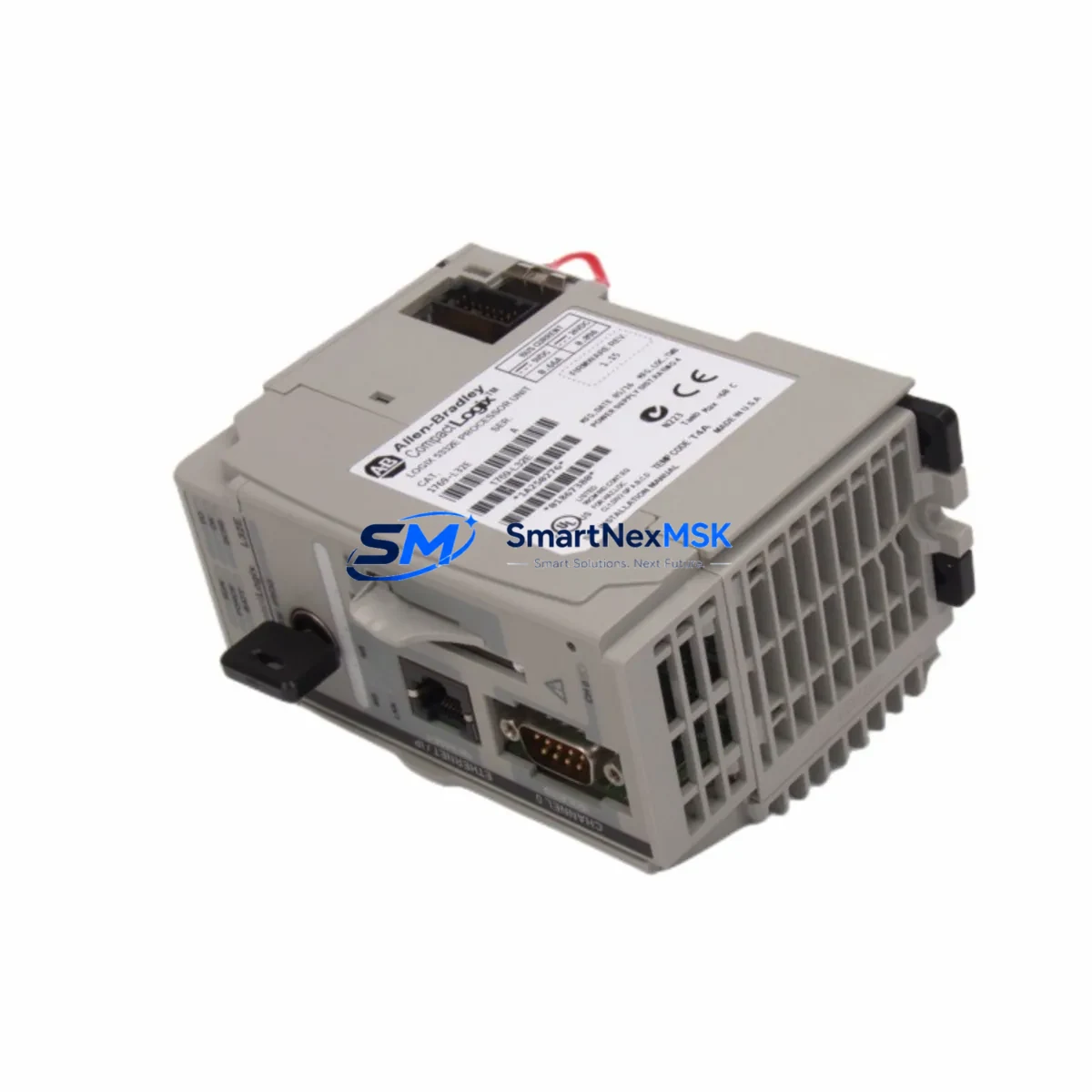

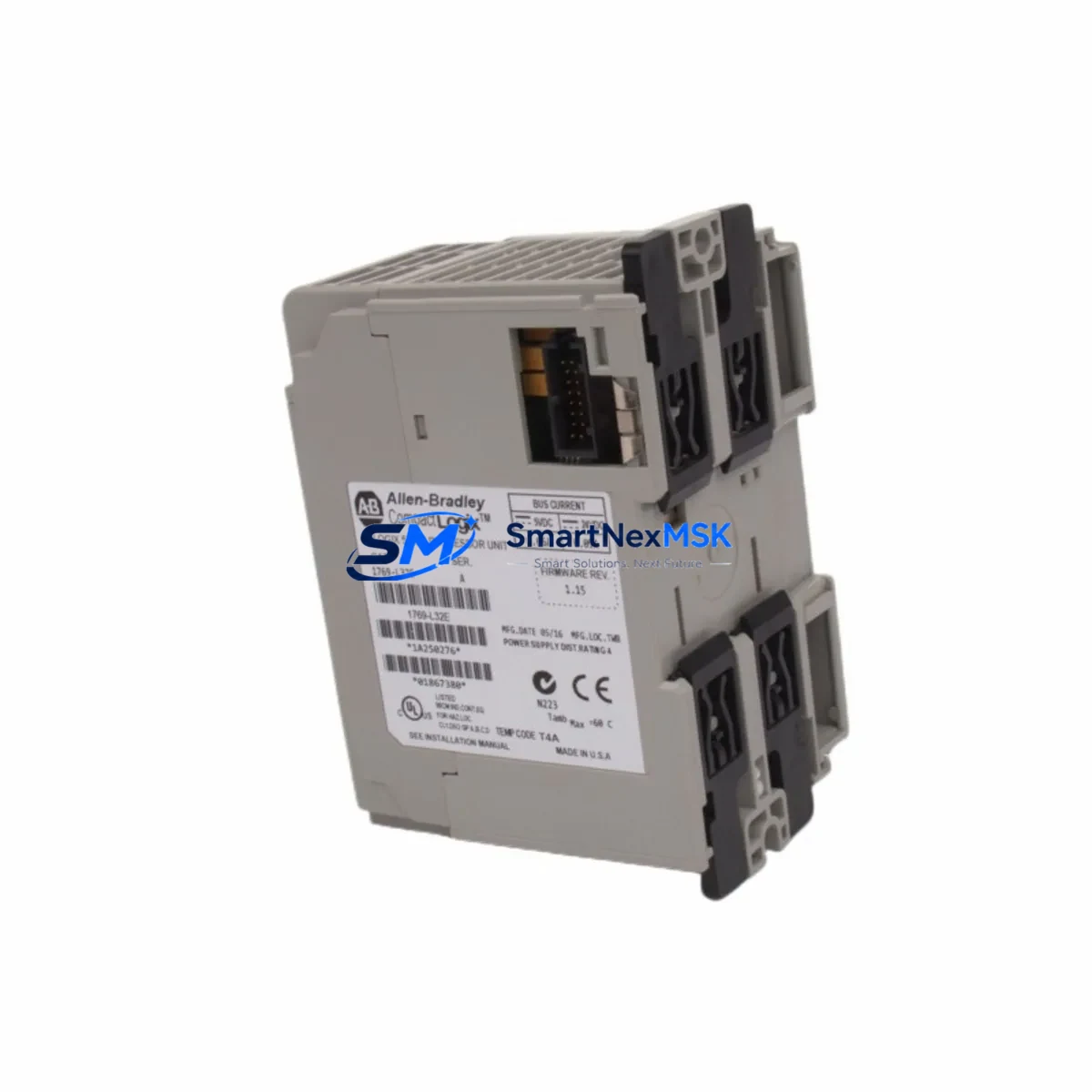

Allen-Bradley 1769-L32E Safety-Enhanced CompactLogix PLC

Allen-Bradley 1769-L32E Safety-Enhanced CompactLogix PLC: Reliable Control for Harsh Industrial Sites

The Allen-Bradley 1769-L32E CompactLogix PLC Controller is engineered for mission-critical industrial automation environments where control continuity, signal integrity, and operational safety are non-negotiable. Designed to operate reliably in high-load, high-interference, and continuous-production facilities, the 1769-L32E delivers the processing power, communication resilience, and environmental robustness demanded by modern industrial safety architectures.

With 750KB of user memory, integrated EtherNet/IP communication, and a compact modular form factor, the 1769-L32E is purpose-built for deployment in control cabinets, safety interlock circuits, and distributed I/O systems across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processes, port logistics, and continuous manufacturing lines. Its architecture supports deterministic scan-cycle execution, minimizing the risk of control loop interruption even under peak load conditions.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered industrial control cabinet, the Allen-Bradley 1769-L32E serves as the central processing node, coordinating safety-critical I/O, interlock logic, and real-time communication. To ensure maximum protection against control interruption, signal drift, power fluctuation, and module misoperation, the 1769-L32E is typically deployed alongside a suite of complementary components.

Power integrity is foundational. The Allen-Bradley 1769-PA2 AC power supply provides stable, regulated power to the CompactLogix backplane, while surge suppression devices such as the Allen-Bradley 1492-SP series branch circuit protectors guard against transient voltage spikes that could corrupt processor logic or damage I/O modules. In facilities with unstable grid power — common in mining and heavy metallurgical sites — an external UPS or line conditioner is strongly recommended upstream of the 1769-PA2.

For digital I/O expansion, the 1769-IQ16 16-point DC input module and 1769-OB16 16-point DC output module integrate seamlessly with the 1769-L32E, extending field device connectivity without compromising scan-cycle determinism. In analog-intensive applications such as flow control or pressure regulation in petrochemical or water treatment plants, the 1769-IF4 analog input module provides 4-channel, 16-bit resolution signal acquisition with built-in filtering to suppress electromagnetic interference from variable frequency drives and high-current switching equipment.

Communication resilience is equally critical. The 1769-L32E’s built-in EtherNet/IP port supports Device Level Ring (DLR) topology, enabling automatic network recovery in under 3 milliseconds following a cable fault — a key safety feature for continuous-process industries where communication loss can trigger unplanned shutdowns. In legacy environments requiring DeviceNet or ControlNet integration, the 1769-SDN DeviceNet Scanner module bridges field devices to the CompactLogix backplane without introducing latency into the safety interlock loop.

For safety interlock applications requiring SIL-rated performance, the 1769-L32E is often paired with Allen-Bradley GuardLogix safety controllers or 1791DS-IB12 Guard I/O modules, which handle emergency stop circuits, light curtain monitoring, and dual-channel safety inputs in compliance with IEC 62061 and ISO 13849. The 1769-L32E manages standard process control while the GuardLogix layer enforces the safety function — a proven architecture in automotive assembly, chemical processing, and power distribution substations.

Terminal block assemblies such as the Allen-Bradley 1492-CABLE series pre-wired interface cables reduce field wiring errors and accelerate commissioning, directly lowering the risk of miswiring-induced module faults. Combined with proper DIN rail grounding and cabinet-level EMC shielding, this integrated approach ensures the 1769-L32E operates at full reliability even in the most electromagnetically hostile environments.

Critical Industrial Safety Applications

Petrochemical & Refinery: The 1769-L32E controls valve sequencing, emergency shutdown (ESD) pre-logic, and process interlocks in hazardous-area control rooms. Its deterministic execution prevents control loop delays that could lead to overpressure events or uncontrolled chemical releases.

Power Generation & Substation Automation: Deployed in generator control panels and transformer protection circuits, the 1769-L32E manages load shedding logic, breaker interlock sequences, and fault annunciation — functions where a single missed scan cycle can cascade into grid instability.

Mining & Mineral Processing: In conveyor drive control, crusher interlock systems, and ventilation safety circuits, the 1769-L32E withstands the high vibration, dust ingress, and electrical noise characteristic of underground and open-pit mining environments, maintaining reliable control where lesser PLCs fail.

Water & Wastewater Treatment: The 1769-L32E manages pump sequencing, chemical dosing control, and SCADA communication in water treatment facilities operating 24/7. Its EtherNet/IP connectivity enables seamless integration with plant-wide SCADA systems for remote monitoring and alarm management.

Metallurgy & Steel Production: In rolling mill control, furnace temperature regulation, and cooling system management, the 1769-L32E handles high-speed analog and digital I/O with the thermal stability required for operation near high-temperature process equipment.

Port & Logistics Automation: Crane control systems, automated guided vehicle (AGV) coordination, and conveyor routing logic in port terminals rely on the 1769-L32E for fast, reliable execution of positioning and safety interlock functions across large-scale distributed control architectures.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the Allen-Bradley 1769-L32E?
Every 1769-L32E unit supplied by SMARTNEXMSK carries a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and module-level faults. Warranty claims are processed with priority to minimize your site downtime.

Q2: What pre-shipment testing and inspection is performed?
All units undergo a multi-point outgoing quality inspection prior to dispatch, including power-on functional verification, communication port testing, and visual inspection for physical integrity. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

Q3: Is the 1769-L32E compatible with existing CompactLogix I/O and expansion modules?
Yes. The 1769-L32E is fully compatible with the entire Allen-Bradley 1769 CompactLogix I/O module family, including digital input/output, analog input/output, and specialty modules. It is programmed using Studio 5000 Logix Designer and supports seamless migration from earlier CompactLogix L3x series controllers with minimal program modification.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains standing inventory of the 1769-L32E and key CompactLogix accessories to support ongoing production requirements, emergency replacements, and planned maintenance cycles. We serve industrial clients globally with consistent lead times and can provide advance procurement planning for critical spare parts programs.
