AMAT 0100-11002 Retrofit-Ready Digital I/O for VMEbus Systems

AMAT 0100-11002 Retrofit-Ready Digital I/O for VMEbus Control Systems

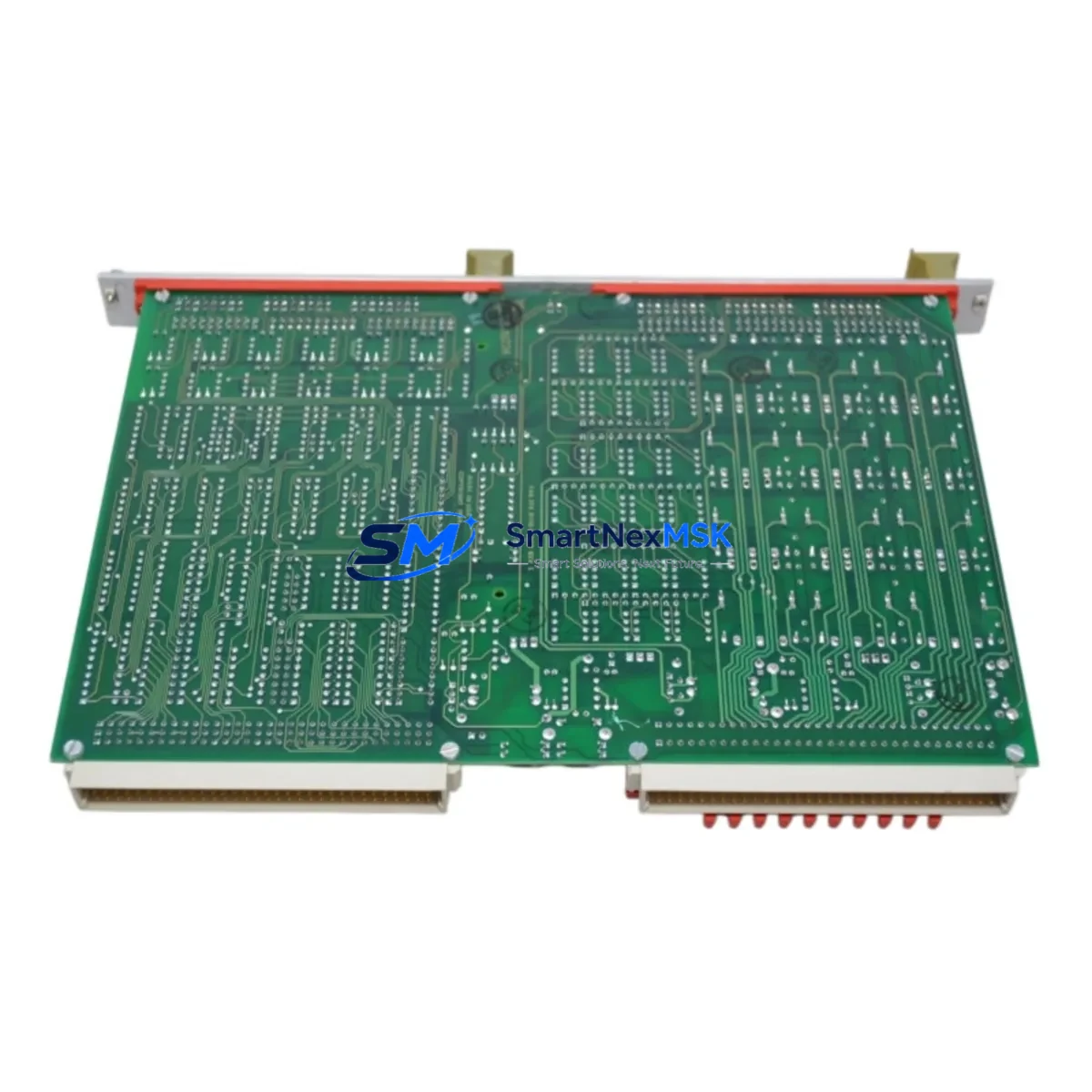

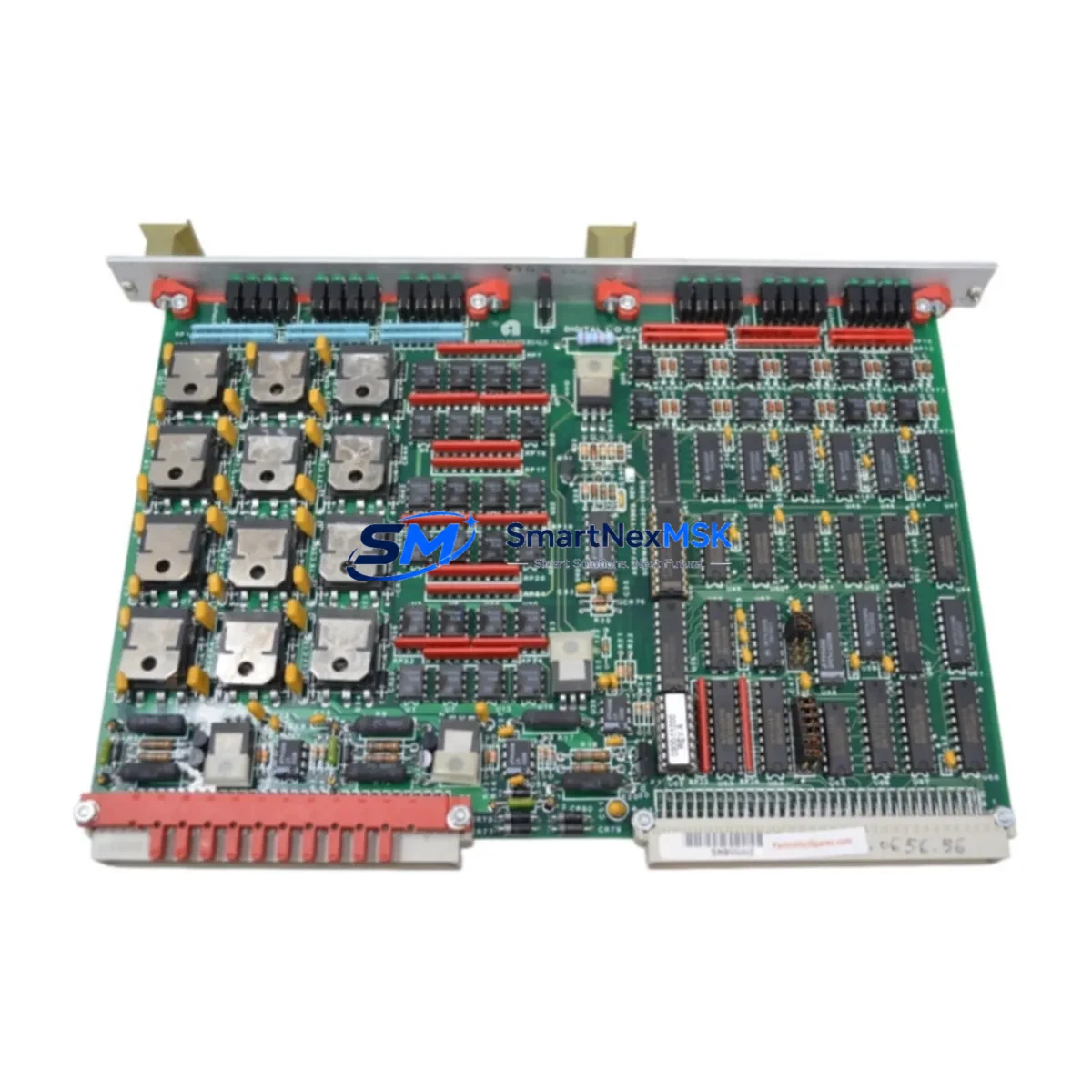

The AMAT 0100-11002 is a VMEbus-compatible digital I/O module originally designed for Applied Materials semiconductor process control platforms. As legacy VMEbus-based control architectures approach end-of-life, this module serves as a critical retrofit component for facilities managing older process equipment, enabling smooth migration without full system replacement. Whether you are replacing a failed unit, upgrading a control cabinet, or extending the operational life of a VMEbus-based automation system, the AMAT 0100-11002 provides a verified, drop-in compatible solution backed by a 12-month warranty.

Applied Materials VMEbus I/O systems were widely deployed in semiconductor fabrication, flat panel display manufacturing, and precision process control environments. The 0100-11002 module interfaces directly with the VMEbus backplane, providing discrete digital I/O channels that communicate with the host controller via the standard VME P1/P2 connector scheme. When sourcing a replacement, engineers must confirm backplane slot compatibility, I/O channel count, voltage levels (typically 24 VDC for field-side signals), and the module’s base address configuration via onboard DIP switches or jumpers.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a VMEbus-based control system requires careful coordination across multiple hardware layers. The AMAT 0100-11002 typically resides in a 6U VME card cage alongside other modules such as the AMAT 0100-09016 VMEbus CPU board, AMAT 0100-35037 power supply module, and AMAT 0100-76048 analog I/O module. Before removing the existing 0100-11002, engineers should document the current DIP switch address settings and photograph all field wiring terminations on the front-panel terminal blocks.

In systems where the VMEbus controller communicates with a supervisory SCADA or HMI layer — often via an AMAT 0100-40001 serial communication module or an Ethernet bridge card — the I/O module replacement must not disrupt the communication link. Confirm that the replacement module’s base address matches the address map defined in the host controller’s software, whether that is an Applied Materials proprietary control application or a third-party VMEbus RTOS environment.

For facilities migrating from VMEbus to a modern PLC platform such as a Siemens S7-300 series rack or an Allen-Bradley ControlLogix chassis, the 0100-11002 can serve as a bridge component during phased migration — keeping the existing VMEbus I/O active while the new controller is commissioned in parallel. In this scenario, an AMAT 0100-76002 VMEbus interface card may be required to maintain backplane integrity during the transition period.

Terminal wiring on the 0100-11002 follows a standard screw-terminal or IDC connector layout. When re-terminating field cables, verify wire gauge compatibility (typically 0.5–1.5 mm²), confirm shield grounding at the cabinet earth bar, and test each I/O channel with a loop tester before restoring process control. If the system includes an AMAT 0100-11001 companion input module or an AMAT 0100-11003 relay output module, inspect those units simultaneously to avoid latent failures after restart.

All units supplied by SMARTNEXMSK undergo pre-shipment functional testing, including backplane connector inspection, I/O channel verification, and visual inspection for component damage. Each module ships with a test report and is covered by a 12-month warranty from the date of invoice.

Downtime Control During System Migration

Minimizing unplanned downtime during a VMEbus I/O module replacement is the primary concern for process engineers and maintenance teams. The recommended approach is a hot-swap preparation protocol: before taking the system offline, export a full backup of the controller program, capture all current I/O force tables, and record the live process values for critical analog and digital signals.

Schedule the physical swap during a planned maintenance window. Power down the VMEbus card cage in the correct sequence — field power first, then backplane power — to prevent voltage transients from damaging adjacent modules such as the CPU board or the communication interface card. Insert the replacement AMAT 0100-11002, confirm seating on the P1/P2 connectors, and restore power in reverse order.

After power-on, verify that the controller recognizes the module at the correct base address before re-enabling field outputs. If the system uses an HMI with hardcoded I/O tag addresses, confirm that no tag remapping is required. For systems with interlock logic tied to the replaced I/O channels, perform a dry-run interlock test with field devices isolated before returning the process to automatic mode. This structured approach typically reduces total downtime to under two hours for a single-module swap, preserving original program logic and maintaining field control continuity throughout the migration.

Retrofit Support FAQ

Q1: Is the AMAT 0100-11002 a direct replacement for the original module without software changes?
In most cases, yes — provided the replacement module is configured to the same base address as the original using the onboard DIP switches. If the original module’s address settings were non-standard, you will need to match those settings exactly. No firmware or driver changes are typically required for a like-for-like swap within the same VMEbus system.

Q2: What wiring checks should be performed before installing the replacement module?
Inspect all field wiring terminations for insulation damage, loose connections, and correct polarity. Verify that the 24 VDC field supply is within tolerance (±10%) before applying power to the new module. Check that cable shields are grounded at one end only to prevent ground loops. Use a multimeter to confirm continuity on each I/O channel before enabling outputs.

Q3: How is compatibility with the existing VMEbus backplane verified?
The 0100-11002 is designed for standard 6U VMEbus card cages using the IEEE 1014 bus standard. Confirm that the card cage slot is mechanically clear, that the P1/P2 connector pins are undamaged, and that the backplane’s address and data lines are intact. If the system uses a non-standard backplane configuration, contact our technical team with the system model number for confirmation.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, or physical mishandling. To initiate a warranty claim, contact sales@smartnexmsk.com with your invoice number, a description of the fault, and photos of the module. Replacement or repair will be arranged within 5 business days of claim approval.
