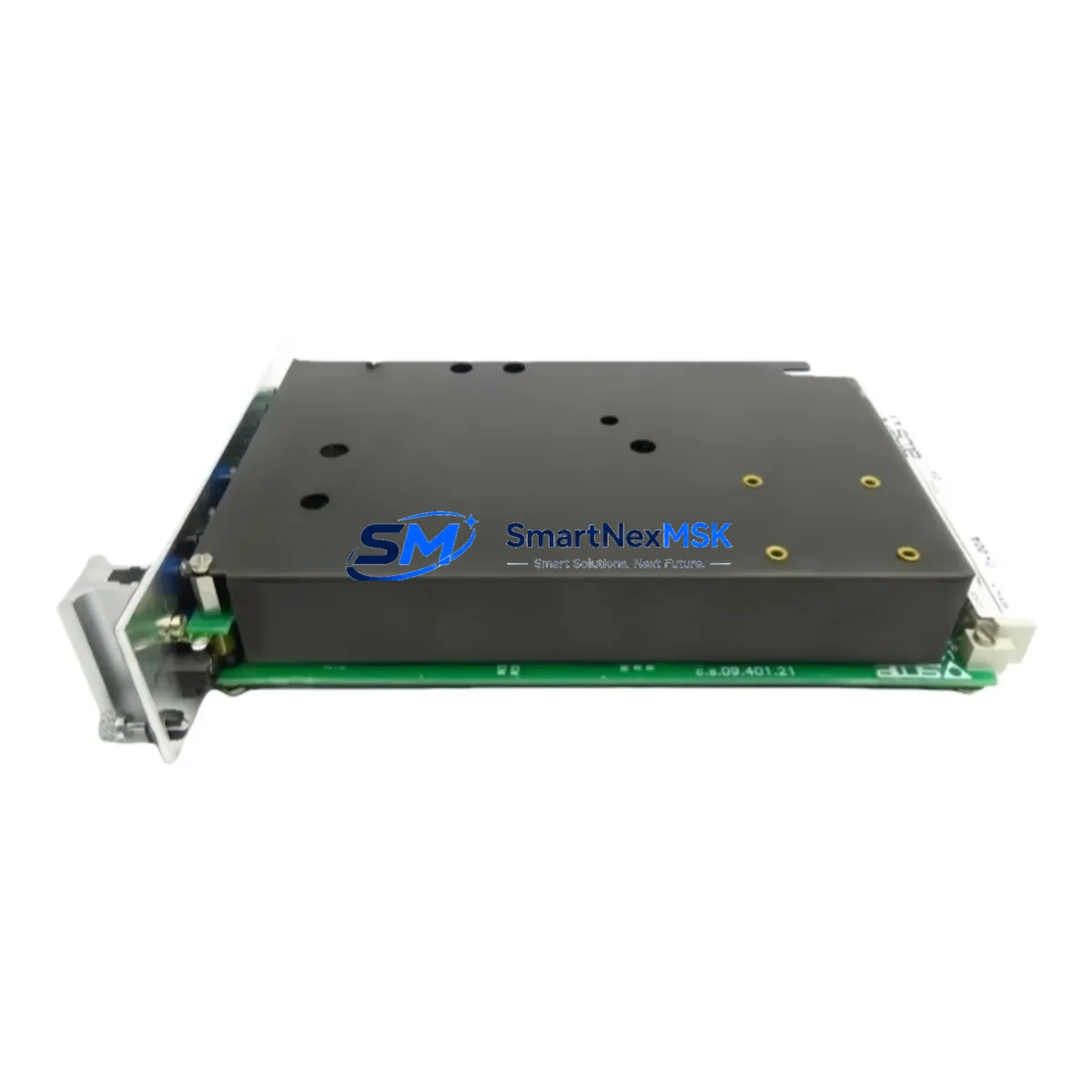

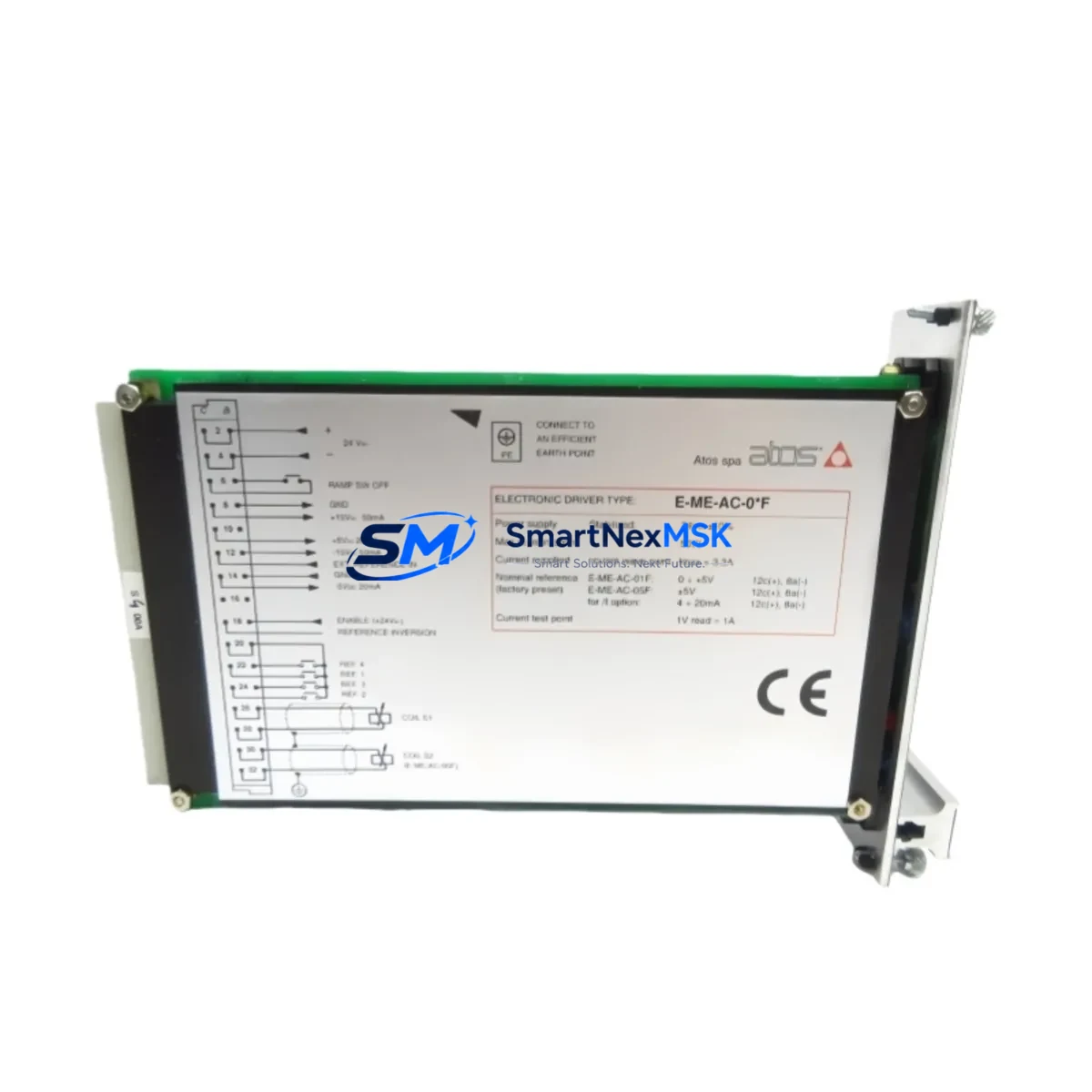

ATOS E-ME-AC-01F Retrofit-Ready Proportional Valve Amplifier for E-ME Series Control Systems
The ATOS E-ME-AC-01F is a DIN-rail-mounted proportional valve amplifier engineered for seamless integration into existing E-ME Series hydraulic control systems. Whether you are replacing an end-of-life amplifier card, upgrading a legacy proportional valve driver, or modernizing a hydraulic press control cabinet, the E-ME-AC-01F delivers a verified drop-in solution with full backward compatibility to the original ATOS E-ME amplifier platform. With in-stock availability, pre-shipment functional testing, and a 12-month warranty, this unit is the preferred choice for maintenance engineers managing unplanned downtime and planned retrofit projects alike.
Designed to drive ATOS proportional directional valves and proportional pressure/flow valves within the E-ME family, the E-ME-AC-01F accepts a standard ±10 V or 4–20 mA command signal from upstream PLCs, motion controllers, or HMI setpoint outputs. Its onboard enable input, ramp generator, and dither frequency adjustment allow technicians to replicate the original valve response curve without reprogramming the upstream controller — a critical advantage when the original ladder logic or function block program must remain untouched during the retrofit window.
Upgrade Compatibility Table
| Parameter | E-ME-AC-01F (This Unit) | Retrofit Notes |
|---|---|---|
| Supply Voltage | 24 V DC ±10% | Verify existing 24 V DC rail capacity before installation; share rail with I/O modules only if total draw is within spec |
| Command Signal Input | ±10 V / 4–20 mA selectable | Match AO channel type from upstream PLC analog output module; re-scale if migrating from voltage to current loop |
| Output Current | Up to 2.5 A peak per solenoid | Confirm solenoid coil resistance of target valve; no coil rewiring required for standard ATOS E-ME valves |
| Enable Input | Digital 24 V DC | Wire to existing safety relay or PLC DO; logic unchanged from original amplifier |
| Mounting | DIN rail, 35 mm | Direct replacement on existing DIN rail; no panel drilling required |
| Communication | Analog (standard); fieldbus variant available | For CANopen or PROFIBUS-DP integration, specify E-ME-AC-01F/CAN or consult fieldbus gateway options |
| Replacement Target | ATOS E-ME-AC-01F, E-ME-AC-01, E-ME Series amplifiers | Functional drop-in; verify firmware revision if digital variant is installed upstream |
| Commissioning | Onboard potentiometers + LED diagnostics | Adjust gain, offset, and ramp on-site without laptop; LED fault codes simplify field diagnostics |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report on request |
Retrofit Planning for Existing Automation Systems
A successful E-ME-AC-01F retrofit begins well before the maintenance window opens. Start by auditing the control cabinet to document every component on the shared 24 V DC bus — including the existing ATOS proportional valve amplifier, any adjacent I/O terminal blocks such as Phoenix Contact or Weidmüller barrier strips, the 24 V DC power supply module, and any safety relay modules that govern the amplifier enable circuit. Confirm that the power supply’s available current headroom is sufficient after accounting for all connected loads; proportional amplifiers draw transient peak current during solenoid switching that can trip undersized supplies.
Next, photograph and document the existing terminal wiring before disconnecting anything. The E-ME-AC-01F uses a standard screw-terminal connector block, and the pin assignment for command signal, enable, solenoid A, solenoid B, and 0 V reference is consistent with the original E-ME amplifier footprint. In most installations, the field wiring can be transferred terminal-by-terminal without modification. If the upstream controller is a Siemens S7-300 or S7-400 series PLC with an analog output module such as the SM 332 or SM 334, the ±10 V command signal wiring is directly compatible. For systems using an Allen-Bradley ControlLogix or CompactLogix with a 1756-OF8 or 1769-OF4 analog output module, verify the output range configuration in the I/O module properties matches the amplifier’s selected input mode.
Where the original system used a Bosch Rexroth VT-MSPA1 or Parker SSD amplifier as an interim replacement, the E-ME-AC-01F can serve as a further upgrade step, restoring full ATOS valve compatibility and simplifying spare-parts inventory. Systems that previously relied on a standalone signal conditioner or isolator between the PLC AO and the amplifier input may be able to eliminate that intermediate device, reducing wiring complexity and potential failure points.
For hydraulic press lines or injection molding machines where the proportional valve controls pressure or flow ramps, the onboard ramp generator of the E-ME-AC-01F allows the technician to replicate the original acceleration and deceleration profiles without touching the PLC program. Set the ramp-up and ramp-down potentiometers to match the original cycle time, then verify against the HMI trend display — typically a Siemens TP700 Comfort, Weintek MT8000, or similar panel — before releasing the machine to production. If the HMI displays a valve position or current feedback value sourced from the amplifier’s monitor output, verify the monitor output scaling matches the original before sign-off.
For systems with a distributed I/O architecture using a PROFIBUS-DP or PROFINET backplane, confirm that the amplifier enable signal is routed through the correct remote I/O node and that the node address has not changed during the swap. Backplane rack integrity — particularly in older Siemens ET 200M or B&R X20 remote I/O stations — should be inspected for corrosion or loose bus connectors before the new amplifier is powered up.
Downtime Control During System Migration
Minimizing production downtime during a proportional amplifier replacement requires a structured swap procedure. Before the maintenance window, bench-test the E-ME-AC-01F against a known-good proportional valve or a resistive load to confirm output current and enable response. Prepare a printed copy of the original amplifier’s potentiometer settings — gain, offset, dither amplitude, dither frequency, and ramp times — so the replacement can be pre-configured before installation.
During the swap, keep the PLC in STOP mode and de-energize the 24 V DC control circuit at the cabinet isolator. Transfer the field wiring terminal by terminal, cross-referencing against the documented wiring photograph. Re-energize the control circuit and verify the enable LED illuminates correctly before commanding valve movement. Issue a slow ramp command from the HMI or PLC in manual mode and observe the valve response and system pressure on the hydraulic gauge before returning to automatic cycle. This staged approach — bench test, pre-configure, swap, verify enable, slow ramp, full cycle — typically reduces the live commissioning window to under 30 minutes for a straightforward single-axis replacement.
For multi-axis systems where several E-ME amplifiers share a common rack or DIN rail section, plan the swap sequence to maintain at least partial machine functionality where process safety allows. Retain the original amplifier cards until the replacement units have been verified in-situ; do not discard or return old units until the new amplifiers have completed a full production cycle without fault.
All E-ME-AC-01F units shipped by SMARTNEXMSK undergo a pre-shipment functional test covering enable response, command signal linearity, output current accuracy, and dither performance. A test report is available on request. Units are covered by a 12-month warranty against manufacturing defects from the date of shipment.
Retrofit Support FAQ
Q1: Is the E-ME-AC-01F a direct drop-in replacement for the original ATOS E-ME-AC-01?
Yes. The E-ME-AC-01F is the current production successor to the E-ME-AC-01 and is dimensionally and electrically compatible. Terminal assignments, DIN rail footprint, and command signal interface are unchanged. No wiring modifications are required in the vast majority of retrofit applications.
Q2: Can this amplifier be used with non-ATOS proportional valves?
The E-ME-AC-01F is optimized for ATOS E-ME Series proportional valves but can drive other manufacturer’s proportional solenoids provided the coil resistance and inductance fall within the amplifier’s output specification. Verify solenoid electrical parameters against the E-ME-AC-01F datasheet before use with third-party valves.
Q3: What commissioning tools are required for field setup?
No laptop or software is required for standard analog installations. All adjustments — gain, offset, ramp, dither — are made via onboard potentiometers with LED status indication. For digital fieldbus variants, ATOS E-Suite software and a USB-to-CAN or USB-to-RS232 programming cable are required for parameter upload.
Q4: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. It does not cover damage from incorrect wiring, overvoltage, or mechanical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, unit serial number, and a description of the fault. Replacement units are dispatched after fault confirmation; defective units must be returned for inspection.
