BACHMANN AIO288 Maintenance-Ready Spare for MX Automation

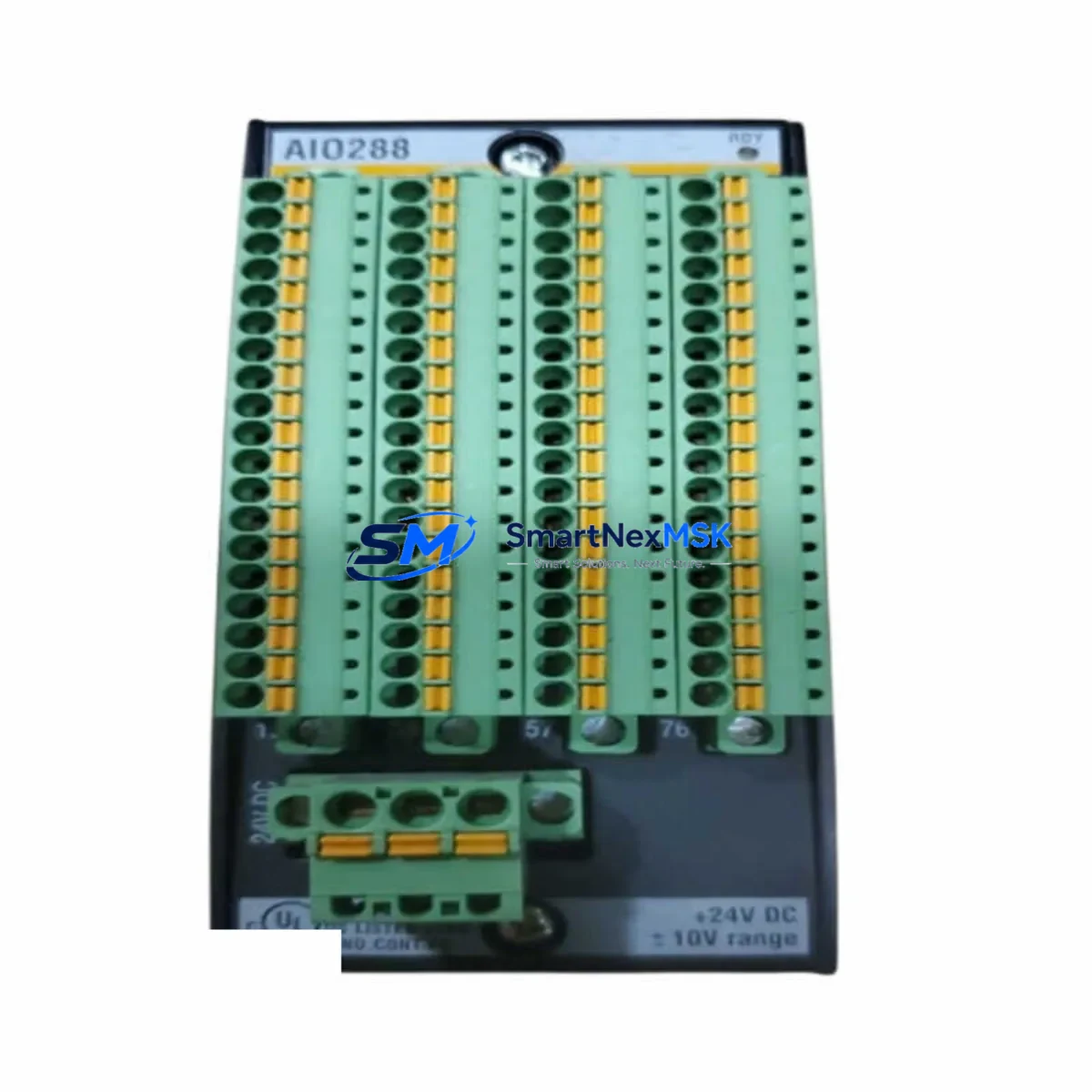

Unplanned downtime in industrial automation is costly. When an analog output module fails in a BACHMANN MX Series control system, every minute of lost production translates directly into financial loss. The BACHMANN AIO288 is an 8-channel analog output module engineered for the MX Series modular controller platform, delivering precision signal output for drives, valves, positioners, and process actuators across demanding industrial environments. Stocking a verified, tested AIO288 spare ensures your maintenance team can execute a rapid board-swap and restore full system operation without waiting on extended lead times from the OEM.
The AIO288 outputs industry-standard 0–10 V and 4–20 mA signals across all eight channels, making it directly compatible with the majority of field instruments and variable-frequency drives found in process automation, machine control, and energy management applications. Its compact MX backplane form factor allows tool-free module extraction and insertion, minimizing the skill threshold required for emergency replacement and reducing mean time to repair (MTTR) significantly.
Each unit supplied by SMARTNEXMSK undergoes functional verification prior to dispatch. Electrical continuity, channel-by-channel output accuracy, and backplane connector integrity are confirmed before packaging. Units are shipped in anti-static protective packaging with full traceability documentation, supporting your incoming inspection and maintenance record requirements.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | AIO288 |
| Brand | BACHMANN |
| Series | MX Series Modular Controller |
| Module Type | 8-Channel Analog Output Module |
| Output Signal | 0–10 V / 4–20 mA (per channel) |
| Number of Channels | 8 |
| Resolution | 16-bit D/A conversion |
| Backplane Interface | MX Series backplane, hot-swap capable |
| Supply Voltage | 24 V DC via backplane |
| Operating Temperature | 0 °C to +55 °C |
| Protection Class | IP20 |
| Country of Origin | Germany |
| Compatibility | BACHMANN MX Series controllers and expansion racks |
| Installation | DIN rail via MX backplane, tool-free module insertion |
| Pre-shipment Test | Full functional and channel accuracy verification |
| Warranty | 12 Months |
Maintenance Planning for Continuous Operation
A disciplined spare parts strategy for BACHMANN MX Series installations extends well beyond holding a single AIO288 module. Maintenance engineers conducting scheduled cabinet inspections or responding to analog output faults should simultaneously evaluate the health of adjacent system components to prevent cascading failures.
The BACHMANN AIO288 shares the MX backplane with digital and analog input modules such as the DIO216 (16-channel digital I/O) and AIO288 sibling input variant AII288, which handles 8-channel analog input. When an output channel fault is traced to the AIO288, it is prudent to verify that the MX200 or MX213 CPU module is not generating spurious output commands due to firmware or watchdog issues. The MX-PS24 power supply module feeding the backplane should be load-tested; a degraded power rail is a common root cause of intermittent analog output drift that is frequently misdiagnosed as a module fault.
Field wiring connected to the AIO288 output terminals should be inspected for insulation breakdown, terminal corrosion, and shield continuity. In process control loops, the signal isolator or loop-powered isolator between the AIO288 and the final control element (valve positioner or VFD analog input) is a high-wear component that should be replaced on a defined cycle. Terminal blocks and wiring duct within the control cabinet should be torque-checked during any module replacement event.
For systems using BACHMANN’s MX-COM communication modules (PROFIBUS, CANopen, or Ethernet-based variants), confirm that the fieldbus configuration still correctly maps the AIO288 channel addresses after module swap, particularly if the replacement module occupies a different backplane slot. HMI panels connected to the MX controller should be monitored post-replacement to verify that analog output trend displays and alarm setpoints are functioning correctly. Where surge protection devices (SPDs) are installed on analog output lines, inspect them for sacrificial element status as part of the replacement workflow.
Procurement engineers building a recommended spare parts list for an MX Series installation should consider holding at minimum: one AIO288, one AII288, one DIO216, one MX-PS24 power supply, and a set of replacement terminal blocks. This kit approach ensures that the most statistically likely failure points are covered without excessive capital tied up in slow-moving inventory.
Site Replacement Workflow
Step 1 — Fault Isolation: Confirm the fault is isolated to the AIO288 by checking the MX controller diagnostic LEDs and engineering software channel status. Rule out wiring faults and power supply issues before pulling the module.
Step 2 — Safe Isolation: Place the affected control loop in manual or safe state at the DCS/SCADA level. Isolate field instruments connected to the faulty output channels. Do not de-energize the entire backplane if other modules are in service — the MX platform supports hot-swap on most configurations.
Step 3 — Module Extraction: Release the module locking lever, extract the AIO288 from the backplane slot, and immediately insert the replacement unit. Confirm the module status LED transitions to green within the controller’s module recognition timeout.
Step 4 — Configuration Verification: Using BACHMANN’s SolutionCenter or equivalent engineering tool, verify that the replacement module is recognized with the correct slot address and that all 8 output channels are mapped correctly to the control program. No firmware download is typically required for a like-for-like AIO288 replacement.
Step 5 — Loop Commissioning: Bring each output channel back into service sequentially. Verify output signal at the field instrument using a calibrated loop calibrator. Confirm process response before returning the loop to automatic control.
Step 6 — Documentation: Record the replacement in the maintenance management system (CMMS), including the removed module serial number, replacement module serial number, date, technician, and post-replacement test results. Retain the removed module for failure analysis or return-to-vendor evaluation.
Spare Parts Support FAQ
Q1: Is the AIO288 supplied by SMARTNEXMSK a new or refurbished unit?
We supply original BACHMANN AIO288 modules. Each unit is individually tested for full channel functionality and backplane connector integrity prior to shipment. Condition and traceability documentation are provided upon request.
Q2: What is the warranty coverage and what does it include?
All AIO288 units carry a 12-month warranty from the date of shipment. The warranty covers functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with priority to minimize your downtime exposure.
Q3: How do I confirm compatibility before ordering?
The AIO288 is designed exclusively for the BACHMANN MX Series backplane. Confirm your controller rack model (MX200, MX213, or equivalent) and backplane revision. If you are unsure, provide your system order number or cabinet layout drawing to [email protected] and our technical team will confirm compatibility before the order is placed.
Q4: What is the typical lead time and how is the unit shipped?
In-stock units are dispatched within 1–2 business days. International shipments are made via DHL Express or equivalent tracked courier with full export documentation. For urgent breakdown situations, contact us directly at +86 18259474341 to arrange priority dispatch and real-time shipment tracking.
