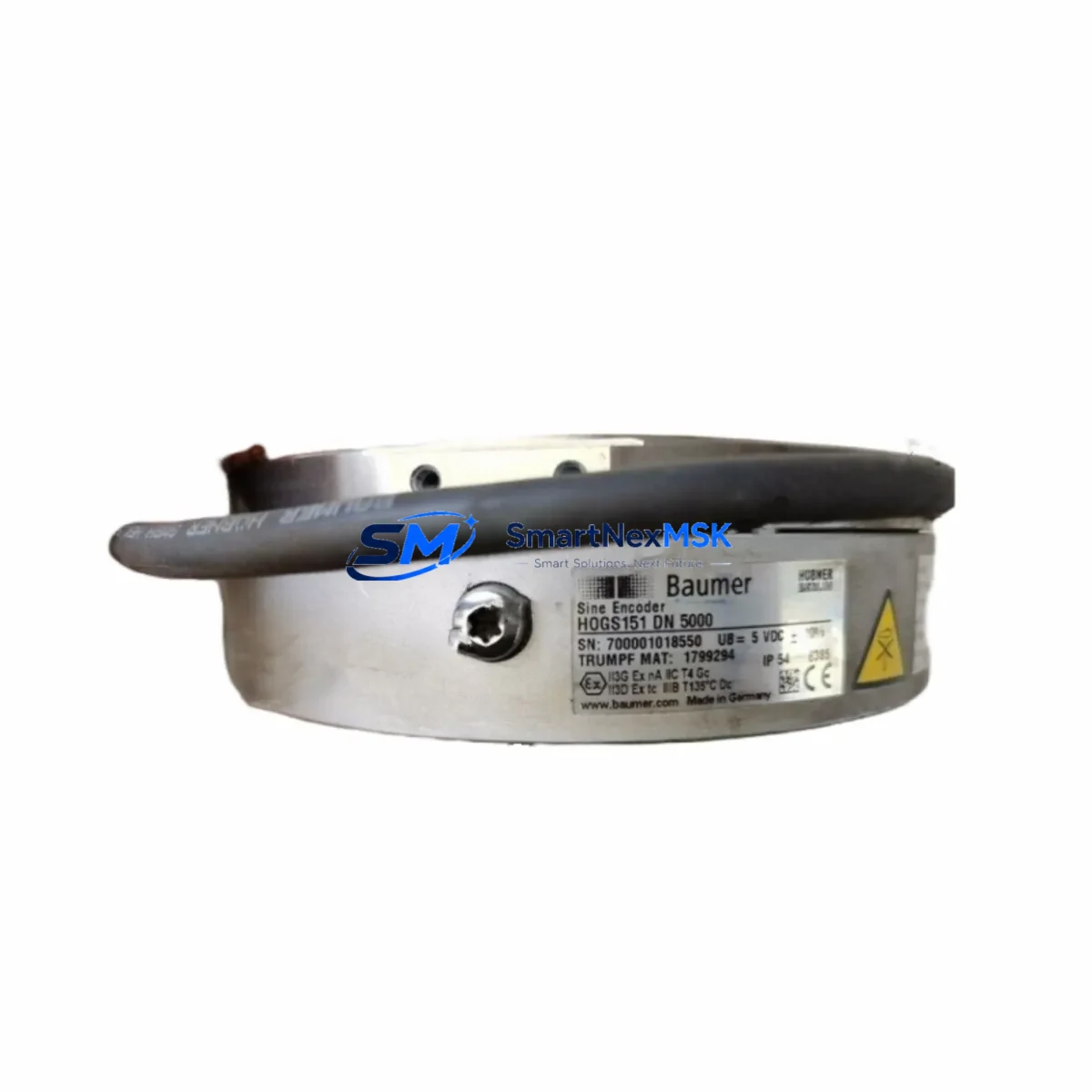

Baumer HOGS151 DN 5000 Safety-Enhanced Incremental Encoder for Harsh Industrial Sites
The Baumer HOGS151 DN 5000 is a ruggedized HTL solid-shaft incremental encoder engineered for continuous, safety-critical operation in the most demanding industrial environments. Delivering 5000 pulses per revolution (PPR) with robust HTL (High Threshold Logic) signal output, this encoder is purpose-built to maintain precise position and speed feedback even under extreme mechanical stress, electromagnetic interference, and harsh ambient conditions. Whether deployed in heavy-duty motor drives, conveyor control loops, crane hoist systems, or critical interlock circuits, the HOGS151 DN 5000 provides the signal integrity and mechanical resilience that industrial safety demands.
At SMARTNEXMSK, every unit is sourced from verified supply channels, subjected to outgoing inspection and functional testing prior to dispatch, and backed by a 12-month warranty. Consistent stock availability ensures rapid replacement support for planned maintenance and emergency breakdowns alike.
Safety Reliability Table
| Parameter | Specification |
|---|---|
| SKU / Model | HOGS151 DN 5000 |
| Brand / Series | Baumer / HOGS Series |
| Output Type | HTL (High Threshold Logic), Push-Pull |
| Resolution (PPR) | 5000 Pulses per Revolution |
| Supply Voltage | 10 – 30 V DC |
| Output Channels | A, B, Z (Index) with complementary signals |
| Shaft Type | Solid Shaft (DN = 10 mm) |
| Max. Shaft Speed | 6000 RPM (mechanical) |
| Protection Rating | IP67 (dust-tight, water-immersion resistant) |
| Operating Temperature | -20 °C to +85 °C |
| Vibration Resistance | ≥ 100 m/s² (per IEC 60068-2-6) |
| Shock Resistance | ≥ 1000 m/s² (per IEC 60068-2-27) |
| EMC / Surge Protection | Built-in signal filtering; HTL output immune to common-mode noise |
| Housing Material | Aluminium alloy, corrosion-resistant |
| Bearing Load (Radial/Axial) | 80 N / 40 N |
| Country of Origin | Germany |
| Warranty | 12 Months – Covered by SMARTNEXMSK |
| Outgoing Inspection | Functional test performed before every shipment |
| Compatibility | Siemens SINAMICS drives, ABB ACS series, Schneider Altivar, Yaskawa Sigma |
Control Cabinet Protection Strategy
In high-load industrial control cabinets, the reliability of every feedback device directly determines the safety of the entire control loop. The Baumer HOGS151 DN 5000 integrates seamlessly into closed-loop speed and position control architectures driven by Siemens SINAMICS G120 or S120 drive modules, where accurate encoder feedback is essential to prevent runaway conditions and torque oscillation. Its HTL output is inherently resistant to the common-mode voltage fluctuations that frequently corrupt TTL-level signals in cabinets sharing bus bars with high-current contactors or Schneider Electric TeSys D-series motor starters.
Power supply stability is a foundational safety requirement. Pairing the HOGS151 DN 5000 with a Phoenix Contact QUINT-series 24 V DC power supply or equivalent redundant PSU ensures the encoder’s HTL output remains within specification even during mains voltage dips or transient surges. For additional surge protection on encoder signal lines running through cable trays shared with power cables, inline surge protection devices (SPDs) such as the Phoenix Contact TT-UKK series are recommended to clamp transient overvoltages before they reach the encoder input card.
In PLC-based safety architectures — for example, systems built around a Siemens S7-1500 CPU with F-modules or a Rockwell Allen-Bradley GuardLogix controller — the HOGS151 DN 5000 feeds speed and direction data into safety-rated high-speed counter (HSC) modules. This configuration supports safe speed monitoring (SSM) and safe direction monitoring (SDM) functions without requiring an additional safety encoder, reducing cabinet complexity and potential failure points. Where dual-channel redundancy is mandated by the safety plan, a second Baumer HOGS+ series encoder can be mounted on the opposite shaft end to provide cross-verification.
Communication integrity between the encoder feedback chain and the supervisory control layer is maintained through PROFIBUS DP or PROFINET IO fieldbus architectures. Encoder data aggregated at the drive level is transmitted upstream to Siemens ET 200SP distributed I/O stations or equivalent remote I/O nodes, ensuring that any signal anomaly is detected and alarmed at the SCADA level before it escalates to a process trip. Cable shielding, proper grounding of the encoder housing to the cabinet PE rail, and the use of Belden 3107A or equivalent shielded encoder cable are all standard practices that preserve signal quality across long cable runs in electrically noisy environments.
Critical Industrial Safety Applications
Petrochemical & Refinery Plants: In rotating equipment such as compressors, pumps, and agitators operating in Zone 2 classified areas, the HOGS151 DN 5000 provides continuous speed monitoring to detect shaft slowdown or overspeed conditions that could trigger hazardous process upsets. Its IP67 sealing prevents ingress of process vapors and wash-down fluids during routine cleaning cycles.
Electric Power Generation & Transmission: Turbine governor control and generator excitation systems rely on high-resolution speed feedback to maintain grid synchronization. The 5000 PPR resolution of the HOGS151 DN 5000 delivers the angular precision required for tight frequency regulation, while its wide operating temperature range accommodates the thermal cycling inherent in power plant environments.
Mining & Mineral Processing: Conveyor belt drives, ball mill motors, and hoist systems in underground and open-pit mining operations subject encoders to extreme vibration, dust, and moisture. The HOGS151 DN 5000’s reinforced bearing system and IP67 housing sustain reliable operation under these conditions, supporting safe load monitoring and anti-rollback interlock functions.
Water & Wastewater Treatment: Pump speed control and valve actuator positioning in water treatment facilities demand encoders that resist condensation and chemical exposure. The HOGS151 DN 5000’s corrosion-resistant aluminium housing and sealed shaft entry maintain measurement accuracy across the full duty cycle of variable-speed pump drives.
Metallurgy & Steel Mills: Rolling mill drives and ladle crane hoists operate under severe electromagnetic interference from large thyristor rectifiers and arc furnaces. The HTL output of the HOGS151 DN 5000 provides a noise margin of up to 15 V, making it far more immune to induced interference than standard TTL encoders, and ensuring that speed feedback remains accurate during high-current switching events.
Port & Harbour Crane Systems: Container crane hoisting and trolley travel drives require precise position control to prevent load swing and collision. The HOGS151 DN 5000 supports the high-cycle, high-dynamic positioning demands of crane PLC systems, with mechanical robustness to withstand the shock loads generated during load pick-up and set-down operations.
Safety and Quality FAQ
Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. SMARTNEXMSK will replace or repair any confirmed defective unit at no additional cost. Warranty claims are processed promptly with dedicated after-sales support to minimize your downtime.
Q2: What outgoing inspection is performed before shipment?
Every Baumer HOGS151 DN 5000 unit undergoes a pre-shipment functional test that verifies output signal integrity (channels A, B, Z), supply current draw, and mechanical shaft rotation. Units that do not pass inspection are quarantined and not dispatched. A test confirmation is available upon request.
Q3: Is the HOGS151 DN 5000 compatible with my existing drive or PLC system?
The HTL push-pull output is compatible with the encoder input cards of all major industrial drive and PLC platforms, including Siemens SINAMICS, ABB ACS, Schneider Altivar, Yaskawa Sigma, and Rockwell PowerFlex series. If you require confirmation for a specific system configuration, contact our technical team with your drive model and encoder input card type.
Q4: Can SMARTNEXMSK guarantee long-term supply for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains dedicated stock of the HOGS151 DN 5000 and other Baumer HOGS series encoders to support planned maintenance schedules and emergency replacement requirements. For high-volume or long-term supply agreements, contact our sales team to discuss priority allocation and lead-time commitments.
