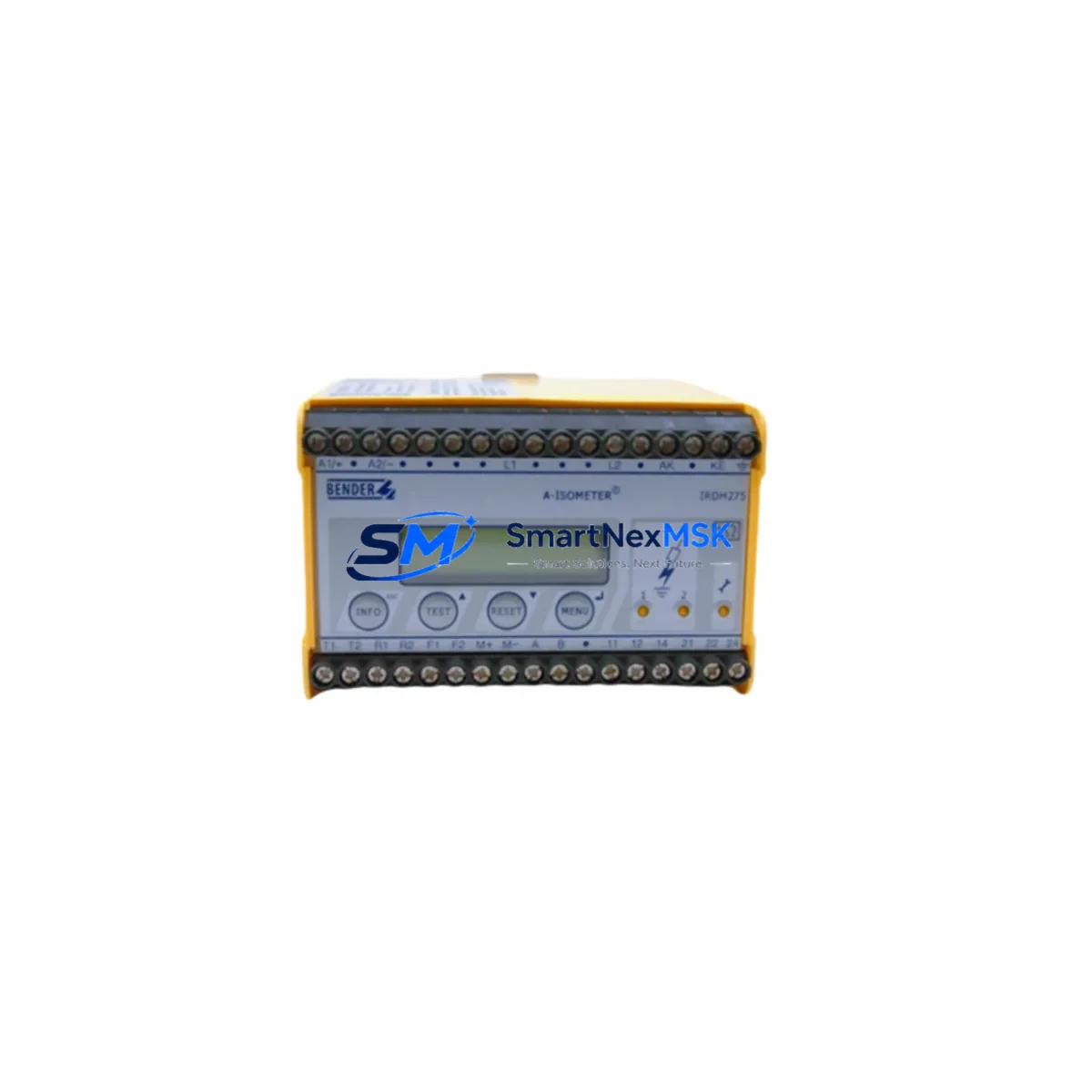

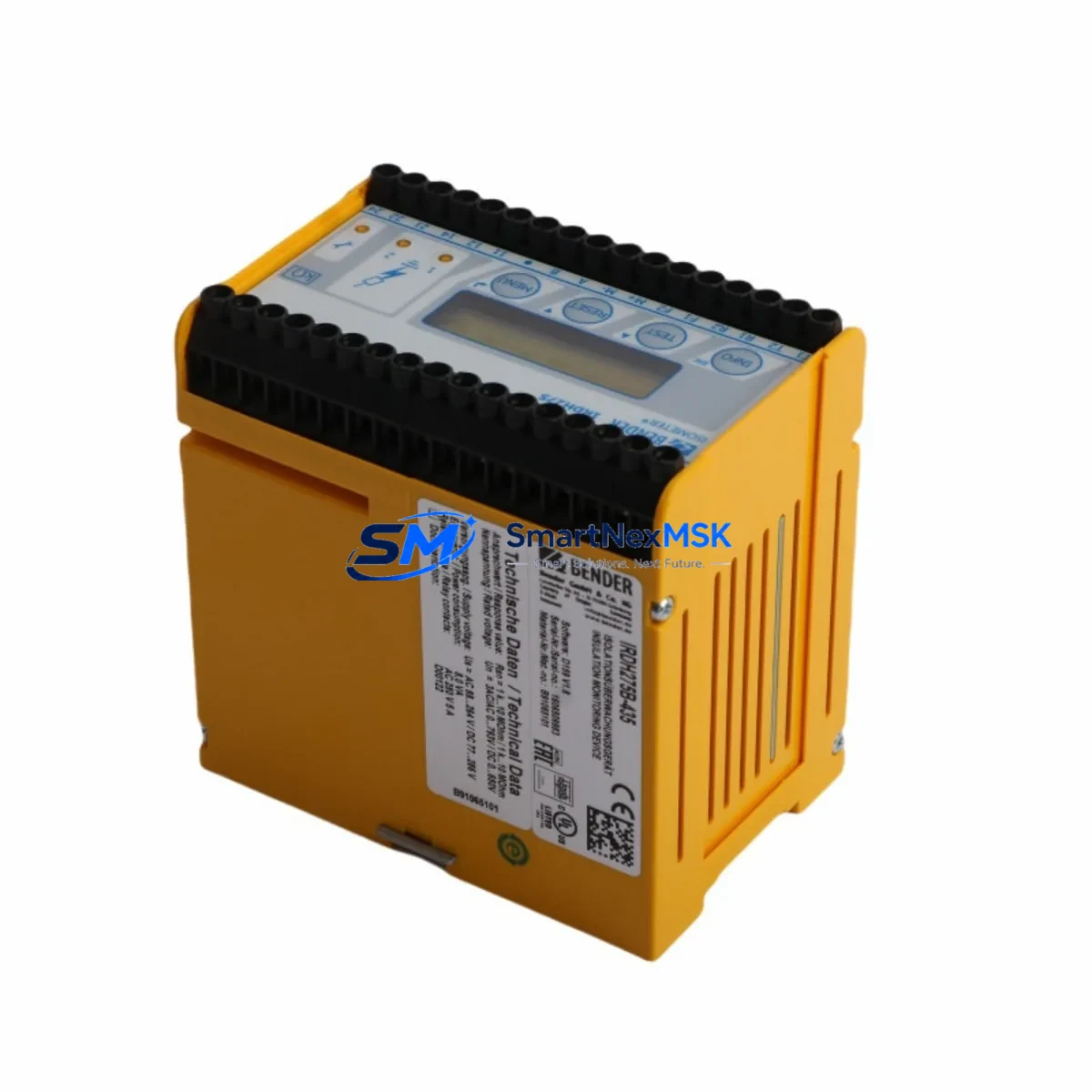

BENDER IRDH275-427 Retrofit-Ready Insulation Monitoring Device for IRDH275 IT Control Systems
The BENDER IRDH275-427 is a precision insulation monitoring device (IMD) engineered for ungrounded IT power systems in industrial, medical, and critical infrastructure environments. As legacy IRDH275 units reach end-of-service life or become unavailable through standard supply chains, the IRDH275-427 serves as the authoritative retrofit-ready replacement — delivering full functional compatibility with existing panel wiring, alarm relay circuits, and system bus interfaces without requiring panel redesign or PLC reprogramming.
For automation engineers and maintenance teams managing aging control infrastructure, the IRDH275-427 addresses the most common failure points in insulation monitoring: degraded measurement accuracy over time, obsolete communication interfaces, and discontinued spare parts availability. This unit restores system integrity while preserving the original control logic and alarm thresholds already configured in the host system.
Upgrade Compatibility Table
| Parameter | IRDH275-427 (Replacement) | Notes / Retrofit Guidance |
|---|---|---|
| Replaces Model | IRDH275 series (all variants) | Direct functional replacement; verify suffix compatibility |
| Mounting | DIN rail / panel mount | Same footprint as IRDH275; no panel cutout modification required |
| Supply Voltage | AC/DC 24–240 V | Confirm existing panel supply voltage before installation |
| Measurement Range | 1 kΩ – 10 MΩ | Recalibrate alarm thresholds after replacement if previously adjusted |
| Communication Interface | RS-485 / ISOMETER bus | Compatible with BENDER BMS, COM465, and legacy ISOMETER bus topologies |
| Alarm Relay Output | 2 × changeover relay | Map to existing alarm wiring; verify NC/NO configuration |
| Display | LCD with backlight | Supports local parameter setting; no external programmer required |
| Commissioning | On-device keypad + RS-485 remote | Use BENDER COM465 or BMS software for remote parameter upload |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
Replacing an IRDH275 in a live industrial environment requires careful pre-work to avoid unplanned downtime or alarm system gaps. Before removing the existing unit, document the current insulation alarm threshold (typically set between 50 kΩ and 1 MΩ depending on system criticality), the relay wiring configuration at terminals A1/A2 and the alarm relay outputs, and the RS-485 bus address if the unit is integrated into a BENDER BMS or COM465 communication gateway.
In systems where the IRDH275 feeds alarm signals to a Siemens S7-300 or S7-400 PLC via digital input modules — such as the SM 321 DI 16×DC 24V or SM 331 AI 8×12Bit — the relay output mapping must be verified against the existing PLC program before the swap. If the control system uses a Siemens ET 200M distributed I/O rack, confirm that the IM 153-2 interface module’s communication cycle is not disrupted during the IMD replacement window.
For panels that include a BENDER ISOMETER iso685 or iso1685 alongside the IRDH275, note that the IRDH275-427 operates on the same ISOMETER bus protocol, allowing both devices to coexist on a shared RS-485 segment without address conflicts — provided each device is assigned a unique bus node address (1–90). If the panel also contains a BENDER EDS460 or EDS490 earth fault location system, the IRDH275-427 can be integrated into the same fault location topology without firmware changes to the EDS unit.
Panels with Schneider Electric Modicon M340 or Premium PLCs connected via Modbus RTU should verify that the IRDH275-427’s RS-485 port is configured for the correct baud rate (default 9600 bps) and parity settings to match the existing Modbus master configuration. If the original IRDH275 was connected through a BENDER COM465IP Ethernet gateway, the IRDH275-427 integrates identically — simply re-enter the device address in the COM465 device list after installation.
Where the control cabinet includes an ABB AC500 controller or a Beckhoff CX series IPC managing multiple I/O modules, the insulation monitoring alarm signal is typically wired to a dedicated digital input channel. Confirm the input voltage level (24 VDC logic) matches the IRDH275-427 relay output specification before energizing. For HMI panels — whether a Siemens SIMATIC HMI TP700 Comfort, a Weintek MT8000 series, or a Pro-face GP4000 — update the alarm tag address if the relay output terminal assignment changes between the old and new unit.
Downtime Control During System Migration
Minimizing production interruption during an IMD replacement is achievable with structured preparation. The recommended approach is to schedule the physical swap during a planned maintenance window, pre-configure the IRDH275-427 parameters offline using the front-panel keypad before installation, and have a verified backup of the original unit’s alarm threshold and relay configuration documented in the maintenance record.
During the swap, the IT system will temporarily lose insulation monitoring coverage. To manage this risk, notify the facility safety officer, confirm that no high-resistance ground faults are present on the system prior to removal (using a portable insulation tester if available), and limit the unmonitored window to the minimum time required for physical installation and terminal reconnection — typically 15–30 minutes for a trained technician.
After installation, perform a functional verification: apply a test resistance across the measurement terminals (or use the built-in self-test function), confirm that the alarm relay operates at the configured threshold, and verify that the RS-485 communication link is re-established with the BMS or COM465 gateway. Log the commissioning date and threshold settings in the panel documentation for future reference. All units supplied by SMARTNEXMSK are pre-tested prior to shipment and include a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
Retrofit Support FAQ
Q1: Is the IRDH275-427 a direct drop-in replacement for all IRDH275 variants?
The IRDH275-427 is functionally compatible with the IRDH275 series. The “-427” suffix denotes the supply voltage range (AC/DC 24–240 V universal input). If your existing unit carries a different suffix indicating a narrower voltage range, verify that your panel supply voltage falls within the IRDH275-427’s input specification before installation. Terminal layout and mounting dimensions are identical across the IRDH275 series.
Q2: Can I reuse the existing RS-485 wiring and bus address configuration?
Yes. The IRDH275-427 uses the same RS-485 ISOMETER bus protocol as the original IRDH275. Retain the existing bus address setting and wiring. After installation, use the front-panel menu or BENDER BMS software to confirm the device is recognized on the bus. No changes to the COM465 gateway configuration are required if the bus address is preserved.
Q3: What commissioning steps are required after installation?
After physical installation and terminal reconnection: (1) Power on the unit and confirm the LCD displays the system insulation resistance value. (2) Verify the alarm threshold matches the previously documented setting. (3) Trigger the built-in self-test to confirm relay output operation. (4) Confirm RS-485 communication with the BMS or gateway. (5) Update the panel maintenance log with the replacement date, unit serial number, and threshold settings.
Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
All IRDH275-427 units supplied by SMARTNEXMSK undergo functional pre-shipment testing including insulation measurement accuracy verification and relay output confirmation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of delivery. Warranty claims are supported by our technical team at sales@smartnexmsk.com.
