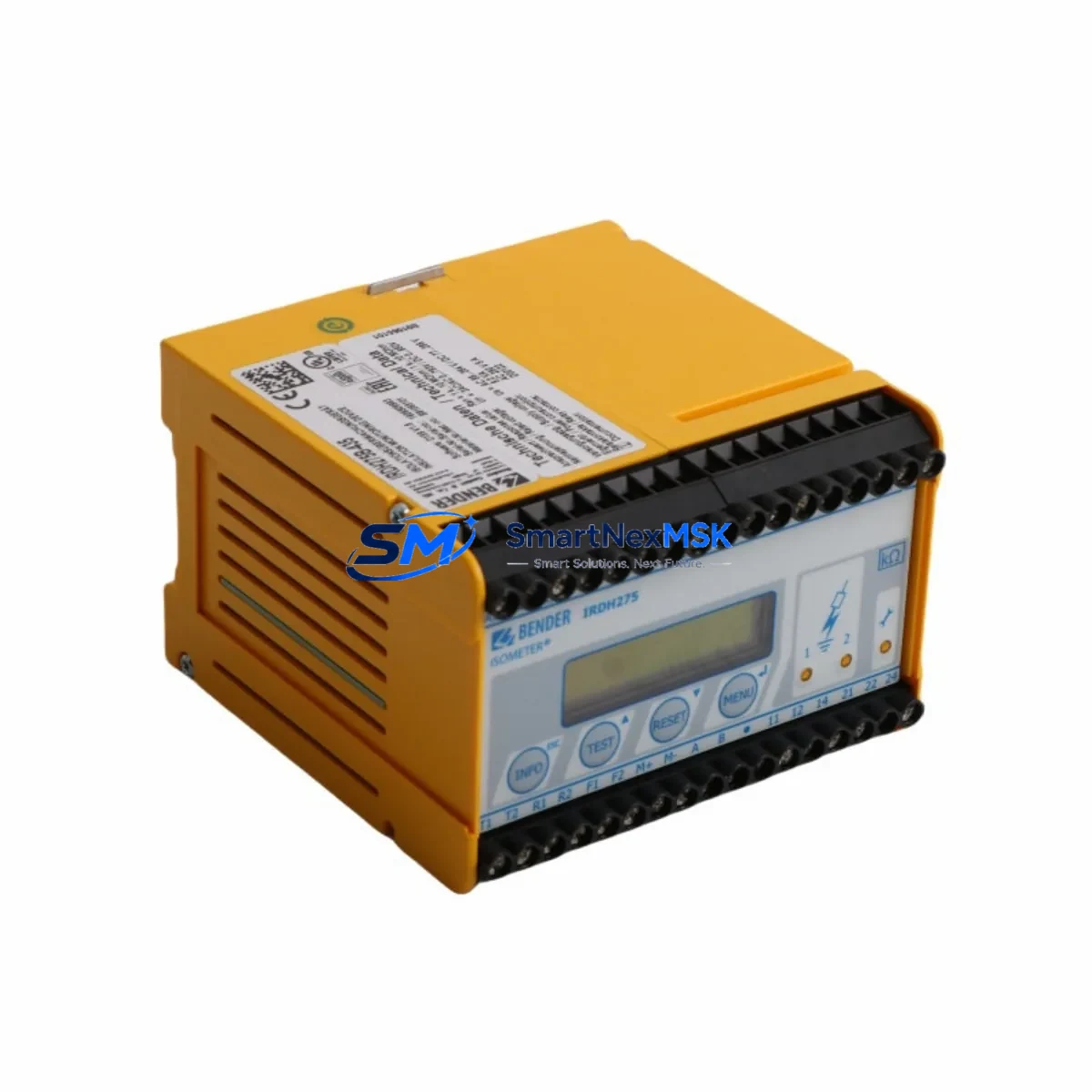

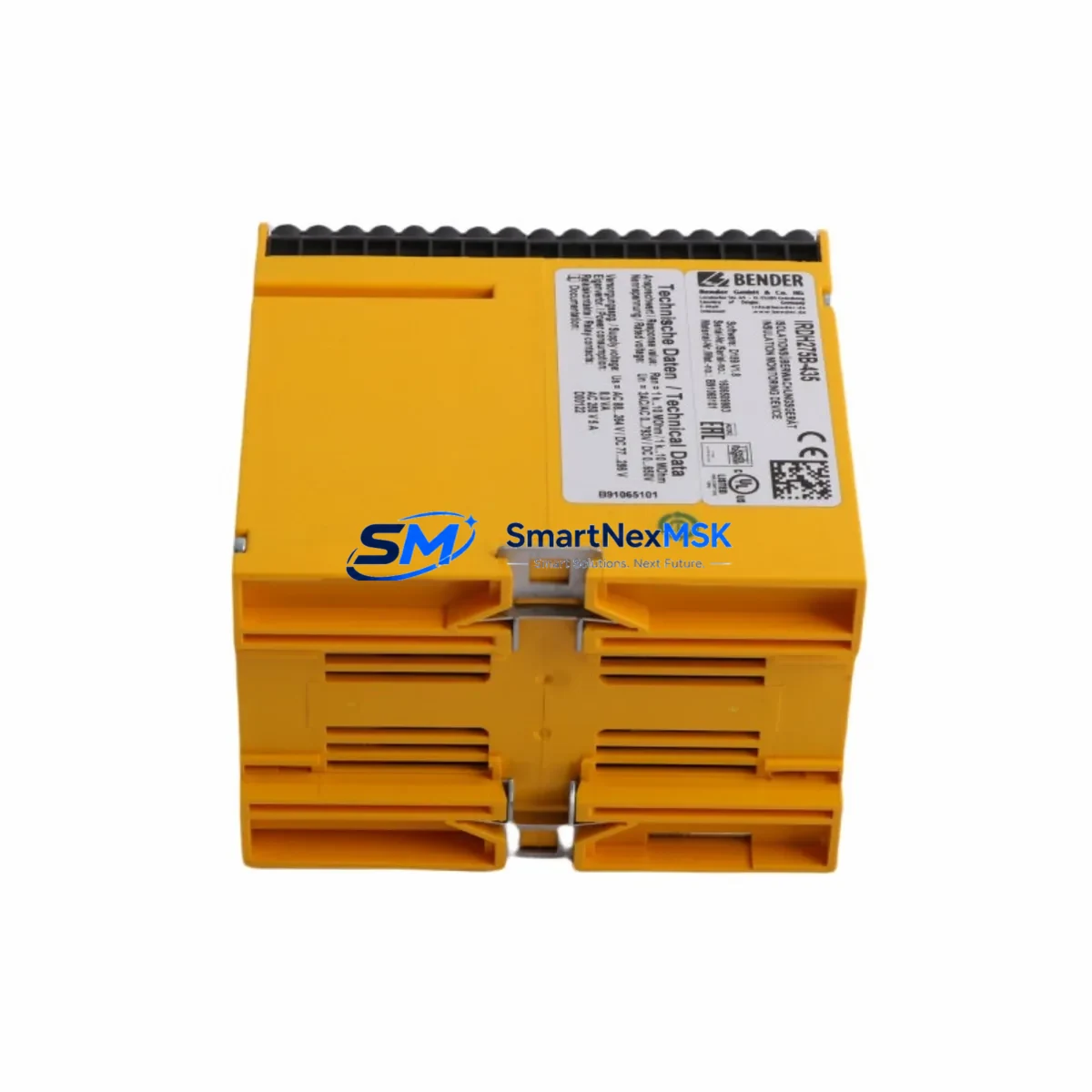

BENDER IRDH275B-427: Retrofit-Ready Insulation Monitoring for IR Series Control Systems
The BENDER IRDH275B-427 is a precision insulation monitoring device (IMD) engineered for seamless integration into existing IR Series IT systems and legacy industrial control architectures. As a direct retrofit replacement for discontinued or aging IRDH series units, this module enables plant engineers and maintenance teams to modernize their electrical safety infrastructure without redesigning the control cabinet or interrupting production continuity. Whether you are upgrading a legacy power distribution panel, replacing a failed monitoring relay, or migrating an older ISOMETER-based system to a current-generation platform, the IRDH275B-427 delivers the compatibility, reliability, and documentation support that industrial buyers require.
Sourced directly from authorized supply channels and subject to full functional testing prior to shipment, each unit is backed by a 12-month warranty covering manufacturing defects and operational failures under normal service conditions. Stock is maintained in Xiamen for rapid dispatch to customers across Asia-Pacific, the Middle East, and Europe.
Upgrade Compatibility Table
| Parameter | IRDH275B-427 (Current) | Legacy IRDH275 / IRDH265 (Replaced) | Retrofit Notes |
|---|---|---|---|
| Mounting Format | DIN rail / panel flush | Panel flush (older enclosures) | Adapter plate may be required for older cutouts |
| Communication Interface | Modbus RTU / RS-485 | Relay output only (older variants) | RS-485 wiring must be added if upgrading from relay-only units |
| Supply Voltage | 24 V DC / 110–240 V AC | 110–240 V AC | Verify terminal block voltage rating before wiring |
| Measuring Voltage (AC/DC) | Up to AC/DC 690 V | Up to AC/DC 690 V | No change required |
| Response Threshold | 1 kΩ – 10 MΩ (adjustable) | Fixed or limited range | Recalibrate threshold after installation |
| Display / HMI Interface | LCD with backlight, local keypad | LED indicators only | Update HMI screen templates if BENDER COM465 or BMS is used |
| Alarm Relay Outputs | 2 × changeover relays | 1–2 relays (model dependent) | Verify relay wiring diagram against existing terminal layout |
| Installation Standard | IEC 61557-8, IEC 60364 | IEC 61557-8 (earlier revision) | No re-certification required for like-for-like replacement |
| Warranty | 12 Months — covers manufacturing defects and operational failure under normal use | Warranty certificate issued with each shipment | |
Retrofit Planning for Existing Automation Systems
Successful integration of the IRDH275B-427 into a legacy control system requires a structured pre-installation review. Begin by auditing the existing control cabinet layout: confirm the available DIN rail space, terminal block assignments, and the routing of the measuring circuit cables (E1/E2 terminals) that connect to the IT network under supervision. In older installations, these cables may share conduit with power wiring from a BENDER ISOMETER IR155 or an earlier IRDH265 unit — both of which the IRDH275B-427 is designed to replace without rerouting the primary measurement circuit.
For systems that include a BENDER COM465IP communication module or a BMS (BENDER Monitoring System) gateway, the Modbus RTU address of the new IRDH275B-427 must be configured to match the address previously assigned to the replaced unit. This prevents the need to modify PLC address tables or SCADA tag databases. If the existing PLC — such as a Siemens S7-300 or a Schneider Electric Modicon M340 — polls insulation status via a Modbus master function block, the register map of the IRDH275B-427 should be verified against the legacy register layout to confirm data word alignment.
Where the control system includes a BENDER RCMS460 residual current monitoring system or a BENDER MEDICS medical IT panel, the IRDH275B-427 can be integrated as the primary IMD within the same cabinet, sharing the alarm bus with existing BENDER EDS (Insulation Fault Location) devices. Confirm that the EDS461 or EDS490 locating current injector is compatible with the measuring frequency of the new unit before energizing the system.
Terminal wiring should be documented against the IRDH275B-427 datasheet (document no. B 9510120) before disconnecting the old unit. Pay particular attention to the KE terminal (coupling network connection) and the alarm relay output terminals (11/12/14 and 21/22/24), which may differ in pin assignment from older IRDH series devices. A BENDER CP700 coupling device or equivalent may be required if the system network capacitance exceeds the self-compensation range of the new unit.
If the installation includes a BENDER LINETRACER LT310 or a portable insulation tester used for pre-commissioning checks, these instruments remain compatible with the IT network under IRDH275B-427 supervision. Ensure that all portable test equipment is disconnected from the network before powering the new IMD to avoid false alarm triggers during initial startup.
Downtime Control During System Migration
Minimizing production downtime during an IMD replacement requires a disciplined changeover sequence. Before removing the legacy unit, capture a full screenshot or printout of the existing alarm thresholds, Modbus address settings, and relay output assignments from the old device’s configuration menu or from the BMS archive. This record serves as the baseline for reconfiguring the IRDH275B-427 and eliminates the need for on-site parameter re-derivation.
Where the process cannot tolerate a full shutdown, a temporary bypass relay can be wired in parallel with the existing IMD alarm output to maintain the alarm chain continuity in the PLC or safety relay circuit during the physical swap. This approach is particularly effective in medical IT systems or continuous process environments where the insulation monitoring alarm feeds directly into an emergency stop or isolation contactor logic.
Once the IRDH275B-427 is installed and powered, perform a functional self-test using the device’s built-in test button before reconnecting the measuring circuit to the live IT network. Verify that both alarm relays operate correctly and that the Modbus communication link to the COM465 or PLC Modbus master is established before releasing the system to normal operation. The entire hot-swap procedure, from isolation to re-energization, can typically be completed within 45–90 minutes by a qualified electrician familiar with BENDER equipment, keeping unplanned downtime to a minimum.
All units shipped by SMARTNEXMSK are pre-tested for basic electrical continuity and communication response prior to dispatch. A test report is available upon request. The 12-month warranty covers the replacement unit from the date of invoice, providing assurance against early-life failures that could otherwise require a second maintenance window.
Retrofit Support FAQ
Q1: Is the IRDH275B-427 a direct drop-in replacement for the IRDH275B or IRDH265?
The IRDH275B-427 is functionally compatible with the IRDH275B and serves as the recommended upgrade path for IRDH265 installations. The terminal layout is largely consistent, but engineers should verify the KE coupling terminal and relay output pin assignments against the existing wiring diagram before installation. No firmware changes are required in the supervising PLC or SCADA system if the Modbus register map is confirmed to match.
Q2: What commissioning steps are required after installation?
After physical installation and wiring, set the Modbus RTU device address to match the legacy unit’s address, configure the alarm thresholds (Ran1 and Ran2) to the values recorded from the replaced device, and perform a relay function test using the built-in test sequence. If a BENDER COM465 or BMS is present, confirm that the new device appears correctly in the device list and that alarm events are being logged. A full insulation resistance measurement of the IT network should be performed and recorded as part of the commissioning documentation.
Q3: Can the IRDH275B-427 operate on both AC and DC IT networks?
Yes. The IRDH275B-427 is designed for use on AC, DC, and AC/DC combined IT systems with system voltages up to 690 V. It is suitable for applications including photovoltaic systems, battery storage installations, medical IT panels, and industrial drive systems where both AC and DC insulation monitoring is required simultaneously.
Q4: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of invoice. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact SMARTNEXMSK with the invoice number, a description of the fault, and photographs of the installation. Replacement units are dispatched from Xiamen stock upon claim approval, and return shipping of the defective unit is coordinated by our technical support team.
