Bently Nevada 330103-00-16-50-12-RU Safety Proximity Probe

Bently Nevada 330103-00-16-50-12-RU Safety Proximity Probe: Ruggedized Control Reliability for Harsh Industrial Sites

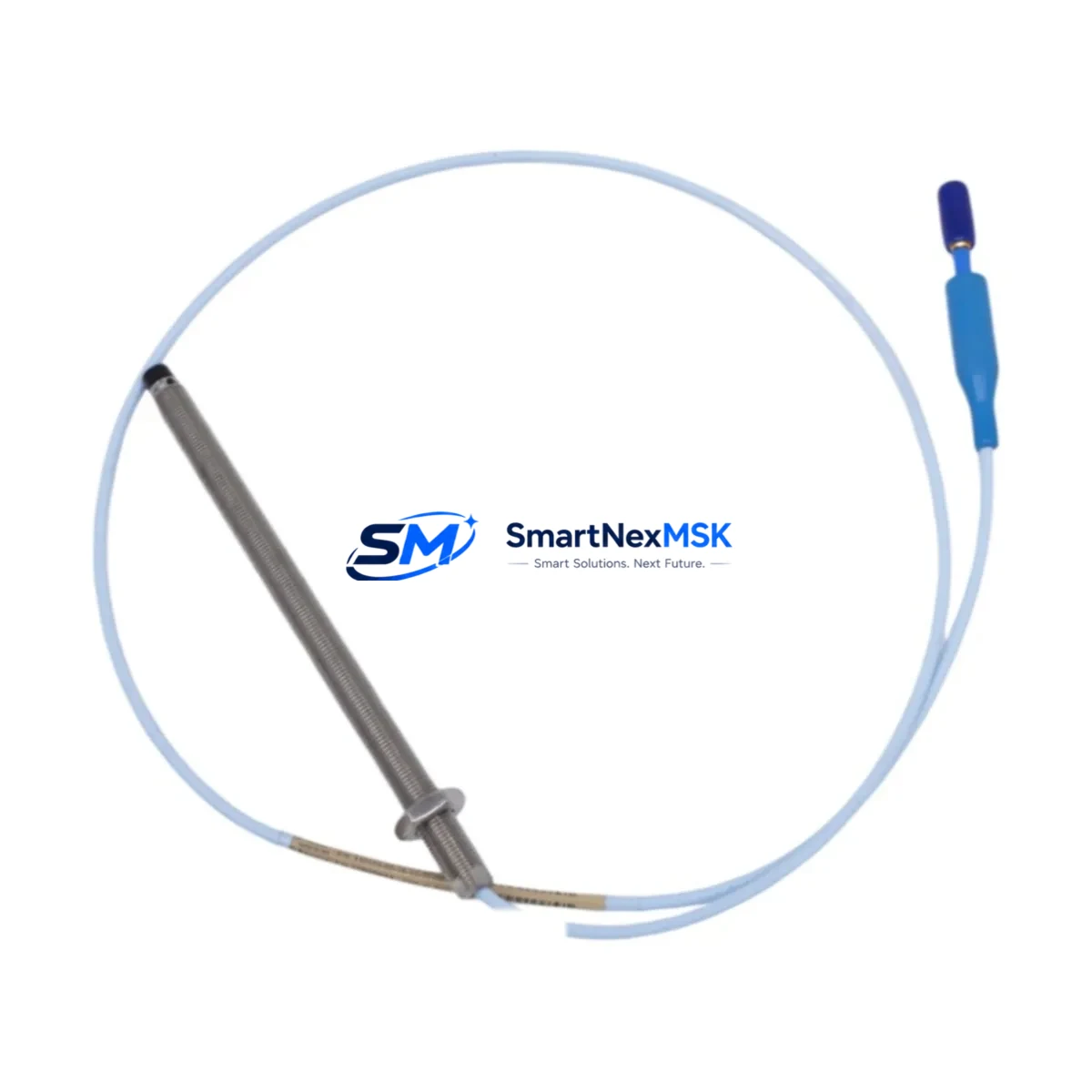

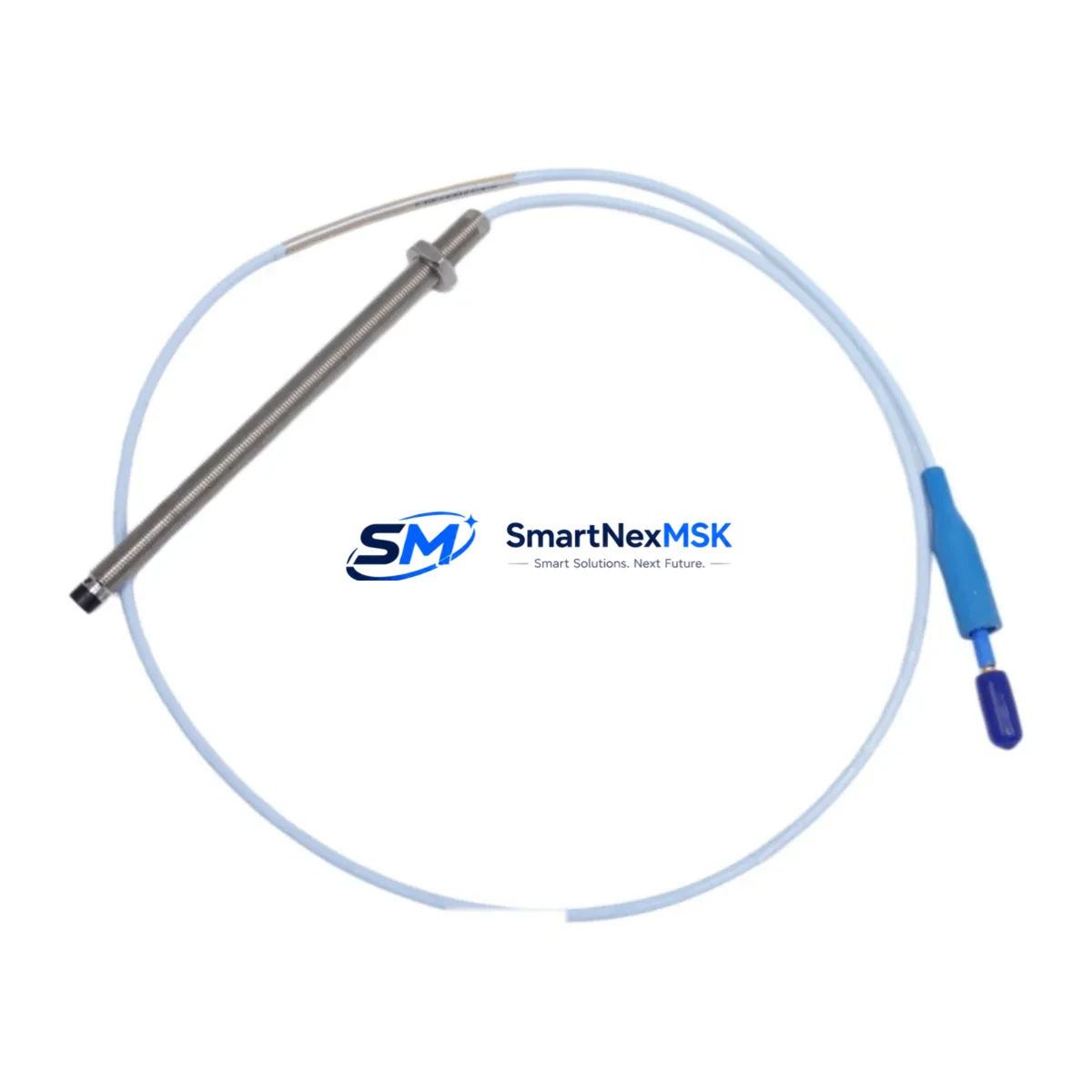

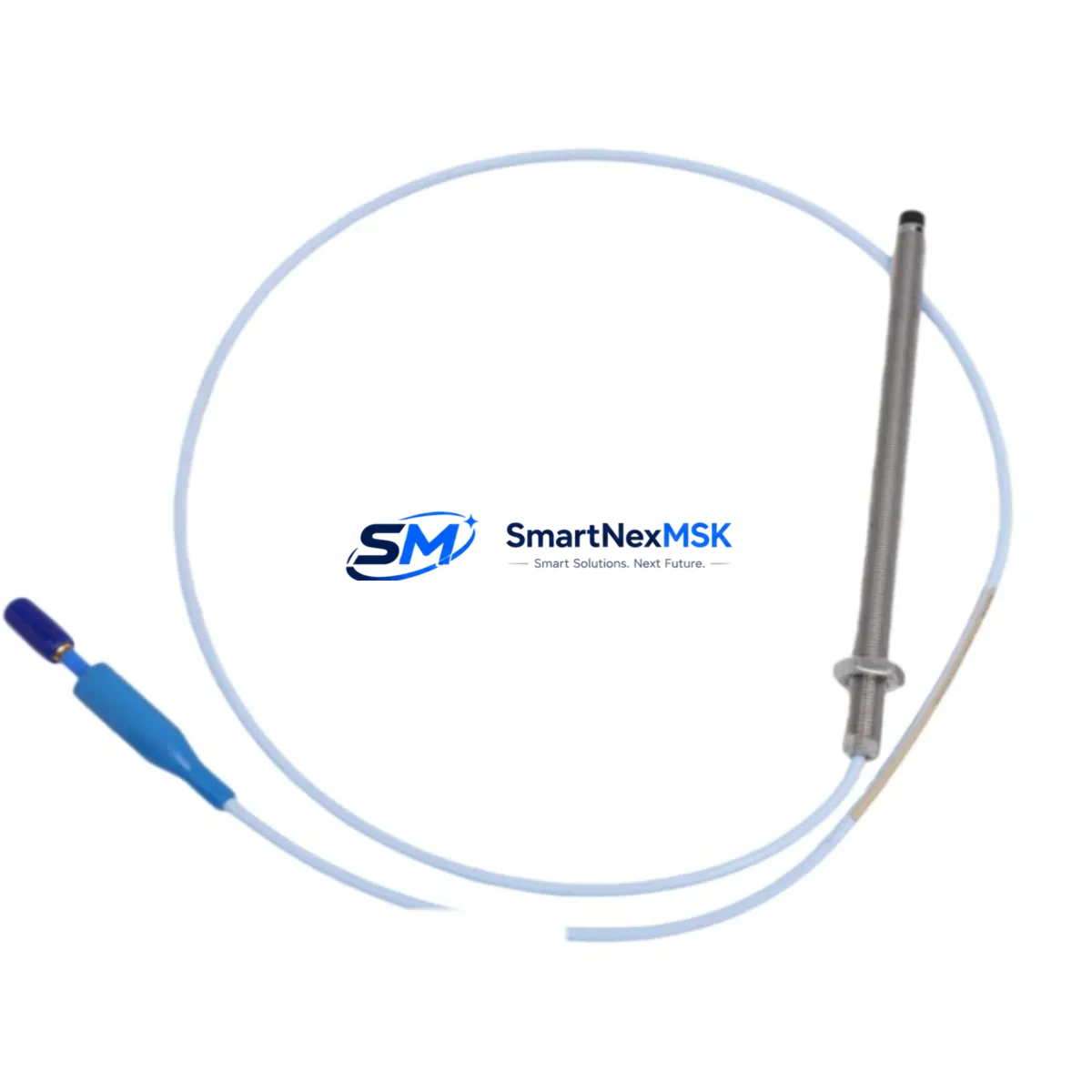

The Bently Nevada 330103-00-16-50-12-RU is a ruggedized eddy-current proximity probe from the industry-proven 3300 XL Series, engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to operate reliably under high electromagnetic interference, mechanical shock, extreme temperatures, and corrosive atmospheres, this probe is a cornerstone component in rotating machinery protection systems across petrochemical, power generation, mining, metallurgical, and heavy manufacturing facilities.

With a 5 mm probe tip diameter, M12 thread body, and a 16-inch (approximately 406 mm) armored extension cable, the 330103-00-16-50-12-RU delivers precise, non-contact displacement measurement with a sensitivity of 200 mV/mil (7.87 V/mm) when paired with a compatible Bently Nevada 3300 XL proximitor sensor. The ruggedized (RU) designation confirms enhanced mechanical protection — including reinforced cable jacketing and connector sealing — making it suitable for direct installation in wet, oily, high-vibration, or chemically aggressive zones without additional shielding enclosures.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered rotating machinery protection system, the 330103-00-16-50-12-RU probe does not operate in isolation. It forms the sensing front-end of a layered safety architecture that begins at the shaft surface and extends through the control cabinet to the plant DCS or safety instrumented system (SIS).

The probe connects directly to a Bently Nevada 3300 XL Proximitor Sensor (such as the 330180-X1-05), which conditions the raw eddy-current signal into a calibrated DC voltage output. This signal is then routed to a Bently Nevada 3500/22M Transient Data Interface or a 3500/42M Proximitor Monitor rack card, which performs real-time vibration analysis, alarm threshold comparison, and relay trip output. The 3500 rack system — including the 3500/20 Rack Interface Module and 3500/15 Power Supply — provides the regulated −24 VDC required by the probe-proximitor pair, ensuring stable excitation even during plant power fluctuations or momentary brownouts.

To protect the signal integrity of the 330103-00-16-50-12-RU in high-interference environments, engineers typically install Bently Nevada armored interconnect cables and route them through dedicated shielded conduit, separated from high-voltage motor leads. In cabinets where multiple proximity channels are monitored simultaneously — such as radial vibration X/Y pairs and axial position — companion probes like the Bently Nevada 330103-00-16-50-08-CN (standard, non-ruggedized variant) or the 330104-00-16-50-12-RU (extended range) may be installed alongside this unit to provide full shaft dynamic coverage per API 670 requirements.

For installations requiring intrinsic safety barriers or galvanic isolation — common in Zone 1 or Zone 2 hazardous areas — the signal chain is supplemented with MTL or P+F Zener barriers or galvanic isolators mounted in the safe-area cabinet, preventing ignition-capable energy from reaching the field device. Surge protection modules, such as Phoenix Contact TRABTECH transient suppressors, are recommended at the cabinet entry point to absorb lightning-induced or switching transients that could otherwise damage the proximitor or corrupt the displacement signal.

Power distribution within the protection rack is typically managed by a Bently Nevada 3500/15 Power Supply with redundant input capability, ensuring that a single AC supply failure does not interrupt the machinery protection function. Combined with a Bently Nevada 3500/92 Communication Gateway for Modbus or OPC-UA integration to the plant historian or DCS, this complete architecture ensures that the 330103-00-16-50-12-RU’s vibration data reaches the control room without interruption, latency, or signal corruption — even during grid disturbances or partial cabinet failures.

Critical Industrial Safety Applications

The Bently Nevada 330103-00-16-50-12-RU is deployed across the full spectrum of heavy industrial rotating machinery protection applications where continuous uptime, personnel safety, and regulatory compliance are non-negotiable.

In petrochemical and refinery facilities, this probe monitors radial shaft vibration on critical compressors, pumps, and turbines operating in hydrocarbon-rich atmospheres. Its ruggedized construction resists oil mist, H₂S exposure, and thermal cycling — conditions that rapidly degrade standard probes. An undetected shaft displacement event in a high-pressure compressor can result in seal failure, process gas release, and catastrophic fire risk; the 330103-00-16-50-12-RU provides the early-warning signal that enables a controlled shutdown before damage propagates.

In power generation plants — including coal-fired, gas turbine, and hydroelectric facilities — this probe is installed on turbine-generator shaft trains to detect rotor imbalance, bearing wear, and oil whirl instability. The API 670-compliant measurement chain, anchored by this probe, feeds directly into the turbine protection relay, enabling automatic trip within milliseconds of a dangerous vibration exceedance.

In mining and mineral processing operations, where crushers, mills, and large fans operate under extreme mechanical loading and dust-laden atmospheres, the ruggedized cable and sealed connector of the 330103-00-16-50-12-RU prevent ingress failures that would otherwise cause false trips or missed alarms — both equally dangerous in a continuous production environment.

In metallurgical and steel plants, where induction furnaces, rolling mills, and large drive motors generate intense electromagnetic fields, the eddy-current operating principle of this probe is inherently immune to EMI — unlike piezoelectric accelerometers, which can produce spurious signals in high-field environments. This makes the 330103-00-16-50-12-RU the preferred sensing technology for shaft monitoring in electrically noisy industrial zones.

In water and wastewater treatment facilities, large vertical pump motors and blowers require continuous vibration monitoring to prevent bearing failures that would interrupt treatment capacity. The probe’s corrosion-resistant construction and wide operating temperature range make it suitable for both indoor pump stations and outdoor installations subject to seasonal temperature extremes.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the 330103-00-16-50-12-RU?
The 12-month warranty covers all manufacturing defects, functional failures, and out-of-specification performance identified under normal operating conditions. If the probe fails to meet Bently Nevada 3300 XL sensitivity and linearity specifications within the warranty period, SMARTNEXMSK will provide a replacement unit or full refund. The warranty period begins from the date of shipment confirmation.

Q2: What pre-shipment testing is performed on each unit?
Every 330103-00-16-50-12-RU unit undergoes functional verification prior to shipment, including output voltage linearity check against a calibrated steel target, cable continuity and insulation resistance test, and connector integrity inspection. Units that do not meet factory-equivalent performance standards are quarantined and not shipped. A test report is available upon request for critical installation projects.

Q3: Is the 330103-00-16-50-12-RU compatible with existing Bently Nevada 3300 and 3500 system installations?
Yes. The 330103-00-16-50-12-RU is fully compatible with the Bently Nevada 3300 XL proximitor sensor family and integrates directly into 3500 Series rack-based monitoring systems. It is a drop-in replacement for worn or failed probes in existing installations, requiring no recalibration of the proximitor or monitor card when the same probe model is used. Always verify the gap voltage setting (typically −10.0 VDC at mid-range) after installation.

Q4: Can long-term supply and replacement support be guaranteed for this model?
SMARTNEXMSK maintains dedicated inventory of the 330103-00-16-50-12-RU and related 3300 XL Series components to support ongoing maintenance, planned turnaround, and emergency replacement requirements. For facilities with critical spare parts programs, we recommend establishing a standing supply agreement to ensure availability during plant shutdowns or unplanned outages. Contact our technical sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
