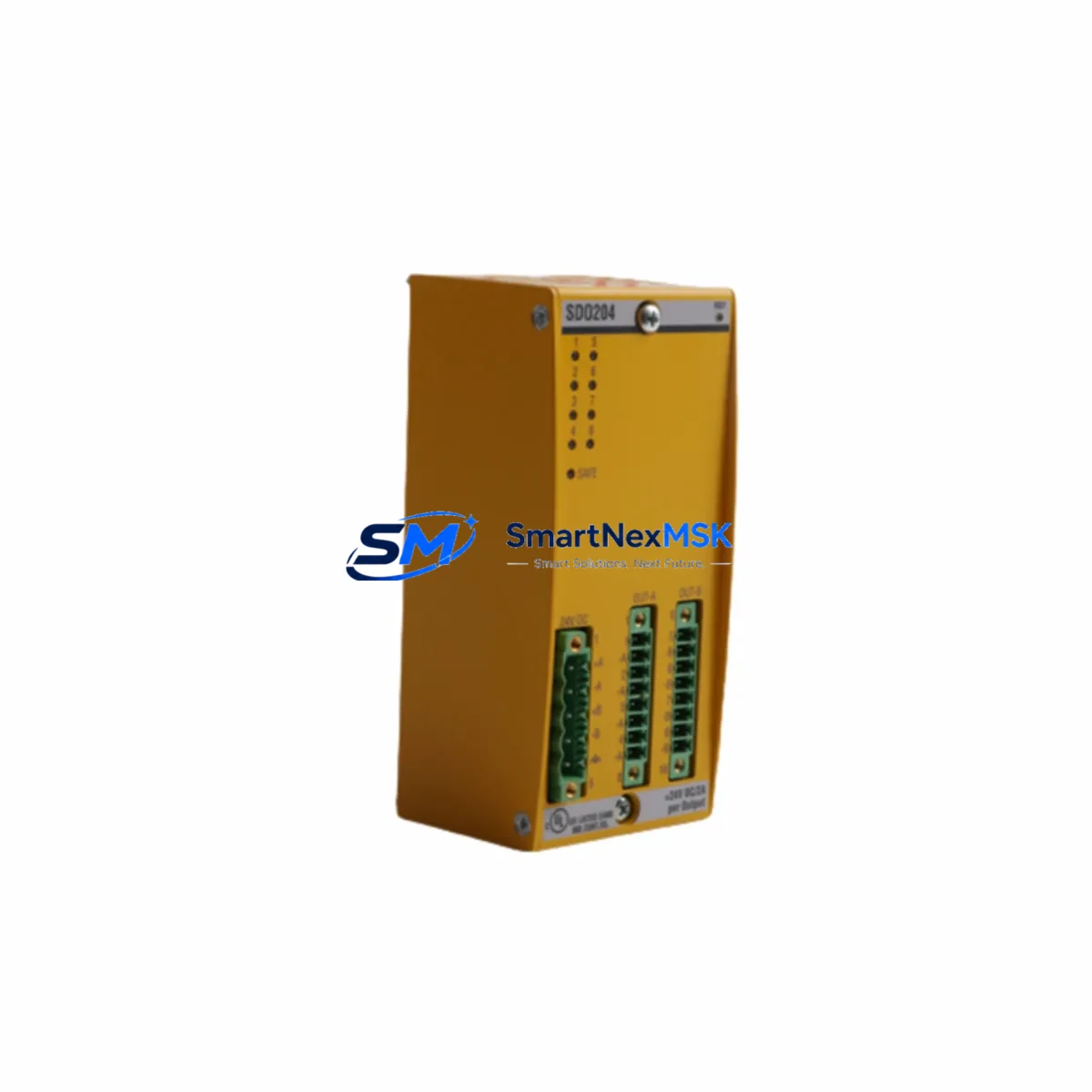

The BOCHMANN SDO204 is a 4-channel safety digital output module engineered for SIL2/PLd-rated control architectures. As a certified original spare, it is the direct replacement component for aging or failed SDO204 units within BOCHMANN SDO Series safety controllers deployed across process automation, machine guarding, and critical infrastructure applications. Sourced from authorized supply chains and tested prior to dispatch, each unit ships with a 12-month warranty and full traceability documentation — enabling maintenance engineers to restore system integrity with minimal downtime.

For maintenance and procurement engineers managing aging BOCHMANN safety systems, the SDO204 represents a high-priority line item in any spare parts strategy. Its 4-channel architecture supports independent output switching with integrated diagnostics, making it suitable for emergency stop circuits, safety gate interlocks, and light curtain output control. When a channel fault or module failure is detected during routine inspection or fault isolation, the SDO204 can be swapped without reconfiguring the safety controller — provided the replacement unit carries the same firmware baseline and hardware revision.

Facilities operating BOCHMANN SDO Series safety PLCs should maintain at least one SDO204 in their on-site spare inventory. Unplanned module failure in a safety output layer can trigger a full line shutdown, and lead times for safety-rated components from standard distributors often exceed acceptable downtime windows. Stocking a tested, warranty-backed original spare eliminates this risk and supports compliance with IEC 62061 and ISO 13849-1 maintenance documentation requirements.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts plan for any BOCHMANN SDO Series cabinet should extend beyond the SDO204 output module itself. During a planned replacement or corrective maintenance event, experienced maintenance engineers will simultaneously inspect and verify the condition of adjacent components to prevent repeat failures and reduce the probability of a secondary shutdown.

The SDI Series safety digital input modules (e.g., SDI204, SDI104) that feed signals into the safety controller should be checked for contact wear, wiring integrity, and diagnostic status. If the SDO204 failure was triggered by an overcurrent condition, the associated 24 V DC power supply module and its output fuses or circuit breakers should be tested under load before the replacement module is energized. Inline safety fuses and fuse terminal blocks on the output wiring should be inspected and replaced if discoloration or thermal stress is evident.

The BOCHMANN safety controller CPU or logic module that governs the SDO204 should be queried for stored fault logs and diagnostic codes — this data is critical for root cause analysis and for confirming that the replacement module is recognized correctly after installation. If the system uses a BOCHMANN communication gateway or fieldbus coupler (PROFIBUS, PROFINET, or EtherCAT variants), verify that the module address and I/O mapping remain consistent after the swap.

For cabinets with mixed I/O architectures, the analog input/output modules sharing the same backplane or power rail should be checked for ground loop issues or signal drift that may have contributed to the fault condition. Safety relay output modules downstream of the SDO204 — particularly those controlling contactors, solenoid valves, or motor starters — should be tested for coil resistance and contact integrity. Terminal blocks and wiring ferrules on the output side should be re-torqued to specification, as loose connections are a common secondary cause of output module faults in high-vibration environments.

If the installation includes a BOCHMANN HMI panel or operator interface, confirm that alarm acknowledgment and reset sequences are functioning correctly after the module replacement. Finally, signal isolators or barriers protecting the SDO204 outputs from field-side voltage transients should be tested for isolation resistance — degraded isolators are a frequent but overlooked cause of recurring output module failures in older installations.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the affected cabinet section following site LOTO procedures. Confirm zero-energy state on all output circuits connected to the SDO204 before proceeding.

Step 2 — Fault Documentation: Record all active and stored fault codes from the safety controller CPU. Photograph the existing wiring and module position before removal. Note the hardware revision and firmware version of the failed SDO204 for compatibility verification.

Step 3 — Module Removal: Release the SDO204 from the backplane connector following the BOCHMANN SDO Series installation guide. Do not force the module — backplane connector damage will require a more extensive repair.

Step 4 — Replacement Verification: Confirm that the replacement SDO204 matches the hardware revision of the failed unit. If a firmware update is required, perform it before installation using the BOCHMANN programming tool. Verify that the module’s safety parameters and output configuration match the original.

Step 5 — Installation and Wiring Check: Seat the replacement module firmly into the backplane slot. Re-connect all output wiring to the correct terminals, verifying against the as-built wiring diagram. Re-torque all terminal screws.

Step 6 — Commissioning and Functional Test: Re-energize the cabinet section and perform a full functional test of all 4 output channels. Confirm that the safety controller recognizes the new module and that no residual fault codes remain. Document the replacement in the site maintenance log.

This workflow is designed to minimize total downtime from fault detection to system restoration, typically achievable within a single shift when a tested spare is available on-site.

Spare Parts Support FAQ

Q1: Is this SDO204 an original BOCHMANN component or a compatible substitute?
This is an original BOCHMANN SDO204 safety digital output module sourced from authorized supply channels. It is not a third-party compatible or remanufactured unit. Each module undergoes pre-shipment functional testing and ships with a 12-month warranty and traceability documentation.

Q2: How do I confirm hardware revision compatibility before ordering?
Provide your existing module’s hardware revision (printed on the module label) and your safety controller firmware version when placing your order. Our technical team will verify compatibility and confirm the correct replacement unit before dispatch. We do not ship unverified replacements for safety-rated components.

Q3: What is the recommended spare inventory strategy for SDO204 in a production environment?
For facilities with continuous production schedules, we recommend maintaining a minimum of one SDO204 per installed safety controller as an on-site cold spare. For multi-line or multi-cabinet installations, a ratio of one spare per three installed units is a practical baseline. Spare modules should be stored in anti-static packaging in a climate-controlled environment and inspected annually.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. To initiate a warranty claim, contact our support team with the order reference, fault description, and photographic evidence. Replacement or repair will be processed within the agreed lead time.
