Unplanned servo drive failures are among the most disruptive events in industrial automation environments. When a Bosch 4101-D servo drive module goes offline, the downstream impact — halted production lines, missed delivery windows, and emergency procurement pressure — can far exceed the cost of the component itself. Sourcing a verified, maintenance-ready spare for the Bosch 4101-D is therefore not simply a procurement task; it is a core element of any responsible downtime-reduction strategy.

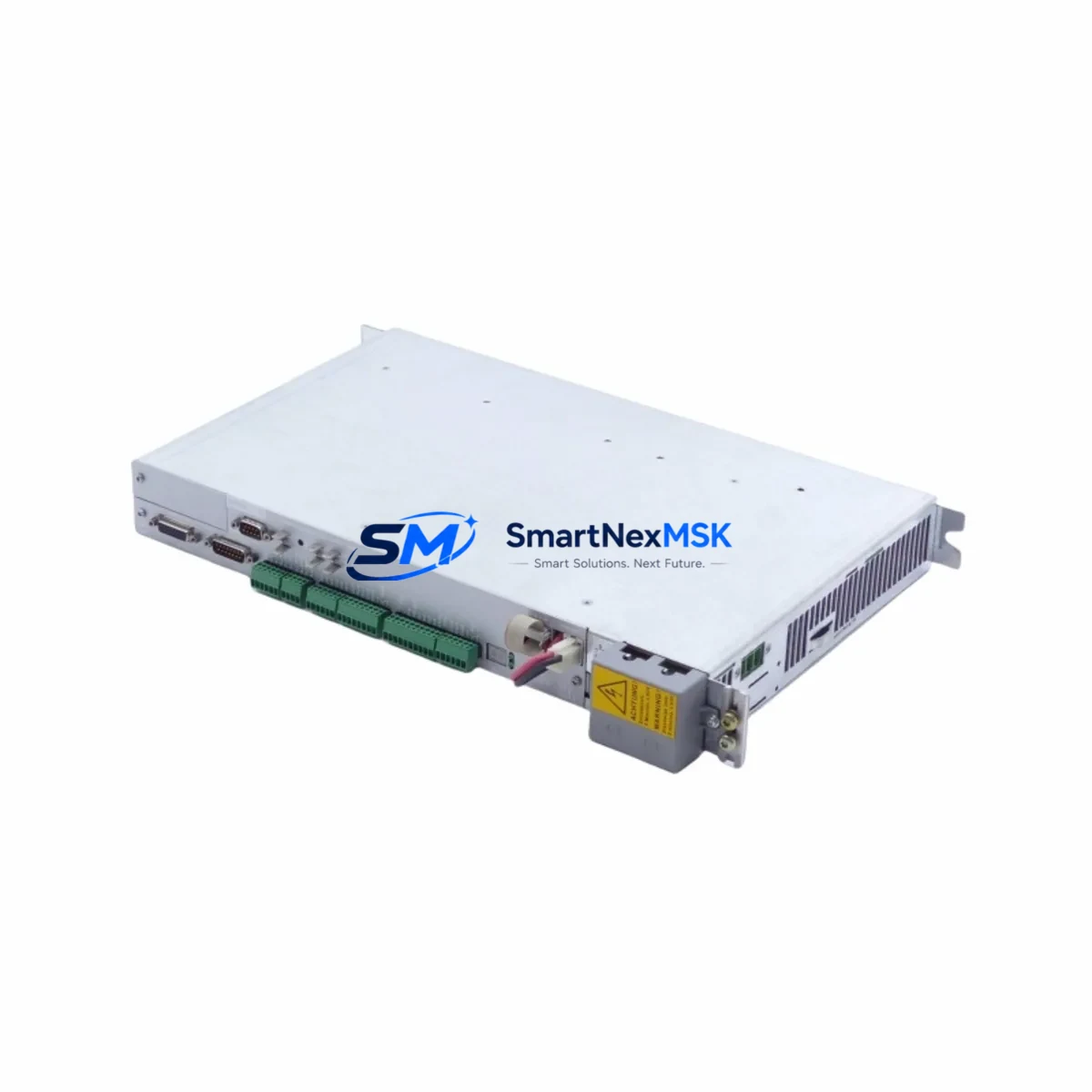

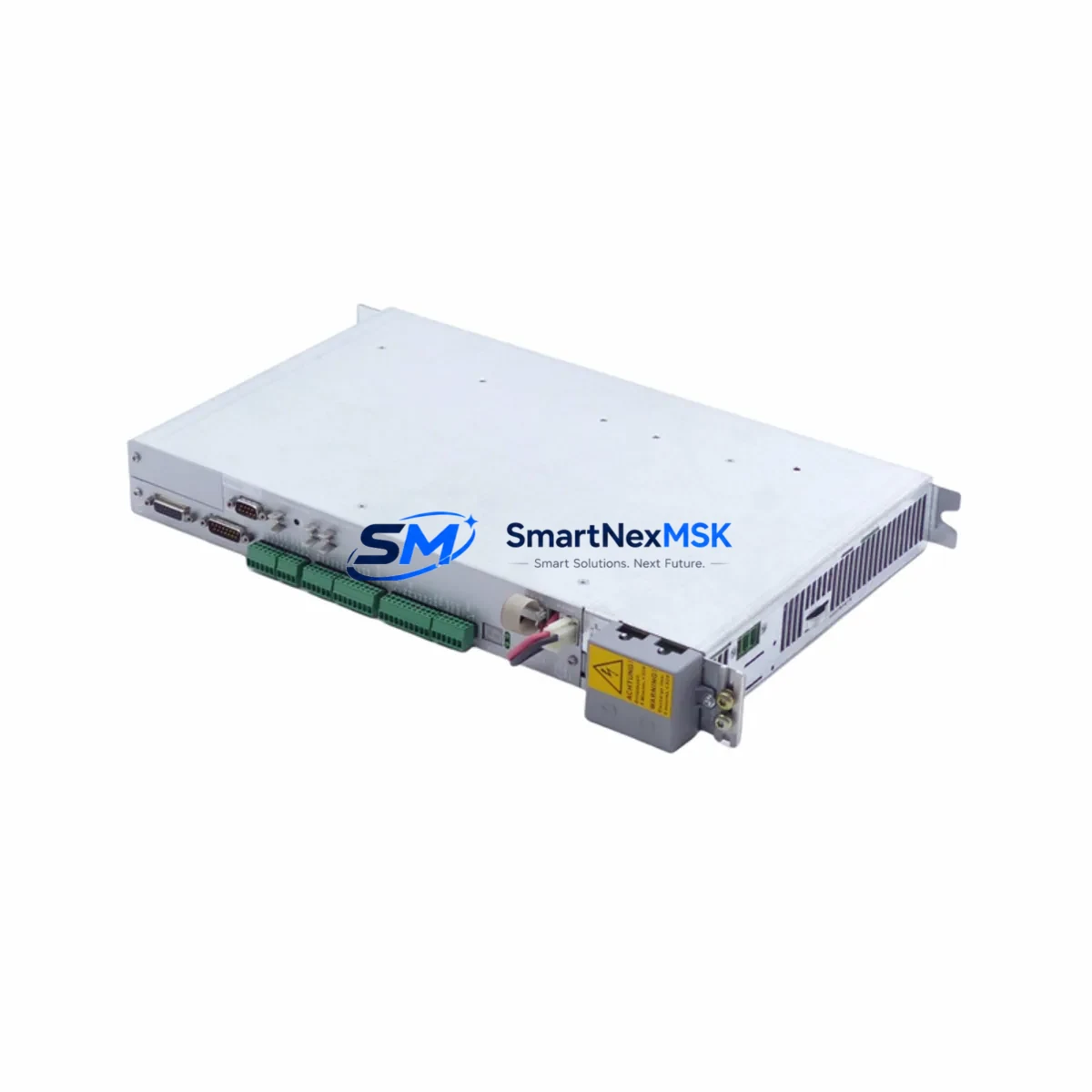

This listing provides an original-specification Bosch 4101-D servo drive module, fully tested prior to dispatch and backed by a 12-month warranty. It is intended for maintenance engineers, reliability teams, and procurement specialists who require a confirmed-compatible, shelf-ready replacement that can be installed without re-engineering the surrounding control architecture.

The Bosch 4101-D is widely deployed in servo motion control systems across machine tool, packaging, press, and material-handling applications. Its role within the drive cabinet is to receive command signals from the CNC or PLC controller, regulate power delivery to the servo motor, and return encoder feedback to the control loop. Any degradation in this signal chain — whether caused by capacitor aging, IGBT stress, or firmware corruption — will manifest as positioning errors, fault codes, or complete axis loss. Holding a tested spare on-site eliminates the mean-time-to-repair (MTTR) contribution from procurement lead time entirely.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a Bosch 4101-D installation extends well beyond the drive module itself. When scheduling a planned replacement or responding to an unplanned fault, maintenance engineers should treat the 4101-D as one node in a broader electrical and signal chain that must be inspected holistically.

Begin with the DC bus power supply module that feeds the drive. Voltage ripple, capacitor degradation, or an undersized supply can stress the 4101-D and cause premature failure of a replacement unit. Verify bus voltage under load before commissioning the new drive. Similarly, the regenerative braking resistor or braking chopper module — if present in the cabinet — should be checked for thermal damage or open-circuit conditions, as a failed braking path will trip the drive on deceleration.

Inspect all motor power cables and encoder feedback cables between the 4101-D and the servo motor. Damaged shielding on the encoder cable is a frequent root cause of position feedback errors that are misdiagnosed as drive faults. Replace any cable showing insulation cracking, connector corrosion, or shield continuity loss. The servo motor itself — including winding insulation resistance and bearing condition — should be verified before the replacement drive is energised, to avoid loading a new module into a degraded mechanical load.

Within the control cabinet, check the 24 VDC auxiliary power supply that powers the drive’s logic board and I/O interface. A marginal auxiliary supply can cause intermittent communication faults between the 4101-D and the upstream PLC or CNC controller. If the system uses a Bosch CNC controller or motion controller to issue position commands, verify that the drive parameters (axis number, encoder resolution, current limits) are correctly stored and can be reloaded after the swap — parameter backup is a mandatory pre-replacement step.

For systems using PROFIBUS-DP, SERCOS, or analogue ±10 V command interfaces, confirm that the communication module or interface card seated in the drive is undamaged and that the fieldbus address or node configuration matches the original. A signal isolator or line driver on the encoder feedback path should also be inspected if one is present, as these components can introduce signal degradation that is only apparent under dynamic load conditions.

Finally, review the terminal blocks, fuse holders, and contactor in the drive’s input circuit. Loose terminals cause intermittent supply interruptions that generate nuisance faults and can damage the replacement drive’s input rectifier. Replace any fuse that shows signs of thermal discolouration, and verify contactor contact resistance if the drive is switched on and off frequently as part of the machine cycle.

Site Replacement Workflow

Step 1 — Parameter Backup. Before powering down the existing 4101-D, retrieve and save all drive parameters to the CNC controller memory or an external programming device. Document the axis configuration, encoder type, current limits, and any application-specific tuning values.

Step 2 — Safe Isolation. Isolate the drive from mains supply and DC bus. Discharge the DC bus capacitors fully (follow Bosch lockout/tagout procedure; residual bus voltage can remain hazardous for several minutes after power-off). Verify zero voltage with a calibrated meter before touching any bus connections.

Step 3 — Mechanical Removal. Disconnect motor power, encoder feedback, auxiliary supply, and fieldbus connectors. Label all cables before removal. Unbolt the drive from the cabinet rail or backplane mounting.

Step 4 — Replacement Installation. Mount the new 4101-D in the same position. Reconnect all cables in reverse order, verifying connector seating and terminal torque. Restore the saved parameter set to the replacement drive.

Step 5 — Commissioning Check. Power up the auxiliary supply first and confirm the drive’s status display shows no fault codes. Apply mains and DC bus power. Command a low-speed jog move on the axis and verify encoder feedback, current draw, and position accuracy before returning the machine to production.

This workflow is designed to minimise total downtime to the shortest achievable interval — typically under two hours for a prepared maintenance team holding a tested spare on-site.

Spare Parts Support FAQ

Q1: What is the warranty coverage for this Bosch 4101-D spare?
Every unit is covered by a 12-month warranty from the date of delivery. The warranty covers functional defects confirmed by return inspection. Units are tested before dispatch to reduce the probability of DOA (dead-on-arrival) events to near zero.

Q2: How do I confirm compatibility before ordering?
Provide your existing drive’s full nameplate data — including the complete part number, firmware version if visible, and the CNC or controller model it interfaces with — via email to sales@smartnexmsk.com. Our technical team will confirm compatibility or identify the correct variant before the order is processed.

Q3: Can this spare replace older or superseded Bosch servo drive variants?
The 4101-D has been used across multiple generations of Bosch servo systems. In many cases it is a direct drop-in for earlier variants within the same series. Where a firmware update or parameter adjustment is required to match an older system, we can advise on the procedure. Contact us with your system details for a compatibility assessment.

Q4: What is your lead time and long-term supply availability?
We maintain stock of high-demand Bosch servo drive spares to support urgent replacement requirements. For current stock status and lead time on the 4101-D, contact sales@smartnexmsk.com or call +86 18259474341. We support long-term supply agreements for customers managing extended system lifecycles or legacy automation platforms.
