Bosch PHG GG 1 Safety-Enhanced Operator Panel: Reliable Control in Harsh Industrial Sites

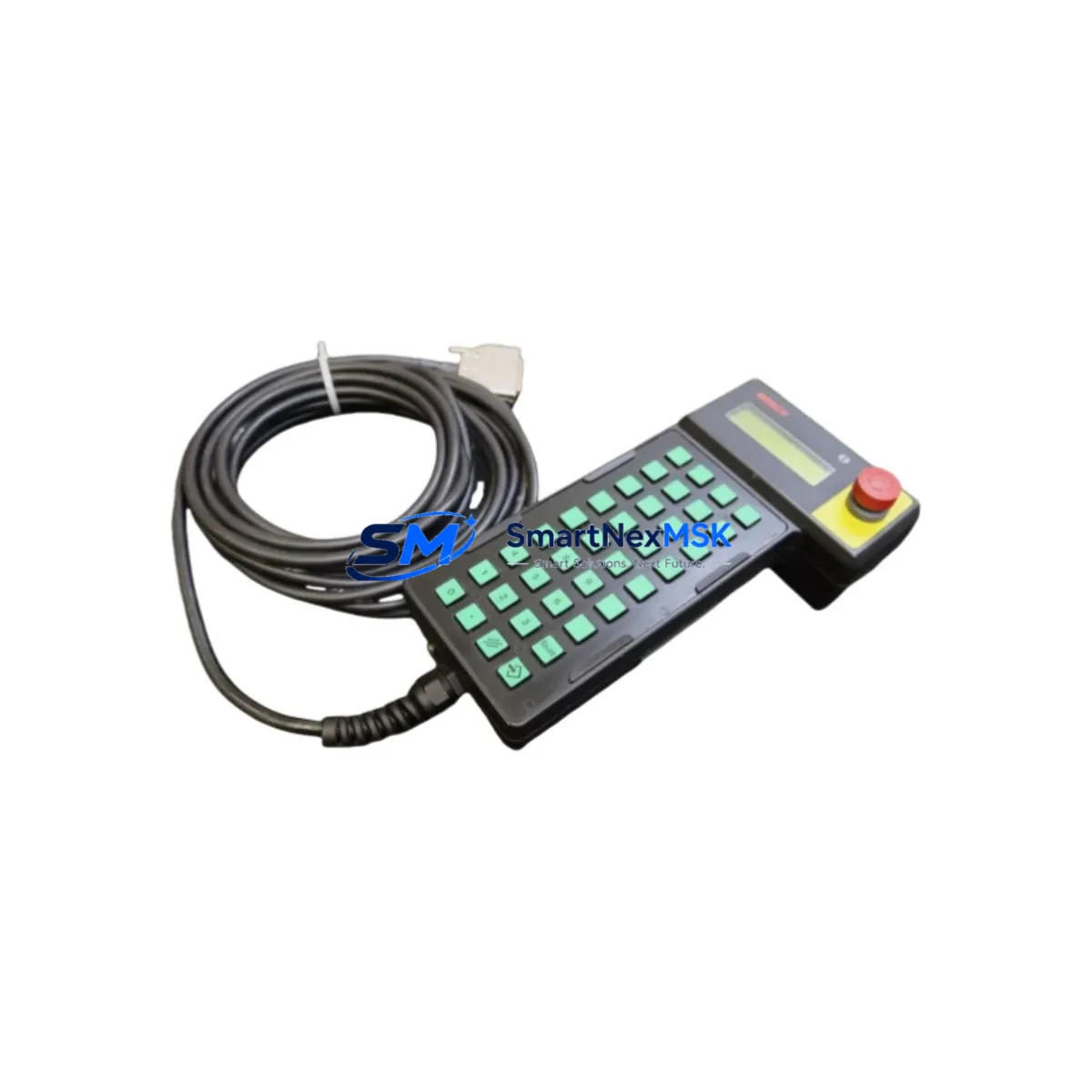

The Bosch PHG GG 1 is a ruggedized operator panel engineered for demanding industrial environments where control continuity, operator safety, and signal integrity are non-negotiable. Designed as a core HMI component within the Bosch PCS 9100 distributed control architecture, the PHG GG 1 delivers stable, interference-resistant human-machine interaction across continuous production lines, hazardous area control cabinets, and critical interlock circuits. Whether deployed in petrochemical processing, power generation, metallurgical smelting, or heavy-duty port logistics, this panel is built to maintain reliable operator visibility and command execution under the most punishing field conditions.

Industrial control environments impose severe demands on HMI hardware. Voltage fluctuations, electromagnetic interference from variable frequency drives and high-current switching gear, mechanical vibration from rotating machinery, and ambient temperature extremes all contribute to premature HMI failure and unplanned downtime. The PHG GG 1 addresses these risks through its ruggedized enclosure construction, wide operating temperature tolerance, and EMI-hardened signal processing — ensuring that operator commands are faithfully transmitted to the PCS 9100 controller without signal drift or spurious actuation.

In safety-critical interlock loops — such as emergency shutdown sequences, burner management systems, or high-pressure relief interlocks — the integrity of the operator interface is paramount. A degraded or failed HMI panel can delay operator response to process alarms, mask fault conditions, or prevent timely manual override. The PHG GG 1’s robust design minimizes these risks, supporting safe and decisive operator intervention when process conditions demand it.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered PCS 9100 control cabinet, the PHG GG 1 operator panel functions as the primary human interface layer, working in concert with a carefully selected suite of protection, power, and communication components to ensure uninterrupted process control. The panel interfaces directly with the Bosch PCS 9100 central processing unit and communicates operator commands through the system’s internal bus architecture, making the integrity of adjacent modules equally critical to overall cabinet safety.

Upstream power quality is managed by dedicated Bosch PCS 9100 power supply modules, which regulate DC bus voltage and protect sensitive electronics from mains-borne surges and brownouts. Alongside these, surge protection devices (SPDs) installed at the cabinet’s power entry point clamp transient overvoltages before they can propagate to the operator panel or controller cards. For installations in areas with frequent lightning activity or heavy motor switching, DIN-rail mounted transient voltage suppressors provide an additional layer of protection at the I/O marshalling level.

Signal integrity between the PHG GG 1 and field instruments is maintained through Bosch PCS 9100 analog and digital I/O modules, which condition and isolate field signals before they reach the controller. In high-noise environments — such as those adjacent to large variable frequency drives or arc furnaces — signal isolators and galvanic separation modules prevent ground loops and common-mode interference from corrupting process data displayed on the operator panel.

Communication reliability is supported by Bosch PCS 9100 communication interface modules, which manage PROFIBUS, Modbus, or proprietary fieldbus connections between the HMI station and remote I/O clusters. Redundant communication paths, where implemented, ensure that a single cable fault or module failure does not isolate the operator panel from the process. Fiber optic communication converters are frequently deployed in electrically noisy environments to provide galvanically isolated, interference-immune data links between control room HMI stations and field-mounted panels like the PHG GG 1.

For installations requiring functional safety compliance, the PHG GG 1 is typically integrated alongside safety relay modules and emergency stop monitoring units that supervise critical interlock circuits. These components ensure that operator-initiated shutdown commands are executed reliably and that the safety integrity of the interlock loop is maintained even under fault conditions. Battery-backed UPS modules within the control cabinet provide ride-through capability during brief power interruptions, allowing the operator panel to remain active and the process to be safely brought to a controlled state.

Critical Industrial Safety Applications

The Bosch PHG GG 1 operator panel is deployed across a wide range of heavy industrial sectors where control reliability and operator safety are paramount.

In petrochemical and refinery operations, the PHG GG 1 serves as the field operator interface for distillation column control, reactor temperature management, and emergency depressurization sequences. Its ruggedized construction withstands the corrosive atmospheres and wide temperature swings characteristic of outdoor process units, while its stable signal transmission ensures that operator commands reach the PCS 9100 controller without delay or distortion during critical process upsets.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the panel supports boiler management, turbine control, and grid synchronization operations. The ability to maintain reliable HMI function during electrical disturbances caused by generator switching and large motor starts is essential for preventing unplanned outages and protecting expensive rotating equipment.

In metallurgical and smelting operations, where arc furnaces, induction heaters, and high-current bus systems generate intense electromagnetic fields, the PHG GG 1’s EMI-hardened design prevents spurious operator inputs and display corruption that could lead to incorrect process interventions. Reliable HMI operation in these environments directly supports both product quality and worker safety.

In water and wastewater treatment plants, the panel provides stable operator control for pump sequencing, chemical dosing, and filtration management across facilities that operate continuously with minimal staffing. Its long service life and low maintenance requirements reduce the operational burden on plant operators and minimize the risk of unplanned downtime in critical public infrastructure.

In mining and mineral processing applications, including conveyor control, crusher management, and flotation circuit supervision, the PHG GG 1 withstands the vibration, dust, and humidity extremes of underground and surface mining environments. Its compatibility with the PCS 9100 platform allows seamless integration into existing control architectures during plant expansions or modernization projects.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Bosch PHG GG 1?
Every PHG GG 1 unit supplied by SMARTNEXMSK carries a 12-month warranty covering manufacturing defects and functional failures under normal industrial operating conditions. Warranty claims are processed promptly, with replacement units dispatched from stock to minimize your plant downtime.

Q2: What pre-shipment testing is performed on each unit?
Each PHG GG 1 undergoes a comprehensive functional inspection and burn-in test prior to dispatch. This includes verification of display operation, keypad/input response, communication interface integrity, and power supply compatibility. Units that do not meet our quality standards are quarantined and not shipped.

Q3: Is the PHG GG 1 compatible with my existing PCS 9100 installation?
The PHG GG 1 is designed as a direct-fit replacement for Bosch PCS 9100 HMI field stations. If you are integrating this panel into a modified or third-party control architecture, our technical team can advise on compatibility requirements and any necessary interface adaptations. Please contact us with your system configuration details.

Q4: Can SMARTNEXMSK guarantee long-term supply of the PHG GG 1?
Yes. SMARTNEXMSK maintains dedicated stock of the PHG GG 1 and other Bosch PCS 9100 series components to support ongoing maintenance, planned shutdowns, and emergency spare requirements. We understand that legacy DCS platforms require sustained spare parts availability, and we are committed to supporting your installation for the long term.
