CELERITY A330344001 CDL1106 Maintenance-Ready Spare for Baratron Automation

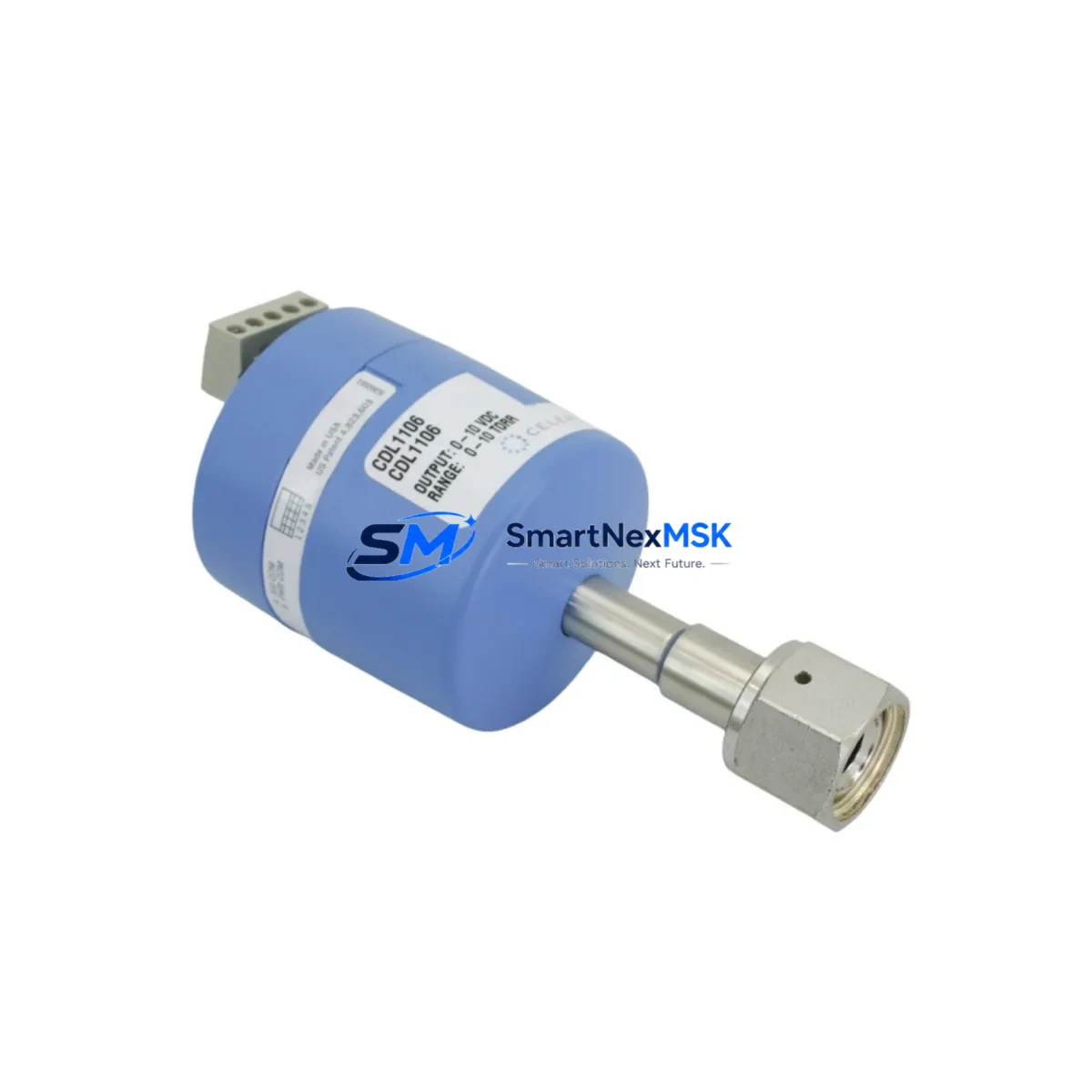

The CELERITY A330344001 CDL1106 (cross-reference: 4S007-667-A, 710-404556-00, 073-404555-00) is a precision capacitance manometer pressure transducer engineered for demanding semiconductor fabrication, chemical vapor deposition (CVD), and process gas control environments. As a direct Baratron-compatible replacement, this unit is stocked and tested to support rapid field substitution, minimizing unplanned downtime in critical production lines.
For maintenance engineers managing aging process control systems, sourcing a verified original spare for the CDL1106 is a recurring challenge. This listing provides a tested, shelf-ready unit backed by a 12-month warranty, with pre-shipment electrical and vacuum integrity verification to ensure drop-in reliability on arrival.
Spare Maintenance Table
| Parameter | Specification / Detail |
|---|---|
| Part Number | A330344001 / CDL1106 |
| Cross Reference | 4S007-667-A | 710-404556-00 | 073-404555-00 |
| Brand | CELERITY (MKS Instruments heritage) |
| Type | Capacitance Manometer Pressure Transducer |
| Series | CDL / Baratron-Compatible |
| Measurement Range | Vacuum / Low-Pressure Process Gas (inferred from CDL series) |
| Output Signal | Analog voltage (0–10 VDC typical for CDL series) |
| Power Supply | ±15 VDC (typical Baratron-compatible supply) |
| Process Connection | VCR / CF flange (series-dependent; confirm before installation) |
| Compatible Systems | Baratron-based vacuum process controllers, CVD, ALD, etch chambers |
| Origin | USA |
| Weight | 2,600 g (packaged) |
| Warranty | 12 Months from shipment date |
| Pre-Shipment Test | Electrical continuity, zero-point calibration check, vacuum integrity |
| Condition | Original spare — new or refurbished-to-spec (confirmed at inquiry) |
Maintenance Planning for Continuous Operation
When a CDL1106 pressure transducer is flagged during routine point inspection or fault isolation, experienced maintenance engineers know that the transducer rarely fails in isolation. A systematic cabinet inspection should accompany any CDL1106 replacement to prevent repeat shutdowns.
Begin by verifying the ±15 VDC power supply module feeding the transducer — voltage ripple or rail sag is a common root cause of erratic pressure readings before the transducer itself fails. Inspect the signal conditioning board or analog input module on the associated PLC or DCS rack; a degraded A/D channel can mimic transducer failure. Check the shielded signal cable between the CDL1106 and the controller — cable insulation breakdown in high-temperature chamber environments is a frequent but overlooked fault.
For systems using an MKS Type 247 or 250 multi-channel readout/controller, confirm that the channel calibration coefficients still match the CDL1106 full-scale range after replacement. If the process line includes a mass flow controller (MFC) — such as a CELERITY IP series or equivalent — verify its upstream pressure setpoint is still within the new transducer’s calibrated range.
In multi-zone process chambers, also inspect the isolation valve solenoid driver card and associated 24 VDC relay module that sequences the transducer into the measurement circuit. A worn relay contact can introduce noise into the analog signal chain. Review the terminal block wiring at the I/O marshalling panel — loose ferrules on the signal and shield conductors are a common source of intermittent faults that are misdiagnosed as transducer drift.
For older systems approaching end-of-life, consider stocking a companion CDL series zero-calibration reference and a spare analog output isolator to protect the controller input from ground loop interference. If the system uses a fieldbus or HART communication module for remote diagnostics, verify the module firmware is compatible with the replacement transducer’s output characteristics before returning the line to production.
Site Replacement Workflow
Step 1 — Isolation: Vent the process line to atmosphere or inert purge gas per site safety procedures. Isolate the CDL1106 from the vacuum system using the upstream isolation valve. De-energize the ±15 VDC supply to the transducer before disconnecting signal wiring.
Step 2 — Documentation: Record the existing zero offset and span reading from the readout controller before removal. Photograph the wiring harness connector orientation and cable routing for reference during reinstallation.
Step 3 — Removal: Disconnect the signal cable connector. Unthread the process fitting (VCR or CF flange) using appropriate torque tools. Cap the process port immediately to prevent contamination.
Step 4 — Installation: Install a new VCR gasket or CF copper gasket as applicable. Mount the A330344001 CDL1106 replacement and torque to specification. Reconnect the signal cable, verifying pin orientation against the original documentation.
Step 5 — Verification: Restore ±15 VDC power. Allow a 30-minute warm-up period for thermal stabilization. Perform a zero-point calibration at base vacuum before returning the chamber to process pressure. Compare the new reading against the pre-removal baseline to confirm correct installation.
Step 6 — Return to Service: Log the replacement in the maintenance management system (CMMS) with the new unit’s serial number, installation date, and calibration record. Update the spare parts inventory to trigger reorder of a replacement CDL1106 for the next maintenance cycle.
Spare Parts Support FAQ
Q1: Is the A330344001 CDL1106 a direct drop-in replacement for Baratron-compatible transducers in my existing system?
A: Yes. The CDL1106 is designed to be electrically and mechanically compatible with standard Baratron-format capacitance manometer installations. Confirm the full-scale pressure range and process connection type (VCR vs. CF) match your existing installation before ordering. Contact us with your system model number for compatibility confirmation.
Q2: What pre-shipment testing is performed on each unit?
A: Every A330344001 CDL1106 unit undergoes electrical continuity verification, zero-point calibration check, and vacuum integrity inspection before shipment. A test report is available upon request. The 12-month warranty covers defects in materials and workmanship from the shipment date.
Q3: How should I manage CDL1106 spare inventory for a multi-chamber fab?
A: For facilities operating three or more process chambers using CDL-series transducers, we recommend maintaining a minimum of one spare unit per five chambers, with a reorder trigger at zero stock. Given lead times for specialty vacuum instrumentation, a standing blanket order or consignment stock arrangement can eliminate emergency procurement delays during unplanned outages.
Q4: Can you supply long-term or legacy support for discontinued CDL series variants?
A: Yes. SMARTNEXMSK specializes in long-term supply of maintenance-critical spare parts for legacy automation and process control systems. We source, test, and warehouse CDL-series and Baratron-compatible transducers to support extended system lifecycles beyond OEM support windows. Contact our team to discuss a dedicated supply agreement.
