Compressor Controls Corp IOC-555-D Maintenance-Ready Spare CCC 5000 Automation

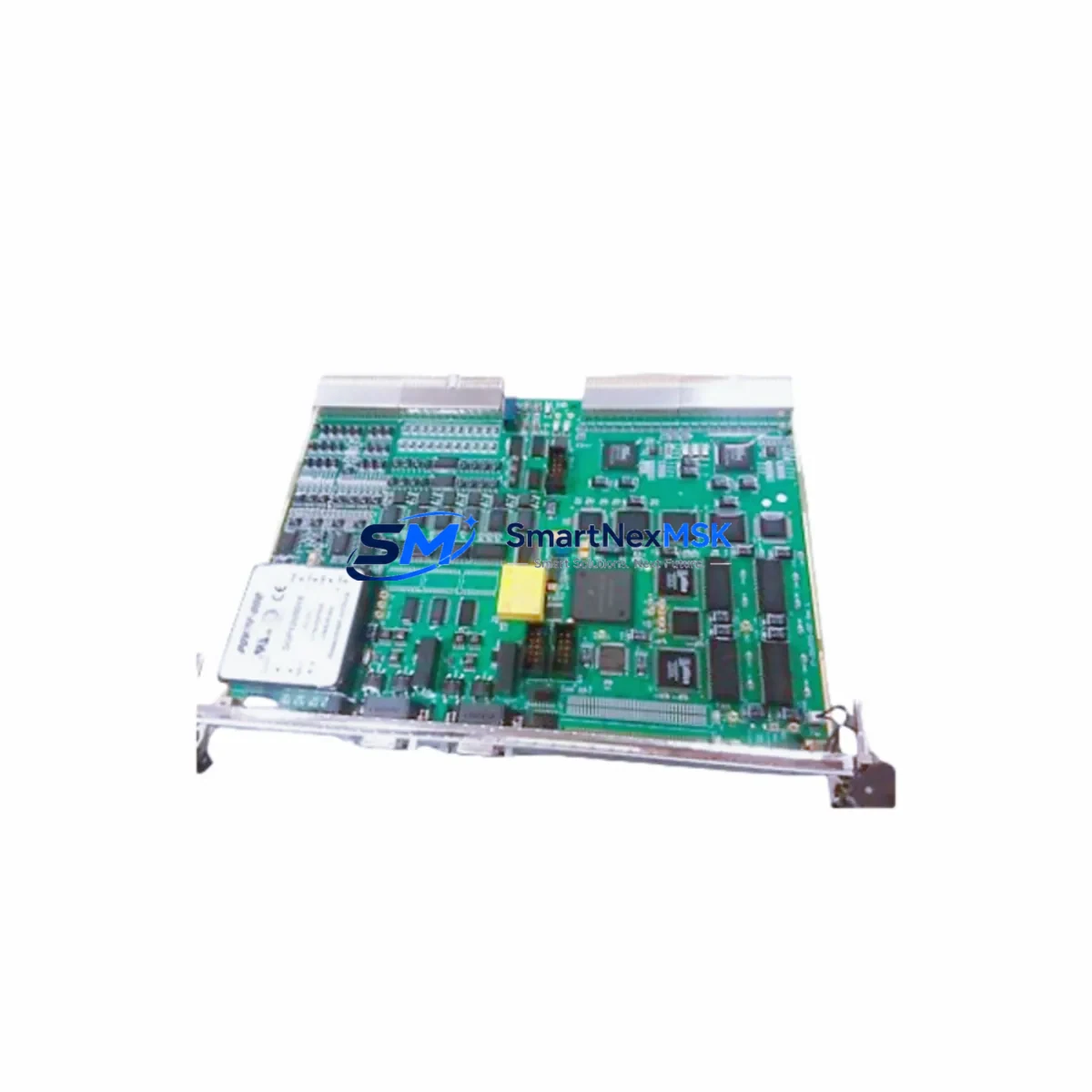

The Compressor Controls Corp IOC-555-D is an original analog/digital I/O board engineered for the CCC 5000 series turbomachinery control platform. As a critical interface component within the CCC 5000 control cabinet, the IOC-555-D manages real-time signal acquisition and output distribution across compressor and turbine control loops. When this board fails or degrades, the entire control system faces unplanned shutdown risk — making rapid spare availability a top operational priority for maintenance and reliability engineers.
At SMARTNEXMSK, we supply the IOC-555-D as a tested, original spare with full functional verification prior to shipment. Every unit is backed by a 12-month warranty and ships with documented test records, ensuring your maintenance team can install with confidence and restore operations without delay.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number / SKU | IOC-555-D |
| Manufacturer | Compressor Controls Corp (CCC) |
| Compatible Platform | CCC 5000 Series Turbomachinery Control System |
| Board Function | Analog & Digital I/O Interface Board |
| Signal Types | Analog Input/Output, Digital Input/Output |
| Application | Compressor, Gas Turbine, Steam Turbine Control |
| Installation Environment | Industrial Control Cabinet, DIN Rail / Card Rack Mount |
| Operating Temperature | 0°C to +60°C (typical industrial range) |
| Origin | USA |
| Condition | Original, Tested Before Shipment |
| Warranty | 12 Months |
| Lead Time | In Stock — Ships within 2–5 Business Days |
| Maintenance Recommendation | Inspect signal connectors, verify I/O channel integrity, check backplane seating annually |
Maintenance Planning for Continuous Operation
For maintenance engineers managing CCC 5000-based control systems, the IOC-555-D rarely fails in isolation. A degraded I/O board is often symptomatic of broader issues within the control cabinet — including aging power supply modules, loose terminal block connections, or deteriorating signal cables. When replacing the IOC-555-D, a thorough inspection of the surrounding system is strongly recommended to prevent repeat failures and minimize future downtime.
Begin by verifying the CCC 5000 power supply module output voltages — an unstable or out-of-tolerance supply is a leading cause of I/O board damage. Next, inspect the backplane or card rack for corrosion, bent connector pins, or intermittent seating issues that can cause erratic I/O behavior. Check all field wiring terminal blocks for loose connections, especially on analog input channels where millivolt-level signals are susceptible to noise from poor terminations.
Signal integrity should also be validated at the signal isolator or signal conditioner level — if the IOC-555-D was receiving noisy or out-of-range signals from field transmitters, the root cause may lie upstream in the signal chain rather than in the board itself. Review the 4–20 mA loop wiring and any associated intrinsic safety barriers or galvanic isolators in the circuit.
On the digital side, inspect the relay output modules and discrete input wiring connected to the IOC-555-D. Relay contacts that have welded shut or digital inputs with floating signals can cause the board to report false states, leading to nuisance trips or missed alarms. If the system includes a CCC 5000 communication module for Modbus or proprietary serial links, verify that the communication bus is functioning correctly after the I/O board replacement, as address conflicts or bus errors can emerge post-swap.
For sites running legacy CCC 5000 systems beyond their original design life, consider stocking the IOC-555-D alongside complementary spares such as the CCC 5000 processor card, analog output modules, and the system’s HMI interface board. A well-structured spare parts kit — covering I/O, power, communication, and HMI layers — is the most effective strategy for reducing mean time to repair (MTTR) in turbomachinery applications where every hour of downtime carries significant production cost.
Site Replacement Workflow
Replacing the IOC-555-D on a live CCC 5000 system requires careful preparation to avoid extended downtime and ensure seamless restoration of control functions. Before beginning, obtain the system’s I/O configuration file and verify the replacement board’s firmware or hardware revision matches the installed system requirements. Mismatched hardware revisions between the IOC-555-D and the CCC 5000 processor card can cause initialization failures or I/O mapping errors.
Follow this recommended workflow for a controlled replacement:
1. Pre-Shutdown Preparation: Document all active I/O channel assignments, alarm setpoints, and signal ranges from the existing board. Photograph wiring connections before disconnection. Verify the replacement IOC-555-D has been tested and matches the required hardware revision.
2. Safe Isolation: Follow site lockout/tagout (LOTO) procedures. De-energize the control cabinet section housing the IOC-555-D. Confirm zero energy state before handling the board.
3. Board Removal and Installation: Carefully extract the IOC-555-D from the card rack, noting the slot position. Insert the replacement board firmly into the backplane connector. Reconnect all field wiring terminal blocks in the documented sequence.
4. System Restart and Verification: Power up the control cabinet and allow the CCC 5000 processor to initialize. Verify all I/O channels report expected values. Perform a loop check on critical analog inputs (speed, pressure, temperature) and confirm digital output relay states match commanded positions.
5. Return to Service: Clear any latched alarms generated during the replacement. Document the completed maintenance activity, including the replaced part number, date, and technician sign-off. Update the site’s spare parts inventory to trigger reorder of a replacement IOC-555-D for future readiness.
This structured approach minimizes restart risk and ensures the CCC 5000 system returns to full operational status with verified I/O integrity — reducing the likelihood of a secondary trip event caused by an overlooked wiring or configuration issue.
Spare Parts Support FAQ
Q1: Is the IOC-555-D you supply an original Compressor Controls Corp part?
Yes. All IOC-555-D units supplied by SMARTNEXMSK are original Compressor Controls Corp components. We do not supply aftermarket or reverse-engineered substitutes. Each unit undergoes functional testing prior to shipment, and a test report is available upon request.
Q2: How do I verify compatibility between the IOC-555-D and my CCC 5000 system revision?
Compatibility is determined by the hardware revision of both the IOC-555-D and the CCC 5000 processor card. Please provide your existing board’s revision marking (typically printed on the PCB label) when placing your order. Our technical team will confirm compatibility before shipment to prevent installation issues.
Q3: What is your recommended spare parts stocking strategy for CCC 5000 systems?
For critical turbomachinery applications, we recommend maintaining at least one IOC-555-D on-site as a cold spare, alongside the system’s power supply module and processor card. For facilities operating multiple CCC 5000 units, a shared spare pool covering I/O boards, communication modules, and HMI components provides the best balance of cost and availability. SMARTNEXMSK can assist with spare parts list development based on your installed base.
Q4: What warranty and post-shipment support do you provide?
Every IOC-555-D ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we provide a replacement or full refund. Our technical support team is available to assist with installation questions, compatibility verification, and troubleshooting throughout the warranty period.
