Emerson KJ3221X1-BA1 12P2531X102 DeltaV DeviceNet Spare

Emerson KJ3221X1-BA1 12P2531X102 DeltaV DeviceNet Spare: Spare Parts Replacement & Downtime Risk Control

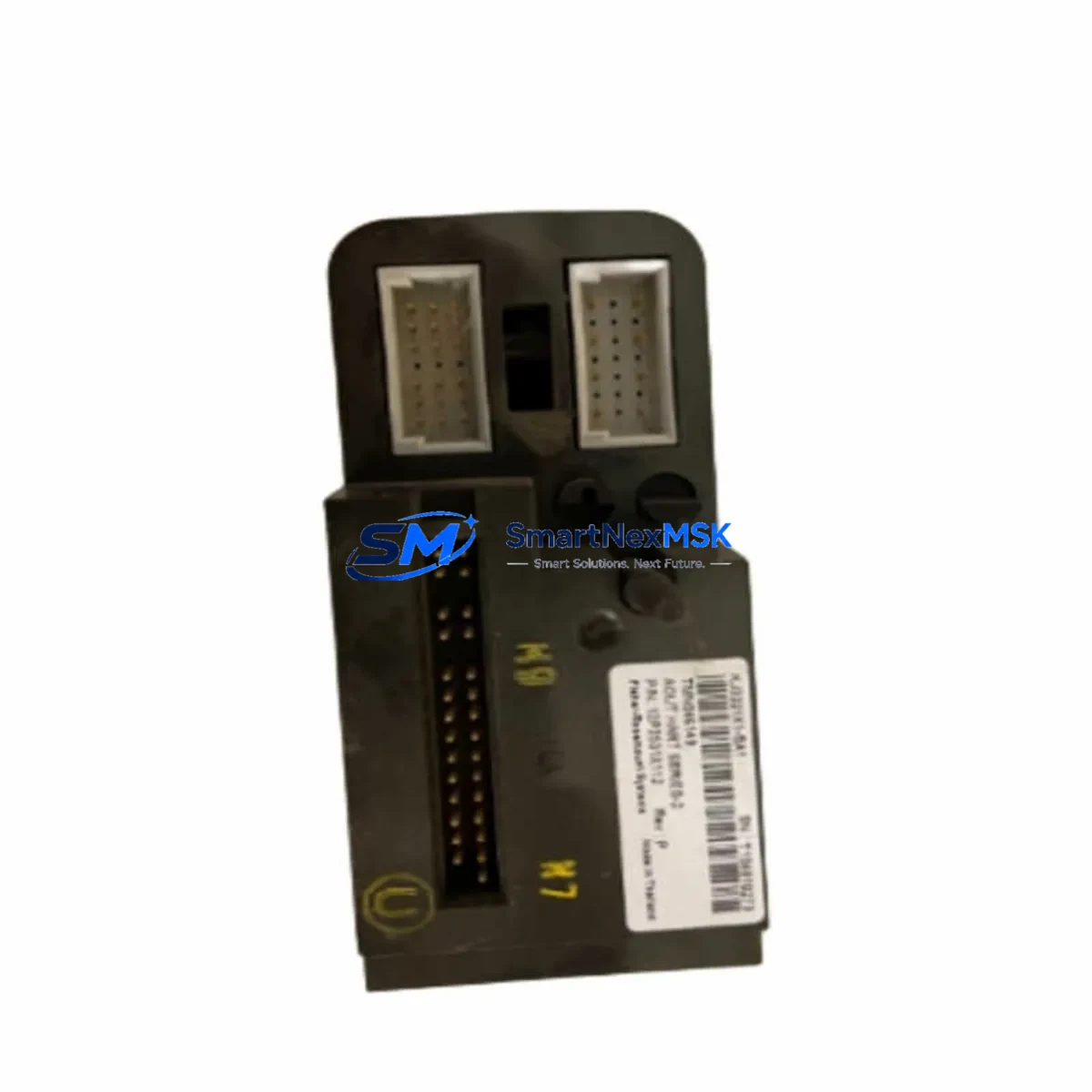

The Emerson KJ3221X1-BA1 (also referenced as 12P2531X102) is an original DeviceNet Communication Card designed for the DeltaV S-Series distributed control system. In industrial facilities where continuous process control is non-negotiable, this card serves as a critical network interface between the DeltaV controller and DeviceNet field devices — including valve positioners, motor starters, smart sensors, and distributed I/O nodes. Unplanned failure of this card can isolate entire DeviceNet segments, triggering process shutdowns, safety interlocks, and costly production losses.

Sourced as an original Emerson spare, the KJ3221X1-BA1 12P2531X102 is stocked, tested, and shipped with a 12-month warranty. Each unit undergoes pre-shipment functional verification to confirm communication integrity, firmware compatibility, and physical condition before dispatch. Whether you are managing a planned turnaround, responding to an emergency fault, or building a strategic spare parts inventory, this card is available for fast worldwide delivery.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a DeviceNet communication fault is traced to the KJ3221X1-BA1 card, experienced maintenance engineers know that the card itself is rarely the only component requiring attention. A thorough site inspection and replacement workflow should extend to the surrounding system to prevent repeat failures and ensure the DeltaV network returns to full operational status.

Begin by inspecting the DeltaV S-Series carrier and backplane for corrosion, bent connector pins, or heat damage — a degraded carrier can cause intermittent communication faults that mimic card failure. Check the DeltaV power supply module (such as the KJ1501X1-BF2 or equivalent) for stable output voltage; under-voltage conditions accelerate card wear and can corrupt DeviceNet node tables. Verify the DeviceNet trunk cable and drop cables for correct termination resistors (121 Ω at each end) and inspect for insulation damage, especially in high-vibration or high-temperature zones.

At the field device level, confirm that all DeviceNet nodes — including Rosemount 3051 pressure transmitters, Fisher DVC6200 digital valve controllers, and distributed I/O blocks — are correctly addressed and communicating after the card swap. Use the DeltaV Diagnostics tool to scan for node address conflicts or duplicate MAC IDs that may have been masked by the previous card fault.

For the broader control cabinet inspection, maintenance teams should simultaneously review the DeltaV I/O subsystem: check AI, AO, DI, and DO cards seated in adjacent carrier slots for loose connections or alarm conditions. Inspect terminal blocks and field wiring for tightness and correct labeling — loose terminations are a leading cause of intermittent I/O faults in aging DeltaV cabinets. If the system includes HART multiplexers or signal isolators on analog loops served by the same controller, verify their power and signal integrity as part of the same maintenance window.

Where the DeltaV system interfaces with a DeltaV SIS Safety Instrumented System or third-party safety PLC via hardwired I/O, confirm that all safety loop signals remain healthy during and after the card replacement. Document the replacement in the site CMMS with the new card serial number, firmware version, and post-replacement diagnostic results to support future audits and lifecycle planning.

For facilities running legacy DeltaV S-Series hardware, maintaining a minimum of one KJ3221X1-BA1 12P2531X102 card in the on-site spare parts inventory — alongside a spare DeltaV controller module and a set of carrier fuses and power distribution components — is a recognized best practice for reducing mean time to repair (MTTR) on DeviceNet segment faults.

Site Replacement Workflow

Step 1 — Fault Isolation: Use DeltaV Diagnostics or the DeltaV Explorer to confirm the KJ3221X1-BA1 card as the fault source. Check for DeviceNet segment offline alarms, card hardware fault LEDs, and loss of node communication in the DeltaV operator station.

Step 2 — Safe Removal: Follow site lock-out/tag-out (LOTO) procedures. The DeltaV S-Series supports hot-swap of I/O and communication cards under certain configurations — verify with your site DeltaV system documentation before attempting live removal. If hot-swap is not enabled, coordinate a controlled process hold with the operations team.

Step 3 — Card Installation: Insert the replacement KJ3221X1-BA1 12P2531X102 into the correct carrier slot. The DeltaV system will automatically download the card configuration from the controller database. Confirm the card status LED transitions from fault to normal within the expected initialization period (typically 60–90 seconds).

Step 4 — Network Verification: Use DeltaV Diagnostics to confirm all DeviceNet nodes have re-established communication. Check node status, input/output values, and alarm states at the operator station. Perform a loop check on critical field devices connected to the DeviceNet segment.

Step 5 — Documentation: Record the replacement in the site maintenance log. Note the removed card’s serial number, fault symptoms, replacement card serial number, and post-replacement test results. Update the spare parts inventory and initiate a replenishment order to restore the on-site buffer stock.

This workflow is applicable whether replacing an end-of-life KJ3221X1-BA1 in a planned shutdown or responding to an unplanned DeviceNet segment failure. The structured approach minimizes total downtime and ensures the DeltaV system is returned to a verified, documented operational state.

Spare Parts Support FAQ

Q1: Is the KJ3221X1-BA1 12P2531X102 compatible with all DeltaV S-Series controllers?
The KJ3221X1-BA1 is designed for DeltaV S-Series carriers and is compatible with MD, MD Plus, and MQ controller configurations. Compatibility with specific firmware versions should be confirmed against your site’s DeltaV system version. Contact our technical team with your DeltaV system version and controller model for pre-purchase compatibility verification.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, communication function failure, and hardware faults under normal operating conditions. Each card is tested prior to shipment. Warranty claims are supported with direct technical assistance and replacement dispatch. The warranty period begins from the date of confirmed delivery.

Q3: How quickly can the KJ3221X1-BA1 be shipped for emergency downtime recovery?
In-stock units are available for same-day or next-business-day dispatch via DHL, FedEx, or UPS express services. For critical process downtime situations, contact our sales team directly to confirm stock availability and arrange priority shipment. Most international destinations are reachable within 2–5 business days via express courier.

Q4: Should I stock multiple KJ3221X1-BA1 cards as site spares?
For facilities with multiple DeltaV DeviceNet segments or high-criticality processes, maintaining a minimum of one to two KJ3221X1-BA1 cards on-site is recommended. DeviceNet communication cards are subject to wear from thermal cycling, vibration, and connector fatigue over multi-year service periods. A proactive spare parts strategy — reviewed annually as part of your DeltaV lifecycle plan — significantly reduces the risk of extended unplanned downtime.
