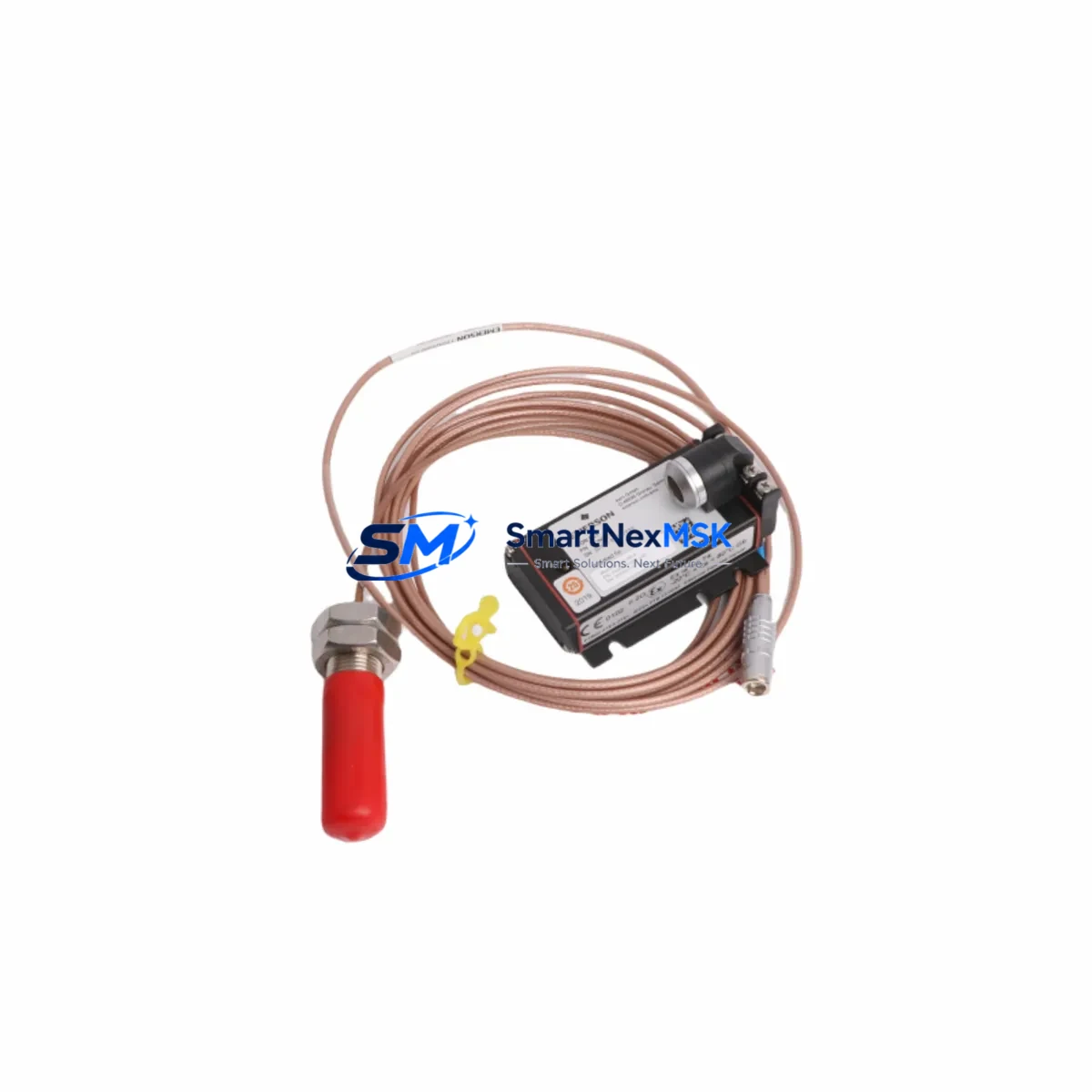

Emerson PR6424/000-100 CON021 Safety Proximity Sensor

Emerson PR6424/000-100 CON021 Safety Proximity Sensor: Reliable Control in Harsh Industrial Sites

The Emerson PR6424/000-100 CON021 is a high-performance eddy current proximity sensor engineered for continuous, safety-critical vibration and position monitoring in the most demanding industrial environments. Designed to integrate seamlessly with the Bently Nevada 3300 XL monitoring system, this sensor delivers stable, drift-free output signals even under extreme electromagnetic interference, mechanical shock, high-temperature exposure, and corrosive atmospheres. For plant engineers and reliability teams operating in petrochemical, power generation, mining, metallurgy, water treatment, or heavy manufacturing facilities, the PR6424/000-100 CON021 represents a proven, field-validated solution for protecting rotating machinery and critical control loops.

In high-load continuous production environments, signal integrity is non-negotiable. The PR6424/000-100 CON021 uses a non-contact eddy current measurement principle that eliminates mechanical wear and ensures consistent gap measurement across the full operating temperature range. Its shielded coaxial cable construction and robust stainless steel housing resist oil mist, coolant splash, and vibration-induced connector fatigue — common failure modes that compromise lesser sensors in heavy industrial control cabinets. When paired with the Bently Nevada 3300 XL proximitor/seismic module, the system provides real-time shaft displacement data that feeds directly into safety interlock and trip logic, preventing catastrophic machinery failure before it occurs.

Control loop protection begins at the sensor level. The PR6424/000-100 CON021 maintains a linear output across its full measurement range, ensuring that the Bently Nevada 3500/42M proximity monitor receives clean, accurate data for alarm and trip setpoint evaluation. In critical interlock circuits — such as turbine overspeed protection, compressor surge control, or pump dry-run prevention — any signal drift or sensor dropout can trigger spurious trips or, worse, allow a dangerous condition to go undetected. This sensor’s tight sensitivity tolerance and low temperature coefficient minimize both risks, supporting the integrity of safety instrumented functions (SIF) in SIL-rated loops.

Surge and transient protection is equally important in industrial control cabinets where variable frequency drives, large motor starters, and high-current switching equipment generate significant electrical noise. The PR6424/000-100 CON021’s internal shielding and the matched CON021 extension cable assembly maintain signal fidelity over long cable runs, preventing the common-mode interference that can corrupt proximity readings and cause nuisance alarms. When installed alongside Bently Nevada 3300 XL power supply modules and properly grounded per Emerson’s field wiring guidelines, the complete measurement chain achieves the noise immunity required for reliable operation in electrically harsh environments.

For facilities running 24/7 continuous operations — refineries, LNG terminals, steel mills, cement plants, and offshore platforms — unplanned downtime is measured in tens of thousands of dollars per hour. The PR6424/000-100 CON021 is built for long mean-time-between-failure (MTBF) performance. Its solid-state construction has no moving parts, and the hermetically sealed tip assembly resists process fluid ingress. When a replacement is required during scheduled maintenance, the sensor’s standardized 8 mm probe diameter and thread specification allow direct swap-out without recalibration of the proximitor, minimizing maintenance window duration. Stocking a verified spare — such as this unit — alongside compatible components like the Bently Nevada 330130-080-00-00 proximity probe or the 3300 XL 8mm extension cable is a recognized best practice for critical machinery protection programs.

Every PR6424/000-100 CON021 unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification, including output voltage linearity check, insulation resistance test, and connector integrity inspection. Units are shipped in anti-static protective packaging with full traceability documentation. Our inventory is sourced from authorized distribution channels and maintained in climate-controlled storage to preserve sensor calibration and cable integrity. With a 12-month warranty covering manufacturing defects and performance deviations, and a dedicated technical support team available for compatibility and installation guidance, SMARTNEXMSK is a reliable long-term supply partner for Emerson Bently Nevada spare parts programs.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust machinery protection architecture built around the PR6424/000-100 CON021 extends well beyond the sensor itself. In a typical critical rotating equipment control cabinet, the sensor feeds its signal to a Bently Nevada 3300 XL proximitor/seismic module, which conditions the raw eddy current output into calibrated displacement and velocity values. These values are then processed by the Bently Nevada 3500 rack-based monitoring system, where alarm and trip setpoints are configured for each machine train. The 3500 system’s relay output modules drive safety relays and solenoid valves in the emergency shutdown (ESD) circuit, providing the final protective action when a dangerous vibration level is detected.

Power supply stability is critical to sensor accuracy. The PR6424/000-100 CON021 requires a clean, regulated -24 VDC supply, typically provided by the Bently Nevada 3300 XL power supply module or an equivalent isolated DC/DC converter with low ripple output. In installations where the control cabinet also houses variable frequency drives or large contactors, additional filtering — such as a Phoenix Contact QUINT power supply with active buffer — may be warranted to prevent supply voltage transients from introducing measurement error. Proper cable segregation, with the CON021 extension cable routed away from high-voltage power conductors and secured with ferrite clamp assemblies, further reduces susceptibility to induced interference.

For communication and data integration, the 3500 monitoring system supports Modbus RTU and TCP/IP connectivity, allowing vibration data from the PR6424/000-100 CON021 measurement chain to be transmitted to a plant DCS — such as a Emerson DeltaV controller or a Honeywell Experion PKS — for integration into the overall process safety management (PSM) framework. Redundant communication paths and watchdog timers ensure that a communication fault does not mask a genuine machinery alarm. In SIL-rated applications, the monitoring system’s diagnostic coverage and proof-test interval requirements should be verified against the safety requirements specification (SRS) for the specific interlock function.

Complementary protective components commonly deployed alongside the PR6424/000-100 CON021 include Bently Nevada 330130 series proximity probes for radial and axial position measurement, 3300 XL velocity transducers for casing vibration monitoring, Emerson CSI 2140 machinery health analyzers for portable cross-verification during maintenance rounds, and MTL surge protection barriers at the cabinet entry point to absorb lightning-induced transients on field cable runs. Together, these components form a layered protection strategy that addresses signal integrity, power quality, communication reliability, and physical protection — the four pillars of a dependable industrial safety architecture.

Critical Industrial Safety Applications

The PR6424/000-100 CON021 is deployed across a wide spectrum of heavy industrial applications where rotating machinery failure carries severe safety and financial consequences. In petrochemical and refinery facilities, it monitors shaft displacement on centrifugal compressors, process pumps, and steam turbines that operate continuously for 3–5 year run cycles between turnarounds. Any undetected increase in rotor vibration — caused by imbalance, misalignment, bearing wear, or process surge — can escalate rapidly to a destructive failure, releasing flammable or toxic process fluids. The sensor’s fast response time and stable output ensure that the protection system can initiate a controlled shutdown before damage propagates.

In power generation plants — both thermal and combined-cycle — the PR6424/000-100 CON021 is used on gas turbine and steam turbine shaft monitoring systems, where API 670 compliance mandates non-contact proximity measurement for radial and axial position. The sensor’s compatibility with the Bently Nevada 3500 system, which is widely specified in turbine OEM protection packages, simplifies spare parts standardization and reduces the risk of compatibility issues during emergency replacements.

Mining and mineral processing operations present some of the harshest environments for instrumentation — high dust loading, aggressive vibration from crushers and mills, wide ambient temperature swings, and frequent water washdown. The PR6424/000-100 CON021’s sealed stainless steel construction and robust cable assembly withstand these conditions reliably, protecting large ball mills, SAG mills, and conveyor drive motors from undetected bearing failures that could halt production for days.

In water and wastewater treatment facilities, the sensor monitors large vertical turbine pumps and blower trains in aeration systems, where continuous operation is essential for regulatory compliance. Metallurgical plants — including electric arc furnace operations and rolling mills — rely on the sensor’s EMI immunity to maintain accurate readings in environments saturated with high-frequency electrical noise from furnace power supplies and thyristor drives. Port and bulk material handling facilities use it on ship unloaders, stackers, and reclaimers, where the combination of outdoor exposure, heavy structural vibration, and remote location makes sensor reliability paramount.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects, material failures, and performance deviations from the published specification under normal operating conditions. If a unit fails within the warranty period, SMARTNEXMSK will provide a replacement unit after receiving the defective item and completing a failure analysis. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the observed failure mode. Replacement units are dispatched from stock to minimize downtime.

Q2: What pre-shipment testing is performed on each PR6424/000-100 CON021 unit?
Each unit undergoes a functional verification protocol before shipment, including output voltage linearity measurement across the full gap range, insulation resistance testing between the coaxial shield and center conductor, connector pin continuity and retention force check, and visual inspection of the probe tip, cable jacket, and connector body. Units that do not meet specification are quarantined and not shipped. Test records are retained and available upon request for quality-critical applications.

Q3: Is the PR6424/000-100 CON021 directly compatible with existing Bently Nevada 3300 XL and 3500 systems without recalibration?
Yes. The PR6424/000-100 CON021 is a direct replacement for the standard Emerson Bently Nevada 8 mm proximity probe in the 3300 XL system. When used with the matched CON021 extension cable and a 3300 XL or 3500/42M proximitor module, the system sensitivity of 200 mV/mil is maintained without field recalibration, provided the installation gap is set to the specified operating point (typically 50 mil / 1.27 mm for most applications). Always verify the proximitor module’s gap voltage at installation to confirm correct system setup.

Q4: Can SMARTNEXMSK support long-term supply continuity for this part?
Yes. SMARTNEXMSK maintains standing inventory of the PR6424/000-100 CON021 and related Bently Nevada 3300 XL components to support planned maintenance programs, emergency replacements, and multi-unit project requirements. We provide lead-time commitments at the time of inquiry and can arrange consignment stock agreements for high-volume customers. Our sourcing network ensures supply continuity even for parts that have been superseded or are subject to manufacturer allocation constraints. Contact [email protected] or +86 18259474341 to discuss your specific supply requirements.
