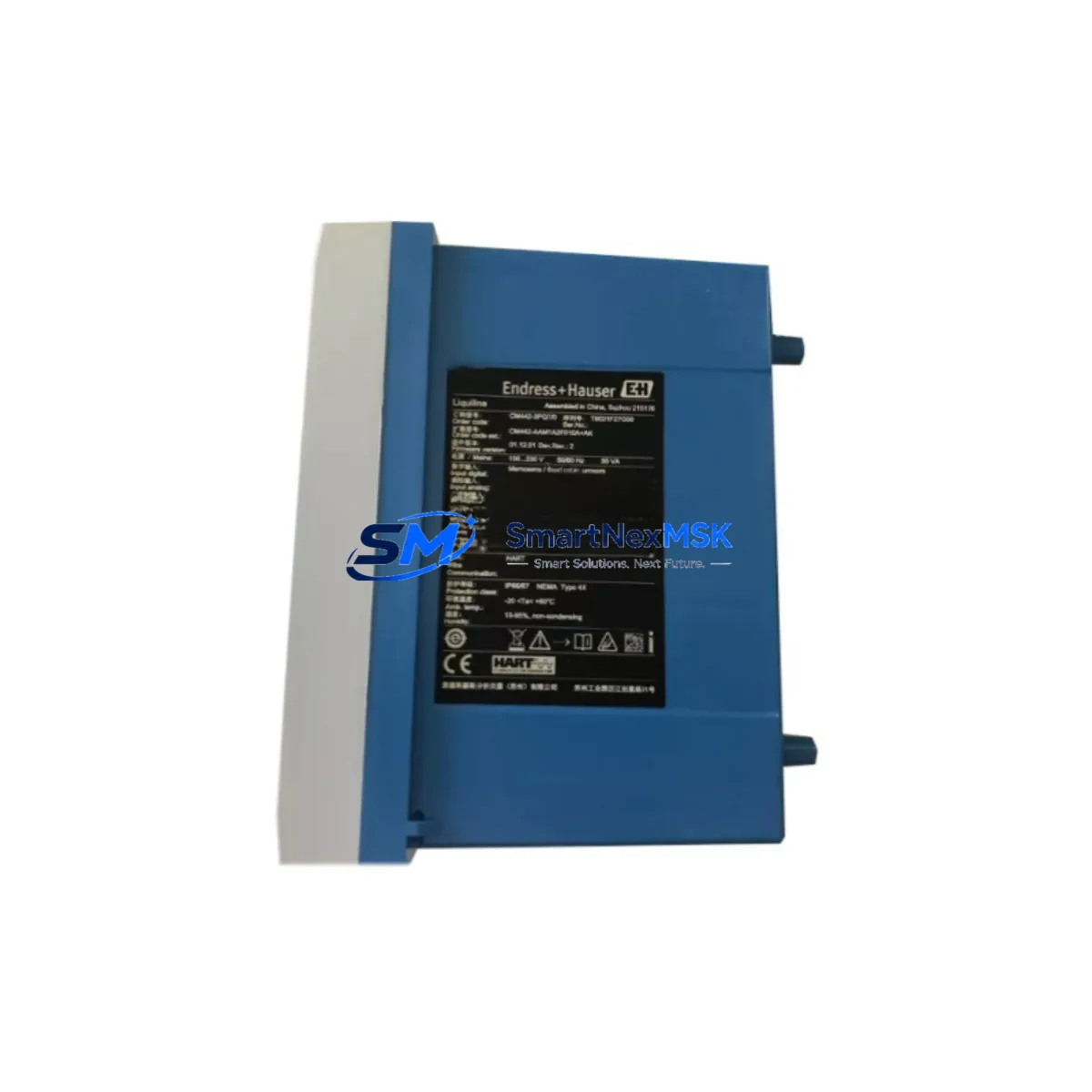

Endress+Hauser CM442-3PQ7/0 Maintenance-Ready Spare for Liquiline Automation

Endress+Hauser CM442-3PQ7/0 Maintenance-Ready Spare for Liquiline Automation

The Endress+Hauser CM442-3PQ7/0 is a dual-channel multiparameter transmitter from the Liquiline platform — one of the most widely deployed analytical signal converter families in water treatment, chemical processing, pharmaceutical manufacturing, and industrial utility systems. When this unit fails or reaches end-of-service life, every minute of unplanned downtime carries real operational cost. Sourcing a verified original replacement with confirmed compatibility is the fastest path back to stable process control.

This listing provides a maintenance-ready, original-specification CM442-3PQ7/0 unit, pre-tested before dispatch, backed by a 12-month warranty, and available for rapid worldwide shipment. Whether you are executing a planned turnaround, responding to an unplanned fault, or building a strategic spare parts buffer for a Liquiline-equipped control loop, this unit is stocked and ready.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CM442-3PQ7/0 in a live process environment is rarely an isolated task. Maintenance engineers and procurement teams working on Liquiline-equipped analytical loops should treat this replacement as an opportunity to audit the surrounding instrumentation and wiring infrastructure.

Begin with the Memosens sensor cable (CYK10 or CYK71 series) connecting the analytical sensor to the CM442 transmitter. These cables are subject to mechanical fatigue, connector corrosion, and insulation degradation — particularly in wet or chemically aggressive environments. A degraded cable will cause erratic readings even with a new transmitter installed.

Next, inspect the CM442 I/O extension modules (such as the 2DS or 2AO plug-in cards) seated inside the transmitter housing. Loose or oxidized module contacts are a common source of intermittent signal loss and should be reseated or replaced during any transmitter swap.

Check the 24 V DC power supply module feeding the CM442 — units such as the Endress+Hauser RN221N or equivalent DIN-rail PSU. Voltage sag or ripple on the supply rail can cause false alarms and communication faults on the HART loop. Measure supply voltage under load before commissioning the replacement unit.

Verify the relay output wiring on terminals connected to downstream alarm systems or dosing pumps. The CM442 supports up to four relay outputs; confirm that relay assignments, setpoints, and hysteresis values are correctly re-entered after transmitter replacement, as these are stored locally and not automatically recovered from the sensor.

For installations using PROFIBUS PA or FOUNDATION Fieldbus communication, inspect the fieldbus segment coupler (e.g., Pepperl+Fuchs SK2 or equivalent) and confirm bus termination resistors are correctly placed. A new transmitter with a mismatched bus address or incorrect GSD file will fail to communicate even if the hardware is fully functional.

If the CM442 is part of a multi-instrument analytical panel, also inspect the CM444 or CM448 multi-channel variants sharing the same control cabinet. Shared power rails and common grounding points mean that a fault in one transmitter can introduce noise into adjacent channels.

Consider stocking a CPS11D or CPS71D Memosens pH/ORP sensor alongside the CM442 spare. Transmitter and sensor failures often occur in proximity due to shared environmental stress, and having both units available eliminates a second sourcing delay during an emergency shutdown.

Finally, review the RIA15 or RIA16 loop-powered field indicator if one is installed downstream of the CM442’s 4–20 mA output. These indicators are inexpensive but frequently overlooked during transmitter replacements, and a failed indicator can be misdiagnosed as a transmitter output fault.

Site Replacement Workflow

Step 1 — Pre-replacement documentation: Record all current CM442 configuration parameters using the FieldCare or DeviceCare software tool, or photograph the menu settings manually. Note sensor type assignments, output ranges, relay setpoints, HART tag, and communication address.

Step 2 — Safe isolation: Isolate the process loop per site LOTO procedures. De-energize the CM442 at the supply terminal. Do not disconnect Memosens sensor cables under power — the digital protocol is robust, but physical connector damage is common when cables are pulled live.

Step 3 — Physical swap: Remove the existing CM442-3PQ7/0 from its mounting. Transfer I/O extension modules to the replacement unit if they are in serviceable condition. Reconnect all wiring per the original terminal diagram. Verify PE (protective earth) continuity.

Step 4 — Power-on and configuration restore: Energize the replacement unit. Restore all configuration parameters from the pre-replacement record. Confirm sensor recognition on both channels. Verify 4–20 mA output values against a calibrated reference.

Step 5 — Loop test and handover: Perform a full loop test from sensor to DCS/PLC input card. Confirm alarm relay operation. Document the replacement in the site maintenance log with the new unit serial number and warranty start date.

This workflow minimizes re-work, reduces the risk of configuration errors, and ensures the replacement CM442-3PQ7/0 is fully operational before the process loop is returned to service.

Spare Parts Support FAQ

Q: Is this CM442-3PQ7/0 an original Endress+Hauser unit or a compatible replacement?
A: This is an original Endress+Hauser CM442-3PQ7/0 unit manufactured to OEM specification. It is not a third-party compatible or remanufactured substitute. All units are sourced from authorized supply channels and verified against the original part number before dispatch.

Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failure under normal operating and storage conditions. It does not cover damage resulting from incorrect installation, overvoltage, physical impact, or use outside the specified environmental ratings. Warranty claims are processed via direct contact with our technical support team.

Q: Can I use this unit as a direct drop-in replacement for an existing CM442 installation without reconfiguration?
A: The CM442-3PQ7/0 is hardware-compatible with existing Liquiline CM442 mounting and wiring. However, all configuration parameters (sensor assignments, output ranges, relay setpoints, communication address) are stored locally in the transmitter and must be re-entered on the replacement unit. We recommend using FieldCare or DeviceCare to back up the configuration from the outgoing unit before removal.

Q: How quickly can this unit be shipped, and do you support emergency procurement?
A: In-stock units are dispatched within 1–2 business days. For emergency procurement with expedited freight, contact our sales team directly. We support urgent maintenance scenarios with priority processing and can provide pre-shipment test reports on request.
