EPRO PR6423/002-130 CON021 Retrofit-Ready Proximity Transducer

EPRO PR6423/002-130 CON021 Retrofit-Ready Proximity Transducer: Compatible Modernization & Smooth Legacy System Upgrade

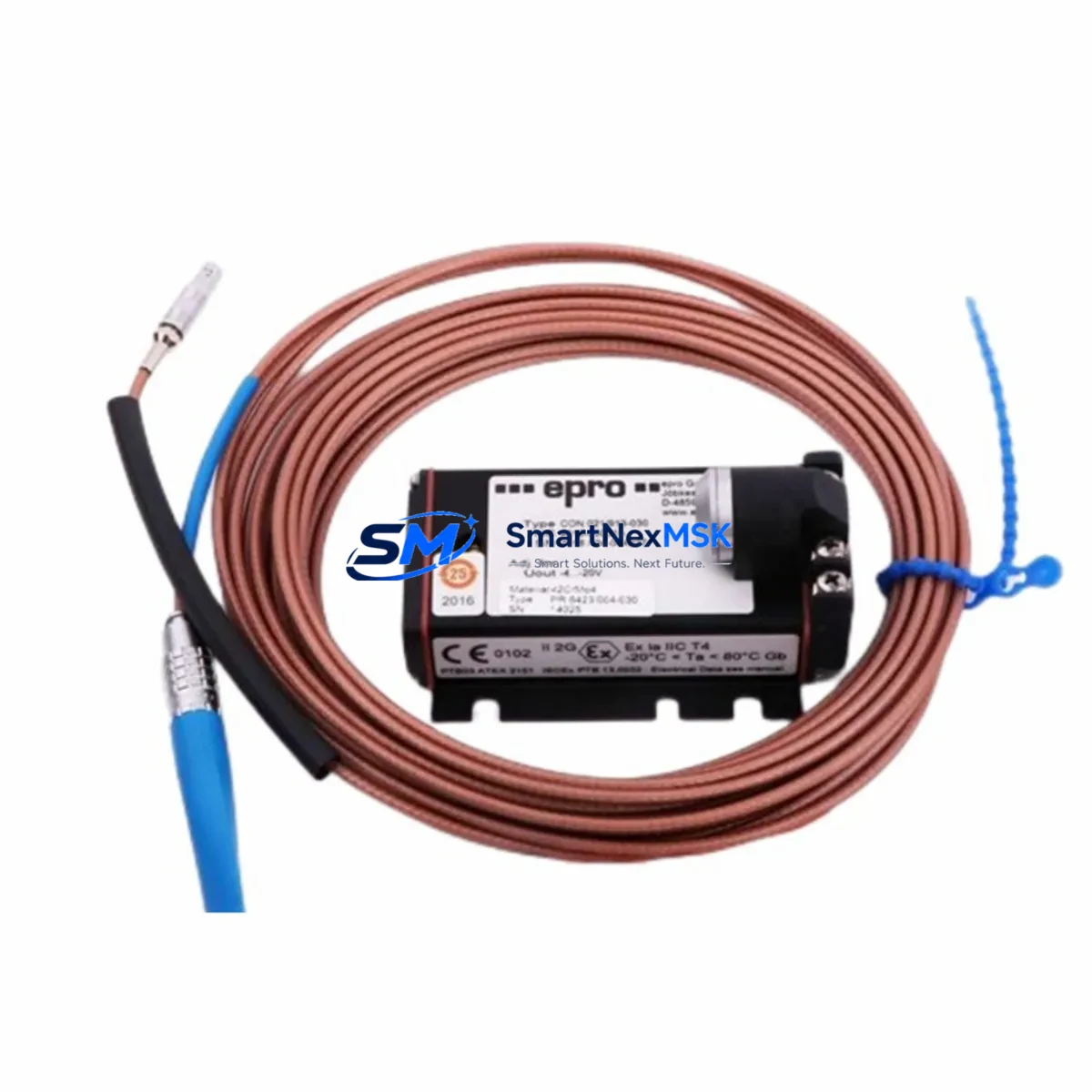

The EPRO PR6423/002-130 CON021 is a precision eddy current proximity transducer engineered for drop-in replacement and retrofit deployment within EPRO PR6423 Series vibration monitoring systems. As legacy machinery protection platforms approach end-of-life or face discontinued spare parts availability, this unit provides a verified, specification-matched upgrade path that preserves existing wiring infrastructure, signal conditioning chains, and control logic — minimizing both capital expenditure and unplanned downtime.

Designed for industrial environments where continuous shaft displacement monitoring, radial vibration measurement, and axial position sensing are critical, the PR6423/002-130 CON021 integrates directly with EPRO CON021 signal conditioners and is fully compatible with Bently Nevada 3300 Series monitoring racks commonly found in parallel installations. Engineers replacing aging PR6423/001-130 or PR6423/003-130 variants will find the electrical interface, sensitivity output (8 mV/µm standard), and cable length specification consistent with the original system design, eliminating the need for signal recalibration at the monitor card level.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the PR6423/002-130 CON021 into an operating plant begins with a thorough audit of the existing monitoring chain. Technicians should document the current gap voltage reading at the CON021 signal conditioner output before removing the old sensor — this baseline is essential for post-installation verification. In systems where the EPRO CON021 conditioner has been in service for more than five years, it is advisable to inspect the conditioner’s terminal block connections for oxidation and confirm that the oscillator frequency remains within specification.

For installations integrated with a Bently Nevada 3500 Series rack or a legacy 3300 Series monitor, the proximity transducer’s output feeds directly into the monitor’s OK relay logic. Before swapping the sensor, confirm that the monitor’s gap voltage acceptance window (typically –10 VDC to –18 VDC for standard EPRO-compatible monitors) aligns with the new sensor’s linear range at the intended installation gap. If the control system also includes a EPRO MMS 6350 or MMS 6110 machinery management module, verify that the channel configuration in the module’s parameter set does not require re-entry after sensor replacement.

In turbine and compressor applications where the PR6423 transducer monitors shaft radial position, the retrofit plan should also account for the EPRO TK-3 extension cable routing. Confirm that the replacement cable run does not exceed the CON021’s specified total cable length, as excess capacitance will shift the sensor’s linear range and introduce measurement error. Where cable trays pass through high-EMI zones near variable frequency drives or large motor starters, shielded conduit sections should be verified intact.

Control cabinet upgrades that include migration from older EPRO rack systems to modern DCS platforms — such as ABB System 800xA, Emerson DeltaV, or Honeywell Experion — often retain the PR6423 transducer layer while replacing the upper monitoring and control tiers. In these hybrid architectures, the analog output from the CON021 conditioner is typically wired into a marshalling cabinet before entering the DCS I/O module. Confirm terminal numbering, shield grounding practice, and loop power supply voltage (typically 24 VDC from a dedicated EPRO power supply module) before finalizing the retrofit wiring schedule.

Where HMI screens display real-time vibration trend data sourced from the PR6423 channel, coordinate with the control system integrator to confirm that engineering unit scaling (µm or mil) and alarm setpoints are preserved after the sensor swap. In Wonderware InTouch or Ignition SCADA environments, tag database entries referencing the channel’s raw analog input should be reviewed to ensure no scaling offset is introduced by the replacement unit’s sensitivity tolerance.

Downtime Control During System Migration

Minimizing production interruption during a PR6423/002-130 CON021 replacement requires a structured hot-swap protocol. Where the machinery protection system permits, place the affected monitor channel into bypass mode before disconnecting the old sensor — this prevents a spurious trip signal from reaching the emergency shutdown system (ESD) or DCS interlock logic. Document the bypass action in the plant’s management of change (MOC) system and set a defined time window for the swap.

Pre-stage the replacement PR6423/002-130 CON021 unit alongside a calibrated gap-setting tool and a digital multimeter configured to measure DC voltage at the CON021 output terminals. With the new sensor installed and the extension cable connected, restore power to the conditioner and measure the gap voltage before releasing the bypass. A reading within the conditioner’s linear output range confirms correct installation gap and cable integrity. Only after this verification should the bypass be lifted and the channel returned to normal protection service.

For critical rotating machinery where zero unplanned downtime is the objective, maintain a pre-tested spare PR6423/002-130 CON021 unit in the local instrument store. All units supplied by SMARTNEXMSK are shipped with individual test documentation confirming sensitivity, linearity, and OK output status — enabling direct installation without bench pre-testing and reducing mean time to repair (MTTR) to under 30 minutes in most field scenarios.

Retrofit Support FAQ

Q1: Is the PR6423/002-130 CON021 a direct drop-in replacement for the PR6423/001-130 CON021?
Yes. The /002 suffix denotes the extension cable assembly variant. The sensor tip, thread size, sensitivity, and CON021 conditioner interface are identical. The only difference is the cable length — confirm your total cable run is within the CON021’s specified range before ordering.

Q2: What pre-shipment testing is performed on each unit?
Every PR6423/002-130 CON021 unit is individually tested for sensitivity output (8 mV/µm ±5%), OK relay status, and cable continuity prior to dispatch. A test record is included with each shipment. All units carry a 12-month warranty covering manufacturing defects and out-of-specification performance.

Q3: Do I need to recalibrate the CON021 conditioner after installing the replacement sensor?
In most cases, no full recalibration is required. However, you must re-verify the installation gap voltage at the CON021 output terminals after mounting the new sensor. Adjust the physical gap until the output voltage falls within the conditioner’s specified linear range, then confirm alarm and danger setpoints at the monitor card remain valid.

Q4: Can this transducer be used with non-EPRO monitoring systems?
Yes, with verification. The PR6423/002-130 CON021’s analog output is compatible with any monitor card that accepts a –24 VDC loop-powered eddy current input with 8 mV/µm sensitivity. Bently Nevada 3300 and 3500 Series monitors, as well as many third-party machinery protection systems, support this interface. Confirm the monitor’s input impedance and gap voltage acceptance window against the CON021 conditioner’s output specification before integration.
