EPRO PR6423/10R-030-CN Retrofit-Ready Eddy Current Sensor for PR6423 Series Control Systems

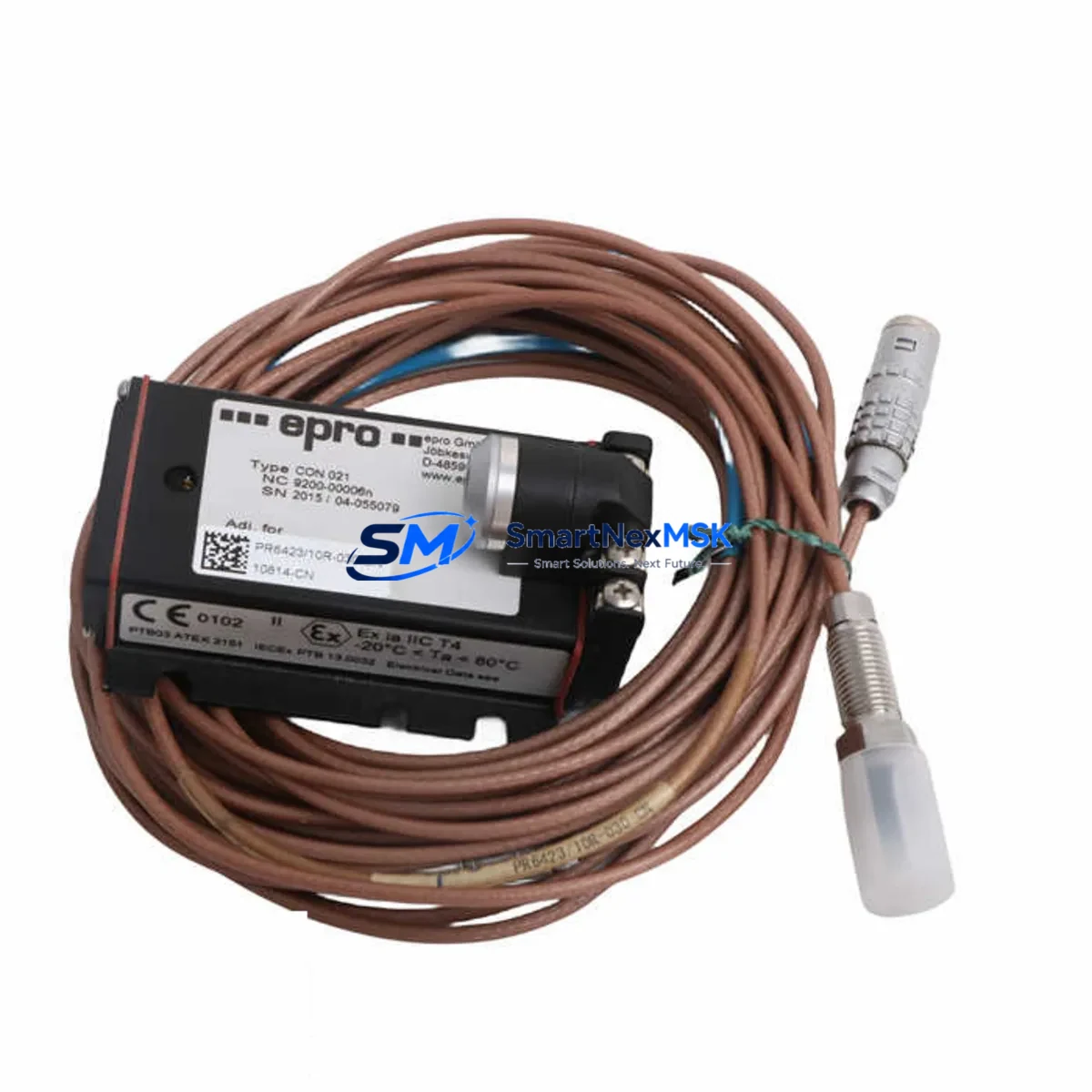

The EPRO PR6423/10R-030-CN CON021 is a precision eddy current displacement sensor engineered for seamless integration into existing vibration monitoring and machinery protection systems. Designed as a direct retrofit replacement for legacy PR6423 Series installations, this sensor delivers reliable non-contact displacement measurement in turbomachinery, compressors, pumps, and rotating equipment across oil & gas, power generation, and heavy industrial environments. Whether you are upgrading an aging Bently Nevada 3300 Series system, migrating from an obsolete CON011 conditioner platform, or restoring a decommissioned monitoring rack, the PR6423/10R-030-CN CON021 provides a verified drop-in solution with minimal re-engineering.
Upgrade Compatibility Table
| Parameter | PR6423/10R-030-CN CON021 | Notes |
|---|---|---|
| Sensor Type | Eddy Current Displacement | Non-contact, proximity measurement |
| Cable Length | 10R (10-meter extension cable) | Verify existing cable routing before installation |
| Gap Range | 0–3.0 mm (030 designation) | Confirm shaft material and surface finish |
| Conditioner Compatibility | CON021 | Replaces CON011; verify rack slot dimensions |
| Connector Type | CN (coaxial, standard EPRO) | Confirm mating connector on junction box |
| Mounting Interface | Standard EPRO probe thread | Check bearing housing thread spec before retrofit |
| Communication / Output | Analog 4–20 mA / voltage | Confirm DCS input card scaling and range |
| Replacement Recommendation | Direct drop-in for PR6423 Series | No firmware change required for CON021 conditioner |
| Commissioning Focus | Gap voltage, sensitivity calibration | Use EPRO calibration tool or oscilloscope |
| Warranty | 12 Months | Covered from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful retrofit of the PR6423/10R-030-CN CON021 begins with a thorough audit of the existing monitoring architecture. In most legacy installations, the sensor interfaces with a CON021 signal conditioner housed in a standard 19-inch rack alongside other EPRO monitoring modules. Before removal of the old sensor, engineers should document the current gap voltage reading — typically between –10 VDC and –18 VDC for a healthy installation — and record the proximity probe driver output to establish a baseline for post-installation verification.
When the existing system uses an older CON011 conditioner, the migration to CON021 requires confirmation of rack slot compatibility and backplane wiring. The CON021 accepts the same coaxial cable termination as its predecessor, but the terminal block pinout on the rear of the conditioner module may differ. Cross-reference the EPRO CON021 installation drawing against the existing rack wiring diagram before disconnecting any field cables.
For plants running a Bently Nevada 3500 Series or 3300 Series machinery protection system in parallel, the PR6423/10R-030-CN CON021 can be integrated as a supplementary channel or used to replace a failed Bently Nevada 330180 or 330130 proximity probe in non-OEM-critical applications, provided the gap range and sensitivity specifications are matched. Always verify the target material correction factor when substituting sensors across platforms.
The extension cable — designated 10R for 10 meters — must be routed away from high-voltage power cables and VFD output conductors to prevent electromagnetic interference. In control cabinet upgrades where a PR6424 series driver or PR9268 series junction box is already installed, the PR6423/10R-030-CN CON021 integrates without modification to the existing cable infrastructure. Confirm that the junction box terminal screws are torqued to specification and that the coaxial connector is free of contamination before final assembly.
For I/O expansion projects where the monitoring output feeds into a Siemens S7-300 analog input module or an ABB AC800M controller, the 4–20 mA output of the CON021 conditioner must be scaled correctly at the DCS engineering station. Update the tag database and alarm setpoints in the HMI — whether running on a WinCC or System 800xA platform — to reflect the new sensor’s sensitivity and gap range before returning the machine to service. Failure to update HMI alarm thresholds is a common source of nuisance trips during post-retrofit commissioning.
Downtime Control During System Migration
Minimizing unplanned downtime during a PR6423 series sensor replacement requires a structured hot-swap protocol. Where process conditions permit, the replacement should be staged during a scheduled maintenance window with the machine at rest. Before de-energizing the monitoring rack, capture a screenshot or hardcopy of all active alarm and danger setpoints from the CON021 conditioner front panel or the associated HMI display. This record serves as the restoration baseline if the DCS configuration is inadvertently overwritten during the upgrade.
If the plant operates a redundant monitoring channel — common in API 670-compliant installations — the standby channel can remain active while the primary sensor is replaced, preserving continuous vibration surveillance throughout the swap. Once the PR6423/10R-030-CN CON021 is installed and the gap voltage is confirmed within the linear range, re-enable the primary channel and verify that both channels track within acceptable deviation before releasing the machine for restart.
For sites where a PR6426 series high-temperature probe or a PR6422 series standard probe was previously installed in an adjacent measurement plane, the PR6423/10R-030-CN CON021 can be commissioned in parallel without interrupting the adjacent channel’s signal chain. This parallel commissioning approach — combined with pre-tested, factory-verified sensor assemblies — is the most effective method for keeping total outage time under four hours for a single-channel replacement on a critical rotating machine.
All units supplied by SMARTNEXMSK are pre-tested against EPRO factory specifications prior to shipment. Each PR6423/10R-030-CN CON021 assembly is verified for sensitivity, linearity, and output impedance, and ships with a test certificate. In-stock units are available for same-day dispatch, supporting emergency breakdown scenarios where extended downtime is not acceptable.
Retrofit Support FAQ
Q1: Is the PR6423/10R-030-CN CON021 a direct replacement for my existing PR6423 series sensor?
Yes. The PR6423/10R-030-CN CON021 is a direct drop-in replacement for all standard PR6423 series eddy current sensor assemblies using the CON021 conditioner. The probe thread, cable connector, and conditioner interface are identical to the original EPRO specification. No mechanical modification to the bearing housing or conditioner rack is required in the vast majority of retrofit applications.
Q2: What commissioning steps are required after installation?
After mechanical installation, set the probe gap to the manufacturer-recommended value (typically 1.0–1.5 mm for the 030 gap range) and verify the gap voltage at the CON021 conditioner output. Confirm the output signal is within the linear range, then update alarm and danger setpoints in the DCS or machinery protection system. Perform a static calibration check using a calibrated gap tool before returning the machine to service.
Q3: Can this sensor be used with a CON011 conditioner instead of CON021?
The PR6423/10R-030-CN is factory-matched to the CON021 conditioner. While the physical cable connector is compatible with CON011 installations, the sensitivity and output scaling may differ between conditioner generations. We recommend confirming the conditioner type before ordering and, where possible, upgrading to the CON021 conditioner as part of the retrofit to ensure full specification compliance.
Q4: What warranty and post-shipment support is provided?
All PR6423/10R-030-CN CON021 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment, covering manufacturing defects and specification non-conformance. Each unit is shipped with a factory test certificate. Our technical team is available to support installation, commissioning, and compatibility verification queries via email and phone throughout the warranty period.
