EPRO PR9268/203-000 Spare for PR9268 Series Automation

EPRO PR9268/203-000 Maintenance-Ready Spare for PR9268 Series Automation

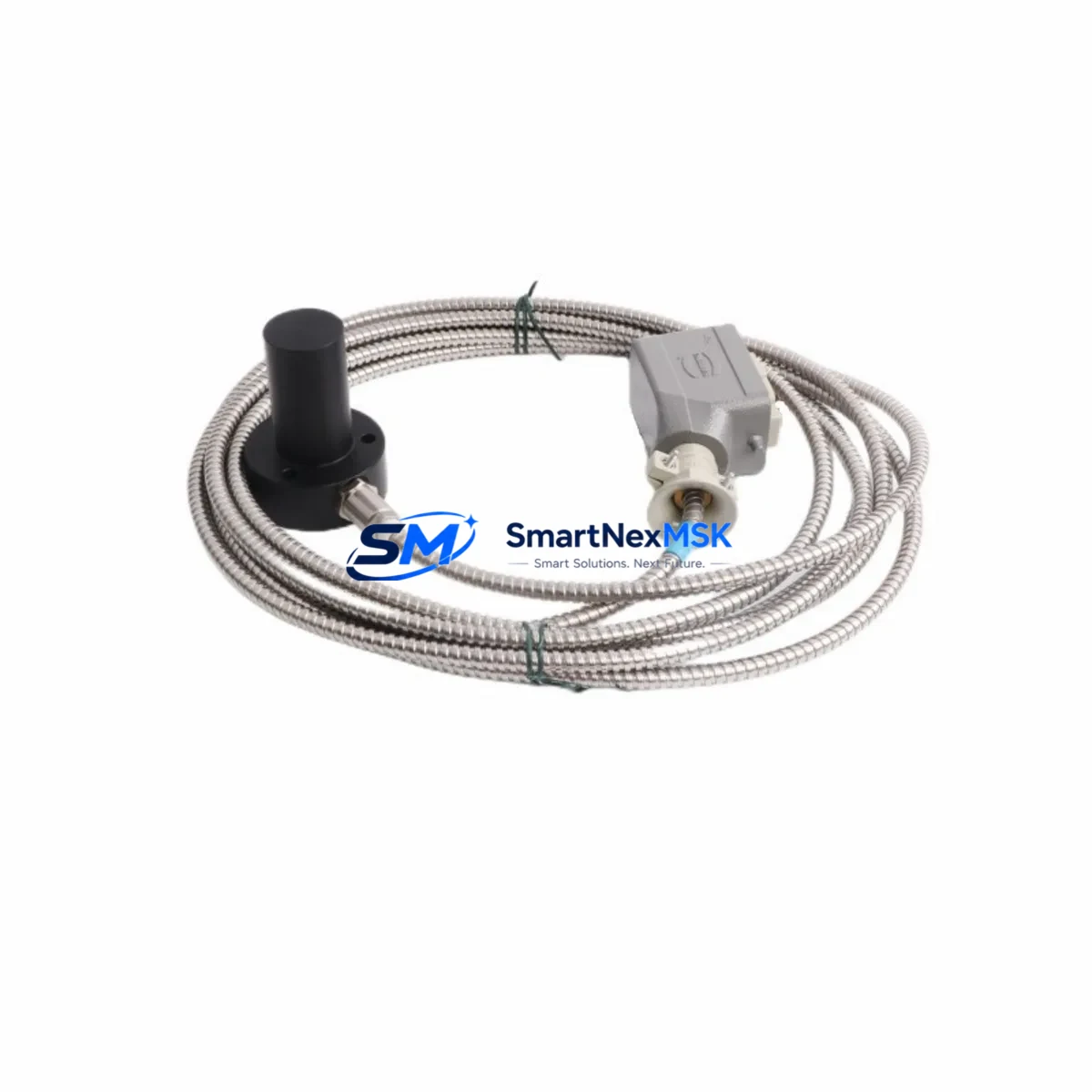

The EPRO PR9268/203-000 is an original eddy-current proximity probe designed for continuous shaft vibration and displacement monitoring in industrial rotating machinery. As a critical spare part within the PR9268 series, this probe is engineered to deliver precise, non-contact measurement in demanding environments including turbines, compressors, pumps, and large motors. For maintenance engineers managing aging control systems or executing planned shutdowns, having a verified PR9268/203-000 on the shelf is a direct risk-mitigation strategy against unplanned downtime.

This unit ships tested and verified, backed by a 12-month warranty, and is sourced to meet the original EPRO specification. Whether you are executing a like-for-like replacement during a scheduled outage or responding to a vibration trip alarm in a live plant, the PR9268/203-000 provides the dimensional and electrical compatibility required to restore system integrity without re-engineering the measurement chain.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the PR9268/203-000 in the field, a disciplined maintenance engineer will not stop at the probe itself. The PR9268 measurement chain is a system: the probe, the extension cable (typically a PR9268/010-xxx or PR9268/020-xxx matched cable), and the driver/signal conditioner (such as the CON021 or CON041 module) must all be evaluated together. A degraded extension cable or a drifting driver module will produce erroneous vibration readings even after a new probe is installed, leading to false trips or — more dangerously — missed fault conditions.

During the same maintenance window, procurement and maintenance teams should also inspect the following components in the same control cabinet or measurement loop:

• PR6423 / PR6424 proximity transducer drivers — verify output voltage and gap calibration after probe swap.
• CON021 / CON041 signal conditioners — check for drift, LED fault indicators, and terminal block integrity.
• Extension cables (PR9268/010-xxx series) — inspect for jacket damage, connector corrosion, and continuity.
• Terminal blocks and DIN rail connectors — loose terminals are a leading cause of intermittent vibration signal faults.
• 24 VDC power supply modules — confirm stable supply voltage to the driver; ripple or sag will affect probe linearity.
• Relay output modules — test trip relay contacts associated with the vibration channel being serviced.
• Vibration monitoring system I/O cards (e.g., Bently Nevada 3500 series I/O modules or equivalent EPRO rack cards) — verify channel configuration and alarm setpoints after replacement.
• Signal isolators / barriers — if the probe signal crosses a hazardous-area boundary, inspect Zener barriers or galvanic isolators for degradation.
• HMI trend displays — confirm the vibration trend history resets correctly and the new probe baseline is recorded in the CMMS.
• Fuse holders and protection fuses — replace any discolored or aged fuses in the measurement loop supply circuit.

Stocking a matched set — probe, extension cable, and driver — as a single spare kit is a best practice for plants operating critical rotating machinery. This eliminates the risk of a compatible-but-mismatched assembly causing calibration errors during an emergency replacement.

Site Replacement Workflow

Replacing the PR9268/203-000 on-site follows a structured sequence to minimize downtime and ensure measurement integrity is restored on the first attempt:

1. Isolate and document: Record the existing probe gap voltage and vibration baseline from the DCS or vibration monitoring system before de-energizing the loop.
2. Disconnect the extension cable: Carefully uncouple the PR9268 extension cable at the probe connector. Inspect the connector pins for corrosion or mechanical damage.
3. Remove the old probe: Unthread the probe from its mounting bracket. Note the thread engagement depth for reference during reinstallation.
4. Install the PR9268/203-000 replacement: Thread the new probe to the same depth. Do not over-torque — use the EPRO-specified torque value for the probe body material.
5. Set the air gap: Using a non-ferrous feeler gauge or the driver’s output voltage as a reference, set the probe-to-shaft gap per the EPRO calibration curve (typically 1.0 mm ± 0.1 mm for standard steel targets).
6. Reconnect and verify: Reconnect the extension cable, re-energize the driver, and confirm the output voltage is within the linear range. Compare against the pre-removal baseline.
7. Update CMMS records: Log the replacement date, new probe serial number, gap setting, and output voltage in your maintenance management system.

This workflow supports a like-for-like replacement without requiring re-engineering of the measurement chain, preserving system compatibility and reducing the risk of post-maintenance trips.

Spare Parts Support FAQ

Q1: Is the PR9268/203-000 a direct replacement for older PR9268 variants?
Yes. The PR9268/203-000 is dimensionally and electrically compatible with other PR9268 series probes of the same cable length suffix. Always verify the cable length suffix (/203 = 203 mm) and target material compatibility before installation. For non-standard target materials (e.g., titanium or Inconel shafts), consult the EPRO calibration factor tables.

Q2: How should I verify the probe before installation in a live plant?
All units shipped from our inventory are bench-tested against EPRO output specifications prior to dispatch. On-site, connect the probe to a known-good driver and verify the output voltage at a calibrated gap distance before installing in the machine. This two-step verification (pre-shipment + on-site) eliminates the risk of installing a defective unit during a critical maintenance window.

Q3: What is your recommended spare parts stocking strategy for PR9268 probes?
For plants with 10 or more PR9268 measurement points, we recommend maintaining a minimum of 2 probes, 2 matched extension cables, and 1 spare driver module as on-hand inventory. For critical machinery (first-line turbines, main compressors), a complete matched assembly kit is advisable. Long lead times on original EPRO components make proactive stocking essential for emergency response readiness.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical performance deviations from the EPRO specification under normal operating conditions. It does not cover damage resulting from incorrect installation, over-range mechanical impact, or chemical exposure beyond the probe’s rated environment. Warranty claims are supported with a replacement unit dispatched after fault confirmation — no extended RMA delays.
