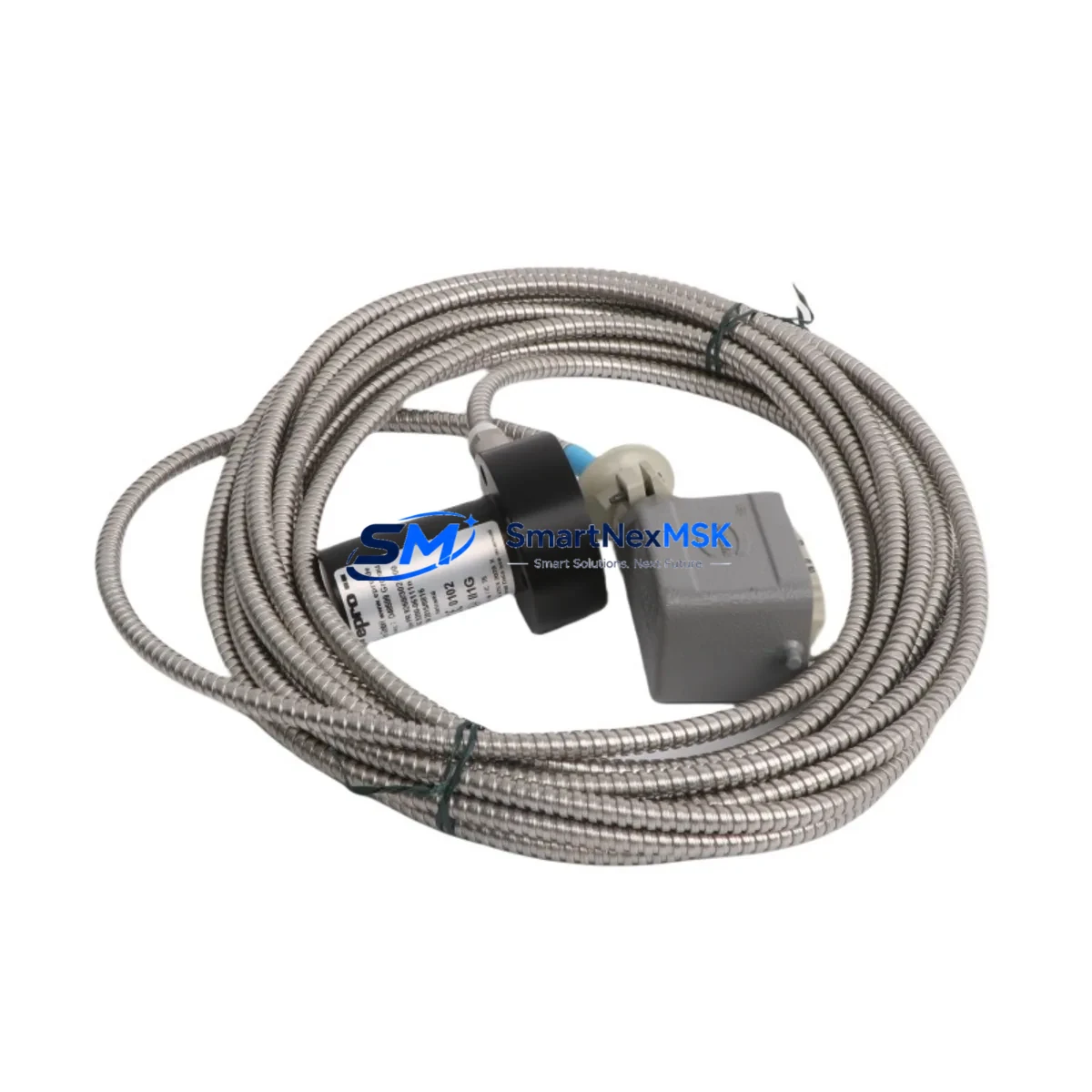

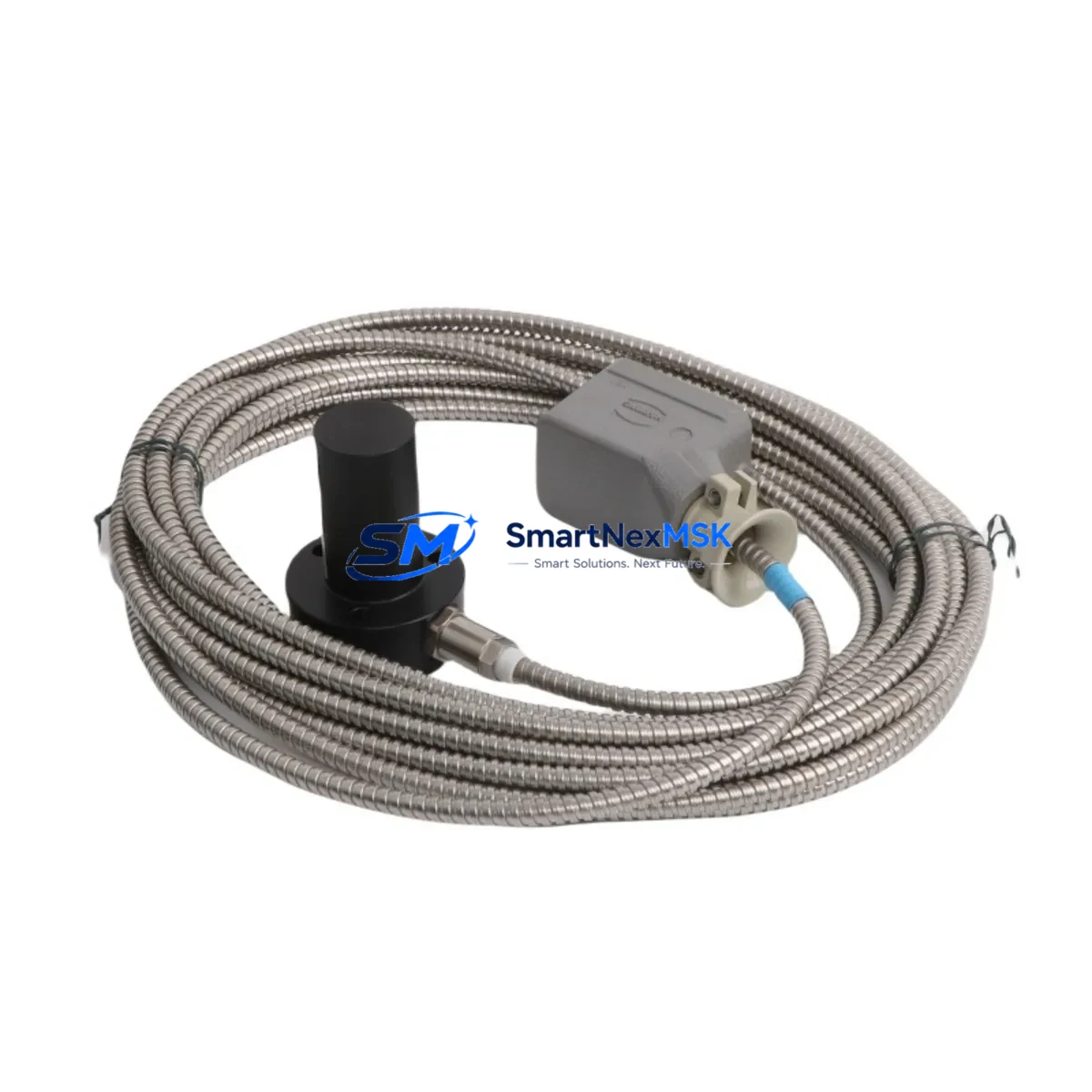

Epro PR9268/300-000 Safety-Enhanced Velocity Sensor

Epro PR9268/300-000 Safety-Enhanced Velocity Sensor for Harsh Industrial Sites

The Epro PR9268/300-000 is a ruggedized electrodynamic velocity sensor engineered for continuous, safety-critical vibration monitoring in the most demanding industrial environments. Designed to operate reliably under high mechanical load, strong electromagnetic interference, and extreme temperature fluctuations, this sensor is a cornerstone component in turbine protection systems, rotating machinery safety loops, and critical interlock circuits across petrochemical, power generation, mining, metallurgical, and heavy manufacturing facilities.

Unlike standard velocity transducers, the PR9268/300-000 is built to maintain signal integrity even when subjected to shaft runout, foundation resonance, and high-frequency electrical noise common in large motor-driven or steam-turbine-driven machinery. Its robust stainless-steel housing and hermetically sealed internals prevent moisture ingress, dust contamination, and corrosive gas exposure — all of which are prevalent in offshore platforms, chemical reactors, and continuous-process plants where unplanned downtime carries severe safety and financial consequences.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection system, the PR9268/300-000 velocity sensor does not operate in isolation. It functions as the primary field-sensing element within a layered protection architecture that begins at the machine bearing housing and extends through the control cabinet to the safety PLC or DCS. Signal integrity from the sensor is preserved through the use of CON021 or CON041 shielded extension cables, which are specifically rated for the high-noise environments found in motor control centers and turbine halls.

At the signal conditioning level, the sensor output is typically routed to an Epro MMS6110 or MMS6120 velocity monitoring module, which provides 4–20 mA analog output, relay trip contacts, and ATEX-rated enclosure options for hazardous area installations. These modules integrate directly into Epro MMS6000 series modular monitoring racks, which support hot-swap capability — a critical feature for continuous-process plants where rack removal for maintenance is not permissible during operation.

Power supply stability is equally critical. Transient voltage spikes and ground loops are among the most common causes of spurious trips in vibration monitoring systems. For this reason, the PR9268/300-000 is best deployed alongside a dedicated 24 VDC isolated power supply module with surge protection, such as those used in Epro or Phoenix Contact DIN-rail power distribution systems. Upstream, a Bently Nevada 3500/15 Power Supply or equivalent redundant power module ensures that monitoring continuity is maintained even during grid disturbances.

For facilities operating under IEC 61511 functional safety requirements, the velocity sensor feeds into a Safety Instrumented System (SIS) logic solver — typically a Triconex TRICON, Hima HIMax, or equivalent SIL 2/SIL 3 rated safety PLC. The sensor’s analog signal is compared against pre-configured alert and danger setpoints, and upon threshold breach, the SIS initiates an automated shutdown sequence via hardwired relay outputs to the turbine trip solenoid valve or motor contactor. Complementary sensors in the same protection loop often include an Epro PR6423 eddy current proximity probe for shaft displacement monitoring and a PR9376 accelerometer for high-frequency bearing fault detection, providing a complete multi-parameter machinery health picture within a single control cabinet.

Communication of diagnostic data to the plant DCS is handled via PROFIBUS DP or Modbus RTU gateway modules integrated into the monitoring rack, enabling real-time vibration trend data to be displayed on operator workstations without interrupting the hardwired safety loop. This architecture ensures that the PR9268/300-000 contributes not only to immediate machine protection but also to long-term predictive maintenance programs that reduce unplanned outages.

Critical Industrial Safety Applications

The PR9268/300-000 is deployed across a wide range of high-consequence industrial sectors where machinery failure carries unacceptable safety and operational risk.

In petrochemical and refinery environments, the sensor monitors critical rotating equipment including centrifugal compressors, boiler feed pumps, and cooling water pumps. These machines operate continuously under high differential pressure and process fluid temperatures, making real-time vibration monitoring essential for preventing catastrophic seal failures or bearing collapses that could trigger fire or toxic release events.

In power generation facilities — both thermal and combined-cycle — the PR9268/300-000 is installed on steam turbine bearing pedestals and generator end shields. Turbine vibration excursions caused by blade fouling, rotor unbalance, or coupling misalignment are detected early, allowing operators to schedule corrective maintenance during planned outages rather than responding to emergency trips.

In mining and mineral processing operations, large ball mills, SAG mills, and conveyor drive motors are subject to extreme mechanical shock and dust loading. The IP67-rated housing and shock-resistant construction of the PR9268/300-000 make it well-suited for these environments, where sensor replacement frequency and associated production losses are major cost drivers.

In water and wastewater treatment plants, the sensor protects high-capacity centrifugal pumps and blower units that must operate continuously to maintain regulatory compliance. Vibration-induced failures in these systems can result in treatment process interruptions with environmental and public health implications.

In metallurgical and steel production facilities, the sensor is used on rolling mill drives, continuous casting machine drives, and large induction furnace cooling pumps — all of which operate in high-temperature, high-vibration, and electrically noisy environments that challenge the reliability of standard industrial sensors.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the PR9268/300-000?
All PR9268/300-000 units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. This covers manufacturing defects, calibration drift beyond specification, and premature failure under normal operating conditions. Warranty claims are processed with priority turnaround to minimize customer downtime.

Q2: What pre-shipment testing is performed on each unit?
Every PR9268/300-000 undergoes a full functional verification prior to dispatch, including sensitivity measurement, frequency response check across the rated bandwidth, insulation resistance test, and cable continuity verification. A test report is available upon request for quality-critical applications.

Q3: Is the PR9268/300-000 compatible with existing Epro and Bently Nevada monitoring systems?
Yes. The PR9268/300-000 is electrically and mechanically compatible with the Epro MMS6000 series monitoring racks and is a recognized replacement for equivalent Bently Nevada velocity transducers used in 3500 series machinery protection systems. CON021 and CON041 extension cables are fully supported. Customers are advised to verify connector pinout and sensitivity matching with their specific rack configuration before installation.

Q4: Can long-term supply continuity be guaranteed for maintenance and spare parts programs?
SMARTNEXMSK maintains dedicated stock of the PR9268/300-000 and its associated accessories to support ongoing spare parts programs for industrial facilities with multi-year maintenance contracts. Bulk order pricing and reserved inventory arrangements are available for customers requiring guaranteed supply continuity. Contact our technical sales team to discuss your facility’s specific requirements.
