Eurotherm 2408f Spare for 2400 Series Automation

Eurotherm 2408f Spare for 2400 Series Automation: Spare Replacement & Industrial Downtime Risk Control

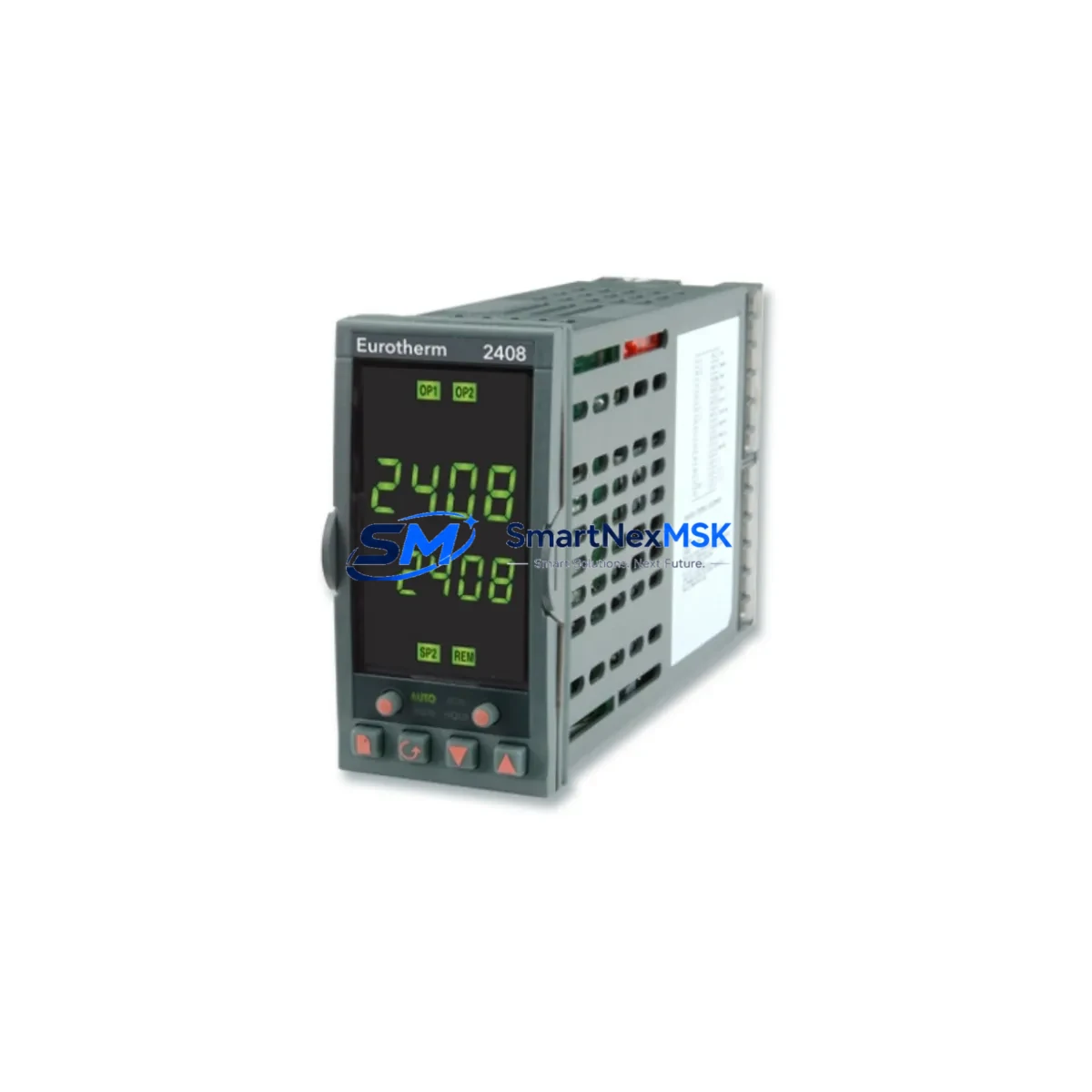

The Eurotherm 2408f is a 1/8 DIN PID temperature and process controller from the proven 2400 Series platform — one of the most widely deployed controller families in industrial process automation, plastics, food processing, pharmaceutical, and heat treatment applications. When a 2408f fails or reaches end-of-service life, rapid replacement with a verified original spare is critical to restoring loop control and preventing unplanned production downtime. This listing provides a maintenance-ready, original Eurotherm 2408f spare unit, fully tested prior to dispatch, backed by a 12-month warranty, and available for fast worldwide shipping.

Maintenance engineers and procurement teams managing aging 2400 Series installations rely on pre-qualified spare stock to execute same-day or next-shift controller swaps. The 2408f supports universal input (thermocouple, RTD, linear mV/V), dual relay or logic outputs, and optional communications including Modbus RTU — making it a versatile drop-in replacement across a wide range of OEM panel and custom control cabinet configurations. Compatibility with existing 2400 Series wiring harnesses and DIN rail cutouts means minimal rework during emergency replacement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A structured spare parts strategy for any 2400 Series control loop should extend beyond the controller itself. When replacing a 2408f, experienced maintenance engineers use the opportunity to inspect and — where necessary — pre-stage replacements for the surrounding electrical circuit. The 24 V DC auxiliary power supply feeding the controller logic should be load-tested; a failing PSU is a common root cause of intermittent controller resets that are misdiagnosed as controller faults. Eurotherm 2400 Series installations frequently share a common power rail with other loop controllers such as the 2404 or 2416, so a degraded supply can affect multiple control points simultaneously.

Input signal integrity is equally important. Thermocouple extension cables and compensating cables should be inspected for insulation breakdown, especially in high-temperature or vibration-prone environments. RTD lead resistance should be verified against the controller’s configured compensation mode. Where 4–20 mA transmitters feed the 2408f’s linear input, the transmitter loop power supply and signal isolator should be checked — a signal isolator or loop-powered barrier in the same cabinet may be masking a ground loop that accelerates controller input circuit wear.

On the output side, the relay output contacts of the 2408f drive SSRs, contactors, or heating elements. Relay contact life is finite; if the unit being replaced shows contact pitting or welding, the downstream solid-state relay (SSR) or contactor it was driving should also be inspected and potentially replaced. Terminal blocks and DIN rail connectors in the same zone should be re-torqued during any planned controller replacement to prevent high-resistance joints that cause nuisance alarms.

For installations using Modbus RTU communications, the RS-485 network termination resistors and cable shielding should be verified after controller swap to ensure the new unit integrates cleanly into the SCADA or HMI polling loop. Where a Eurotherm iTools configuration backup exists, it should be restored to the replacement unit before commissioning to preserve tuned PID parameters, alarm setpoints, and output scaling. If no backup is available, re-tuning via the controller’s autotune function is recommended before returning the loop to automatic mode.

Fuse protection for the controller supply and output circuits should be reviewed as part of any planned replacement. Miniature circuit breakers (MCBs) or glass fuses protecting the 2408f supply rail should be tested for correct trip rating and replaced if showing signs of thermal discoloration. A complete cabinet inspection checklist for a 2400 Series loop should include: auxiliary PSU, input signal cables and isolators, output SSR or contactor, RS-485 communication cable and termination, terminal block torque check, fuse/MCB condition, and HMI or operator panel display functionality.

Site Replacement Workflow

Step 1 — Isolate and document. Before removing the 2408f, record all parameter settings (setpoint, PID values, alarm limits, input type, output configuration, communications address) either from the controller display or from an iTools backup. Photograph the wiring terminal layout. Isolate the controller supply at the MCB or isolator — do not rely on the controller’s own power switch.

Step 2 — Remove and inspect. Disconnect all wiring terminals, noting cable labels. Remove the controller from the panel cutout by releasing the retaining clips. Inspect the vacated cutout for corrosion, moisture ingress, or damaged gasket material. Replace the panel gasket if the IP65 seal is compromised.

Step 3 — Configure the replacement unit. Before installation, configure the replacement 2408f to match the original unit’s input type, output configuration, communications settings, and engineering units. Restore from iTools backup if available. Verify the supply voltage selector (where applicable) matches the panel supply.

Step 4 — Install and reconnect. Insert the replacement unit into the panel cutout and secure the retaining clips. Reconnect all wiring terminals in sequence, verifying against the documented layout. Re-torque all terminals to the manufacturer’s specified torque value.

Step 5 — Commission and verify. Restore power and verify the controller powers up without fault codes. Confirm input reading matches a reference instrument. Verify output operation in manual mode before switching to automatic. Confirm Modbus communications polling is restored at the SCADA or HMI level. Log the replacement in the site maintenance record.

This workflow minimises loop downtime to a single shift in most installations and ensures the replacement unit is fully validated before the process is returned to automatic control.

Spare Parts Support FAQ

Q1: Is this a genuine original Eurotherm 2408f or a compatible substitute?
This is an original Eurotherm 2408f unit — not a clone, compatible substitute, or rebranded equivalent. All units are sourced from authorised distribution channels or verified industrial surplus and are inspected and functionally tested before shipment. The 12-month warranty covers manufacturing defects and confirmed functional failures under normal operating conditions.

Q2: How do I confirm compatibility with my existing 2400 Series installation?
The 2408f is directly compatible with standard 2400 Series panel cutouts (45 × 92 mm) and wiring configurations. Compatibility depends on the specific option codes of your original unit (input type, output type, communications, supply voltage). Please provide your original unit’s full model code or option suffix when enquiring, and our technical team will confirm compatibility before dispatch.

Q3: What pre-shipment testing is performed on each unit?
Each 2408f spare undergoes functional power-on testing, input signal verification across at least one thermocouple and one linear input range, output relay operation check, and display/keypad functionality verification. Units that fail any test stage are quarantined and not dispatched. A test record is available upon request for critical applications.

Q4: What is your long-term supply commitment for 2400 Series spares?
We maintain a dedicated inventory of 2400 Series components to support legacy installations beyond the original manufacturer’s active production period. Stock levels are reviewed quarterly. For customers requiring guaranteed long-term supply agreements or consignment stock arrangements, please contact our sales team to discuss a tailored spare parts support contract.
