Eurotherm AH387775U001 Maintenance-Ready Spare for 590 Series Automation

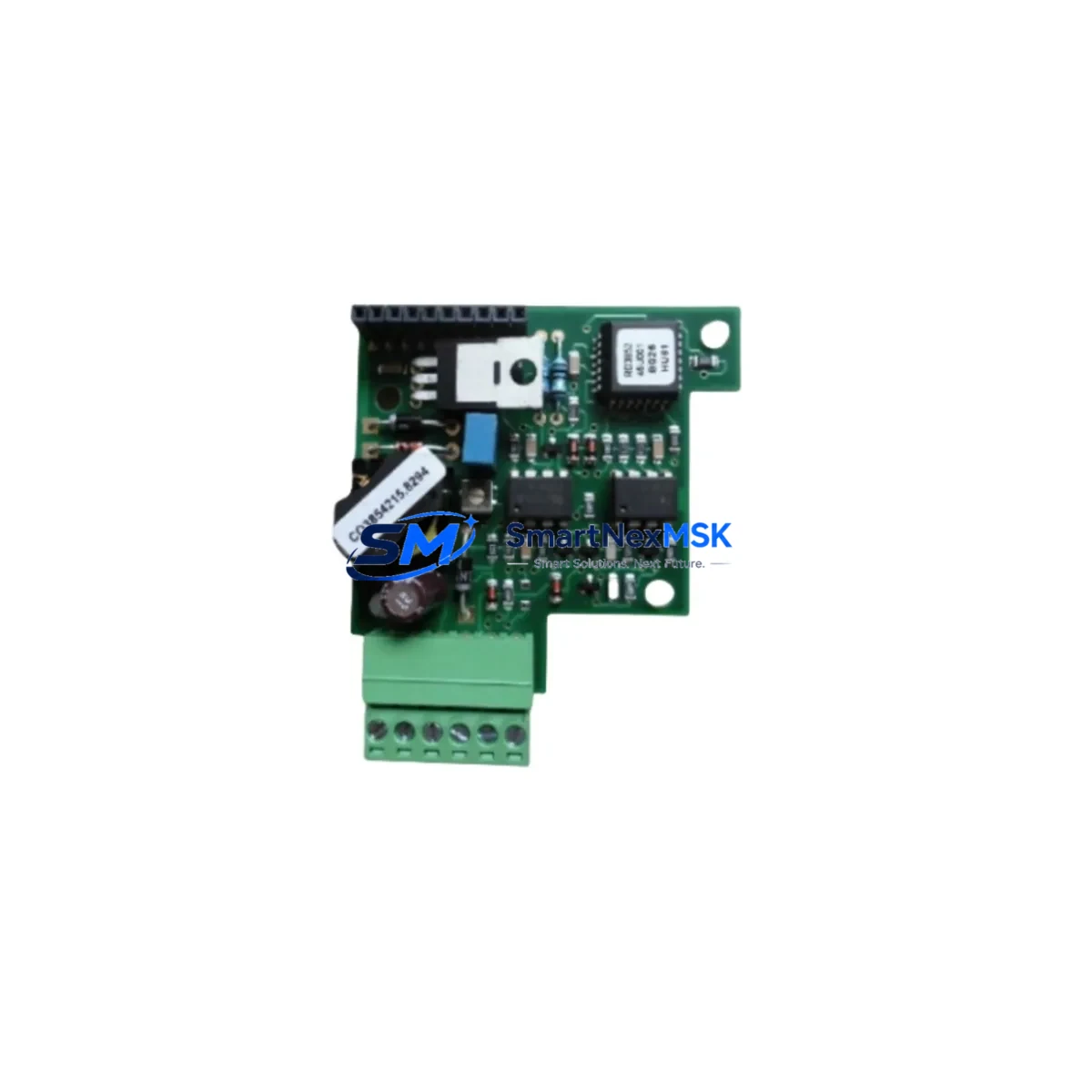

The Eurotherm AH387775U001 is an original encoder feedback card designed for the Eurotherm 590 Series DC drive platform — one of the most widely deployed closed-loop DC drive systems in continuous process industries including paper, metals, plastics extrusion, and material handling. As a precision feedback interface, the AH387775U001 enables accurate speed and position control by processing encoder pulse signals and delivering them to the 590 drive’s control loop. When this card fails or degrades, the result is immediate: speed instability, drive trips, or complete loss of closed-loop control — all of which translate directly into unplanned downtime and production loss.
Sourced as an original Eurotherm spare, the AH387775U001 is tested prior to dispatch and backed by a 12-month warranty. It is held in stock for fast turnaround, supporting both planned maintenance schedules and emergency replacement scenarios. Whether you are managing a single 590 drive or a multi-drive line, maintaining a verified spare of this card in your critical spares inventory is a proven strategy for minimizing mean time to repair (MTTR).
Spare Maintenance Table
| Part Number | AH387775U001 |
| Brand | Eurotherm (Schneider Electric) |
| Series | 590 Series DC Drive |
| Function | Encoder Feedback Card — closed-loop speed/position control interface |
| Compatible Drives | Eurotherm 590P, 590C, 590+ Series DC drives |
| Encoder Input | Incremental encoder, TTL-level differential signals (A, B, Z channels) |
| Supply Voltage | +5 VDC encoder supply (from drive backplane) |
| Mounting | Option card slot on 590 Series drive chassis |
| Origin | Germany |
| Condition | Original spare, pre-shipment tested |
| Warranty | 12 Months |
| Application Environment | Industrial panel, control cabinet, continuous process lines |
| Maintenance Recommendation | Inspect encoder wiring and connector integrity at each planned shutdown; replace card if encoder fault codes persist after wiring checks |
Maintenance Planning for Continuous Operation
When a 590 Series drive is taken offline for encoder feedback card replacement, experienced maintenance engineers treat the intervention as an opportunity for a broader control cabinet inspection. The AH387775U001 sits within an electrical environment that includes several interdependent components, and a failure in any one of them can mask or mimic encoder card faults.
Begin by verifying the 590 Series power supply module — the drive’s internal DC bus and auxiliary supply rails must be within specification before the new encoder card is seated. A marginal power supply can damage a replacement card within hours of commissioning. Next, inspect the encoder cable and shielded signal wiring from the motor-mounted encoder back to the drive terminal strip; damaged insulation or loose terminations at the 590 drive I/O terminal block are a common root cause of repeated encoder card failures.
Check the 590 Series field supply board and armature current feedback circuit — if the drive has been tripping on overcurrent or field loss, the encoder card may have been subjected to voltage transients. Review the 590 drive option card backplane connector for corrosion or bent pins before installing the AH387775U001 replacement. It is also advisable to inspect any signal isolators or pulse conditioners installed between the encoder and the drive, as these can introduce signal degradation that the new card will still be unable to compensate.
For sites running multiple 590 drives in a coordinated line — such as a draw section or winder — also verify the 590 Series communications option card (e.g., Profibus or DeviceNet module) and the master speed reference signal from the line controller or PLC. A corrupted speed reference will produce symptoms identical to an encoder feedback fault. Finally, check the 590 drive parameter memory (EEPROM): after card replacement, encoder-related parameters (pulses per revolution, feedback scaling, speed loop gains) must be verified and re-entered if the drive was reset to factory defaults during troubleshooting.
Maintaining a small critical spares kit alongside the AH387775U001 — including a spare 590 Series thyristor firing board, a set of control fuses, and a replacement fan assembly for forced-cooled 590 variants — significantly reduces the risk of a second unplanned outage during the same maintenance window.
Site Replacement Workflow
Step 1 — Isolate and de-energize: Follow your site LOTO procedure. Isolate the 590 drive from the AC supply and allow the DC bus capacitors to discharge fully (minimum 5 minutes). Verify zero voltage at the drive terminals before opening the cabinet.
Step 2 — Document existing configuration: Before removing the faulty AH387775U001, record all encoder-related parameter values from the 590 drive keypad or connected PC tool (e.g., Eurotherm’s DSELite or 6053 software). Photograph the option card slot and wiring layout.
Step 3 — Remove and inspect: Carefully extract the encoder feedback card from its option slot. Inspect the backplane connector and the card’s edge connector for contamination, corrosion, or mechanical damage. Clean the slot with dry compressed air if required.
Step 4 — Install AH387775U001 replacement: Seat the new card firmly into the option slot until the connector is fully engaged. Do not force. Reconnect the encoder signal cable to the card’s terminal block, observing correct channel polarity (A+/A−, B+/B−, Z+/Z−).
Step 5 — Re-energize and verify: Restore power in sequence. Navigate to the encoder feedback parameter group and confirm that the drive is reading encoder pulses correctly at low speed before running the motor under load. Verify speed loop stability and check for any residual fault codes.
Step 6 — Return to service: Document the replacement in your maintenance management system (CMMS), update the spare parts inventory, and order a replacement AH387775U001 to restore your critical spares buffer.
Spare Parts Support FAQ
Q1: Is the AH387775U001 compatible with all variants of the Eurotherm 590 Series?
The AH387775U001 encoder feedback card is designed for the 590 Series DC drive platform, including the 590P, 590C, and 590+ variants. Compatibility depends on the drive’s option card slot configuration. Always cross-reference the drive’s nameplate and option card slot designation against the card’s installation guide before fitting. If you are unsure, contact us with your drive’s full model number and we will confirm compatibility prior to dispatch.
Q2: What pre-shipment testing is performed on the AH387775U001?
Each AH387775U001 unit is functionally tested on a compatible 590 Series drive platform before dispatch. Testing covers encoder signal reception, channel integrity (A, B, Z), and encoder supply voltage output. A test report is available on request. The card is shipped in anti-static packaging with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
Q3: How should I manage AH387775U001 inventory for a multi-drive facility?
For facilities operating three or more 590 Series drives, we recommend holding a minimum of one AH387775U001 encoder feedback card as a critical spare. For continuous process lines where a single drive failure causes a full line stop, consider holding two units. Rotate stock on a first-in, first-out basis and inspect stored cards annually for any signs of connector oxidation or ESD damage to the PCB.
Q4: What is the lead time if the AH387775U001 is not in stock?
We maintain stock of the AH387775U001 for immediate dispatch. In the event of a stock-out, our sourcing network typically allows us to confirm availability within 24–48 hours. For emergency breakdown situations, contact us directly at sales@smartnexmsk.com or +86 18259474341 to discuss expedited options.
