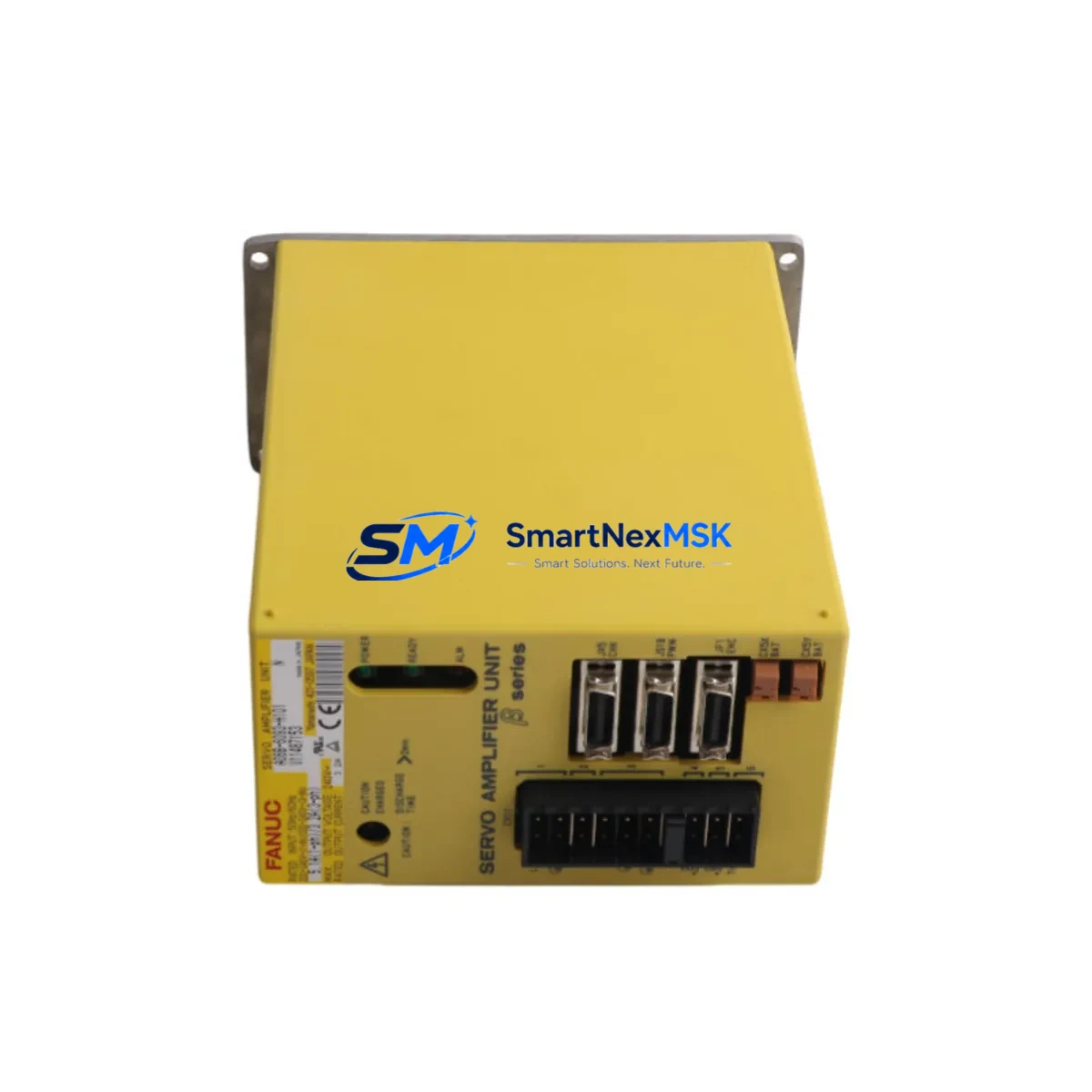

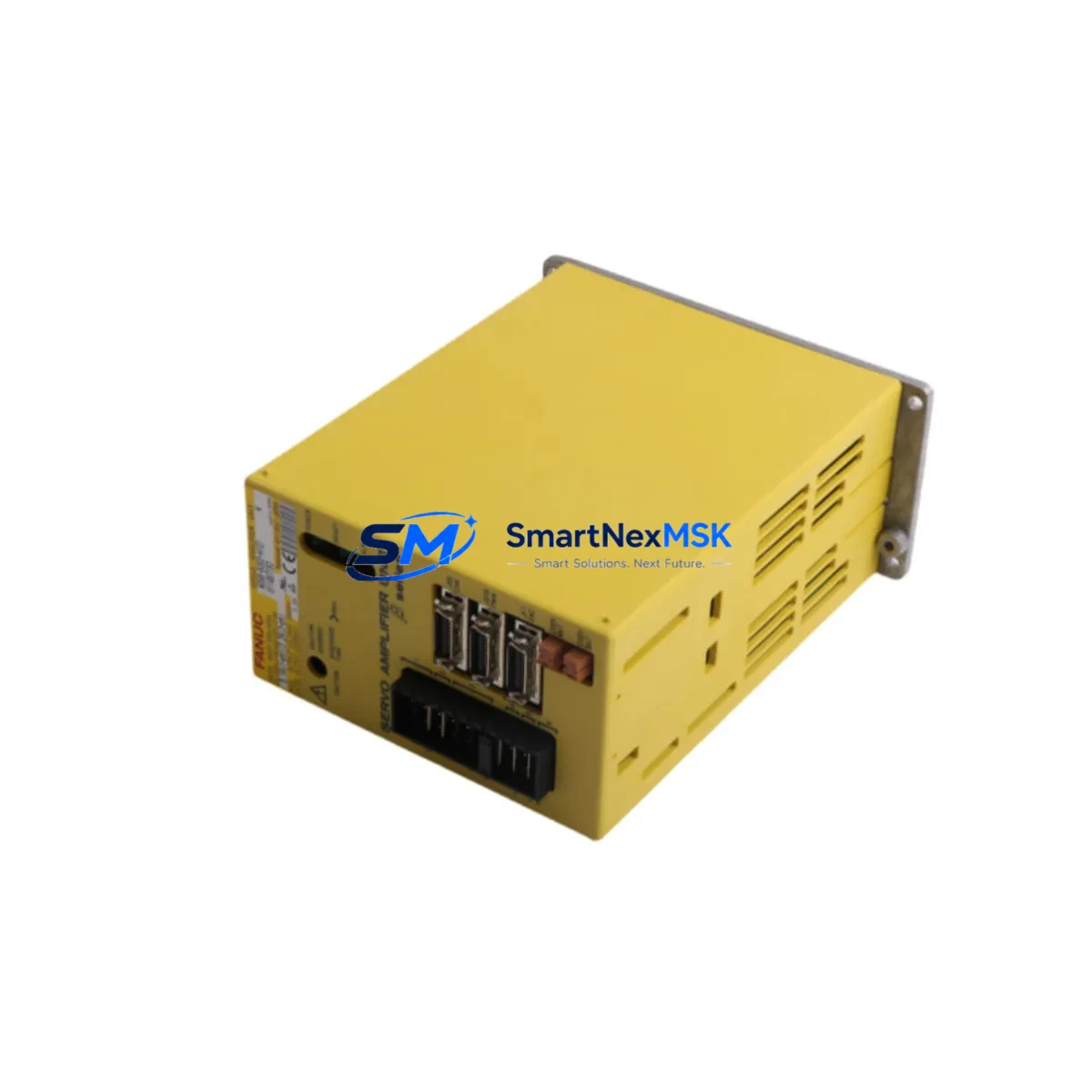

FANUC A06B-6093-H101 Retrofit-Ready Servo Amplifier for Alpha Series Control Systems
The FANUC A06B-6093-H101 is a high-performance servo amplifier designed for seamless integration into FANUC Alpha Series CNC and motion control systems. As legacy automation infrastructure ages and OEM support windows close, the A06B-6093-H101 has become one of the most sought-after retrofit and replacement components for engineers managing aging production lines, robotic cells, and multi-axis machining centers. Whether you are replacing a failed unit, upgrading a discontinued amplifier, or modernizing a control cabinet, this module delivers verified compatibility with the Alpha Series servo drive architecture without requiring reprogramming of the host controller.
Industrial facilities running FANUC Series 0i, Series 16i, Series 18i, or Series 21i controllers frequently encounter the need to replace servo amplifier units as part of planned maintenance or emergency recovery. The A06B-6093-H101 is engineered to slot into existing Alpha Series servo racks, maintaining the same terminal block layout, DC bus connection points, and fiber-optic FSSB (FANUC Serial Servo Bus) interface that the original unit used. This means your existing servo motor wiring — including the A06B-series feedback cables and power leads — can be reconnected without modification, dramatically reducing downtime during a swap.
Before installation, engineers should verify the power supply capacity of the existing PSM (Power Supply Module), such as the A06B-6087-H126 or A06B-6110-H015, to confirm it can sustain the combined axis load after the retrofit. The DC bus voltage and regenerative discharge capacity must be within specification for the amplifier’s rated output. Terminal block torque values and wire gauge requirements should be cross-checked against the Alpha Series maintenance manual to prevent connection faults during commissioning.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| Compatible Controller Series | FANUC Series 0i, 16i, 18i, 21i, 30i (Alpha interface) |
| Drive Interface | FSSB (FANUC Serial Servo Bus) fiber-optic |
| Rack / Backplane | Alpha Series servo rack — direct slot replacement |
| Terminal Wiring | Compatible with existing Alpha Series terminal layout; no rewiring required |
| Feedback Cable | Compatible with A06B-series encoder feedback cables (Pulsecoder) |
| Communication Protocol | FSSB; no protocol migration required |
| Replacement Recommendation | Direct drop-in for A06B-6093-H101; verify PSM capacity before installation |
| Commissioning Note | Axis parameters (servo gain, backlash, pitch error) must be verified post-swap |
| Warranty | 12 Months — covers manufacturing defects and functional failure |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins well before the replacement unit arrives on-site. For systems built around the FANUC Alpha Series architecture, the servo amplifier is one node in a tightly integrated drive chain. The A06B-6093-H101 communicates with the CNC controller via the FSSB fiber-optic link, which also connects to adjacent amplifier axes and the spindle amplifier module — often an A06B-6102 or A06B-6114 series unit. Confirming that the fiber-optic cable routing and connector condition are intact before powering up the replacement module prevents false fault codes and axis alarms.
The servo rack backplane must be inspected for corrosion, bent connector pins, or heat damage before inserting the new amplifier. In multi-axis configurations, the A06B-6093-H101 shares the DC bus with neighboring axis modules, so a shorted or degraded adjacent amplifier can immediately damage a new unit. It is advisable to test each axis independently using the FANUC diagnostic screens before enabling full-axis coordinated motion.
For facilities also upgrading their HMI, the transition from older FANUC MDI panels to current iHMI or PANEL i units may require updating the PMC ladder program to reflect new I/O address mappings. If the control cabinet includes a FANUC I/O Module such as the A03B-0815 or A03B-0819 series, verify that the I/O link address assignments remain consistent with the existing PLC logic. Operators should also confirm that the Pulsecoder feedback from the connected servo motor — whether an αiS, αiF, or βiS series motor — is correctly recognized by the controller after the amplifier swap, as encoder type mismatches will trigger SV alarm codes.
For systems that include a FANUC Dual Check Safety (DCS) configuration, the safety parameter file must be re-validated after any servo amplifier replacement. The DCS speed and position monitoring functions reference axis-specific parameters that are tied to the amplifier’s rated specifications. Skipping this step can result in unexpected E-stop triggers during production restart.
Downtime Control During System Migration
Minimizing unplanned downtime is the primary concern for any production facility undertaking a servo amplifier replacement. The recommended approach is to pre-stage the A06B-6093-H101 as a verified spare before the original unit fails — a strategy known as cold standby provisioning. When an emergency replacement is required, having the module on-hand with a pre-printed parameter backup (SRAM backup via FANUC boot screen or CF card) allows the maintenance team to restore axis parameters, tool offsets, and PMC data within minutes rather than hours.
Before powering down the machine, capture a full backup of the CNC memory including: servo parameters (Series 2000 parameters), spindle parameters, PMC program and data, pitch error compensation data, and macro variables. This backup should be stored on a CF card or USB memory and kept with the machine documentation. Upon installing the A06B-6093-H101, restore the parameter file, perform a servo initialization sequence, and run a dry-cycle test at reduced feedrate before returning the machine to production. This structured approach consistently achieves sub-4-hour recovery times even for complex multi-axis retrofit scenarios.
Retrofit Support FAQ
Q1: Is the A06B-6093-H101 a direct drop-in replacement for my existing Alpha Series amplifier?
Yes. The A06B-6093-H101 is designed as a direct slot replacement within the Alpha Series servo rack. The FSSB fiber-optic interface, DC bus connections, and terminal block layout are compatible with the original installation. No rewiring or rack modification is required in standard configurations. Always verify the axis number assignment in the CNC parameter table matches the physical slot position after installation.
Q2: What commissioning steps are required after installation?
After physical installation, restore the CNC parameter backup, confirm FSSB axis recognition in the servo diagnostic screen, verify Pulsecoder feedback signal integrity, and run a reference return (ZRN) cycle on each affected axis. Check servo alarm history for any residual fault codes. For DCS-equipped machines, re-validate the safety parameter file before enabling automatic operation.
Q3: How do I confirm wiring and terminal compatibility before installation?
Compare the terminal block diagram in the A06B-6093-H101 maintenance manual against your existing wiring schematic. Key connections include: MCC (magnetic contactor control), ESP (emergency stop), DC bus (P/N terminals), and motor power output (U/V/W). Feedback cable connectors (CXA2A/CXA2B) should be inspected for pin condition. If the existing cable uses an older 20-pin feedback connector, confirm compatibility with the amplifier’s feedback interface before proceeding.
Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
Every A06B-6093-H101 unit undergoes functional verification testing prior to shipment, including power-on self-test, FSSB communication check, and output stage integrity verification. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Units are shipped with anti-static packaging and include a test report. Warranty claims are processed with priority turnaround to minimize production impact.
