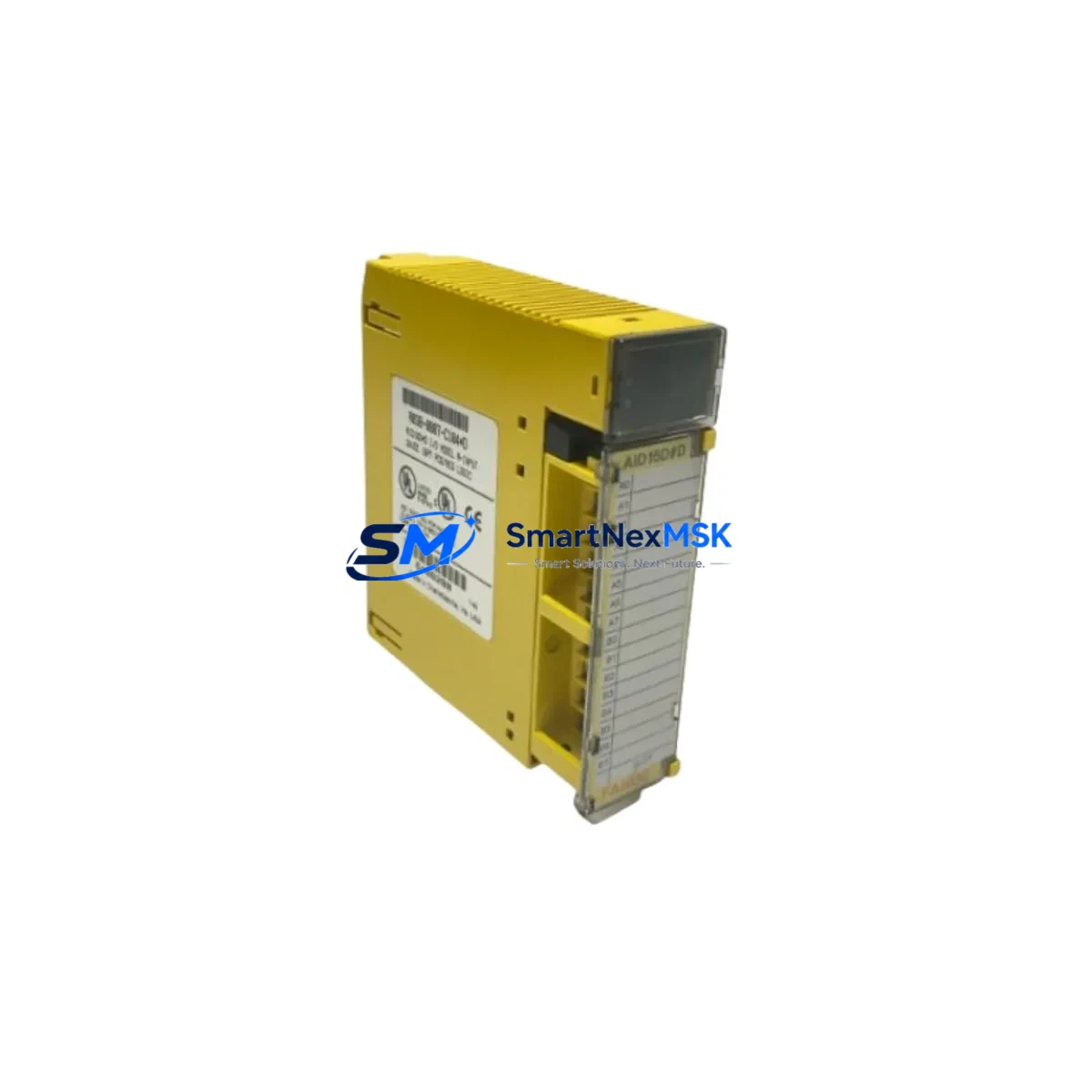

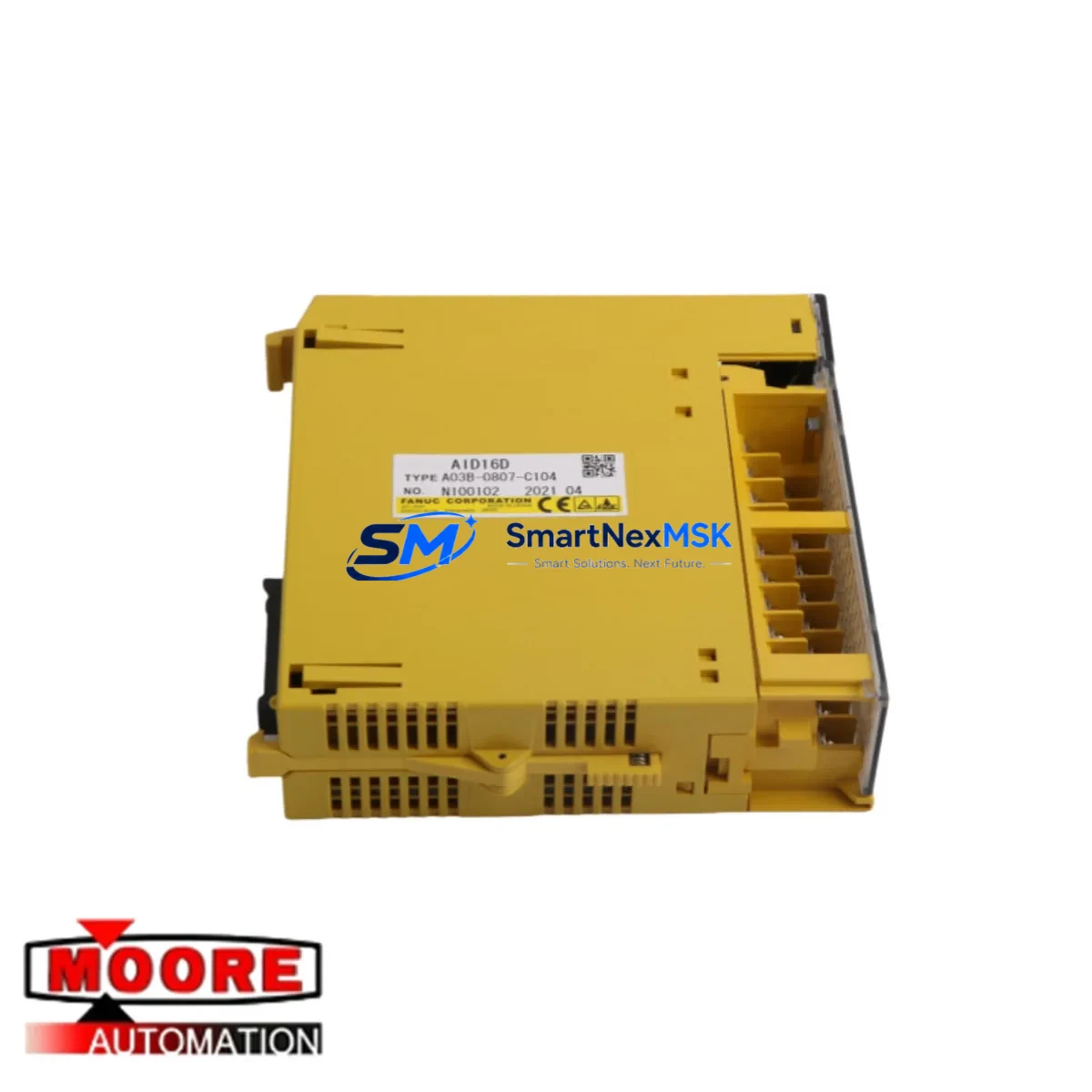

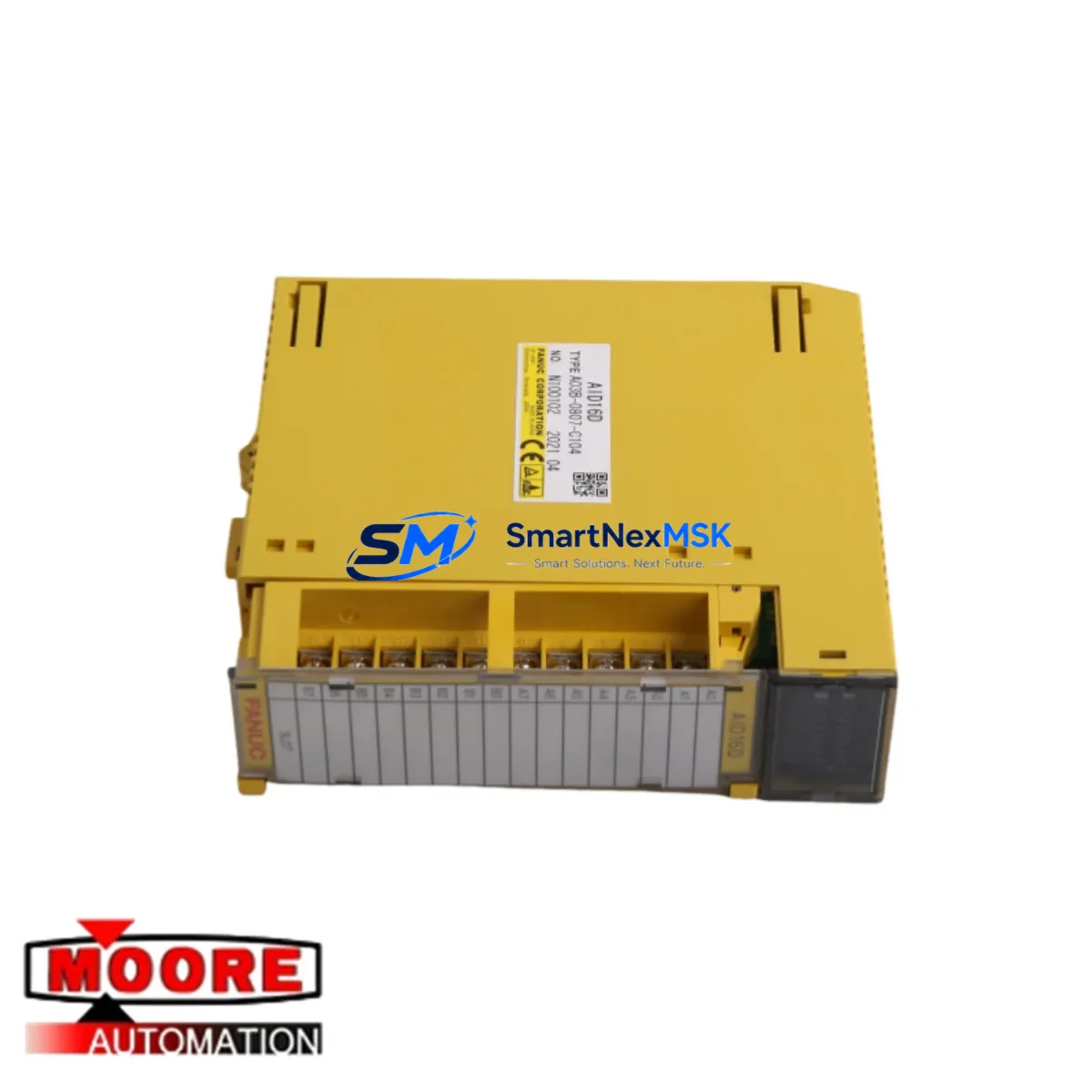

FANUC AID16D A03B-0807-C104 Safety-Enhanced Digital Input

FANUC AID16D A03B-0807-C104 Safety-Enhanced Digital Input for Harsh Industrial Sites

In high-load, high-interference industrial environments — from continuous petrochemical processing lines to heavy-duty CNC machining centers — the integrity of every digital input signal is a direct safety variable. The FANUC AID16D A03B-0807-C104 is a 16-point ruggedized digital input module engineered for the FANUC Series 0i CNC platform, purpose-built to maintain reliable signal acquisition under the electrical stress, mechanical vibration, and thermal cycling that characterize demanding industrial control cabinets.

Signal integrity failures in digital input circuits are among the leading causes of unplanned machine stops, interlock misreads, and safety system false trips. The AID16D A03B-0807-C104 addresses this risk through robust optical isolation on each input channel, suppressing common-mode noise and preventing ground loop interference from propagating into the CNC controller’s logic core. In environments where variable-frequency drives, servo amplifiers such as the FANUC αi-B series servo amplifiers, and high-current contactors operate in close proximity, this isolation barrier is the first line of defense against signal drift and spurious input activation.

The module integrates directly into the FANUC Series 0i-D and 0i-F control architectures via the I/O Link bus, maintaining deterministic scan-cycle communication with the PMC ladder logic. This deterministic behavior is critical in safety-relevant applications: emergency stop circuits, axis overtravel detection, door interlock monitoring, and spindle orientation confirmation all depend on the PMC receiving accurate, latency-free input states. Any communication anomaly — whether caused by bus noise, connector degradation, or module instability — can result in a safety interlock failure to respond, or conversely, a nuisance trip that halts production unnecessarily.

Within a properly configured control cabinet, the AID16D A03B-0807-C104 operates alongside complementary I/O infrastructure including the FANUC AOD16D A03B-0807-C114 digital output module, which drives solenoid valves, indicator lamps, and relay coils in the same interlock chain. The power distribution to both modules is typically managed through the FANUC A02B-0323-C001 I/O Unit-MODEL A base unit, which provides the regulated 24 VDC logic supply and the mechanical backplane for module seating. Surge events on the 24 VDC rail — common in facilities with large motor starters or welding equipment — can corrupt module logic if the power supply lacks adequate transient suppression. Pairing the AID16D with a FANUC A16B-1212-0901 power supply board or an equivalent regulated DC source with built-in surge clamping significantly reduces this exposure.

In steel mills, port crane control systems, and mining conveyor drives, the control cabinet environment presents additional challenges: ambient temperatures that cycle between cold startup and sustained high-load heat, particulate contamination from metal dust or coal fines, and vibration transmitted through the machine structure. The AID16D A03B-0807-C104’s conformal-coated PCB and wide operating temperature tolerance allow it to maintain specification across these conditions without the signal degradation that affects lower-grade input modules. When used in conjunction with the FANUC A20B-2101-0390 main CPU board and the FANUC A02B-0307-B502 Series 0i-D control unit, the complete control system achieves the environmental resilience required for continuous, unattended operation in Class 1 industrial zones.

For water treatment facilities and chemical processing plants where the control system must maintain safe state during power interruptions, the AID16D’s low self-consumption and fast re-initialization after power restoration minimize the window of undefined input states during UPS switchover. Coordinating this module with a FANUC A06B-6096-H208 servo drive and appropriate safety relays — such as those in the Pilz PNOZ or Omron G9SA families — ensures that the full interlock chain from field sensor to drive inhibit remains coherent through power transients.

Replacement planning is a practical safety consideration in long-lifecycle CNC installations. FANUC Series 0i systems routinely operate for 15–20 years in production environments, and the AID16D A03B-0807-C104 is a known wear item in high-cycle applications where input channels are exercised thousands of times per shift. Maintaining a qualified spare — sourced, tested, and documented — eliminates the multi-week lead time risk that can arise when sourcing legacy FANUC I/O modules through standard distribution channels. Every unit supplied by SMARTNEXMSK undergoes functional verification against FANUC I/O Link protocol specifications before shipment, with test records available on request.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust FANUC Series 0i control cabinet is a system — not a collection of individual components — and the AID16D A03B-0807-C104 performs at its rated reliability only when the surrounding infrastructure meets the same standard. In practice, this means the 24 VDC logic supply feeding the I/O Unit-MODEL A base must be sourced from a regulated, surge-clamped power supply; the FANUC A16B-1212-0901 power supply board or an equivalent industrial DIN-rail PSU with ≥20 ms holdup time is the appropriate choice for facilities with unstable grid power.

The I/O Link cable connecting the AID16D to the FANUC A02B-0307-B502 Series 0i-D main control unit should be routed away from high-current power cables and servo drive output lines. In cabinets housing FANUC αiSV series servo amplifiers or FANUC αiSP spindle amplifiers, the switching transients on the motor output conductors can induce millivolt-level noise on adjacent signal cables — sufficient to cause marginal input state transitions on sensitive digital input channels. Proper cable segregation, ferrite cores on the I/O Link cable, and cabinet-level EMC bonding to a clean earth bus are standard mitigation measures.

For safety interlock circuits — E-stop chains, axis hardware overtravel, chuck open/close confirmation — the input signals feeding the AID16D should be sourced through safety-rated field devices: positive-opening limit switches, dual-channel safety relays, or safety light curtain output contacts. The module’s optical isolation ensures that a field wiring fault (short to 24 V or short to 0 V) on one input channel does not corrupt adjacent channels or the I/O Link bus. The FANUC AOD16D A03B-0807-C114 output module in the same base unit drives the corresponding output coils — solenoid valves, brake release relays, and indicator beacons — completing the interlock loop from sensor to actuator within a single, coherent I/O architecture.

Where the control system interfaces with a FANUC A20B-2101-0390 main CPU board running complex PMC ladder programs, the deterministic I/O scan provided by the I/O Link bus ensures that input state changes are captured within the defined scan period, preventing the race conditions that can cause interlock logic to miss a brief fault signal. This is particularly important in high-speed machining applications where axis overtravel events can occur within milliseconds of a programmed move.

Critical Industrial Safety Applications

Petrochemical and Refinery Automation: In continuous process plants, CNC-controlled valve actuators and compressor control panels rely on digital input modules to monitor position feedback, pressure switch states, and emergency shutdown (ESD) trigger signals. The AID16D A03B-0807-C104’s optical isolation and conformal coating make it suitable for control panels located in areas with hydrocarbon vapor exposure, where electrical sparking from degraded components is a recognized ignition risk. Its stable operation across the full industrial temperature range ensures that morning cold-start conditions and peak-load thermal environments do not produce differential input threshold behavior.

Power Generation and Substation Control: Turbine control systems and generator protection panels use digital inputs to monitor breaker status, relay trip signals, and synchronization interlocks. In these environments, the 24 VDC input circuits are exposed to induced voltages from high-current bus bars and transformer switching transients. The AID16D’s per-channel optical isolation provides the galvanic separation required to prevent these induced voltages from reaching the CNC controller’s logic circuits.

Mining and Mineral Processing: Conveyor drive control panels, crusher control systems, and hoisting machine controllers in underground and surface mining operations operate in environments with high vibration, coal or mineral dust, and frequent power quality events from large motor starts. The ruggedized construction of the AID16D A03B-0807-C104 — combined with a properly specified cabinet with IP54 or higher enclosure rating — supports reliable continuous operation in these conditions. Spare module availability is a critical operational requirement in mining, where a control system failure can halt an entire production section.

Metallurgy and Steel Production: Rolling mill and continuous casting control systems demand zero-tolerance reliability from their digital I/O infrastructure. A missed or delayed input signal in a strand guide position interlock or a cooling water flow confirmation circuit can result in equipment damage or personnel hazard. The AID16D’s deterministic I/O Link communication and robust isolation architecture support the response-time and reliability requirements of these critical control loops.

Water and Wastewater Treatment: SCADA-integrated CNC control panels in pumping stations and treatment facilities monitor level switches, flow transmitter digital outputs, and valve position feedback through digital input modules. The AID16D’s low power consumption and stable operation during UPS-powered operation make it well-suited to facilities where grid power interruptions are managed through battery backup systems.

Safety and Quality FAQ

Q: What does the 12-month warranty cover for the AID16D A03B-0807-C104?
A: The 12-month warranty covers functional failure of the module under normal industrial operating conditions — including I/O Link communication faults, channel input failure, and power supply interface defects. It does not cover damage resulting from incorrect installation voltage, physical impact, or operation outside the specified environmental range. Warranty claims are processed with priority dispatch of a replacement unit to minimize production downtime.

Q: What pre-shipment testing is performed on each unit?
A: Every AID16D A03B-0807-C104 unit undergoes functional verification on a FANUC Series 0i-compatible test bench, confirming I/O Link bus communication, all 16 input channel responses, optical isolation integrity, and 24 VDC power consumption within specification. Test records are available on request for quality documentation purposes.

Q: Is this module compatible with both FANUC Series 0i-D and 0i-F controllers?
A: Yes. The AID16D A03B-0807-C104 is compatible with FANUC Series 0i-D and 0i-F control units using the I/O Unit-MODEL A architecture. Compatibility with specific machine configurations should be confirmed against the machine builder’s I/O assignment documentation. Our technical team can assist with compatibility verification prior to order.

Q: Can you support long-term supply for ongoing maintenance programs?
A: Yes. SMARTNEXMSK maintains stock of FANUC Series 0i I/O modules including the AID16D A03B-0807-C104 to support planned maintenance programs, annual spare parts procurement, and emergency replacement requirements. Volume pricing and reserved stock arrangements are available for customers with multi-machine fleets or long-term service contracts.
