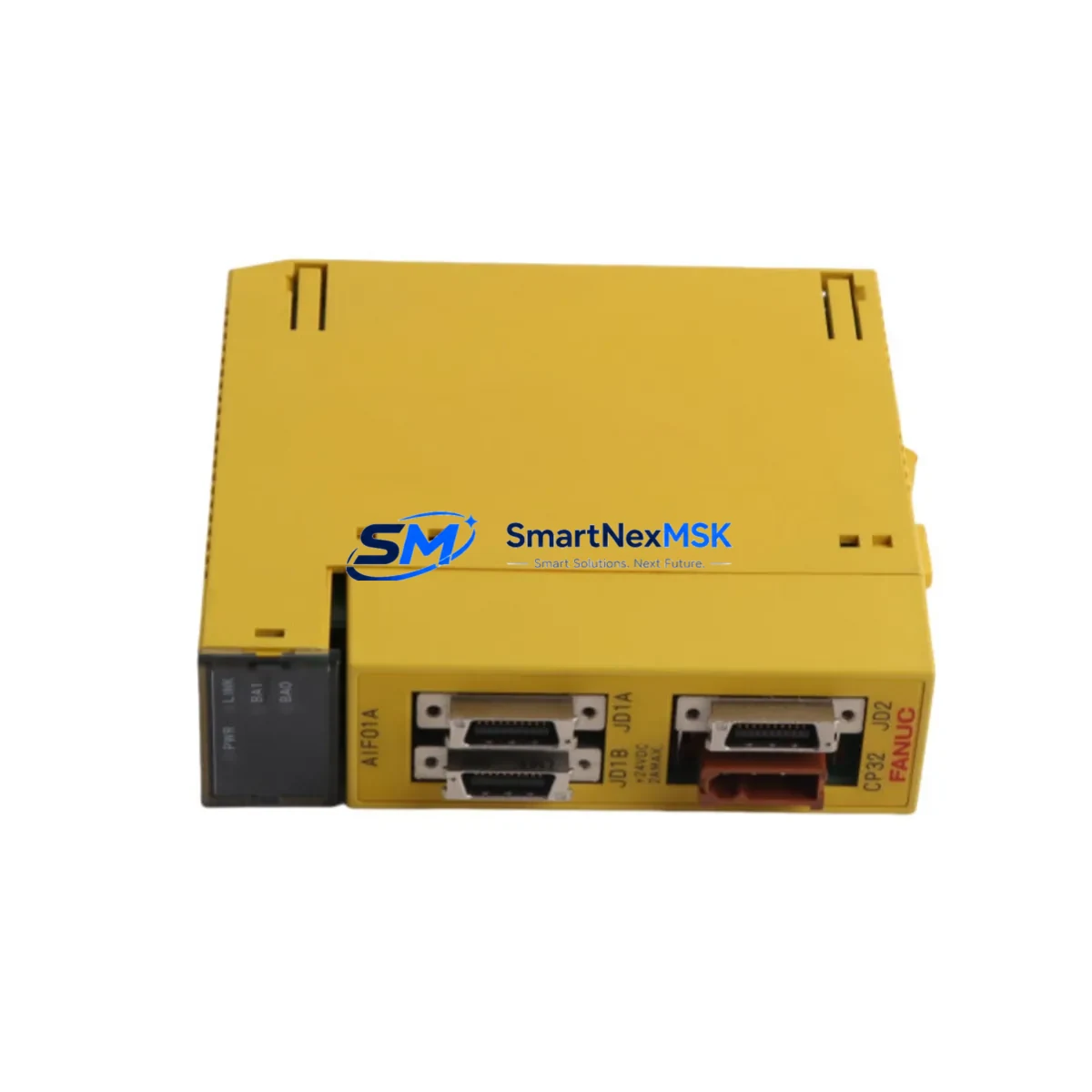

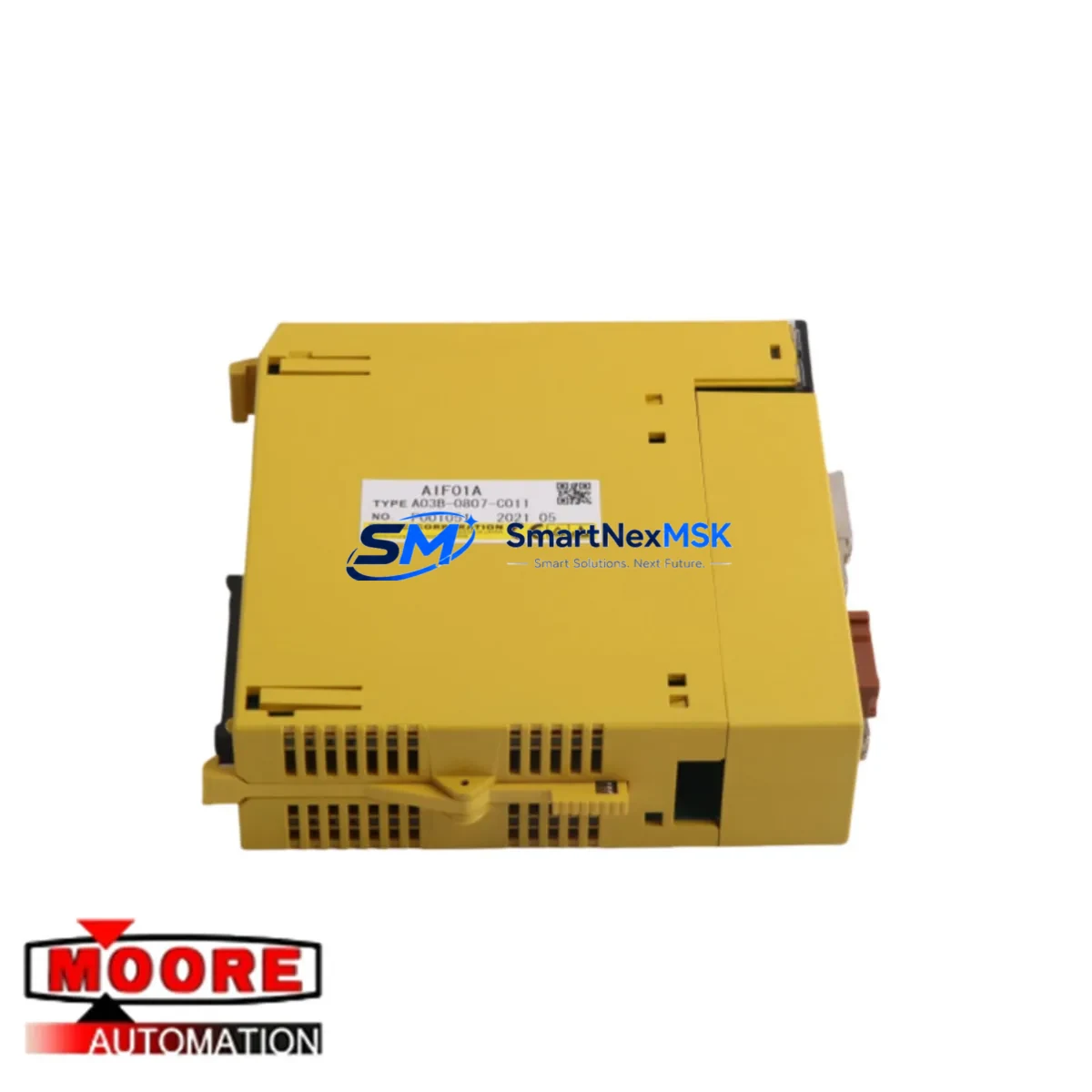

FANUC AIF01A A03B-0807-C011 Maintenance-Ready Spare 0i

FANUC AIF01A A03B-0807-C011 Maintenance-Ready Spare for 0i Automation

The FANUC AIF01A (A03B-0807-C011) is an original analog input module designed for the FANUC Series 0i CNC control system, operating within the I/O Unit-A distributed I/O architecture. In industrial environments where CNC machining centers, turning centers, and multi-axis milling lines depend on continuous analog signal acquisition — spindle load feedback, servo torque monitoring, coolant pressure sensing, and axis override control — a failed or degraded analog input module can halt production immediately. Sourcing a verified, tested replacement unit is the fastest path to restoring full machine capability without compromising system integrity.

This listing provides a maintenance-ready, original FANUC AIF01A spare module, pre-tested before dispatch, backed by a 12-month warranty, and available for rapid international shipment. Whether you are managing a planned overhaul, responding to an unscheduled fault, or building a strategic spare parts buffer for aging 0i-series machines, this module is stocked and ready to ship.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the AIF01A A03B-0807-C011 in a FANUC 0i-series CNC system, a disciplined maintenance engineer will not stop at the module itself. The analog input circuit is part of a broader signal chain, and adjacent components should be inspected simultaneously to prevent repeat failures and reduce future downtime.

Start with the I/O Unit-A base unit (A03B-0807-C001 or equivalent) — the backplane connector that seats the AIF01A is subject to vibration-induced wear and oxidation over years of operation. Inspect the connector for bent pins, carbon deposits, or loose retention clips. Next, verify the 24 VDC power supply module feeding the I/O Unit-A; a marginal power supply can cause intermittent analog signal errors that mimic a faulty input module. Common FANUC power supply units in this architecture include the A16B-1212-0901 and A16B-2203-0360 series.

Check the analog signal wiring and shielding at the terminal block. Unshielded or improperly grounded analog cables introduce noise that degrades measurement accuracy — particularly in environments with variable-frequency drives (VFDs) or servo amplifiers nearby. If the machine uses a FANUC βi-series or αi-series servo amplifier (such as the A06B-6130 or A06B-6117 series), confirm that the servo feedback cables are routed away from analog signal lines.

For systems using the FANUC Series 0i-D or 0i-F CNC unit, also inspect the FSSB (FANUC Serial Servo Bus) fiber optic cables connecting the CNC to servo amplifiers — degraded fiber links can produce cascading alarms that are incorrectly attributed to I/O faults. Additionally, review the DI/DO module (A03B-0807-C002 or similar) installed in adjacent slots of the I/O Unit-A, as shared backplane faults can affect multiple modules simultaneously.

If the machine includes a FANUC Panel i or 0i-series operator panel, verify that the MDI unit and machine operator panel (MOP) connections are secure — operator panel faults can sometimes generate misleading analog I/O alarms. For facilities running multiple 0i-series machines, maintaining at least one AIF01A spare per production line is a recognized best practice for minimizing mean time to repair (MTTR). Pair this with a stocked FANUC battery unit (A02B-0323-K102) for CNC memory backup, and a spare I/O Link cable to cover the full scope of common field replacements.

Site Replacement Workflow

Replacing the AIF01A A03B-0807-C011 on-site is a straightforward procedure when the correct spare is available and the replacement follows a structured sequence. Begin by powering down the CNC system completely and locking out the machine per your facility’s LOTO procedure. Disconnect the I/O Unit-A connector harness and carefully extract the faulty AIF01A module from its slot — note the slot position, as the CNC parameter configuration may reference specific slot addresses for analog input channels.

Insert the replacement AIF01A into the same slot position. Reconnect the connector harness and restore power. On first power-up, navigate to the FANUC diagnostic screen (typically accessible via the SYSTEM key → PMC → I/O) to verify that the module is recognized and that analog input channel values are within expected ranges. If the machine was previously running with a degraded module, recalibrate the analog input offsets and gains per the machine tool builder’s (MTB) parameter documentation.

This replacement approach is compatible across the full FANUC 0i-MA, 0i-MB, 0i-MC, 0i-TA, 0i-TB, and 0i-TC variants without firmware modification, provided the I/O Unit-A base unit firmware is at a compatible revision. For older 0i-A and 0i-B series machines, confirm hardware revision compatibility before installation. All units supplied through this listing are tested under load conditions prior to dispatch, reducing the risk of DOA (dead-on-arrival) failures that extend downtime beyond the initial fault.

Spare Parts Support FAQ

Q1: Is this AIF01A A03B-0807-C011 compatible with both FANUC 0i-MA and 0i-TC series machines?
Yes. The AIF01A module is designed for the FANUC I/O Unit-A architecture, which is shared across the 0i-MA, 0i-MB, 0i-MC (milling) and 0i-TA, 0i-TB, 0i-TC (turning) variants. Slot assignment and parameter configuration may differ by machine tool builder, but the hardware module is interchangeable across these series.

Q2: How is the module tested before shipment?
Each unit undergoes functional verification including power-on self-test, analog channel signal integrity check, and backplane connector inspection. Units that fail any test stage are quarantined and not dispatched. A test report is available upon request for critical maintenance applications.

Q3: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of dispatch. The warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are supported with replacement or refund at the supplier’s discretion.

Q4: Can I order multiple units for a spare parts buffer, and what lead times apply?
Yes. Multi-unit orders for spare parts inventory programs are supported. In-stock units ship within 1–3 business days. For larger buffer orders or long-term supply agreements, contact the sales team directly to confirm availability and arrange priority allocation. Maintaining a minimum of one AIF01A per production line is recommended for facilities operating FANUC 0i-series machines in continuous or multi-shift production environments.
