FANUC AOR16G A03B-0819-C161 Retrofit-Ready Relay Output Module

FANUC AOR16G A03B-0819-C161 Retrofit-Ready Relay Output Module for Series 0/16/18/21 Control Systems

The FANUC AOR16G (Part No. A03B-0819-C161) is a 16-point relay output module engineered for direct integration into FANUC Series 0, Series 15, Series 16, Series 18, and Series 21 programmable logic controller platforms. As legacy FANUC CNC and PLC systems approach end-of-life support cycles, the AOR16G has become a critical retrofit component for manufacturers seeking to extend the operational lifespan of existing control cabinets without committing to a full platform migration. Whether you are replacing a failed output module on a production line or executing a planned upgrade of an aging control system, the AOR16G delivers the relay contact capacity, backplane compatibility, and I/O addressing consistency required for a smooth, low-risk transition.

The module provides 16 independent relay output channels, each rated for resistive and inductive loads commonly encountered in machine tool, transfer line, and process automation environments. Output contacts are suitable for driving solenoid valves, motor contactors, indicator lamps, and auxiliary relay coils — the same load types found throughout FANUC-controlled machining centers, injection molding machines, and automated assembly systems. The relay architecture ensures galvanic isolation between the PLC logic bus and field wiring, a key requirement when retrofitting into cabinets where legacy wiring practices may not conform to modern EMC standards.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the AOR16G into a running production environment begins well before the module arrives on site. The first step is a thorough audit of the existing FANUC PMC (Programmable Machine Controller) ladder program to identify all Y-address assignments currently mapped to the output module being replaced. If the failed or obsolete module is an AOR08G (8-point relay output) and the replacement is the 16-point AOR16G, the address map will shift and the PMC program must be updated accordingly to avoid unintended output activation during the first power-on sequence.

Next, inspect the I/O base unit — typically an A03B-0807-C001 or A03B-0819-series base — to confirm the slot position and backplane connector type. The AOR16G uses the standard FANUC I/O Link A-type interface, which is mechanically and electrically compatible across the Series 16, 18, and 21 CNC platforms. For older Series 0 and Series 15 installations, verify the I/O Link master module firmware version, as early revisions may require a parameter update to recognize the expanded point count of the AOR16G.

Terminal wiring is the next critical checkpoint. The AOR16G uses a removable screw-terminal connector block, which simplifies field replacement without disturbing existing cabinet wiring. Before disconnecting the old module, photograph or document the terminal assignments, particularly for mixed-polarity circuits where common (COM) terminals are shared across output groups. Confirm that the load current per channel does not exceed the relay contact rating — a common oversight when retrofitting into cabinets where field devices have been upgraded to higher-power actuators since the original system commissioning.

For systems that also require I/O expansion beyond the 16 relay points, the AOR16G is frequently deployed alongside the AOD16A (16-point transistor output module) or the AID16A (16-point DC input module) on the same I/O base, allowing mixed relay and solid-state output configurations within a single rack. In multi-rack configurations connected via the FANUC I/O Link cable (A66L-0001-0284 or equivalent), ensure that the group address (GRP) parameter for the AOR16G slot is set correctly in the CNC parameter screen to avoid address conflicts with other I/O modules on the link.

HMI screen updates are often overlooked during output module retrofits. If the existing FANUC Series 16i or 18i operator panel displays diagnostic screens that reference specific Y-address bit states, verify that the screen data (F-ROM or DATA-ROM content) reflects the updated address map after the PMC ladder modification. For systems using a standalone HMI connected via RS-232C or FANUC FOCAS Ethernet, confirm that the HMI tag database is synchronized with the revised PMC output assignments before returning the machine to production.

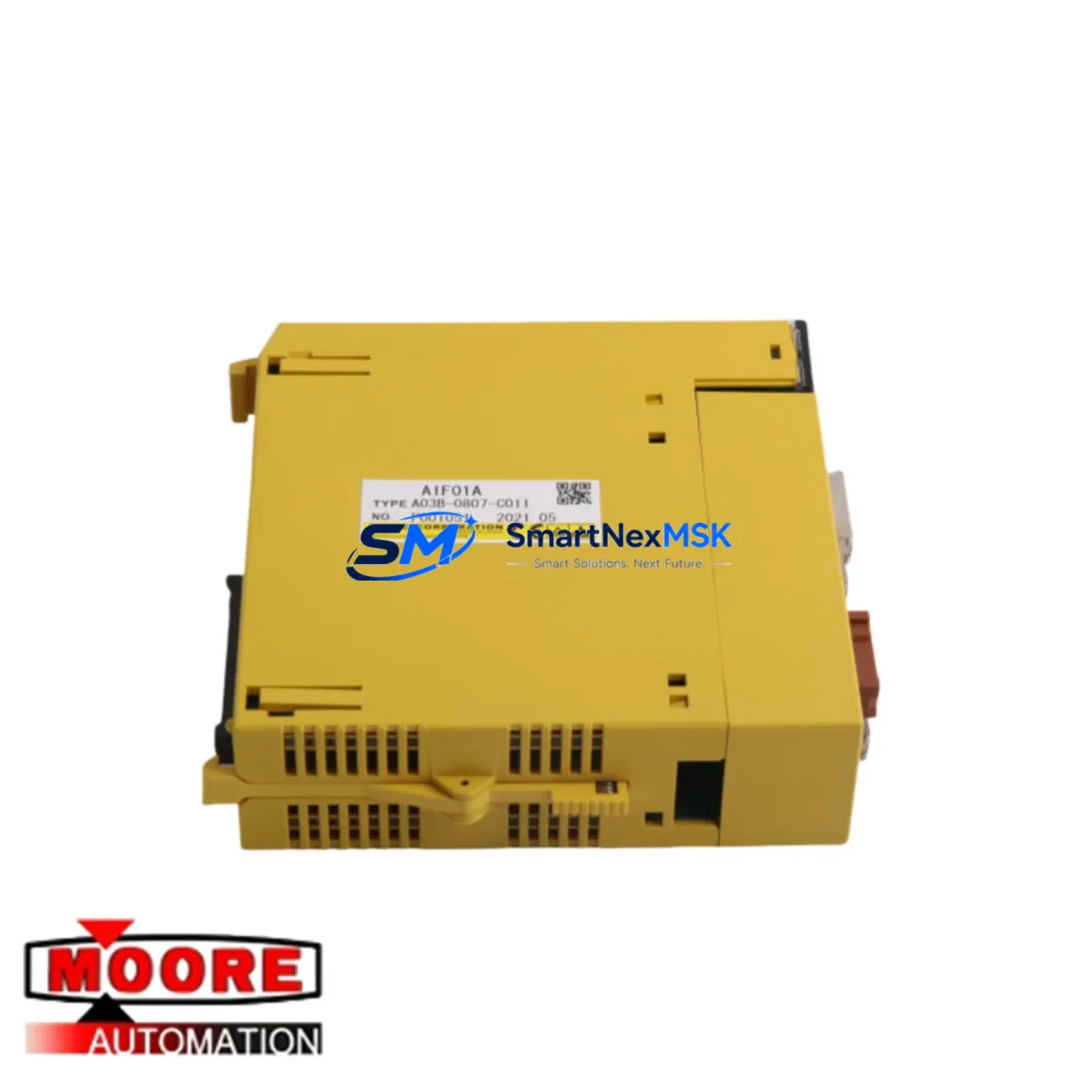

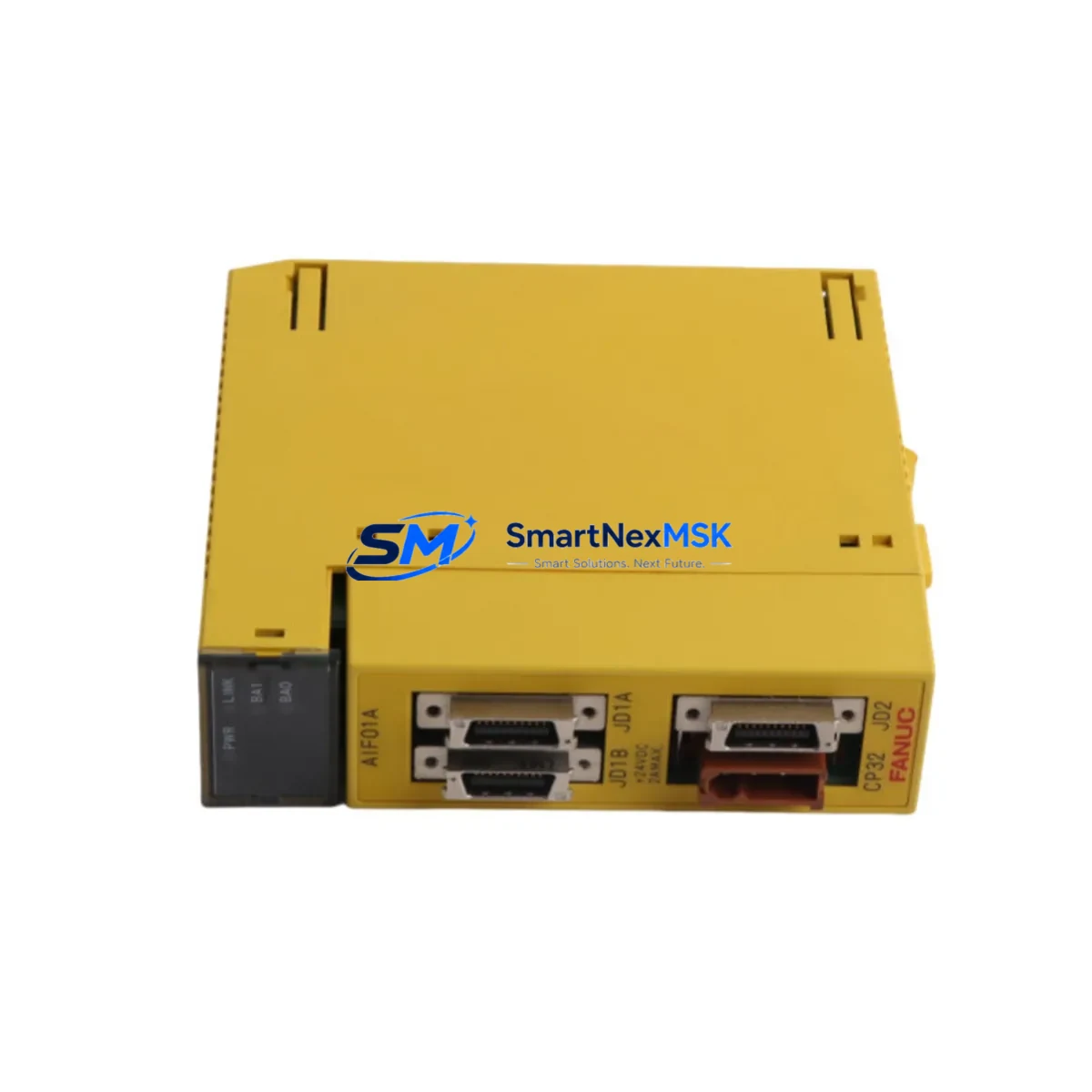

Power supply capacity is another factor that requires verification during retrofit planning. The AOR16G draws logic power from the FANUC I/O base power supply — typically a PSU module such as the A03B-0807-C011 or A03B-0819-C011. Confirm that the existing power supply can support the additional relay coil current if the AOR16G is being added to an existing rack rather than replacing a module of identical type. In high-density I/O configurations, a supplementary 24 VDC power supply may be required to maintain stable operation across all modules on the base.

Downtime Control During System Migration

Minimizing unplanned downtime during an output module replacement is the primary operational concern for maintenance teams working on FANUC-controlled production equipment. The AOR16G retrofit process is designed to be completed within a single planned maintenance window, typically two to four hours for an experienced controls technician, provided that all preparatory steps — PMC backup, terminal documentation, spare parts staging, and parameter verification — are completed in advance.

Before removing the existing output module, perform a full PMC program backup using the FANUC LADDER-III software or the CNC’s built-in memory card backup function. Store the backup on both the CNC memory card (CompactFlash or PCMCIA, depending on the CNC generation) and an external PC to ensure redundancy. This backup preserves the complete ladder logic, including all Y-address assignments, timer values, counter presets, and keep relay states, allowing rapid restoration if the commissioning process encounters an unexpected issue.

With the PMC backup secured, power down the CNC and I/O base following the FANUC-recommended shutdown sequence: disable the servo amplifier (SVU or SVM module), wait for the DC link capacitors to discharge, then remove the 24 VDC control power. Do not remove the AOR16G or any other I/O module while the I/O base is energized, as hot-swap is not supported on FANUC I/O Link systems and may corrupt the I/O Link communication parameters stored in the CNC’s SRAM.

After installing the AOR16G and reconnecting the terminal block, restore power and enter the CNC parameter screen to verify the I/O Link configuration. Confirm that the module is recognized at the correct group and slot address. Run the PMC diagnostic screen to check that all 16 output bits (Y-addresses) are visible and in the OFF state before enabling the servo system. Perform a channel-by-channel output test using the PMC force output function to verify relay contact closure and field device response before releasing the machine to production. Document the commissioning results, including contact resistance measurements and load current readings, as part of the retrofit record for the 12-month warranty period.

Retrofit Support FAQ

Q1: Is the AOR16G A03B-0819-C161 a direct drop-in replacement for the AOR08G on a Series 18i-MB machining center?
A: The AOR16G is physically compatible with the same I/O base slot as the AOR08G, but it is not a transparent drop-in replacement due to the difference in output point count (16 vs. 8 points). The PMC ladder program must be reviewed and the Y-address map updated to account for the additional 8 output points. If only 8 points are required, the AOR16G can be configured to use only the lower 8 channels, with the upper 8 left unassigned in the PMC program.

Q2: What wiring changes are required when retrofitting the AOR16G into an existing Series 16i control cabinet?
A: The AOR16G uses a removable screw-terminal connector block with the same pitch and connector style as other FANUC I/O relay output modules. In most cases, the existing field wiring can be transferred directly to the new terminal block without modification. Verify COM terminal groupings and confirm that the load polarity matches the relay contact configuration (normally open vs. normally closed) for each channel before energizing the field circuits.

Q3: How is compatibility verified before shipment, and what does the 12-month warranty cover?
A: Each AOR16G unit undergoes a functional test on a FANUC-compatible I/O base prior to shipment. The test verifies relay contact closure, I/O Link communication handshake, and logic power consumption within specification. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage on output terminals, or operation outside the specified ambient temperature range. A functional test report is available upon request.

Q4: Can the AOR16G be used in a mixed I/O configuration alongside transistor output and digital input modules on the same base?
A: Yes. The AOR16G is fully compatible with mixed-module configurations on FANUC A03B-0807 and A03B-0819 series I/O bases. It can be installed in any available slot alongside modules such as the AOD16A (transistor output), AID16A (DC input), AID32A (32-point DC input), and AIA16A (AC input) without conflict, provided that the total power consumption of all modules does not exceed the I/O base power supply rating. Assign unique group and slot addresses to each module in the CNC I/O Link parameter screen to avoid address overlap.
