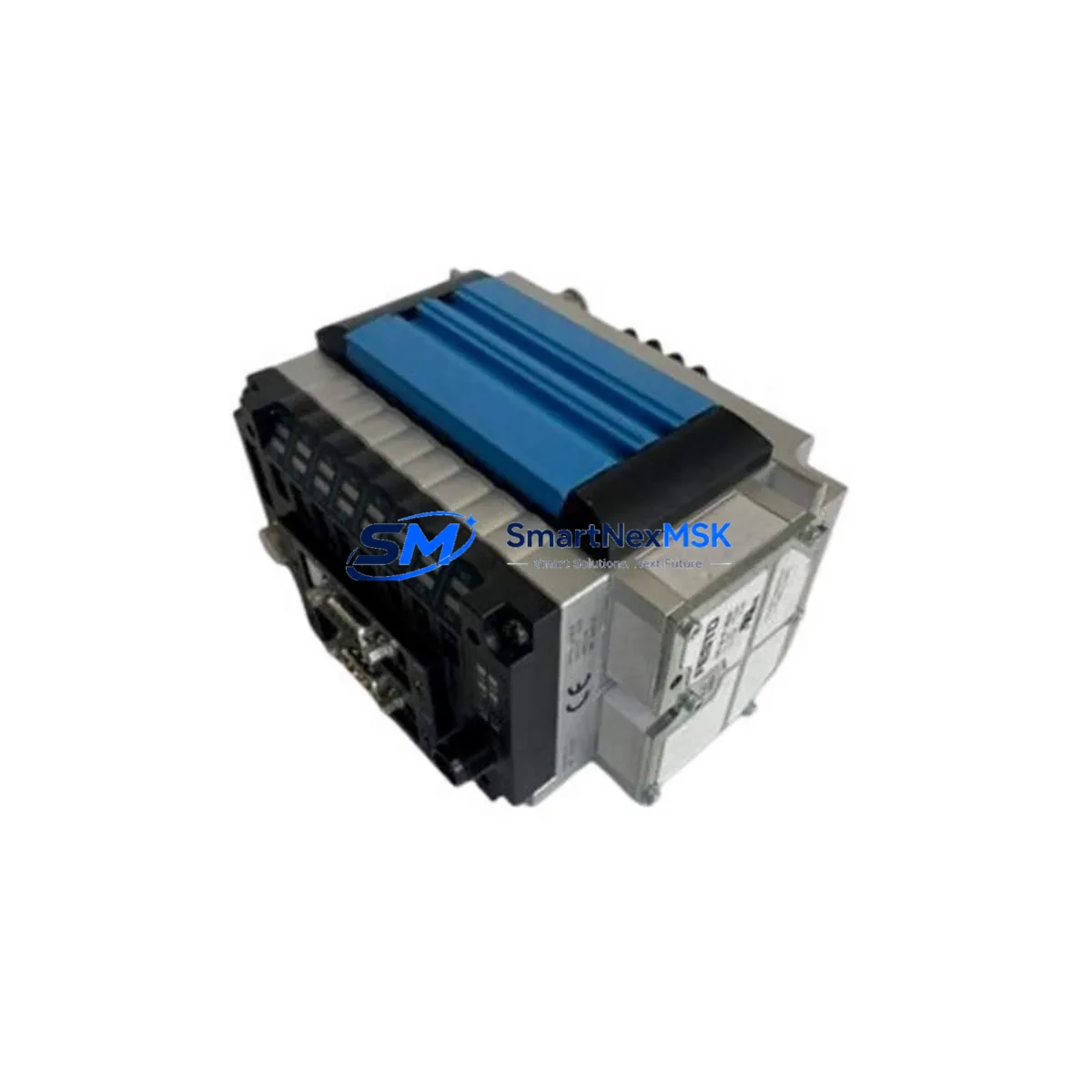

FESTO CPV10-VI 18200 Safety-Enhanced Valve Manifold

FESTO CPV10-VI 18200: Safety-Enhanced Pneumatic Valve Manifold for Harsh Industrial Control

The FESTO CPV10-VI 18200 is a compact, high-reliability pneumatic valve manifold engineered for demanding industrial automation environments where control continuity, signal integrity, and operational safety are non-negotiable. Designed as part of FESTO’s proven CPV10 Series, this manifold delivers consistent pneumatic switching performance across continuous production cycles, high-vibration machinery, and safety-critical interlock circuits. Whether deployed in a centralized control cabinet, a distributed field panel, or a hazardous-area enclosure, the CPV10-VI 18200 is built to minimize the risk of control interruption, valve misoperation, and unplanned process downtime.

In heavy industrial environments — including petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical processing lines, and port automation systems — pneumatic valve manifolds are the last line of defense between a stable process and a costly safety incident. The FESTO CPV10-VI 18200 addresses this responsibility with robust IP65-rated sealing, vibration-resistant internal valve construction, and a modular architecture that supports rapid field replacement without full system shutdown. Its compact form factor integrates cleanly into standard DIN-rail control cabinets alongside FESTO CPV10 sub-bases, FESTO MPA valve terminals, and FESTO VTUG valve manifold blocks, enabling a unified pneumatic safety strategy across the entire control enclosure.

Signal reliability is a core safety concern in any pneumatic control loop. The CPV10-VI 18200 is engineered to maintain consistent solenoid response under fluctuating supply pressures, ensuring that actuator commands from a Siemens S7-300 PLC, an Allen-Bradley ControlLogix controller, or a Schneider Electric Modicon M340 are executed without delay or ambiguity. When paired with FESTO CPV10 electrical connection blocks and FESTO SBO-Q-… fieldbus nodes, the manifold integrates seamlessly into PROFIBUS-DP, DeviceNet, or EtherNet/IP communication architectures, reducing the risk of communication anomalies that could trigger spurious valve actuation or missed shutdown commands in safety interlock loops.

Power supply stability is equally critical. In control cabinets where 24 VDC solenoid power is shared across multiple valve islands, surge events and voltage dips can cause valve misoperation. The CPV10-VI 18200’s solenoid coils are rated for wide-range voltage tolerance, and when the manifold is installed alongside FESTO CPV10 pressure regulators, FESTO MS series service units, and appropriately sized 24 VDC DIN-rail power supplies, the pneumatic control loop maintains safe, predictable behavior even during transient grid disturbances. This is particularly important in arc furnace environments, large motor start-up sequences, and high-cycle stamping or pressing operations where electrical noise is endemic.

The modular design of the CPV10 platform means that individual valve stations — including the CPV10-VI 18200 — can be replaced in the field without disturbing adjacent stations or disconnecting the manifold body from its sub-base. This dramatically reduces mean time to repair (MTTR) in critical production lines, supporting the kind of rapid spare-part substitution that safety-conscious maintenance teams demand. All units supplied by SMARTNEXMSK are pre-tested prior to shipment, verifying solenoid coil resistance, valve switching function, and seal integrity before the module leaves our facility.

Safety Reliability Table

Control Cabinet Protection Strategy

A robust pneumatic control cabinet in a continuous process plant is never built around a single component. The FESTO CPV10-VI 18200 performs at its safest when integrated into a well-engineered valve island assembly. In a typical CPV10-based control cabinet, the manifold is mounted on a FESTO CPV10-GE-MP-6 sub-base, which provides the pneumatic supply and exhaust porting for the valve island. Electrical connections are managed through a FESTO CPV10-VI-EP-8 electrical interface block, which consolidates solenoid wiring and simplifies cabinet layout — reducing the risk of loose connections that could cause intermittent valve faults.

For fieldbus-integrated installations, a FESTO CPV10-GE-DV-8 DeviceNet node or a FESTO CPV10-GE-DN-8 PROFIBUS-DP node is mounted at the end of the valve island, enabling direct PLC communication without discrete I/O wiring. This architecture eliminates signal wiring errors — one of the most common causes of valve misoperation in field installations. Upstream of the manifold, a FESTO MS6-LFR service unit conditions the compressed air supply, removing moisture and particulates that could degrade valve seals and cause internal leakage over time.

On the power supply side, a dedicated 24 VDC DIN-rail power supply with short-circuit protection and output filtering ensures that solenoid coils receive stable voltage even during motor start-up transients. A FESTO VAEM-L1-S-24VDC valve amplifier module can be added for applications requiring individual solenoid diagnostics and fault reporting back to the PLC. For installations in areas with elevated surge risk — such as near large transformer banks or variable-frequency drives — a PHOENIX CONTACT TRABTECH surge protection device on the 24 VDC bus provides an additional layer of protection for the entire valve island, including the CPV10-VI 18200.

In safety interlock circuits where valve position confirmation is required, the CPV10-VI 18200 can be paired with FESTO SME-8 magnetic proximity sensors mounted on the associated pneumatic actuators, feeding position feedback to the safety PLC. This closed-loop confirmation strategy is essential in emergency shutdown (ESD) systems where valve response time and position verification are mandated by functional safety standards such as IEC 61511.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: In hydrocarbon processing facilities, the CPV10-VI 18200 is deployed in pneumatic control panels managing feed valve sequencing, reactor purge cycles, and emergency isolation actuation. Its IP65 rating and robust solenoid construction ensure reliable operation in atmospheres with elevated humidity, chemical vapors, and thermal cycling. The manifold’s modular design allows maintenance teams to replace individual valve stations during planned turnarounds without removing the entire valve island from service.

Power Generation and Substation Control: In coal-fired, gas turbine, and hydroelectric power plants, pneumatic valve manifolds control cooling water flow, fuel gas isolation, and turbine bypass systems. The CPV10-VI 18200’s wide voltage tolerance and integrated surge suppression make it well-suited for control rooms where large electrical switching events create significant electromagnetic interference on the 24 VDC control bus.

Mining and Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust ingress, and temperature swings. The CPV10-VI 18200’s IP65 sealing and FESTO’s proven valve body construction provide the durability required for conveyor control, crusher sequencing, and slurry pump management in these environments. Rapid spare-part availability from SMARTNEXMSK stock ensures that unplanned downtime due to valve failure can be minimized.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on pneumatic valve manifolds for filter backwash sequencing, chemical dosing control, and sludge handling. The CPV10-VI 18200’s compatibility with unlubricated compressed air and its corrosion-resistant construction make it appropriate for wet, chemically active environments where standard valve manifolds may degrade prematurely.

Metallurgical and Steel Processing: In continuous casting lines, rolling mills, and heat treatment furnaces, pneumatic control systems must operate reliably under high ambient temperatures and intense electromagnetic fields generated by induction heating equipment. The CPV10-VI 18200, when properly installed with shielded solenoid wiring and upstream surge protection, maintains consistent switching performance in these demanding conditions.

Port Automation and Heavy Logistics: Container crane control systems, automated stacking equipment, and ship-loader pneumatic circuits require valve manifolds that can withstand salt-laden air, vibration from heavy machinery, and the duty cycles of 24/7 port operations. The CPV10-VI 18200’s robust construction and FESTO’s global service network make it a reliable choice for port automation integrators seeking long-term spare-part support.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the FESTO CPV10-VI 18200?
The 12-month warranty covers manufacturing defects in the solenoid coil, valve body, internal seals, and electrical connections. If the unit fails under normal operating conditions within the warranty period, SMARTNEXMSK will provide a replacement or full refund. The warranty does not cover damage resulting from incorrect installation, operation outside specified pressure or voltage limits, or exposure to media incompatible with the valve’s seal materials.

Q2: What pre-shipment testing is performed on each CPV10-VI 18200 unit?
Every unit undergoes a three-point pre-shipment inspection: (1) solenoid coil resistance measurement to verify coil integrity; (2) valve switching function test confirming correct port actuation under rated voltage; and (3) seal pressure test to confirm there is no internal or external leakage at rated operating pressure. Units that do not pass all three checks are not dispatched.

Q3: Is the CPV10-VI 18200 compatible with my existing FESTO CPV10 valve island?
Yes. The CPV10-VI 18200 is a standard CPV10 series valve station and is mechanically and electrically compatible with all CPV10 sub-bases, electrical interface blocks, and fieldbus nodes. It can be added to or used as a replacement within an existing CPV10 valve island without modification to the manifold body or wiring harness. If you are unsure about compatibility with a specific CPV10 configuration, contact our technical team with your existing manifold part numbers.

Q4: Can SMARTNEXMSK guarantee long-term supply of the CPV10-VI 18200 for ongoing maintenance programs?
Yes. SMARTNEXMSK maintains stock of CPV10 series components specifically to support industrial maintenance programs that require reliable spare-part availability. We can provide volume pricing for customers who wish to establish a standing spare-parts inventory, and we offer priority dispatch for customers with active maintenance contracts. Contact our sales team to discuss long-term supply agreements tailored to your facility’s maintenance schedule.
