Fisher CL6721X1-A4 Maintenance-Ready Spare for DeltaV Automation

Fisher CL6721X1-A4 Maintenance-Ready Spare for DeltaV Automation

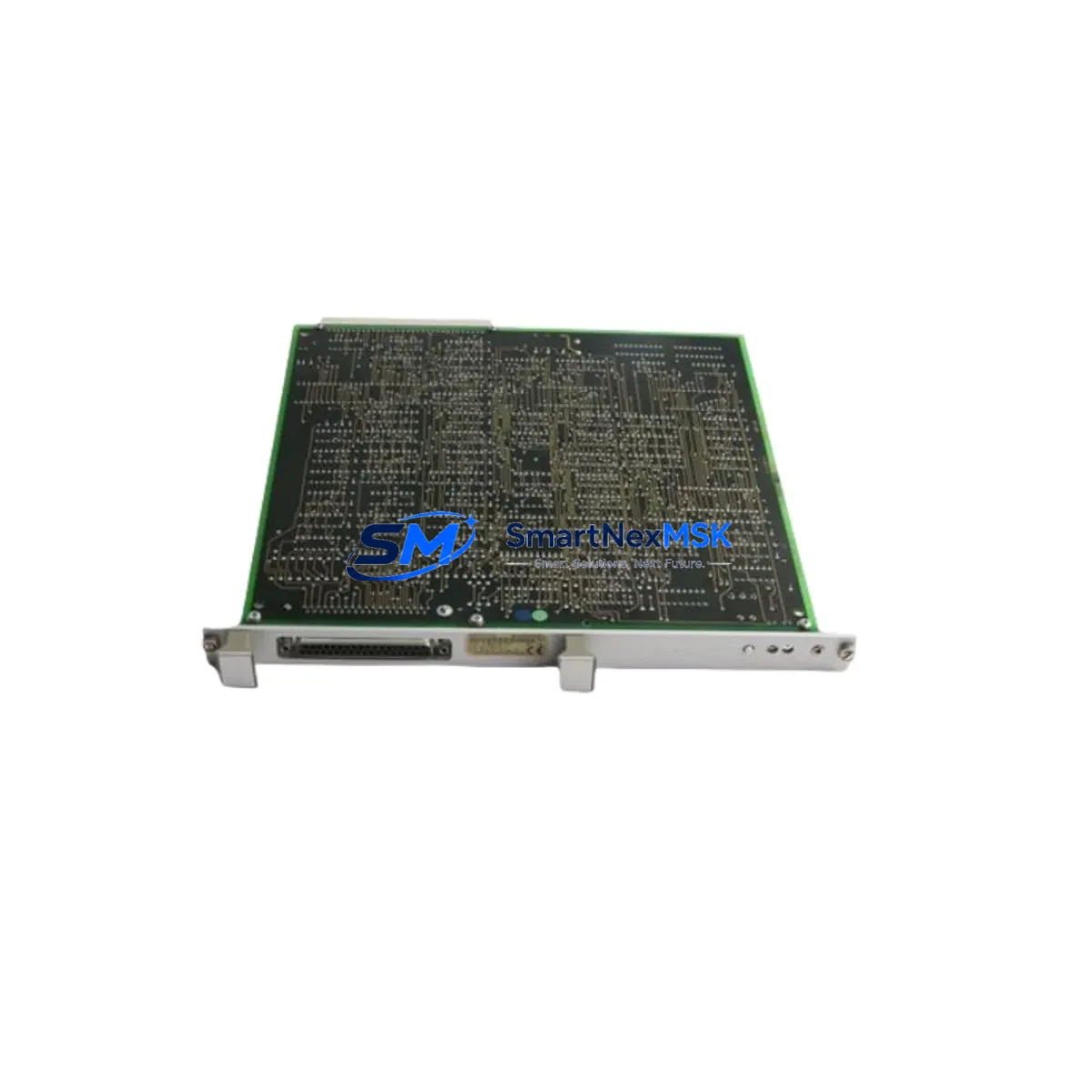

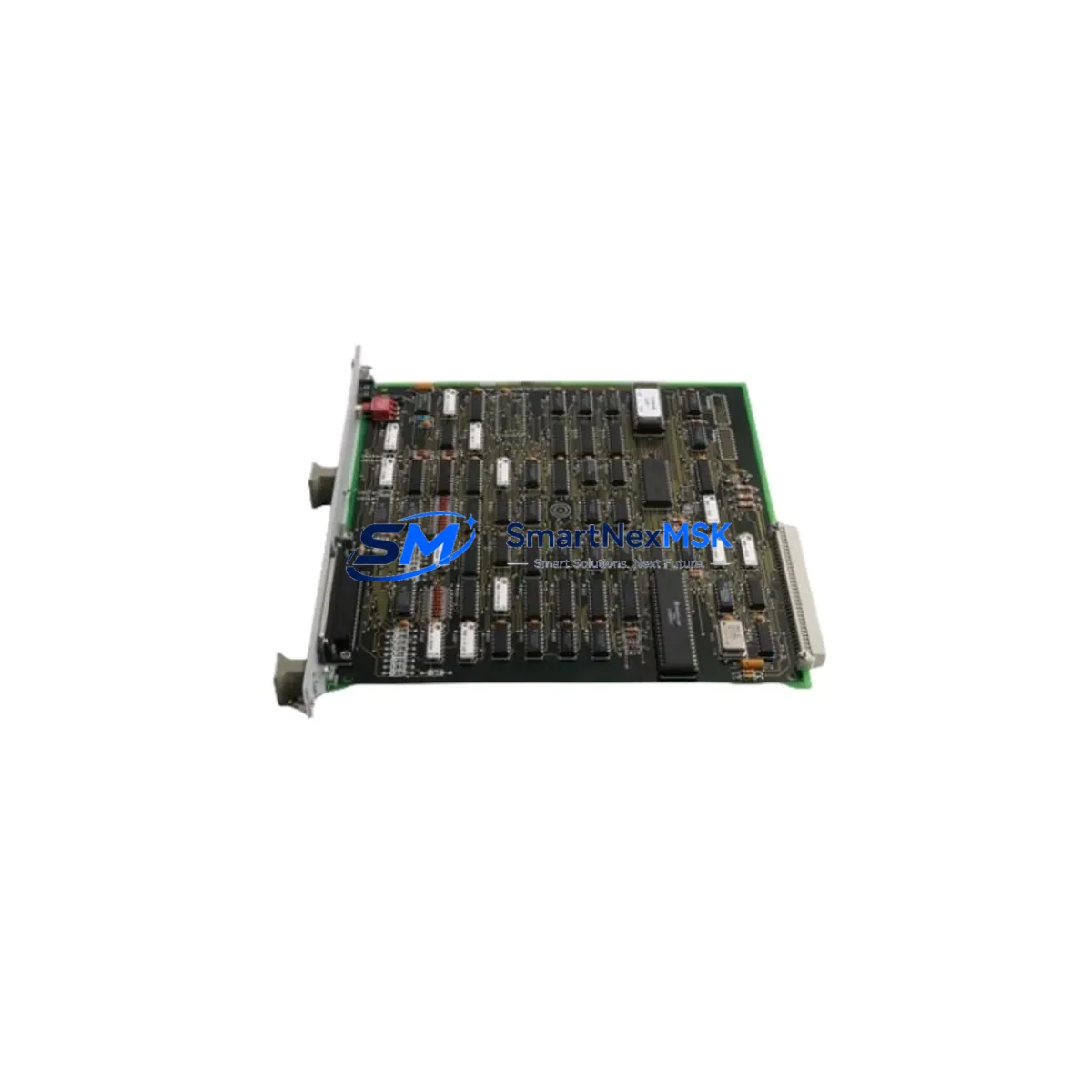

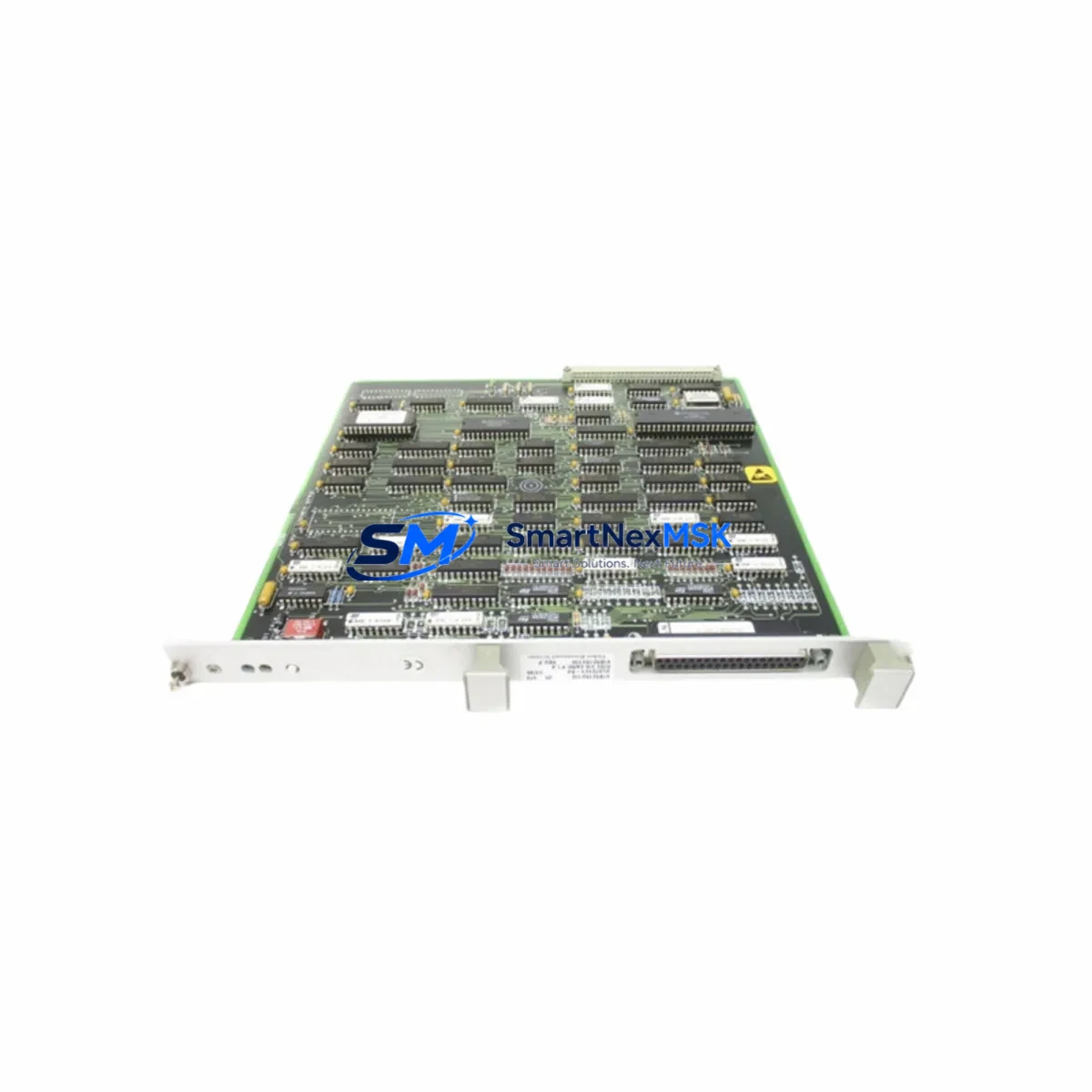

The Fisher CL6721X1-A4 (41B5215X132) is a discrete I/O module designed for Emerson DeltaV distributed control systems. As a critical field I/O card in process automation environments — including oil and gas, chemical, power generation, and water treatment — this module handles digital input and output signals between field devices and the DeltaV controller network. When this card fails or degrades, the consequences extend beyond a single loop: entire process segments can go offline, triggering unplanned shutdowns and costly production losses.

Sourced as an original spare with full functional verification prior to shipment, the CL6721X1-A4 41B5215X132 is stocked to support both emergency replacement and planned maintenance cycles. Whether you are managing a scheduled turnaround, responding to a fault alarm, or building a critical spare inventory for aging DeltaV infrastructure, this module is available for immediate dispatch with a 12-month warranty covering manufacturing defects and functional performance.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the CL6721X1-A4 in a live DeltaV system is rarely an isolated task. Maintenance engineers and procurement teams working on DeltaV I/O subsystems should treat this replacement as an opportunity to audit the surrounding control cabinet and associated field wiring. A discrete I/O card failure is often preceded or accompanied by degradation in related components.

During the replacement procedure, it is advisable to inspect the DeltaV I/O carrier and backplane for signs of corrosion, bent connector pins, or intermittent contact — a faulty carrier can cause repeated I/O card failures even after a new module is installed. The DeltaV power supply module (such as the PS2 or redundant power supply units) feeding the I/O subsystem should be checked for output voltage stability, as undervoltage conditions are a common root cause of discrete I/O faults.

Field-side wiring terminations at the terminal blocks and marshalling panels should be inspected for loose connections, insulation breakdown, or moisture ingress — particularly in outdoor or high-humidity installations. If the discrete outputs drive interposing relays or solid-state relay modules, these should be tested for contact resistance and switching integrity, as relay coil failures can mimic I/O card faults during diagnostics.

For systems using DeltaV CHARM I/O or traditional I/O subsystems, verify that the DeltaV controller module (MD or MD Plus series) is communicating correctly with the I/O subsystem after card replacement. A controller firmware mismatch or corrupted I/O assignment can prevent the new card from being recognized. Additionally, review the DeltaV workstation and DeltaV Operate HMI for any latched alarms or unacknowledged diagnostic messages that may have been masked during the fault period.

Where signal integrity is critical — particularly for safety-instrumented loops — consider inspecting signal isolators and loop-powered barriers in the same field circuit. Zener barriers or galvanic isolators that have been exposed to surge events may show degraded isolation resistance even if they appear functional. Fuse holders and circuit protection modules within the marshalling cabinet should also be verified, as a blown fuse on a discrete input channel can be misdiagnosed as an I/O card failure.

Finally, for aging DeltaV installations approaching end-of-support lifecycle, this replacement is an appropriate time to review your critical spare parts list and ensure that companion modules — including redundant controller cards, communication interface modules, and I/O bus terminators — are stocked at appropriate quantities to support multi-year system life extension.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Confirm the failed module part number against the installed card label and DeltaV system configuration. Cross-reference the 41B5215X132 reference number to ensure the replacement CL6721X1-A4 matches the required hardware revision for your DeltaV system version.

Step 2 — System state documentation: Before removal, capture the current I/O channel assignments, field device tag list, and any active alarms associated with the affected I/O card. This baseline is essential for post-replacement verification and reduces commissioning time.

Step 3 — Hot-swap or controlled shutdown: DeltaV discrete I/O cards support hot-swap replacement in most configurations. Confirm with your site safety procedures whether a controlled process hold or bypass is required before card removal. Notify the control room operator before proceeding.

Step 4 — Physical replacement: Remove the faulty CL6721X1-A4 from the carrier slot. Inspect the carrier connector for damage. Insert the replacement module firmly until the locking tab engages. The DeltaV system should automatically recognize the new card and restore I/O communications within seconds.

Step 5 — Post-replacement functional test: Verify all discrete input channels are reading correct field device states. Cycle each discrete output channel and confirm field device response. Check DeltaV Diagnostics for any residual fault codes. Document the replacement in the site maintenance log with date, technician, and module serial number.

Step 6 — Spare inventory update: Record the consumed spare and initiate a replenishment order to maintain your minimum stock level. For critical DeltaV I/O cards, a minimum of one-to-two units on-hand is recommended to support emergency replacement without lead-time exposure.

Spare Parts Support FAQ

Q1: Is the CL6721X1-A4 41B5215X132 compatible with all DeltaV system versions?
The CL6721X1-A4 is designed for the Emerson DeltaV I/O subsystem and is compatible with standard DeltaV controller generations including MD, MD Plus, and SD series controllers. Hardware revision compatibility should be confirmed against your installed DeltaV system version. Our technical team can assist with revision verification prior to shipment if you provide your system version details.

Q2: What pre-shipment testing is performed on this spare module?
Each CL6721X1-A4 unit undergoes functional verification prior to dispatch, including power-on self-test confirmation and I/O channel continuity checks. Units are shipped in anti-static packaging with inspection documentation. The 12-month warranty covers functional performance and manufacturing defects from the date of shipment.

Q3: Can this module replace older or discontinued DeltaV discrete I/O card variants?
The CL6721X1-A4 41B5215X132 is the current production reference for this discrete I/O card position. It is suitable as a direct replacement for units of the same part number that have failed due to age, surge damage, or component wear. For cross-compatibility with adjacent part numbers or earlier hardware revisions, consult your DeltaV system documentation or contact our technical support team before ordering.

Q4: What is your lead time and long-term supply availability for this part?
This module is maintained in stock for immediate dispatch. For customers requiring long-term supply agreements — particularly for DeltaV systems in life-extension programs — we offer scheduled procurement arrangements to ensure continuous availability. Contact our sales team to discuss volume pricing and multi-year supply planning for your critical spare parts program.
