FOXBORO 873DO-AIWCNZ Maintenance-Ready Spare for 873 Automation

FOXBORO 873DO-AIWCNZ Maintenance-Ready Spare for 873 Series Automation

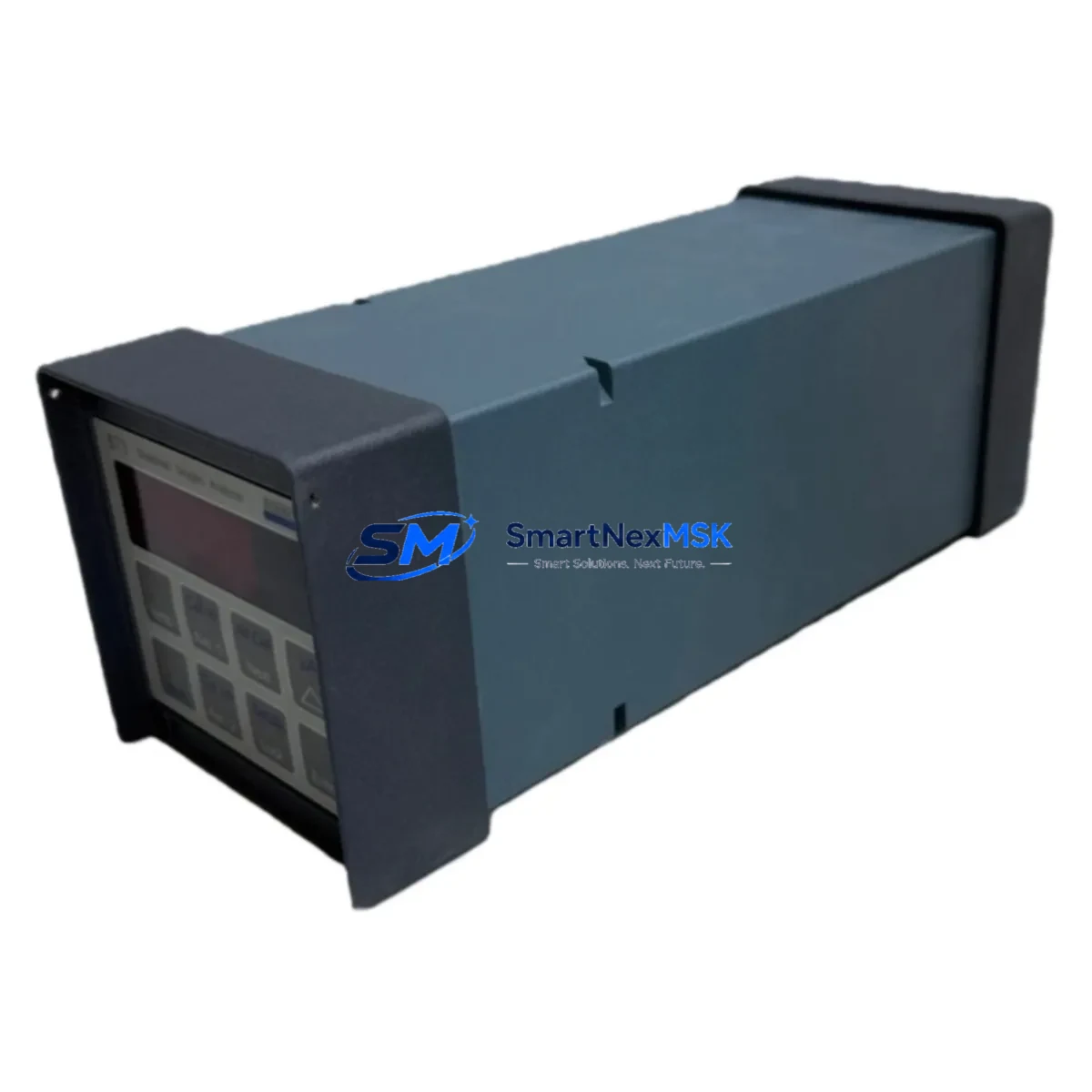

The FOXBORO 873DO-AIWCNZ is a dissolved oxygen analyzer transmitter module designed for continuous process measurement in industrial automation environments. As a maintenance-ready original spare, this unit is sourced, inspected, and dispatched to support rapid downtime recovery across water treatment, chemical processing, pharmaceutical, and power generation facilities. Whether you are executing a planned turnaround, responding to an unscheduled fault, or building a critical spare inventory for aging FOXBORO 873 Series installations, the 873DO-AIWCNZ delivers verified compatibility and reliable field performance.

For maintenance engineers managing FOXBORO-based control loops, the 873DO-AIWCNZ integrates directly into existing 873 Series panel configurations without requiring firmware reconfiguration or signal recalibration in most standard deployments. Its AIWCNZ suffix designates the specific output, housing, and approval variant — a detail that procurement engineers must confirm against the installed nameplate before ordering to avoid cross-variant substitution errors.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 873DO-AIWCNZ in the field, a disciplined maintenance engineer will not stop at the transmitter module alone. The 873 Series dissolved oxygen measurement loop involves several interdependent components, and a failure in the transmitter is often symptomatic of upstream or downstream stress on adjacent hardware.

Begin by inspecting the 873DO sensor assembly and membrane cap — fouled or degraded membranes are the most common cause of erratic DO readings and can accelerate transmitter wear. Check the 873 Series junction box and field wiring terminals for corrosion, moisture ingress, or loose connections, particularly in outdoor or high-humidity installations. Verify the 24 VDC loop power supply output is within tolerance; an under-voltage condition will cause the 4–20 mA signal to drift and may be misdiagnosed as a transmitter fault.

At the DCS or PLC input card level, confirm the analog input module — such as a FOXBORO FBM204 or equivalent AI card — is reading the 4–20 mA signal correctly and that the channel has not developed a high-impedance fault. If the plant uses a HART multiplexer or HART-enabled I/O card, verify that the HART communication layer is still active after the transmitter swap, as some DCS configurations require a re-scan after hardware replacement.

For installations where the 873DO-AIWCNZ feeds into a FOXBORO I/A Series or Evo DCS, check the associated FBM signal conditioner or isolator module to ensure signal integrity is maintained across the loop. Signal isolators — particularly older DIN-rail mounted units — can develop drift that masks transmitter performance issues. Similarly, inspect any surge protection devices or terminal blocks on the field cable entry to the control cabinet; these are frequently overlooked during routine maintenance but are a common point of failure in lightning-prone or electrically noisy environments.

If the plant operates a FOXBORO 876 Series pH/ORP transmitter or other analytical instruments in the same process stream, this is an appropriate time to cross-check calibration references and confirm that the process chemistry has not shifted in a way that would affect DO baseline readings. Maintenance teams managing multi-parameter water quality panels should also verify the 4–20 mA signal cables and shielding continuity between the field junction box and the marshalling cabinet to eliminate noise-induced measurement errors before commissioning the replacement unit.

Site Replacement Workflow

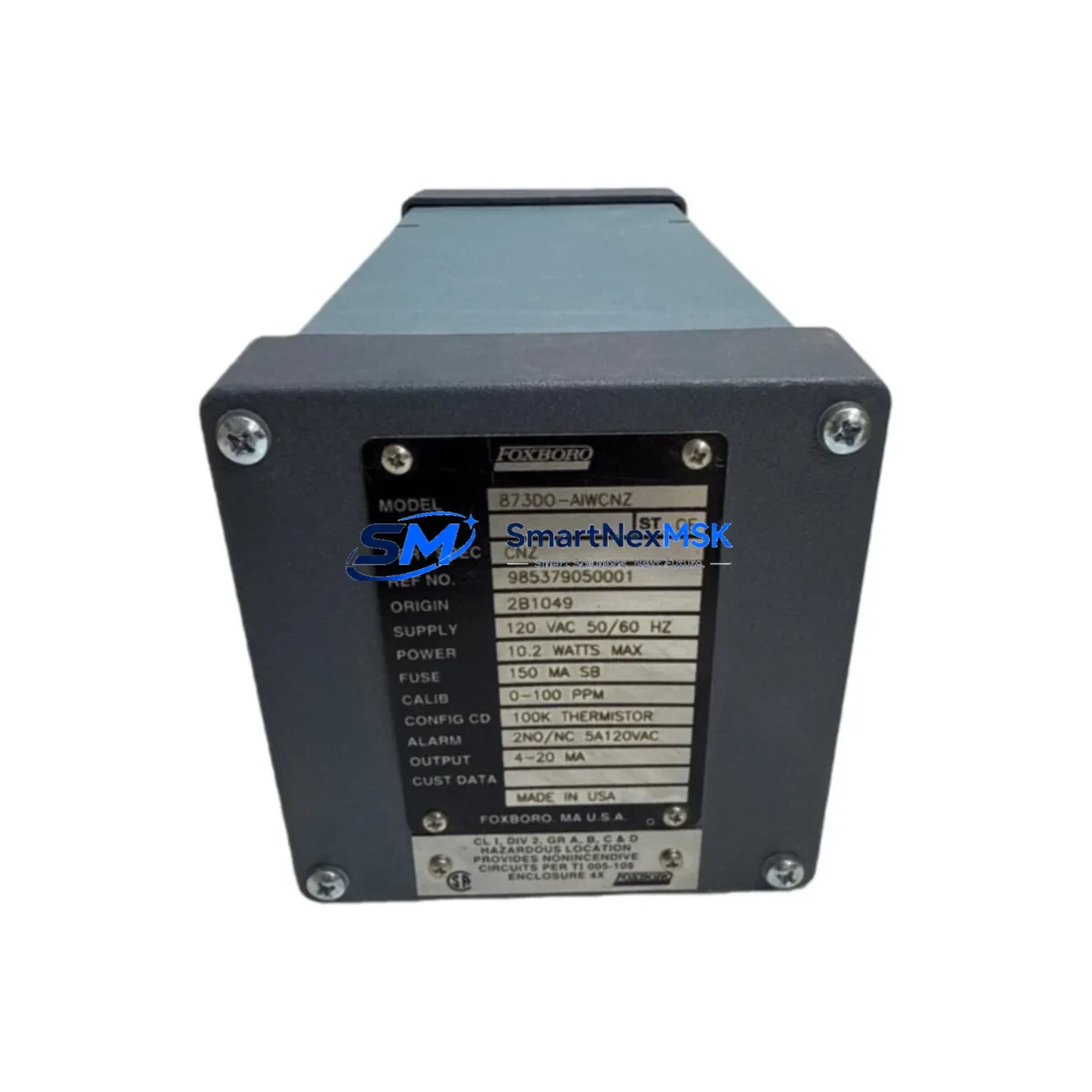

Step 1 — Verify Part Number: Confirm the installed unit nameplate reads 873DO-AIWCNZ exactly. The 873 Series includes multiple suffix variants (AIWANZ, AIWCNZ, BIWCNZ, etc.) with different output configurations and approvals. Substituting an incorrect variant will require rewiring or reconfiguration.

Step 2 — Isolate the Loop: Place the DCS analog input channel in manual mode or bypass. Disconnect the 4–20 mA loop at the field junction box before removing the transmitter to avoid false process alarms or interlock trips.

Step 3 — Physical Swap: Remove the existing 873DO-AIWCNZ from the mounting bracket. Transfer the sensor cable connections to the replacement unit following the original wiring diagram. Torque terminal screws to specification to prevent intermittent contact.

Step 4 — Power-Up and Signal Check: Restore loop power and verify the 4–20 mA output at the DCS input card. Confirm the reading is within the expected range for the current process conditions before returning the channel to automatic control.

Step 5 — Calibration Verification: Perform a single-point or two-point calibration check using a certified DO reference standard. Document the as-found and as-left values in the plant maintenance management system (CMMS).

Step 6 — Return to Service: Remove the DCS bypass, confirm the process variable is tracking correctly, and close the work order. Tag the removed unit for bench evaluation or return-to-vendor assessment.

This workflow minimizes loop downtime to under two hours for a prepared maintenance team with the spare unit on-site, compared to multi-day delays when waiting for emergency procurement.

Spare Parts Support FAQ

Q1: Is the 873DO-AIWCNZ still available as a new original spare, or only as a refurbished unit?
We supply both new original and refurbished-to-specification units depending on current stock. All refurbished units undergo full functional testing and are covered by the same 12-month warranty as new stock. Availability is confirmed at the time of inquiry — contact us for current lead times.

Q2: How do I verify compatibility with my installed 873 Series system before ordering?
Provide the full nameplate part number (including suffix), the DCS or PLC model receiving the 4–20 mA signal, and the loop power supply voltage. Our technical team will confirm compatibility before shipment. For HART-enabled installations, also specify the HART revision in use.

Q3: What testing is performed before the unit ships?
Each 873DO-AIWCNZ is bench-tested for output signal accuracy across the 4–20 mA range, power consumption within specification, and housing integrity. A test report is available upon request and can be included with the shipment documentation for your CMMS records.

Q4: What is the warranty coverage and what does it include?
All units carry a 12-month warranty from the date of shipment. Coverage includes defects in materials and workmanship under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or process conditions outside the rated specification. Warranty claims are processed with return shipment support.
