Foxboro FBM201 P0914SQ Retrofit-Ready Analog Input for I/A Series

Foxboro FBM201 P0914SQ Retrofit-Ready Analog Input for I/A Series Control Systems

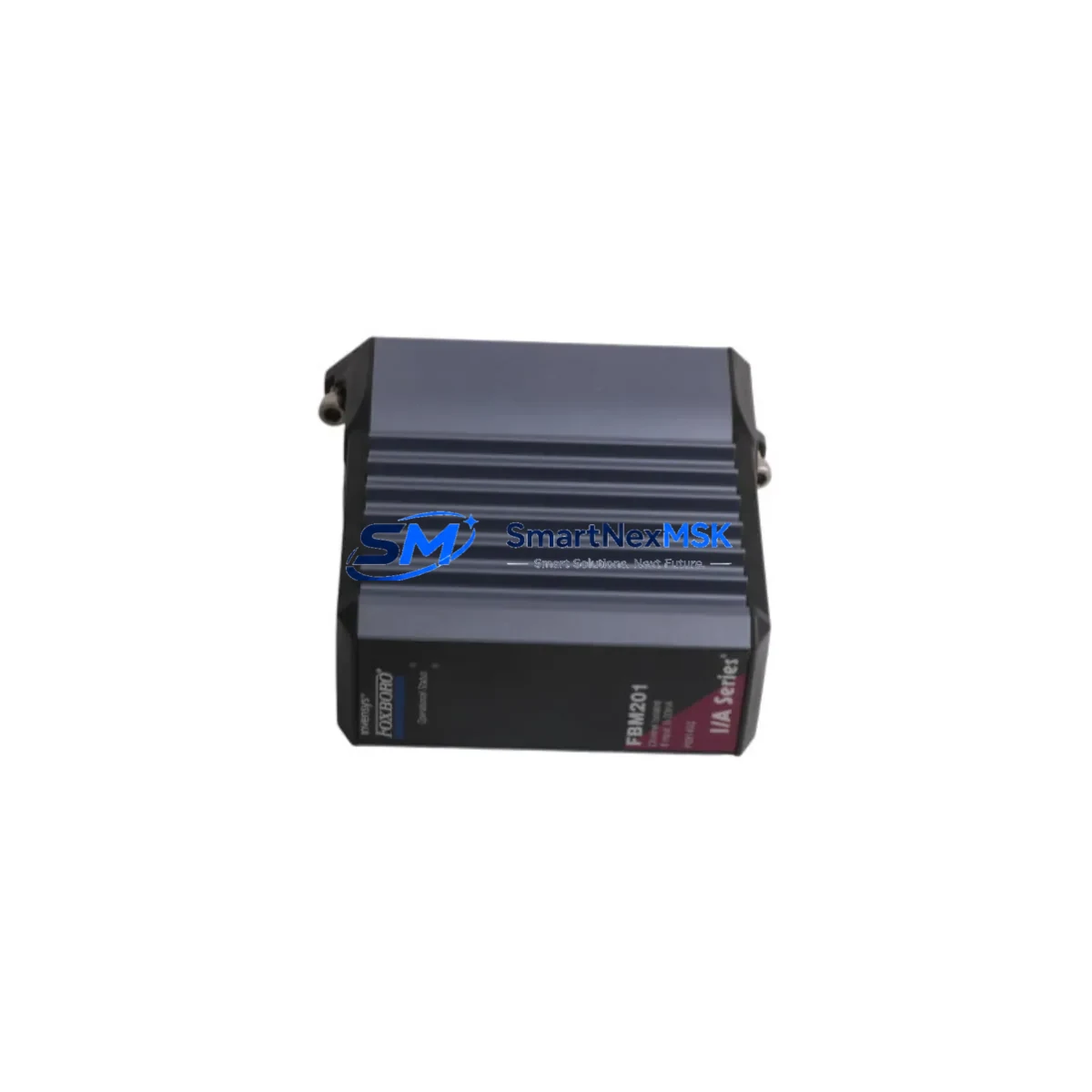

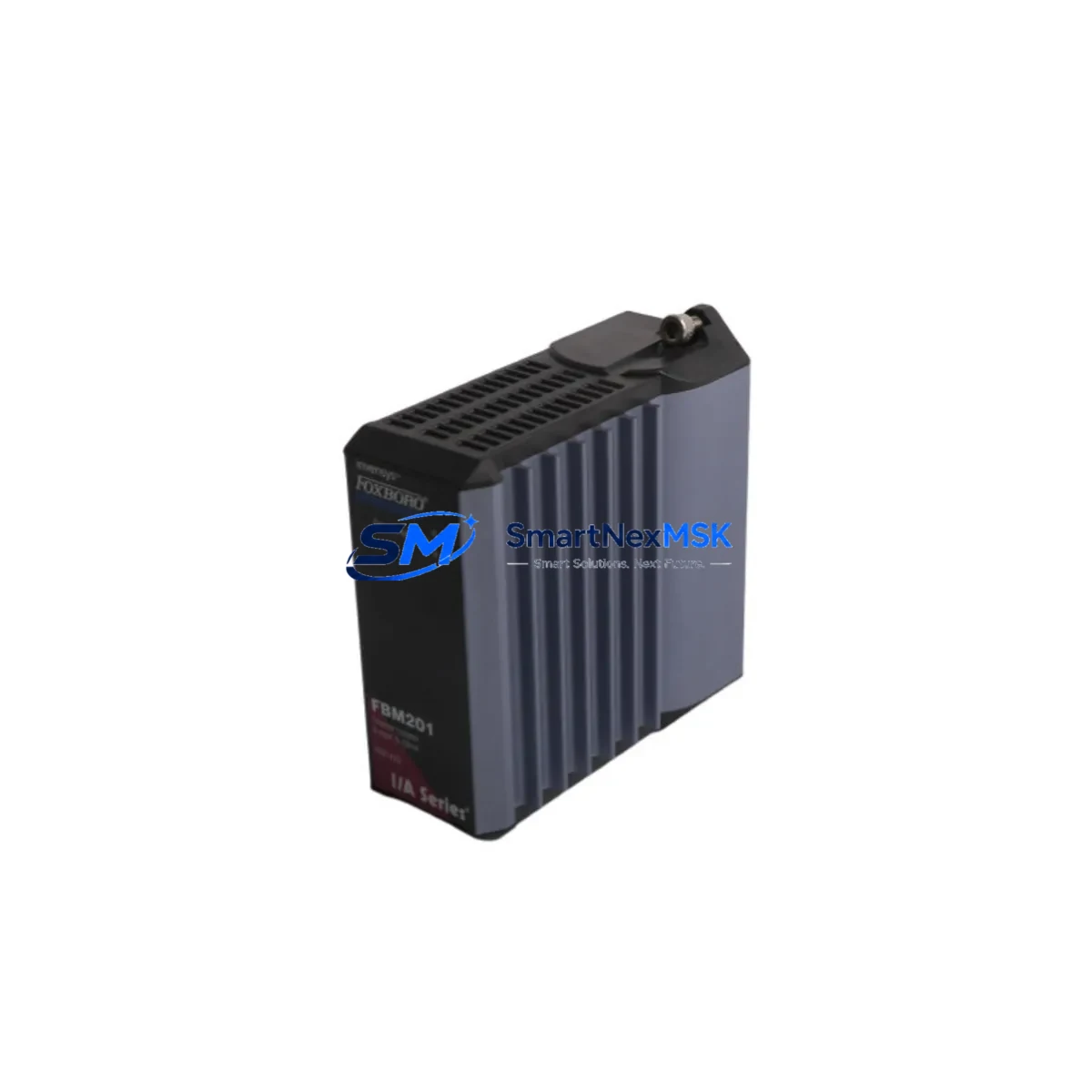

The Foxboro FBM201 P0914SQ is an 8-channel analog input module engineered for the Foxboro I/A Series Distributed Control System (DCS). As legacy I/A Series installations continue to operate across petrochemical, power generation, pulp and paper, and water treatment facilities worldwide, the FBM201 P0914SQ remains one of the most sought-after retrofit and replacement components for engineers managing aging control infrastructure. Whether you are executing a planned system upgrade, recovering from an unplanned module failure, or sourcing discontinued spare parts to extend the operational life of an existing DCS, the FBM201 P0914SQ delivers verified compatibility and reliable performance.

This module accepts standard 4–20 mA and 1–5 V analog signals from field transmitters, making it directly interchangeable with earlier FBM201 variants in most I/A Series rack configurations. The P0914SQ revision maintains the same terminal block pinout and backplane connector interface as its predecessors, which significantly reduces rewiring time during a hot-swap replacement. Engineers replacing a failed or end-of-life FBM201 can typically complete the physical swap within a single maintenance window without modifying existing field wiring or junction box terminations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FBM201 P0914SQ into an existing I/A Series DCS requires careful pre-installation planning. Begin by auditing the target FBM baseplate to confirm available slot positions and verify that the baseplate power supply — typically a Foxboro FPS100 or equivalent I/A Series power supply module — has sufficient capacity to support the additional module load. Overloaded baseplates are a common cause of intermittent module faults in aging DCS installations.

Next, review the existing I/A Series System Definition database to locate the module address and channel assignments for the FBM201 being replaced. If the original module address is unknown due to missing documentation, the address can often be recovered from the Foxboro AIM* Historian tag database or reconstructed from P&ID drawings and loop sheets. Ensure that the replacement FBM201 P0914SQ is assigned the same letterbug address as the failed unit to avoid requiring a full System Definition download, which can temporarily interrupt other modules on the same nodebus segment.

Field wiring terminations should be verified against the original loop drawings before powering the new module. The Foxboro NEMA field termination assembly (FTA) associated with the FBM201 — commonly the FBM201 FTA P0916AA or equivalent — should be inspected for corrosion, loose terminals, and correct shield grounding. In installations where the FTA is also being replaced as part of a broader control cabinet upgrade, coordinate the FTA swap with the FBM201 replacement to minimize the number of separate maintenance windows.

For sites migrating from an older I/A Series generation to a newer platform such as the Foxboro Evo Process Automation System, the FBM201 P0914SQ can serve as an interim solution while the full migration is planned and budgeted. The module continues to operate on the existing nodebus infrastructure alongside newer FBM237 or FBM242 HART-enabled analog input modules, allowing a phased upgrade approach that avoids a single large-scale cutover. During this transition period, the Foxboro CP270 controller or CP40B controller can manage both legacy FBM201 modules and newer FBM variants simultaneously, provided the System Definition is updated to reflect the mixed configuration.

HMI integration should also be reviewed during the retrofit. If the plant uses a Foxboro IACC workstation or a third-party SCADA system connected via OPC, verify that the analog input tags associated with the FBM201 channels are correctly mapped and that alarm limits are restored after the module replacement. In some cases, HMI display faceplates may require a manual refresh or a workstation restart to re-establish live data links after a module swap.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any control system retrofit. When replacing the FBM201 P0914SQ in a live production environment, follow a structured hot-swap procedure: first place all affected control loops in manual mode at the Foxboro IACC operator workstation, then physically remove the failed module and insert the replacement unit. The I/A Series DCS is designed to support online module replacement without requiring a full system restart, provided the replacement module carries the correct letterbug address and the baseplate slot is not shared with a redundant module pair.

Before returning loops to automatic control, perform a channel-by-channel verification of the analog input readings against known field reference values. Use a calibrated loop calibrator connected at the FTA terminal block to inject a 4 mA, 12 mA, and 20 mA test signal on each channel and confirm that the DCS displays the expected engineering unit values. This pre-return-to-service test typically takes 15–30 minutes per module and is essential for confirming that the replacement FBM201 P0914SQ is functioning correctly before handing control back to the process operators.

All replacement modules supplied by SMARTNEXMSK undergo a pre-shipment functional test to verify channel accuracy, power consumption, and backplane communication integrity. Each unit ships with a test report and is covered by a 12-month warranty against manufacturing defects, giving your maintenance team confidence that the replacement module will perform reliably from the moment it is installed.

Retrofit Support FAQ

Q1: Is the FBM201 P0914SQ a direct drop-in replacement for earlier FBM201 revisions such as P0914SA or P0914SC?
In most cases, yes. The P0914SQ revision maintains the same backplane connector, terminal block interface, and channel configuration as earlier FBM201 revisions. However, we recommend confirming compatibility with your site engineer and reviewing the Foxboro revision history document for your specific I/A Series software version before installation.

Q2: Will I need to perform a System Definition download after replacing the FBM201?
If the replacement module is assigned the same letterbug address as the failed unit, a full System Definition download is typically not required. The I/A Series DCS will recognize the new module automatically during the next nodebus scan cycle. A partial download or module re-initialization may be required if the letterbug address has been lost or if the module is being installed in a new baseplate slot.

Q3: What field wiring checks should I perform before powering the replacement FBM201 P0914SQ?
Verify that all terminal connections at the associated FTA are tight and free of corrosion, confirm that cable shields are grounded at one end only, and check that the 24 VDC loop power supply feeding the field transmitters is within specification. Inspect the FTA for any signs of moisture ingress or physical damage before re-energizing the module.

Q4: What does the 12-month warranty cover, and what is included in the pre-shipment test?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each FBM201 P0914SQ unit is tested prior to shipment for channel accuracy across the full 4–20 mA input range, backplane communication integrity, and power consumption within specification. A test report is included with each shipment. Warranty claims are processed directly through SMARTNEXMSK with a target response time of 2 business days.
