Foxboro FBM215 P0922VU Spare for I/A Series Automation

Foxboro FBM215 P0922VU Spare for I/A Series Automation: Spare Parts Replacement & Industrial Downtime Risk Control

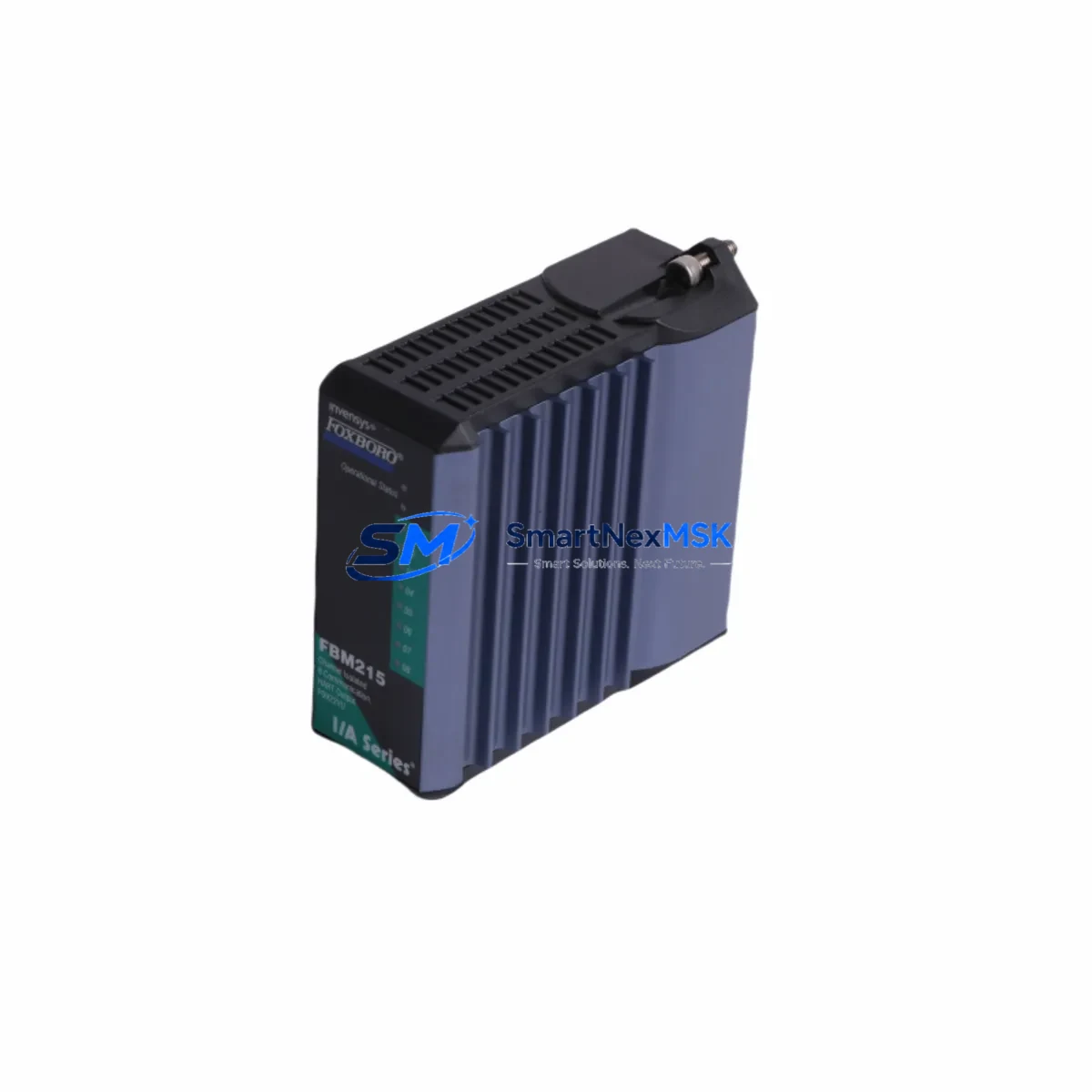

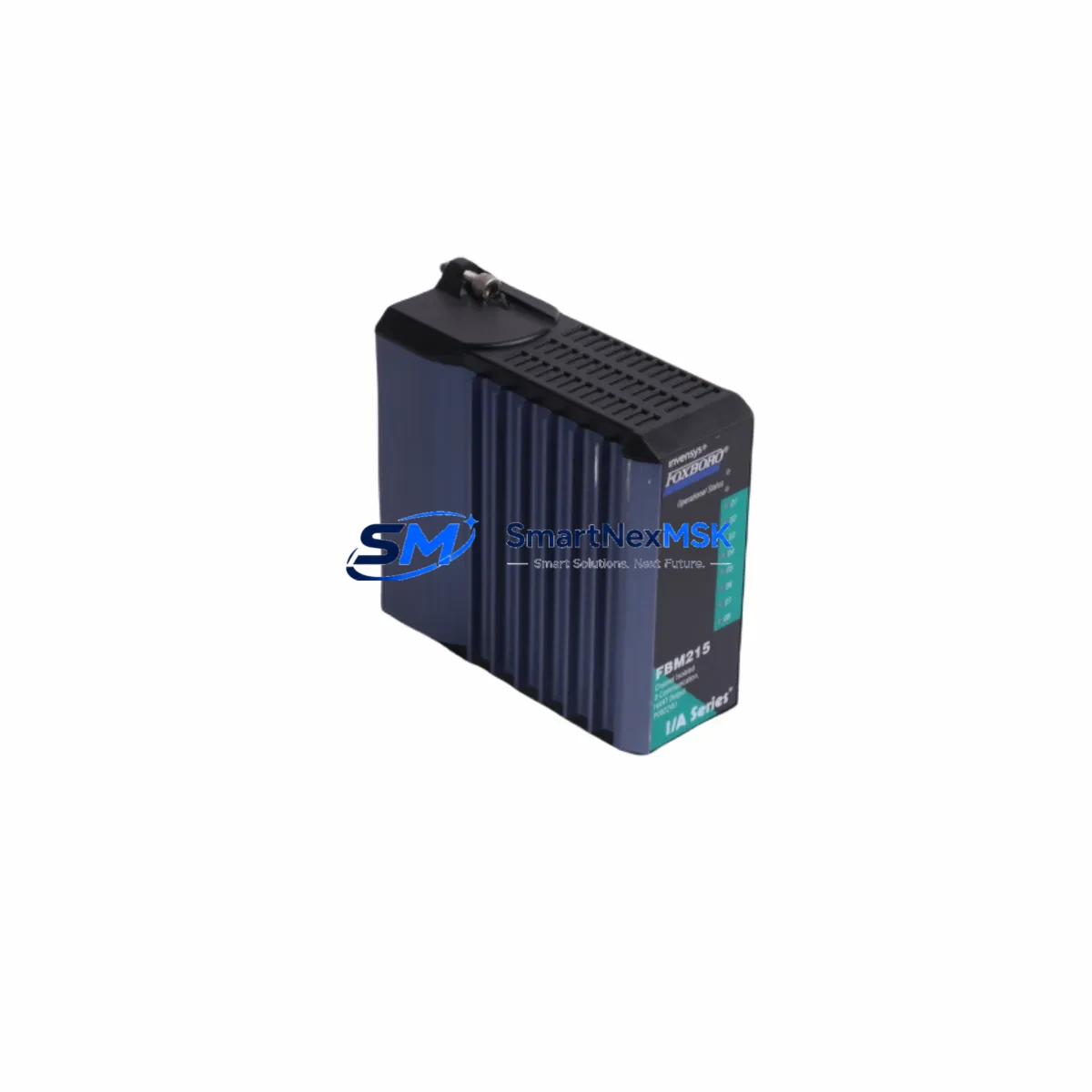

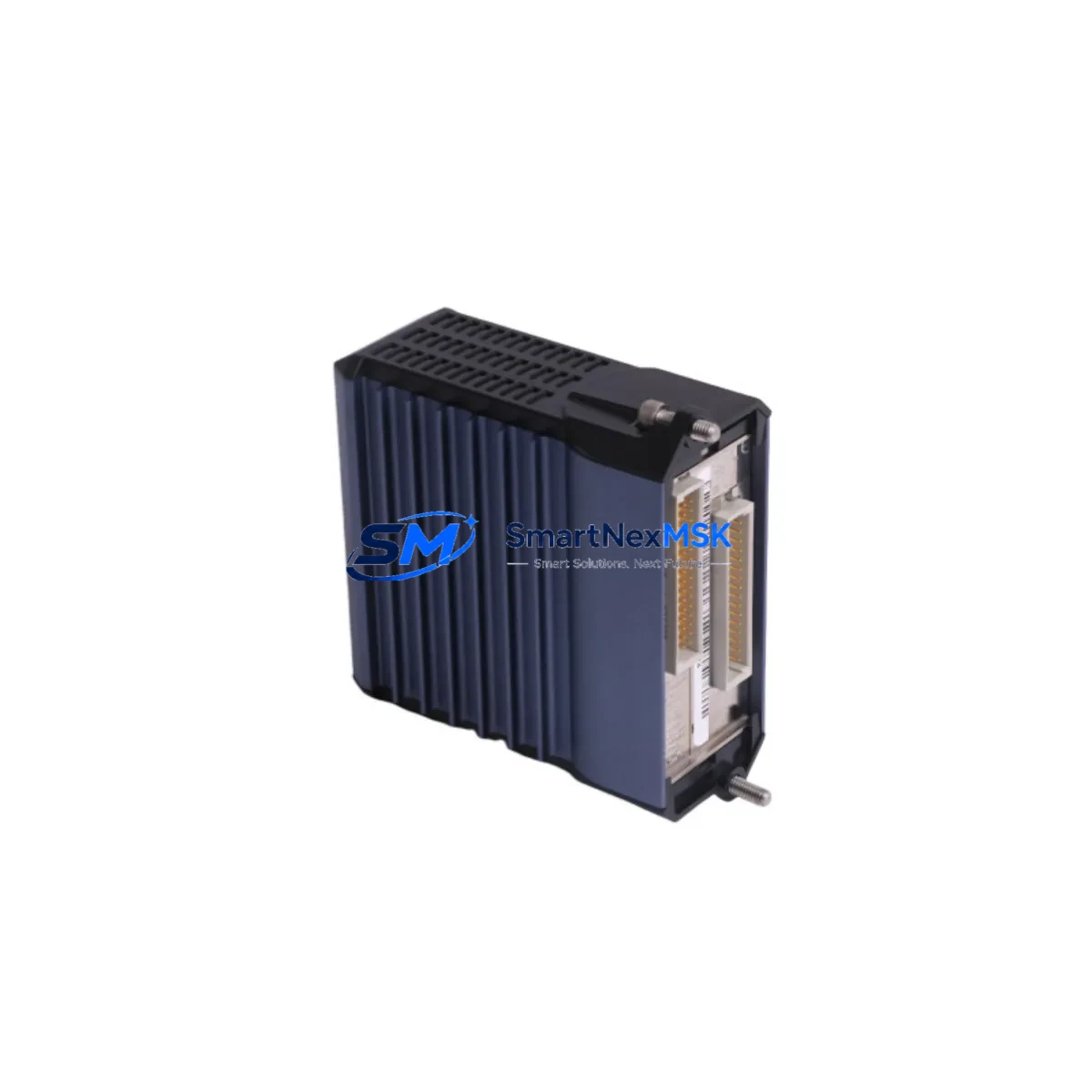

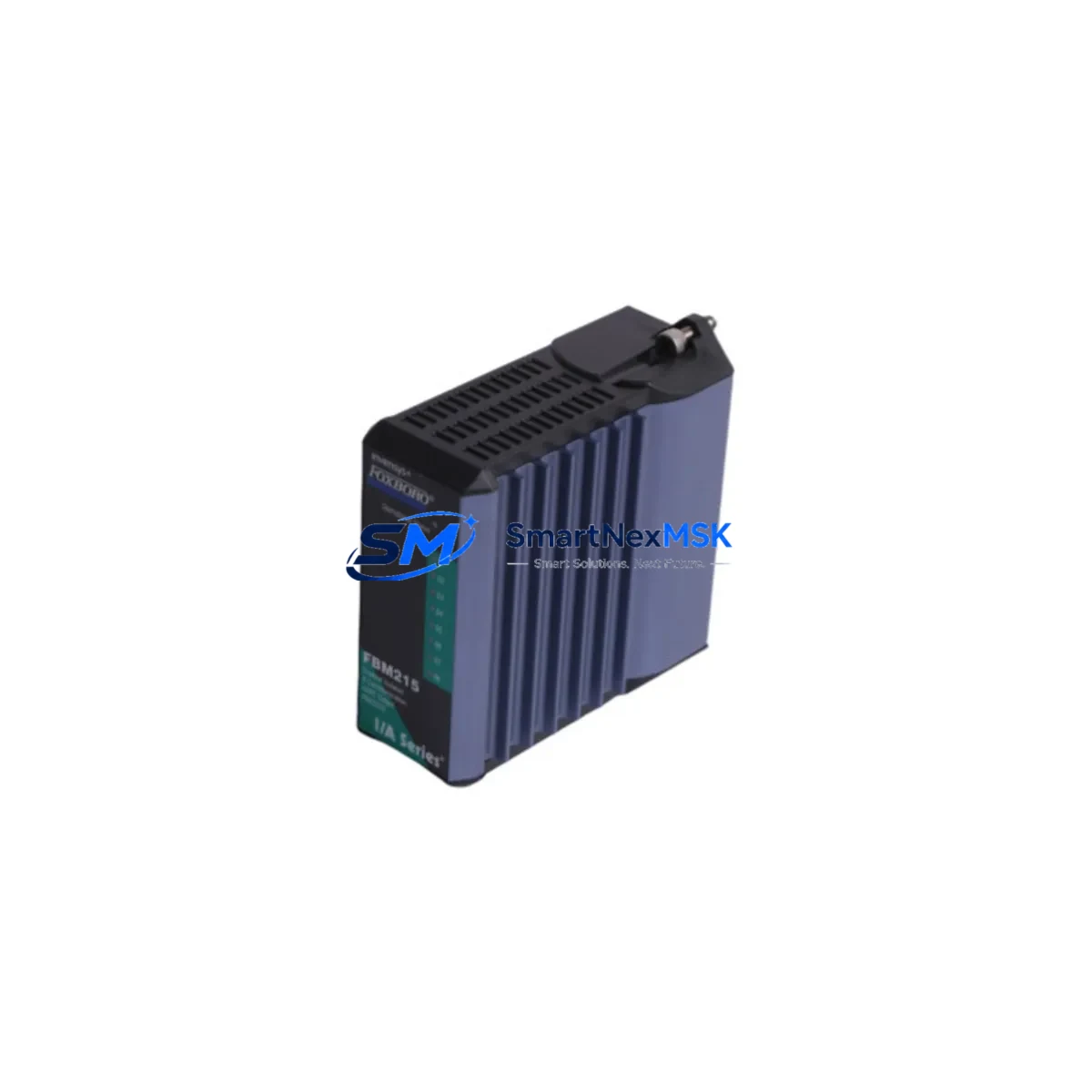

The Foxboro FBM215 (P0922VU) is a field bus module designed for the Foxboro I/A Series Distributed Control System (DCS). As a communication output module, it serves as a critical interface between the process field devices and the I/A Series control network. In industrial facilities running continuous processes — petrochemical, power generation, pulp and paper, or refining — an unplanned failure of the FBM215 can isolate entire I/O segments, triggering emergency shutdowns and costly production losses. Maintaining a verified, tested spare of the P0922VU in your on-site inventory is a fundamental element of any proactive maintenance strategy.

This listing provides an original Foxboro FBM215 P0922VU module, sourced from authorized channels, individually tested prior to shipment, and backed by a 12-month warranty. Each unit is inspected for firmware integrity, connector condition, and communication functionality before dispatch, ensuring it is ready for immediate installation upon arrival.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules a planned inspection or responds to an FBM215 fault alarm, the replacement of this module rarely occurs in isolation. The FBM215 interfaces directly with the I/A Series baseplate and communicates upstream to the FCP270 Field Control Processor or FCM10E Field Control Module. Before or during an FBM215 swap, engineers should verify the health of adjacent components to prevent repeat failures and confirm system stability after restoration.

The I/A Series baseplate (ZCP270 or equivalent carrier) should be inspected for bent pins, corrosion, or loose seating — a damaged baseplate can cause intermittent communication faults that mimic FBM215 failures. The 24 VDC power supply module feeding the DCS cabinet should be load-tested; voltage sag under full I/O load is a common root cause of module resets. If the FBM215 is part of a redundant pair, the redundancy cable and redundancy switch module should be checked for continuity and proper switchover behavior.

On the field side, inspect the terminal block assemblies and field wiring terminations connected to the I/O channels served by this module. Loose terminations, corroded lugs, or undersized conductors can introduce signal noise that stresses the module’s communication circuitry. If the system uses HART-enabled field instruments, verify that the HART multiplexer or HART interface module is functioning correctly, as HART communication errors are sometimes misattributed to the FBM module itself.

For facilities running older I/A Series installations, it is advisable to audit the Nodebus termination resistors and Nodebus cable segments during any FBM215 replacement. Degraded bus termination is a leading cause of communication instability in aging DCS networks. Additionally, review the FBM218 or FBM237 analog input modules in the same rack — these modules share the same baseplate power bus and communication backplane, and a failing neighbor module can corrupt bus traffic and trigger false FBM215 alarms.

Where the control system interfaces with a Foxboro Workstation (FoxView or IA Access) or a third-party OPC server, confirm that the communication path from the FBM215 through the control processor to the historian or SCADA layer is re-established and logging correctly after module replacement. For systems with signal isolators or loop-powered barriers in the field wiring circuit, inspect these devices for drift or failure — they are often overlooked during module-focused troubleshooting but are critical to signal integrity.

Maintaining a small buffer stock of high-wear components — including FBM215 P0922VU modules, baseplate connectors, and power supply modules — is strongly recommended for facilities where the I/A Series DCS is the primary process control platform. A single unplanned outage caused by a missing spare typically costs far more than a year’s worth of strategic inventory holding.

Site Replacement Workflow

Replacing the FBM215 P0922VU on a live I/A Series system follows a structured sequence to minimize downtime and avoid process upsets. Begin by confirming the replacement module’s firmware version matches or is compatible with the installed FCP270 or FCM10E controller firmware — mismatched firmware versions can prevent the module from initializing on the Nodebus. If the system supports hot-swap (module replacement without powering down the baseplate), verify this capability in the system’s engineering documentation before proceeding.

Prior to physical removal, place the affected I/O channels in manual mode at the operator workstation to prevent process upsets during the swap. Document the module’s slot address and configuration parameters from the I/A Series System Manager or Foxboro Control Software (FCS) before extraction. After seating the replacement FBM215, allow the module to complete its self-test sequence — indicated by the status LEDs — before returning channels to automatic control. Verify all channel values are reading correctly and that no communication fault alarms remain active in the DCS alarm summary.

For legacy I/A Series installations where the FBM215 is no longer in active production, sourcing a verified original spare from a specialist supplier is the most reliable path to maintaining system compatibility without undertaking a costly I/O migration project. This approach preserves the existing control strategy, avoids re-engineering costs, and extends the operational life of the DCS platform by years or decades.

Spare Parts Support FAQ

Q1: Is the FBM215 P0922VU still in production, and how long can I expect supply availability?
The FBM215 P0922VU is a mature Foxboro I/A Series component. While Foxboro (Schneider Electric) has transitioned focus to newer platforms, original spare modules remain available through specialist industrial spare parts suppliers. We maintain ongoing sourcing relationships to support long-term supply continuity for I/A Series operators. Contact us for volume or long-term supply agreements.

Q2: How do you verify compatibility before shipment?
Each FBM215 P0922VU is tested for communication functionality and inspected for physical integrity — including connector pins, housing, and firmware — before dispatch. We cross-reference the part number and hardware revision against the customer’s system configuration where possible. If you provide your FCP270 or FCM10E firmware version, we can confirm hardware revision compatibility prior to shipment.

Q3: What does the 12-month warranty cover, and what is the replacement process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement unit at no charge after fault verification. Warranty claims are processed within 5 business days of receiving the returned module. Physical damage caused by incorrect installation, overvoltage, or environmental exposure is excluded from warranty coverage.

Q4: Can I use this module to replace an FBM215 with a different suffix or revision?
The P0922VU is the primary catalog suffix for the FBM215. Minor hardware revisions within the same part number are generally backward-compatible within the I/A Series platform, but we recommend confirming the hardware revision with your I/A Series System Manager documentation or contacting our technical team before installation in safety-critical applications. We are happy to assist with compatibility verification at no additional cost.
