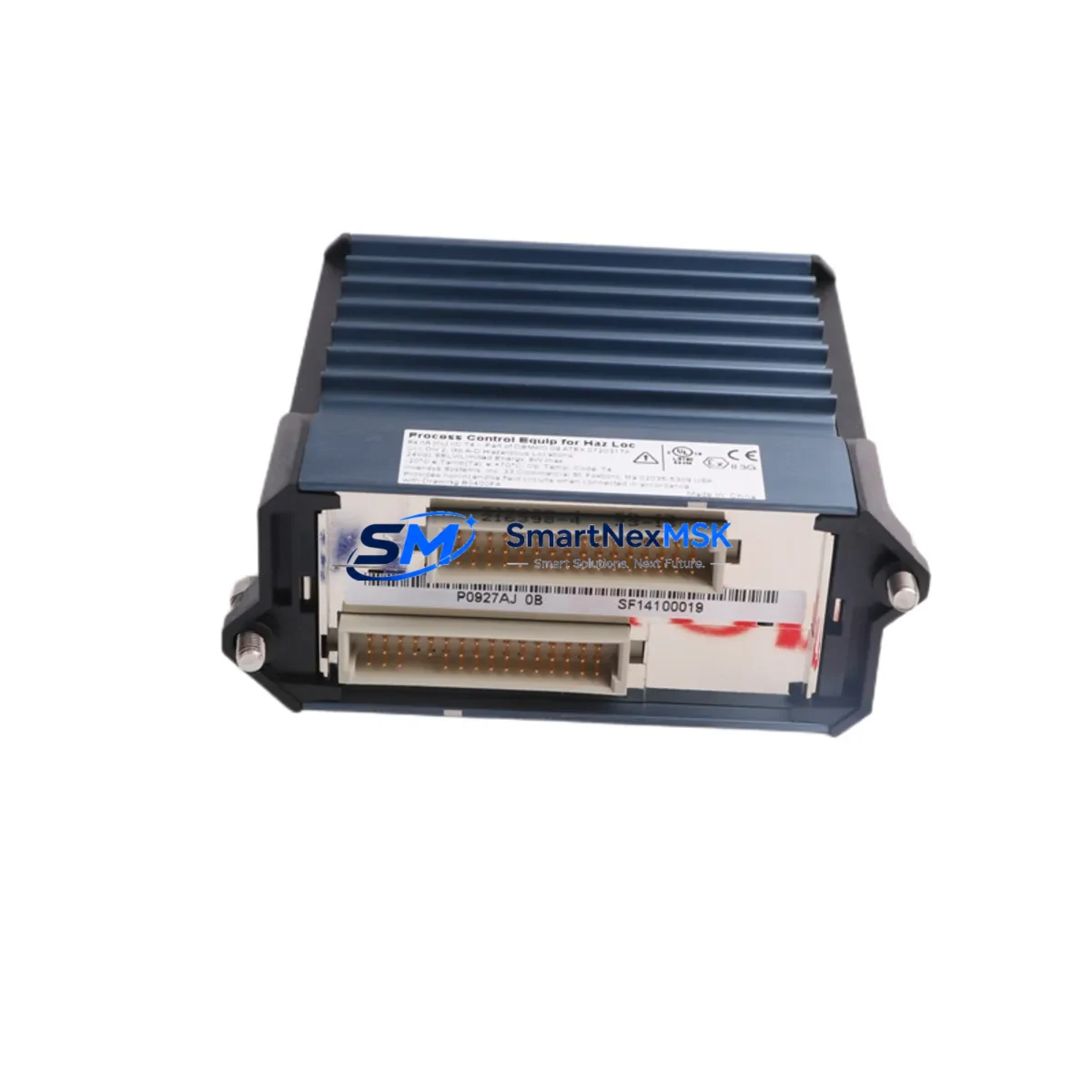

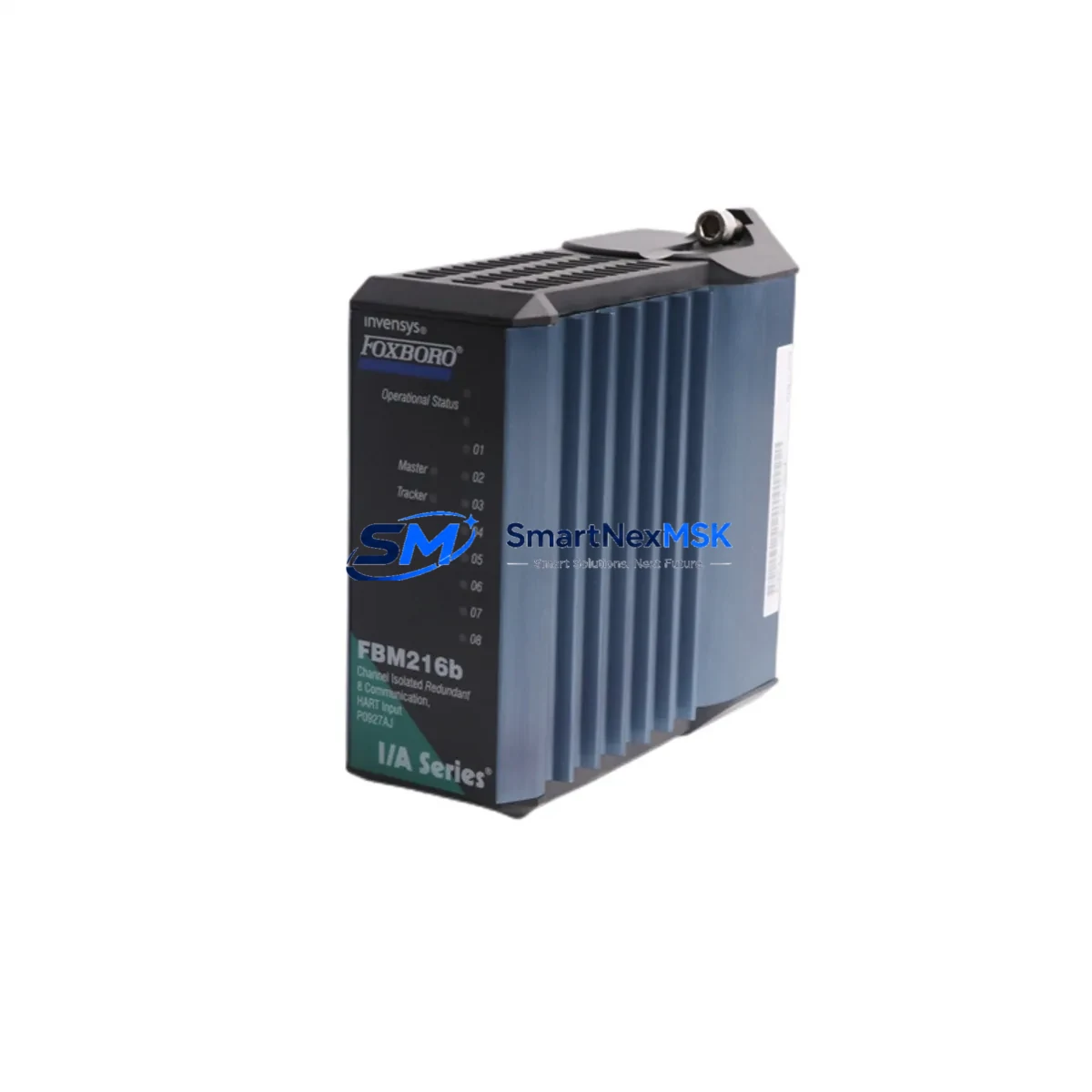

FOXBORO FBM216B P0927AJ Retrofit-Ready HART AI for I/A Series

FOXBORO FBM216B P0927AJ Retrofit-Ready HART Analog Input Module for I/A Series Control Systems

The FOXBORO FBM216B (P0927AJ) is a 16-channel redundant HART analog input module engineered for the Foxboro I/A Series Distributed Control System (DCS). As legacy I/A Series installations approach end-of-life or face discontinued spare-parts availability, the FBM216B P0927AJ has become a critical retrofit component for plants seeking to extend operational life, restore redundancy, and maintain process continuity without committing to a full platform migration. Whether you are replacing a failed FBM216 in a running control cabinet or upgrading an aging analog input subsystem, this module delivers drop-in mechanical and electrical compatibility with existing I/A Series baseplate assemblies and CP60 or CP270 controller configurations.

The FBM216B supports HART protocol pass-through on all 16 channels simultaneously, enabling field device diagnostics and asset management without additional signal conditioning hardware. This is particularly valuable during retrofit projects where HART-capable transmitters — such as pressure, flow, or temperature instruments — are already installed in the field but were previously connected to non-HART-capable input modules. Upgrading to the FBM216B P0927AJ allows engineering teams to activate HART communication and integrate field device data into the DCS historian or asset management layer without rewiring.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful FBM216B retrofit begins well before the module arrives on site. Engineering teams should first audit the existing I/A Series baseplate to confirm slot availability and verify that the FPS (Field Power Supply) — typically a P0922VW or equivalent — has sufficient headroom to support the FBM216B’s power draw alongside co-installed modules such as FBM201 (analog output), FBM204 (digital input), or FBM207 (digital output) modules sharing the same baseplate segment.

Terminal block wiring is a common source of delay during retrofit. The FBM216B uses the standard I/A Series 16-channel terminal assembly (P0916GN or equivalent), and field wiring from existing HART transmitters can typically be reconnected without modification. However, teams should verify loop power configuration — whether the module is sourcing loop power or the transmitters are externally powered — and confirm that the existing wiring documentation matches the as-built field installation before energizing.

For sites running redundant FBM pairs, the replacement sequence matters. The recommended approach is to install the new FBM216B P0927AJ in the standby slot first, allow the I/A Series CP controller to recognize and synchronize the module, then switch control to the new module before removing the failed unit. This approach, combined with a pre-loaded I/O database configuration in the Foxboro AIM historian or FoxView HMI, ensures that operator displays and alarm setpoints remain intact throughout the swap.

HART device integration should be validated post-installation using the Foxboro Device Management software or a compatible HART communicator. Field devices such as Rosemount 3051 pressure transmitters, Endress+Hauser Promag flowmeters, or Yokogawa EJA temperature transmitters connected to the FBM216B channels should be polled to confirm HART address assignment and primary variable mapping before returning the loop to automatic control.

For sites also upgrading their communication infrastructure, the FBM216B retrofit is often paired with CP270 controller replacements or Nodebus segment extensions using FBM Nodebus Extenders. If the project scope includes migrating from older CP10 or CP20 controllers, the I/O database and control module logic should be exported and validated in a staging environment before cutover to minimize unplanned downtime.

Downtime Control During System Migration

Minimizing process interruption is the primary constraint in any live-plant DCS retrofit. For FBM216B replacements in running I/A Series systems, the recommended strategy is to perform the swap during a planned maintenance window with the affected control loops placed in manual mode at the FoxView or equivalent HMI station. Operators should confirm that all downstream final control elements — control valves, variable speed drives, or interlock-linked actuators — are in a safe manual state before the module is removed.

The I/A Series CP controller retains the I/O configuration in non-volatile memory, so a correctly addressed FBM216B P0927AJ will be recognized and initialized automatically upon insertion without requiring a controller restart. This plug-and-play behavior significantly reduces cutover time compared to older DCS architectures. After insertion, the CP will perform a self-test and report module health status via the FoxView system display within approximately 60–90 seconds.

Original control module logic — including PID tuning parameters, cascade configurations, and interlock logic — is preserved in the CP controller and does not need to be reloaded following a module swap. However, HART device parameters stored in the field device itself (not in the DCS) should be verified post-swap to confirm that device tag assignments and engineering unit configurations remain consistent with the process database.

For multi-cabinet or multi-train installations where several FBM216B modules require replacement, a phased approach — replacing one module per maintenance window — is strongly recommended to limit the scope of any single cutover event and preserve overall system availability.

Retrofit Support FAQ

Q1: Is the FBM216B P0927AJ a direct drop-in replacement for the FBM216 and FBM216A?
Yes. The FBM216B P0927AJ is mechanically and electrically compatible with the FBM216 and FBM216A and installs into the same I/A Series baseplate slot. The primary difference is enhanced HART protocol support on all 16 channels. No changes to field wiring or terminal blocks are required in most installations.

Q2: What pre-shipment testing is performed on the FBM216B P0927AJ?
Each unit undergoes a full functional test prior to shipment, including channel-by-channel analog input verification, HART communication validation, and power consumption measurement. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Do I need to update the CP controller firmware before installing the FBM216B P0927AJ?
The FBM216B is compatible with CP60, CP270, and CP40B controllers running firmware V8.x and above. If your site is running an earlier firmware version, a firmware update is recommended before installation to ensure full HART pass-through functionality and module health reporting are available.

Q4: Can the FBM216B P0927AJ be used in a redundant pair configuration?
Yes. The FBM216B supports I/A Series hardware redundancy when installed as a matched pair in adjacent baseplate slots. The CP controller manages automatic switchover between the primary and standby modules with no process interruption. Both modules in a redundant pair should be of the same revision (P0927AJ) to ensure consistent behavior.
