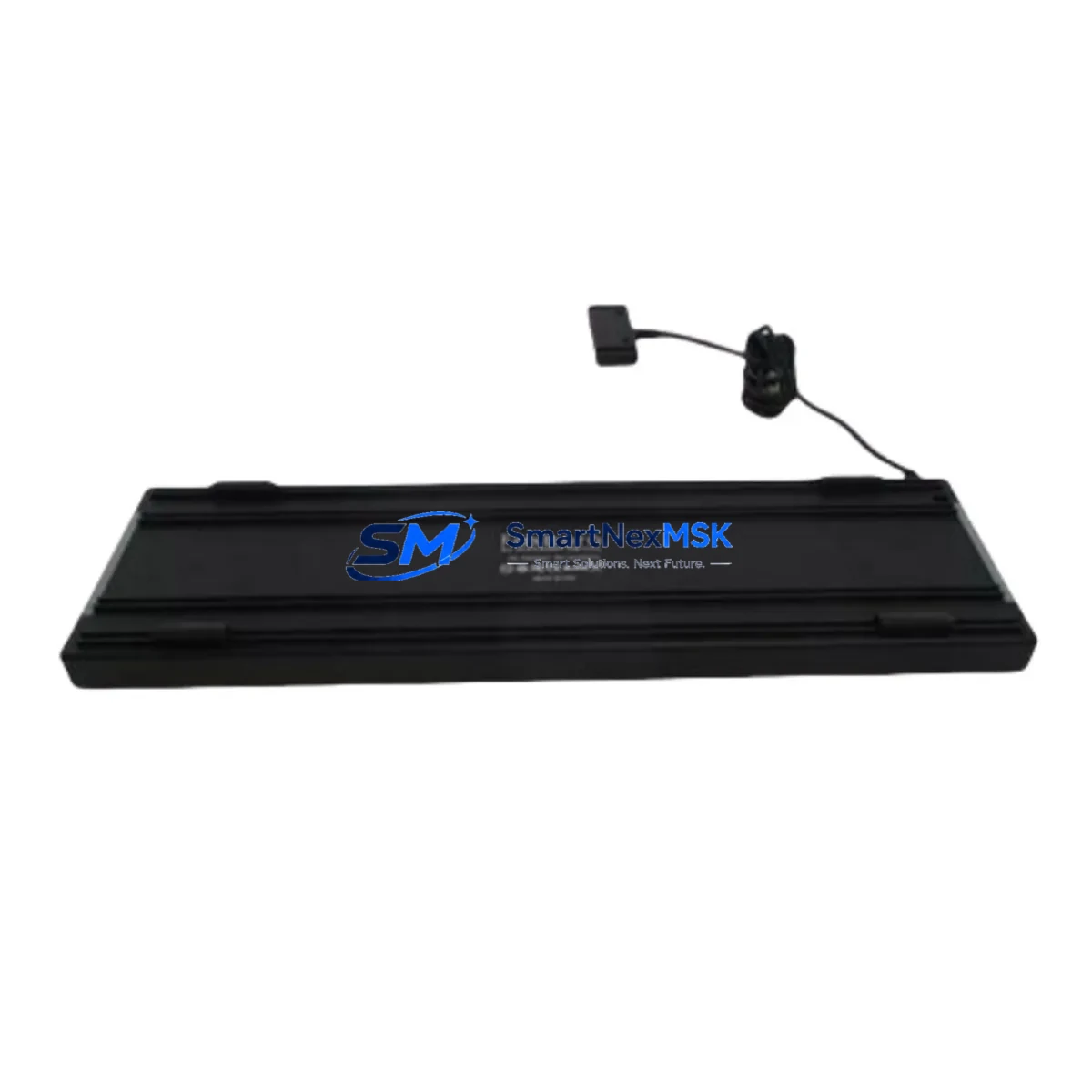

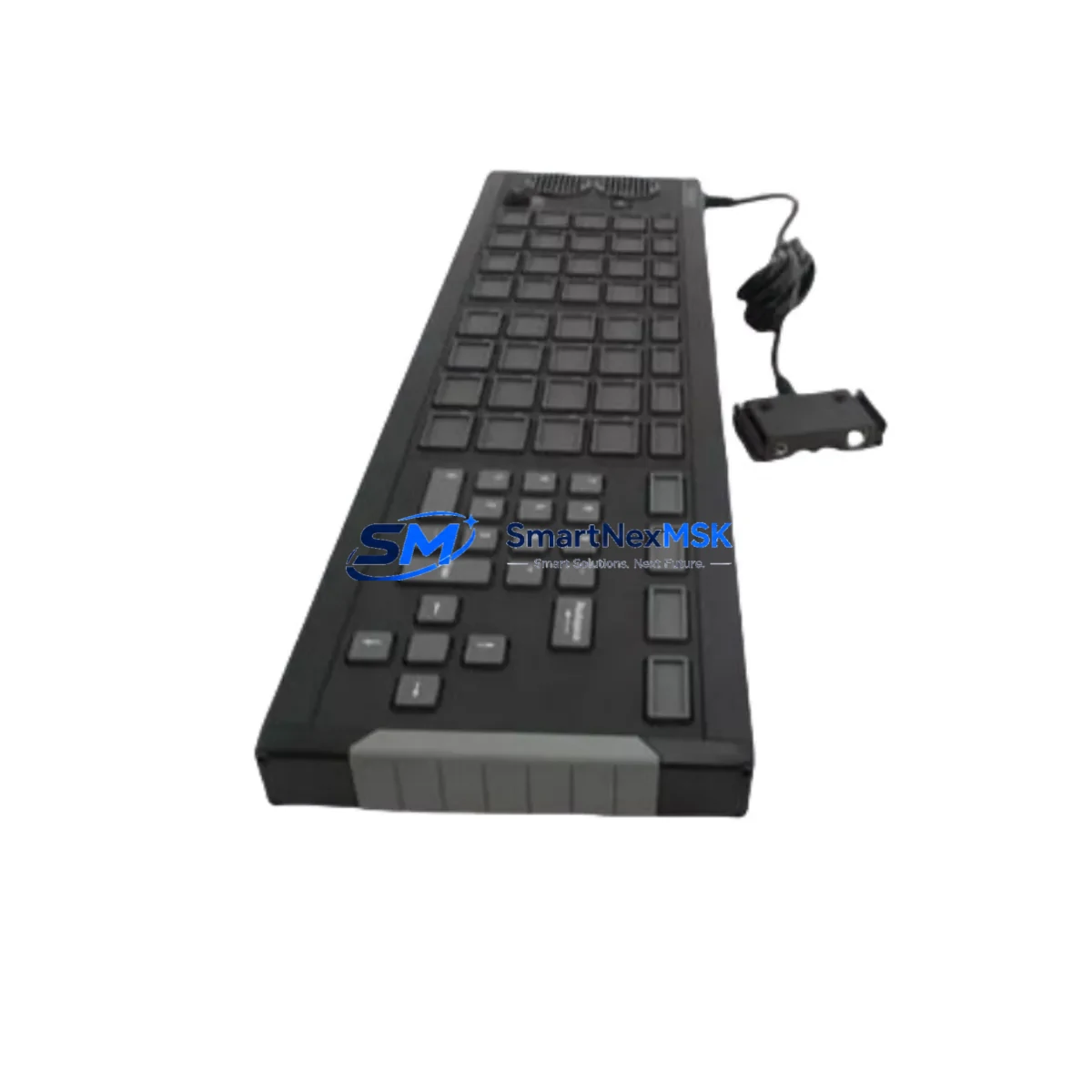

The Foxboro P0924WV is an original USB Annunciator Keyboard and operator input module designed for the Foxboro I/A Series Distributed Control System (DCS). As a critical human-machine interface component within the I/A Series control architecture, the P0924WV enables operators to acknowledge alarms, navigate process displays, and execute control commands directly at the workstation level. When this module fails or degrades, the consequences extend beyond operator inconvenience — alarm management is compromised, process visibility is reduced, and the risk of undetected fault escalation increases significantly.

For maintenance engineers managing aging I/A Series installations, maintaining a qualified spare P0924WV in the control room inventory is a fundamental risk-mitigation strategy. The module interfaces directly with the I/A Series Workstation (IWS) environment and is compatible with both legacy and updated I/A Series software revisions. Its USB connectivity simplifies replacement without requiring specialized cabling or bus termination procedures, making it one of the more field-serviceable components in the I/A Series operator console stack.

Each P0924WV unit supplied by SMARTNEXMSK is sourced as an original Foxboro component, inspected for physical integrity, and functionally tested prior to shipment. A 12-month warranty is provided from the date of delivery, covering manufacturing defects and operational failures under normal industrial use conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a P0924WV operator keyboard fails in an I/A Series control room, the replacement workflow should extend beyond the keyboard itself. Maintenance engineers are advised to treat this event as a trigger for a broader console and workstation inspection. The I/A Series operator console typically integrates multiple interdependent components, and a keyboard failure may indicate underlying issues with the workstation’s USB hub, power supply, or software configuration.

During planned or corrective maintenance involving the P0924WV, engineers should concurrently inspect the following associated components and subsystems:

• I/A Series Workstation Power Supply (e.g., P0922VW or equivalent AW-series PSU): Verify output voltage stability. An unstable 5V or 12V rail can cause intermittent USB device recognition failures that mimic keyboard hardware faults.
• USB Hub or Internal Workstation USB Controller: Test all USB ports on the workstation. If multiple USB devices are affected, the hub or controller — not the P0924WV — may be the root cause.
• I/A Series Alarm Printer Interface or Annunciator Panel: The P0924WV works in conjunction with alarm annunciation hardware. Inspect the annunciator panel wiring and relay outputs for continuity and correct termination.
• FBM (Field Bus Module) Communication Status: While replacing the operator keyboard, verify that FBM modules such as the FBM201, FBM202, or FBM207 are reporting correctly in the I/A Series system. A workstation reboot during keyboard replacement may temporarily disrupt FBM polling.
• I/A Series Application Workstation (AW) Software Configuration: Confirm that the replacement P0924WV is recognized by the IWS software and that keyboard mapping files are intact. In some I/A Series revisions, USB device enumeration requires a configuration file update.
• Control Network Switch or Hub (e.g., Foxboro MESH or Nodebus components): If the workstation is being rebooted as part of the keyboard replacement, use the downtime window to inspect network switch port status and cable integrity on the control LAN.
• Operator Display Monitors and Video Cards: Inspect the display subsystem for pixel anomalies or sync issues. Operator console downtime is an efficient opportunity to address display hardware that may be approaching end of life.
• UPS (Uninterruptible Power Supply) for Operator Workstation: Verify UPS battery health and runtime capacity. Workstation-level UPS units in I/A Series installations are frequently overlooked during routine maintenance cycles.
• I/A Series Historian or Data Server Connectivity: Confirm that the historian connection from the operator workstation is intact after the keyboard replacement and workstation restart.

Procurement engineers should note that the P0924WV, while a relatively low-cost line item, is a single point of failure for operator alarm acknowledgment. Maintaining at least one qualified spare in the control room cabinet — alongside spares for the workstation power supply and key FBM modules — is consistent with best-practice spare parts inventory management for I/A Series installations.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the P0924WV is the failed component by testing with a known-good USB keyboard on the same port. If the substitute keyboard is recognized, the P0924WV is confirmed faulty. If not, escalate to USB hub or workstation diagnostics.

Step 2 — System State Documentation: Before disconnecting the failed unit, document the current alarm state, active process displays, and any pending operator actions. Notify the control room supervisor and shift engineer of the planned replacement.

Step 3 — Hot-Swap Procedure: The P0924WV connects via USB and can typically be replaced without a full workstation shutdown in most I/A Series software revisions. Disconnect the failed unit, connect the replacement P0924WV, and allow the operating system to enumerate the device. Verify keyboard recognition in the IWS device manager.

Step 4 — Functional Verification: Test all annunciator keys, alarm acknowledgment functions, and navigation inputs. Confirm that the I/A Series software correctly maps all key functions to the replacement unit. If key mapping is incorrect, apply the appropriate IWS keyboard configuration file.

Step 5 — Return to Service: Notify the shift engineer that the replacement is complete. Log the maintenance event in the plant CMMS with the replacement part number, date, and technician ID. Tag the failed unit for failure analysis or disposal per site procedures.

The P0924WV replacement process is designed to minimize operator console downtime. In most I/A Series installations, the total replacement time from fault confirmation to return-to-service is under 30 minutes when a qualified spare is available on-site.

Spare Parts Support FAQ

Q1: Is the P0924WV compatible with all I/A Series workstation revisions?
The P0924WV is designed for I/A Series workstations using USB-based operator console configurations, including AW70 and AW51J platforms. Compatibility with specific I/A Series software revisions should be verified against the Foxboro I/A Series hardware compatibility matrix. SMARTNEXMSK can provide compatibility guidance based on your workstation model and software version upon request.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and operational failures under normal industrial operating conditions from the date of delivery. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or use outside the specified environmental parameters. Warranty claims are processed through SMARTNEXMSK’s technical support team with a typical response time of 1–2 business days.

Q3: How is the P0924WV tested before shipment?
Each unit undergoes a pre-shipment functional test that verifies USB enumeration, key actuation response, and physical connector integrity. Units that do not pass functional verification are not dispatched. Test records are retained and can be provided upon request for quality documentation purposes.

Q4: Can SMARTNEXMSK support long-term supply of the P0924WV for multi-year maintenance contracts?
Yes. SMARTNEXMSK maintains ongoing sourcing relationships for Foxboro I/A Series spare parts, including the P0924WV. For customers with multi-year maintenance contracts or planned shutdown schedules, we recommend establishing a blanket order or reserved inventory arrangement to ensure availability. Contact our sales team to discuss long-term supply agreements tailored to your plant’s maintenance cycle.
