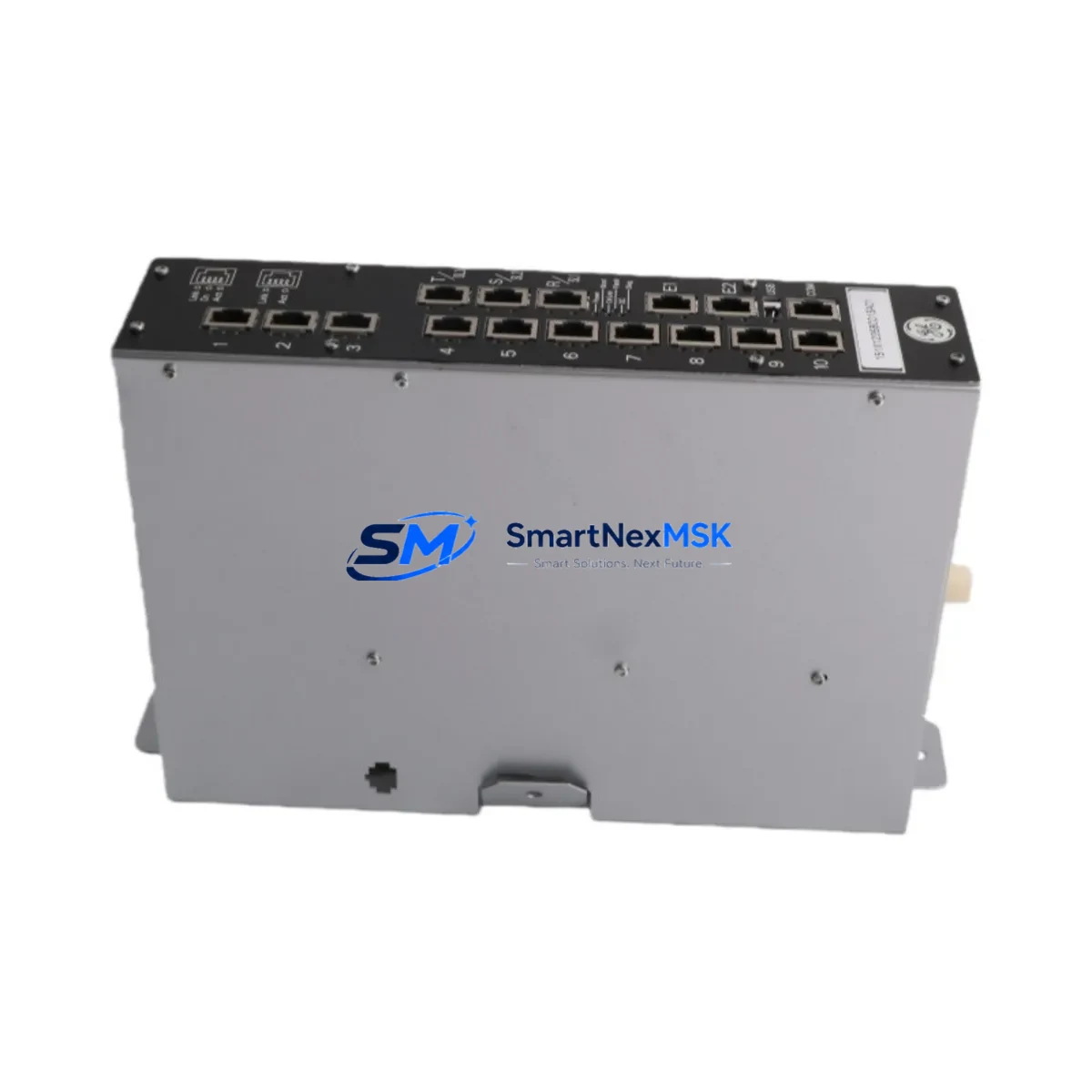

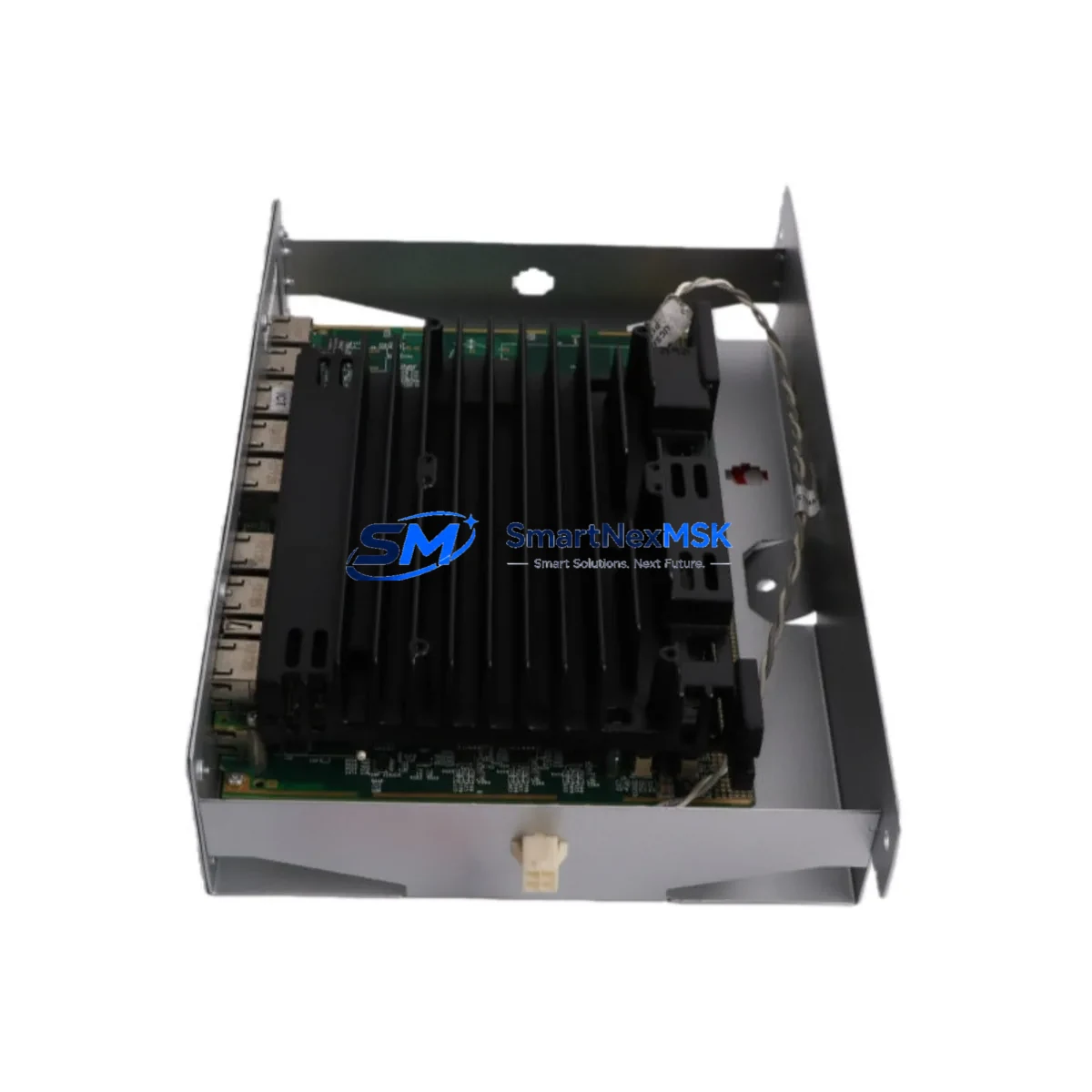

GE 151X1233DB02SA02 Spare for Wind Turbine Pitch Automation: Rapid Replacement & Downtime Control
The GE 151X1233DB02SA02 is an original DC pitch converter module engineered for wind turbine pitch control automation systems. In wind energy operations, pitch control failures translate directly into turbine shutdown and lost generation revenue. Maintaining a verified spare of the 151X1233DB02SA02 in your on-site inventory is a proven strategy for minimizing unplanned downtime and restoring blade pitch regulation within the shortest possible maintenance window. This module is sourced as an original GE component, fully tested prior to shipment, and backed by a 12-month warranty to support your long-term maintenance planning.
Spare Maintenance Table
| SKU / Part Number | 151X1233DB02SA02 |
| Brand | GE (General Electric) |
| Product Type | DC Pitch Converter Module |
| Series / Application | GE Wind Turbine Pitch Control System |
| Function | DC bus conversion and regulation for blade pitch drive circuits |
| Compatibility | GE 1.5 MW / 2.x MW series wind turbines; pitch control cabinet integration |
| Input Voltage | Nominal DC bus voltage per GE pitch system specification |
| Installation | DIN rail / panel mount within pitch control cabinet; OEM connector interface |
| Operating Environment | Industrial; suitable for nacelle and tower base control cabinet environments |
| Weight | 600 g (approx.) |
| Origin | USA (GE OEM) |
| Condition | Original, tested before shipment |
| Warranty | 12 Months |
| Maintenance Recommendation | Inspect DC bus connections and capacitor health at each scheduled service interval; replace proactively at first sign of voltage instability or pitch response lag |
Maintenance Planning for Continuous Operation
When a 151X1233DB02SA02 DC pitch converter module is flagged for replacement during a scheduled inspection or emergency fault response, experienced maintenance engineers know that a single-component swap rarely tells the full story. A thorough pitch cabinet audit should accompany every module replacement to prevent repeat failures and ensure system stability.
Begin by verifying the DC bus fuse and associated fuse holders feeding the pitch converter — a blown or weakened fuse is frequently the root cause of converter stress. Inspect the pitch drive capacitor bank for signs of bulging, leakage, or elevated ESR, as degraded capacitors accelerate converter wear. Check the pitch motor contactor and its auxiliary contacts for pitting or contact resistance, since a sluggish contactor can cause voltage spikes that damage the converter module.
Review the pitch encoder signal integrity: a faulty encoder or loose encoder cable connector can cause erratic pitch positioning commands that overload the converter. Inspect the pitch battery backup module — in emergency feather mode, the battery system must deliver reliable DC power; a weak battery pack will stress the 151X1233DB02SA02 during grid fault events. Examine the pitch control board (PCB) for corrosion, loose ribbon connectors, or failed optocouplers that may generate false fault signals.
On the communication side, verify the CAN bus or PROFIBUS connection between the pitch controller and the main turbine controller (MTC) — communication dropouts can trigger unnecessary pitch fault resets that cycle the converter repeatedly. If the turbine uses a GE Mark VIe or similar control platform, confirm that the I/O module handling pitch feedback signals is reading within calibrated range. Check the terminal blocks and wire ferrules in the pitch cabinet for looseness or oxidation, particularly on high-current DC circuits. Finally, inspect the cabinet thermal management: a clogged filter mat or failed cooling fan raises ambient temperature and shortens the service life of every electronic component in the enclosure, including the replacement 151X1233DB02SA02.
Proactive spare inventory for the 151X1233DB02SA02, combined with a structured pitch cabinet inspection checklist, is the most cost-effective approach to extending turbine availability and deferring major drivetrain maintenance events.
Site Replacement Workflow
Before removing the failed 151X1233DB02SA02, isolate the pitch cabinet by following the site-specific lockout/tagout (LOTO) procedure and confirm zero voltage on the DC bus with a calibrated multimeter. Photograph the existing wiring harness and connector orientation before disconnection — this is especially important on older GE turbines where field modifications may have been made over the years.
Remove the faulty module by releasing the DIN rail latch or panel fasteners, then disconnect the DC bus terminals and signal connectors in the reverse order of the OEM wiring diagram. Install the replacement 151X1233DB02SA02, reconnect all terminals to the specified torque values, and verify that the module firmware revision is compatible with the installed pitch controller software version. If the turbine has been running an older pitch controller firmware, consult the GE service bulletin for any required parameter re-initialization after module swap.
Power up the pitch cabinet in test mode and command a full pitch cycle (0° to 90° feather and return) to verify smooth, fault-free operation before returning the turbine to automatic control. Log the replacement in the site CMMS with the module serial number, installation date, and technician ID to support future warranty claims and maintenance traceability. This structured workflow reduces average pitch cabinet downtime from several hours to under 90 minutes for experienced crews with a pre-staged spare.
Spare Parts Support FAQ
Q1: Is the 151X1233DB02SA02 compatible with both 1.5 MW and 2.x MW GE wind turbine platforms?
The 151X1233DB02SA02 is designed for GE wind turbine pitch control systems. Compatibility with a specific turbine platform and pitch controller revision should be confirmed against the GE OEM part number cross-reference for your site. We recommend providing your turbine model and controller software version when ordering to ensure a verified match.
Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested before shipment and ships with a test report. To initiate a warranty claim, contact our technical team with the module serial number, installation date, and a description of the fault. Replacement or repair is arranged with priority handling to minimize your site downtime.
Q3: How should the 151X1233DB02SA02 be stored as a long-term spare?
Store the module in its original anti-static packaging in a dry, temperature-controlled environment (typically 5°C to 40°C, <85% RH non-condensing). Avoid storage near strong magnetic fields or high-vibration areas. For long-term inventory (12+ months), inspect the module annually and verify DC bus capacitor health before installation. Proper storage preserves full functionality and warranty validity.
Q4: Can this module replace older or superseded GE pitch converter part numbers?
The 151X1233DB02SA02 may serve as a direct or compatible replacement for earlier GE pitch converter revisions within the same series, subject to firmware and connector compatibility verification. Our technical team can assist with cross-referencing legacy part numbers and advising on any required configuration adjustments to ensure a drop-in replacement with minimal commissioning effort.
—
