GE 8020-CE-RH Maintenance-Ready Spare for Series One Plus

GE 8020-CE-RH Maintenance-Ready Spare for Series One Plus Automation

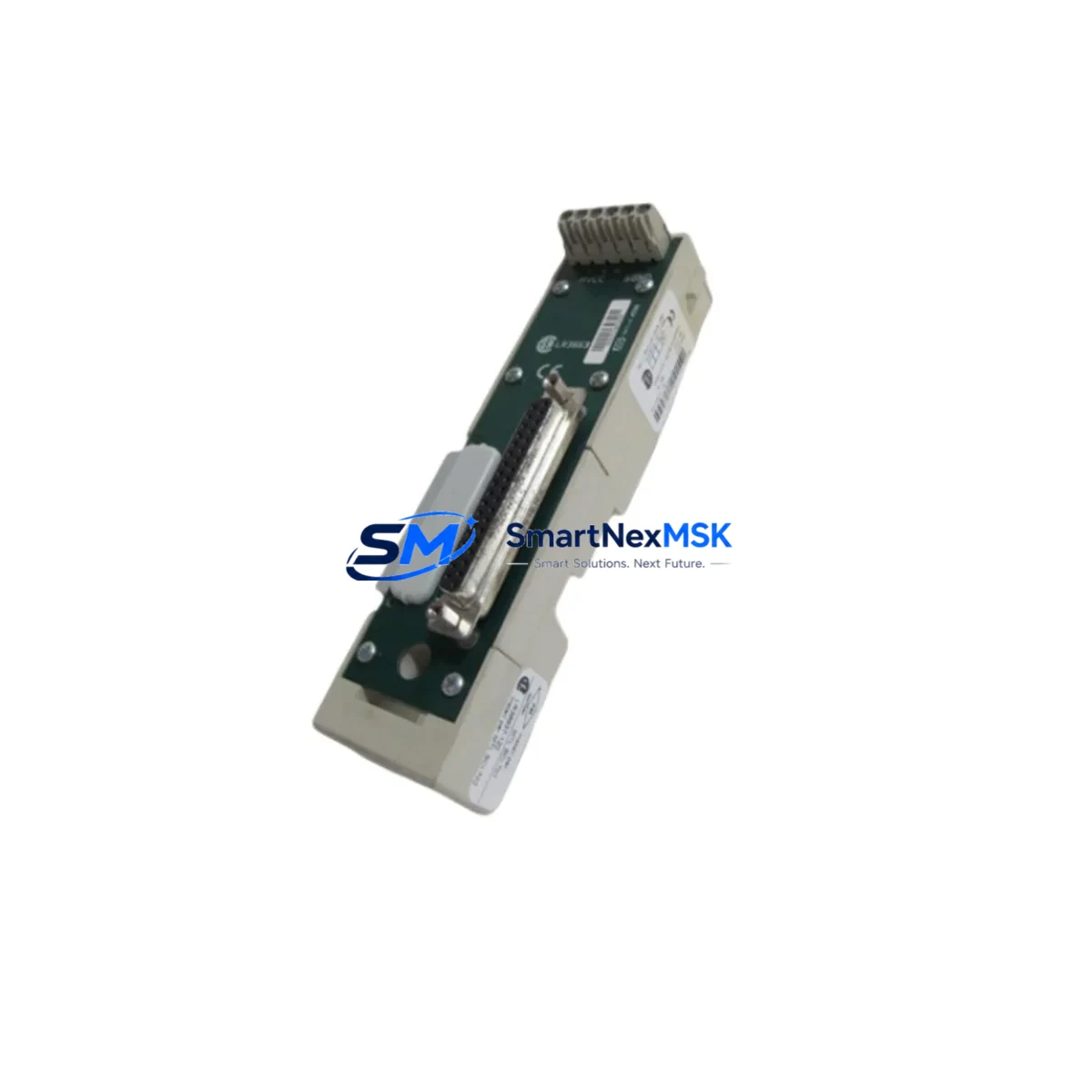

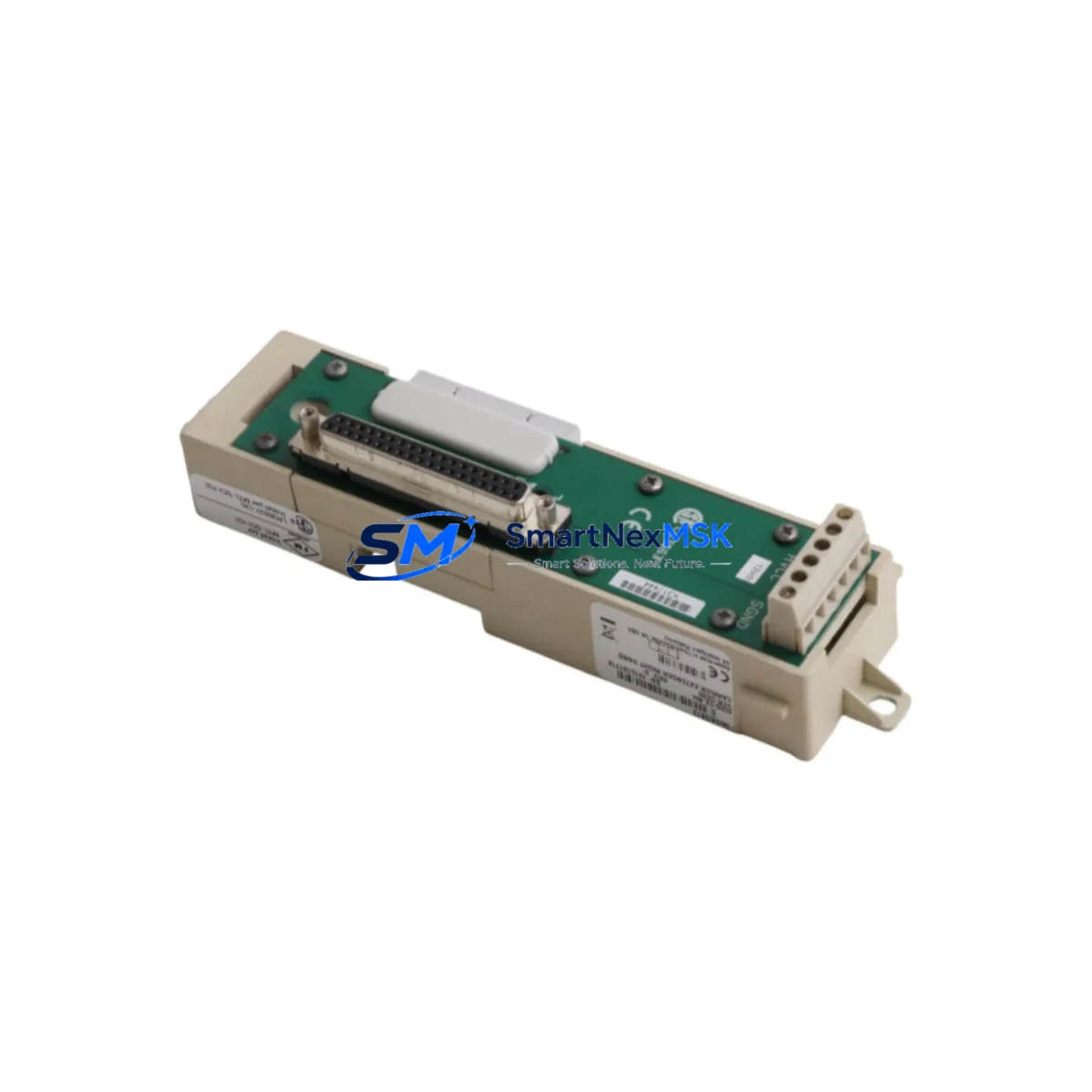

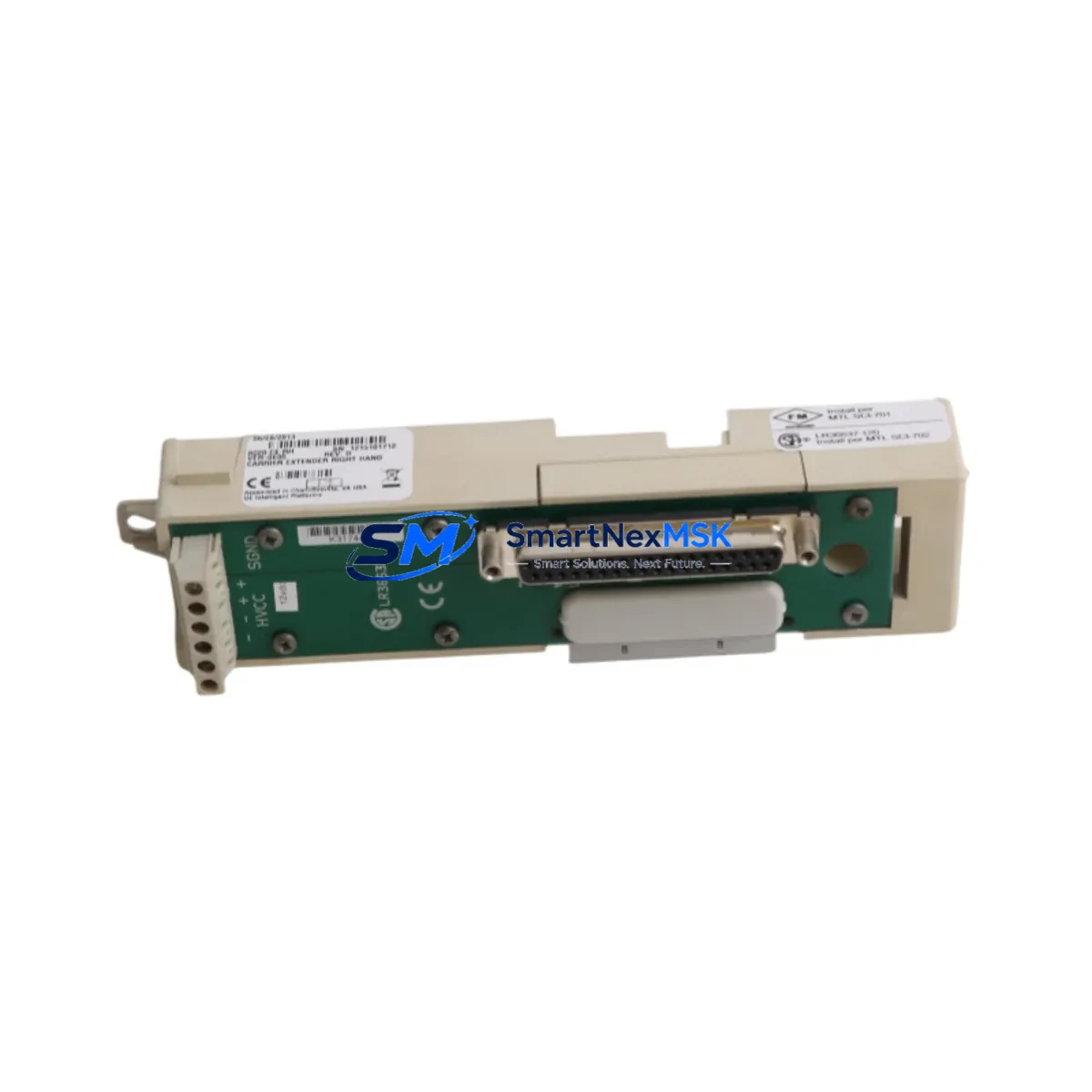

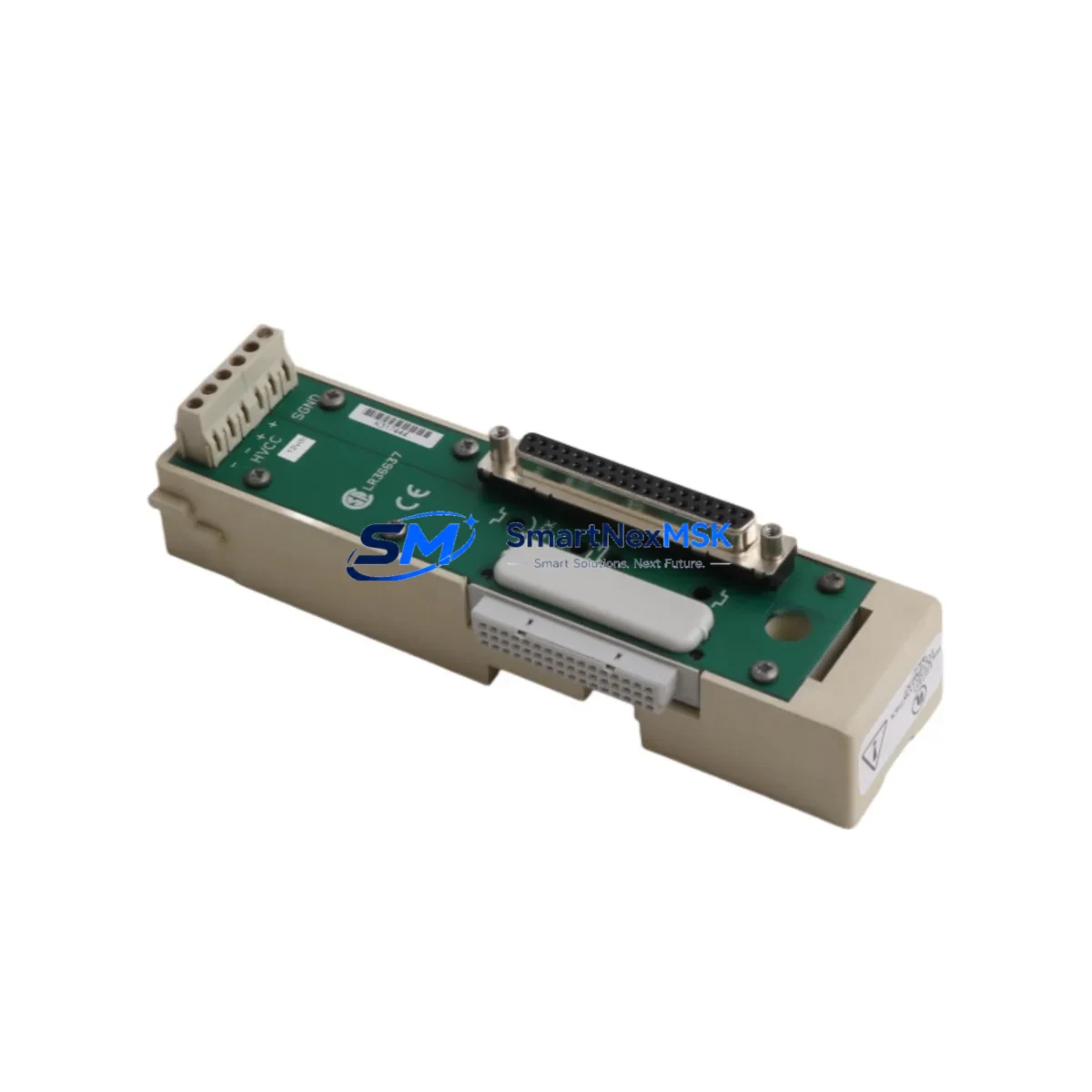

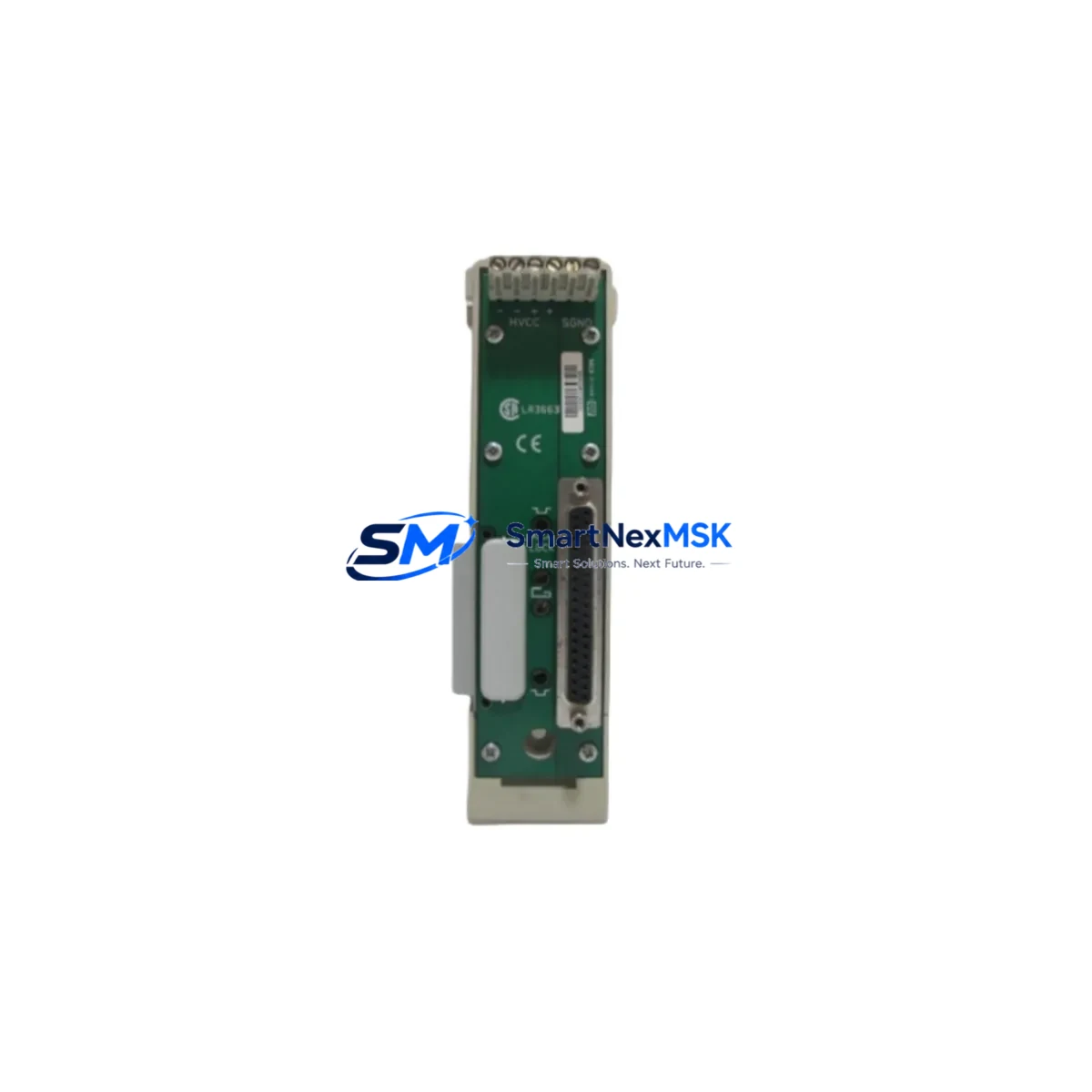

The GE 8020-CE-RH is an original I/O carrier extender designed for the GE Series One Plus programmable logic controller platform. In industrial maintenance environments where rack capacity, I/O expansion, and system uptime are critical, the 8020-CE-RH serves as a foundational spare part that enables rapid restoration of control system functionality following hardware failure or planned module replacement. Whether your facility operates continuous process lines, discrete manufacturing cells, or utility control panels, maintaining a verified spare of the 8020-CE-RH in your parts inventory directly reduces mean time to repair (MTTR) and protects against unplanned production stoppages.

Sourced as an original GE component, each 8020-CE-RH unit is tested prior to shipment and backed by a 12-month warranty, giving maintenance engineers and procurement teams confidence in both quality and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 8020-CE-RH in a Series One Plus control cabinet, a thorough maintenance engineer will treat the carrier extender replacement as an opportunity to audit the surrounding system. The 8020-CE-RH interfaces directly with the Series One Plus I/O rack backplane, meaning any degradation in the carrier’s connector integrity can affect multiple downstream I/O modules simultaneously. During the replacement procedure, it is advisable to inspect the adjacent 8020-DI-RH discrete input modules and 8020-DO-RH discrete output modules for signs of contact wear or loose wiring at the terminal blocks.

The Series One Plus CPU module (such as the IC610CPU105 or equivalent) should be verified for firmware integrity and communication status after any rack-level hardware change. If the system uses a Series One Plus power supply module (e.g., 8020-PS-DC or 8020-PS-AC variants), confirm that output voltage rails are within specification before re-energizing the rack — carrier extender replacements can temporarily interrupt backplane power distribution.

For facilities running mixed analog and digital I/O, the 8020-AI-RH analog input carrier and associated signal isolators in the same cabinet should be checked for proper grounding and shielding continuity. Loose shield terminations at the terminal strip assemblies are a common source of noise injection that becomes apparent only after a rack disturbance. Similarly, any 24VDC relay output modules sharing the same rack should have their coil suppression diodes and output fuse holders inspected as part of the same work order.

If the Series One Plus system communicates via a GE SNP or SNP-X serial communication module, verify that the communication cable connections at the RS-485 port remain secure after the carrier swap. Communication faults that appear post-maintenance are frequently traced to disturbed connector seating rather than module failure. For systems with an HMI panel connected to the Series One Plus CPU, confirm that the HMI communication link re-establishes correctly after power restoration and that all tag mappings remain intact.

Procurement engineers managing spare parts inventory for Series One Plus installations should consider stocking the 8020-CE-RH alongside complementary items such as Series One Plus I/O base units, replacement backplane connectors, and spare fuse kits for the power supply module. A well-structured bill of materials for the Series One Plus platform ensures that any single-point hardware failure can be resolved within one maintenance shift, minimizing the risk of extended downtime in critical production environments.

Site Replacement Workflow

Step 1 — Isolation and Lockout: De-energize the control cabinet following your site LOTO procedure. Confirm zero-energy state at the Series One Plus power supply module before touching any rack components.

Step 2 — Document Current Configuration: Photograph or record the I/O wiring layout, module slot assignments, and any jumper or DIP switch settings on adjacent modules before removal. This is especially important if the 8020-CE-RH has been in service for several years and original documentation may be incomplete.

Step 3 — Remove the Faulty Carrier Extender: Disconnect field wiring from the carrier terminals in a labeled sequence. Remove the 8020-CE-RH from the rack by releasing the mounting hardware and sliding the unit clear of the backplane connector. Inspect the backplane connector pins for damage or corrosion before installing the replacement.

Step 4 — Install the Replacement 8020-CE-RH: Seat the new carrier extender firmly into the backplane connector, ensuring full engagement. Reconnect field wiring according to your documented layout. Verify terminal torque specifications are met to prevent intermittent connections under vibration.

Step 5 — Power-Up and Verification: Re-energize the rack and observe the CPU module status indicators. Confirm that all I/O modules on the extended carrier report healthy status in the PLC diagnostic screen or HMI. Run a functional test of all I/O points served by the replaced carrier before returning the system to automatic operation.

This workflow is compatible with legacy Series One Plus installations and supports system life extension without requiring a full platform migration, preserving your existing investment in GE automation hardware.

Spare Parts Support FAQ

Q1: Is the 8020-CE-RH compatible with all Series One Plus rack configurations?
The 8020-CE-RH is designed specifically for the GE Series One Plus I/O rack system. It is compatible with standard Series One Plus base units and carrier assemblies. If your installation uses a non-standard rack configuration or a mixed Series One / Series One Plus hybrid, please contact our technical team with your full rack part numbers for compatibility confirmation before ordering.

Q2: What is included in the 12-month warranty?
Each 8020-CE-RH unit is covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period will be replaced or refunded at our discretion. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q3: How is the unit tested before shipment?
Every 8020-CE-RH is functionally tested prior to dispatch to verify backplane connector integrity, carrier rail continuity, and mechanical fit. Units that do not pass our outgoing inspection are not shipped. A test report is available upon request for customers with quality management system requirements.

Q4: Can you support long-term or repeat supply of the 8020-CE-RH for ongoing maintenance programs?
Yes. We maintain stock of the 8020-CE-RH and other Series One Plus spare parts to support planned maintenance programs, annual PM kits, and emergency replacement needs. Customers with recurring requirements are encouraged to contact us to discuss blanket order arrangements and priority allocation to ensure supply continuity for critical production assets.
